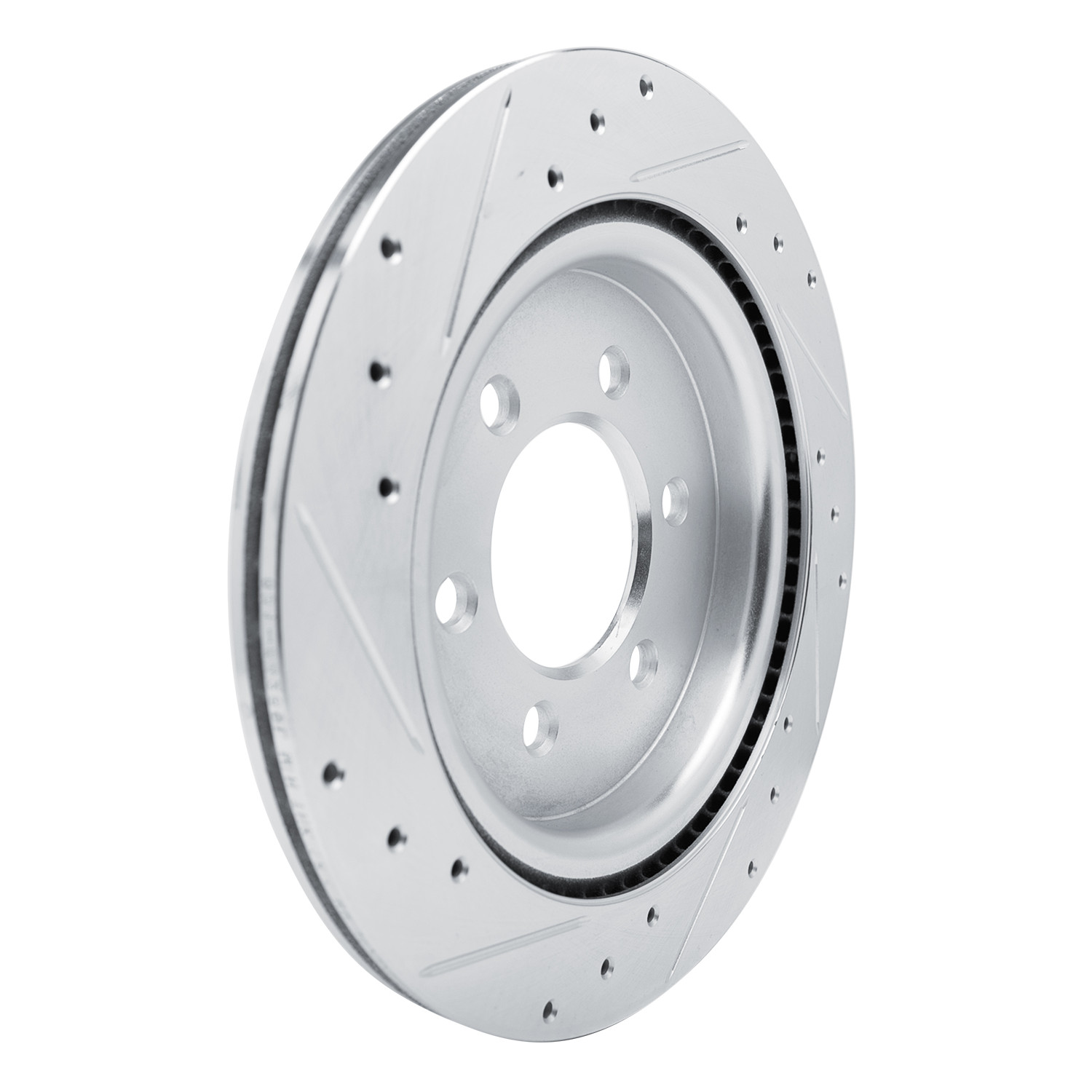

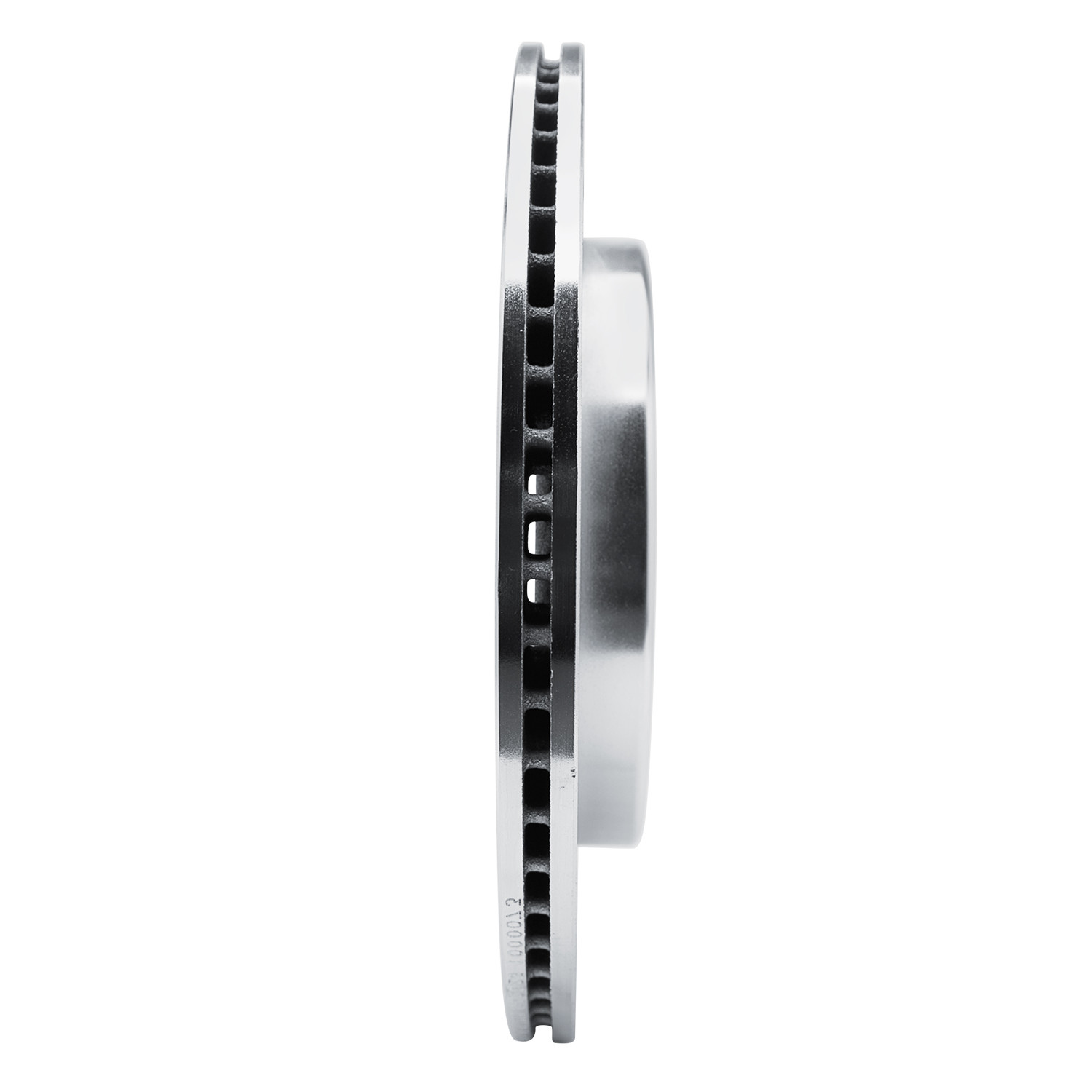

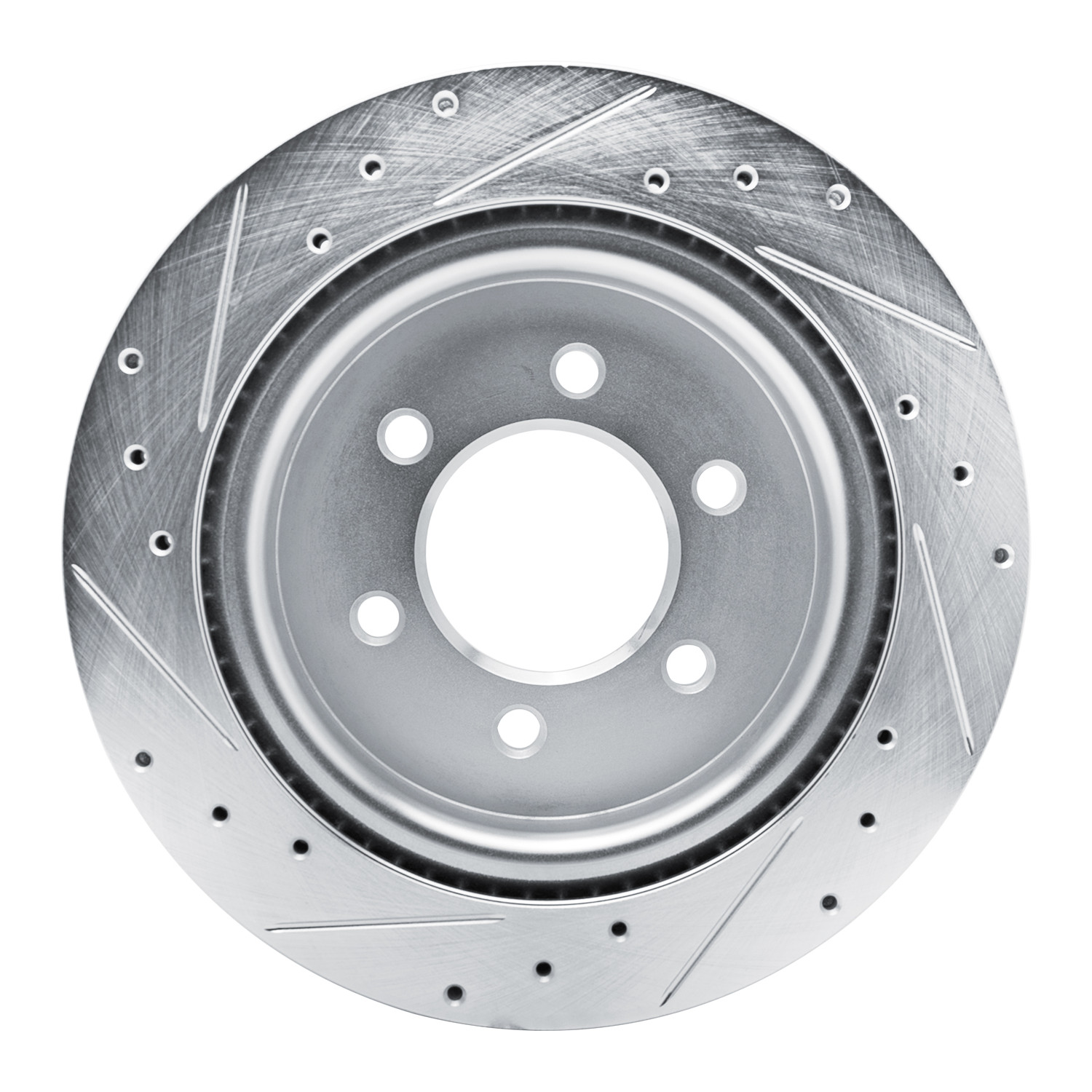

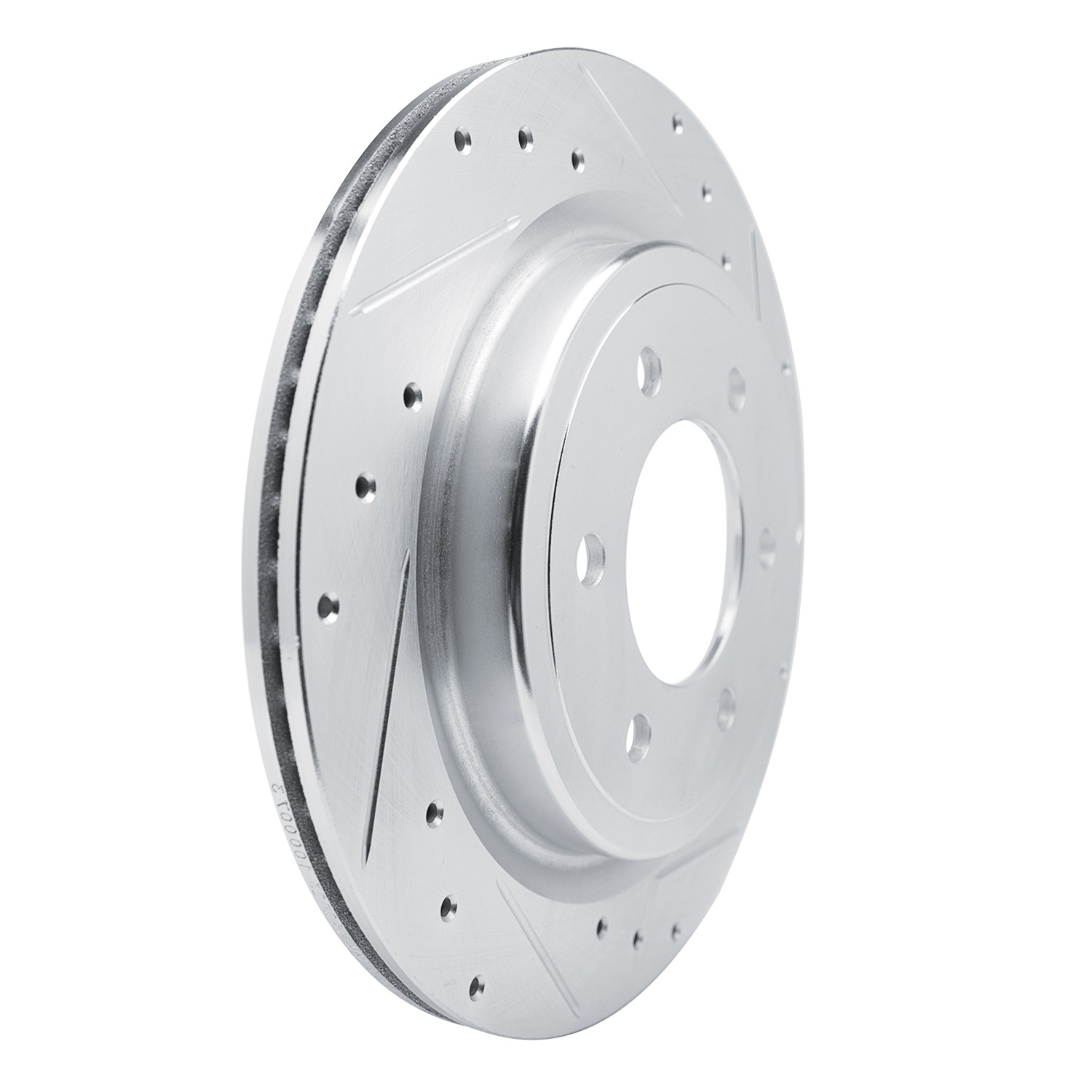

2026 Ford F-150 DFC Brake Rotor - Drilled and Slotted - Silver
Part Type:
Disc Brake Rotor
SKU:
631-54289R
Axle:
Rear Right
Sub model:
King Ranch, Lariat, Platinum, Police Responder, Raptor, SSV, STX, Tremor, XL, XLT
Engine Base:
2.7L 164ci V6 , 3.5L 3496cc 213ci V6 , 5.0L 5038cc 307ci V8
Body Type:
Crew Cab Pickup, Extended Cab Pickup, Standard Cab Pickup
PCQ:
1
Note:
Except Max Tow Rear Axle (336mm rear Disc)
Description
- DFC Brake Rotor - Drilled and Slotted - Silver
Features and Benefits
- New In Box, Ready To Install, No Modifications Required
- 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
- CNC-Machined To The Tightest Tolerances
- Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
- Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
- Non-Directional Finish To Promote Faster Break-In And Smoother Stops
- Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
- Quality Tested To Ensure Long-Lasting Performance
- Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge
Product Specifications
| Description | Value |
|---|---|
| Outside Diameter | 336mm |
| Bolt Hole Quantity | 6EA |
| Surface Type | Slotted X Drilled |
| Bolt Hole Diameter | 15.7mm |
| Height | 42.6mm |
| Discard Thickness | 18.5mm |
| Bolt Circle Diameter | 135mm |
| Description | Value |
|---|---|
| Disc Finish | Plain |
| Nominal Thickness | 20mm |
| Center Hole Diameter | 90.1mm |
| Rust Resistant Coating | Yes |
| Hat Finish | Zinc Silver |
| Stud/Lug Hole Quantity | 6 |
| Directional or Non-Directional Brake Surface | Directional |
| Weight | 15.95LB |
