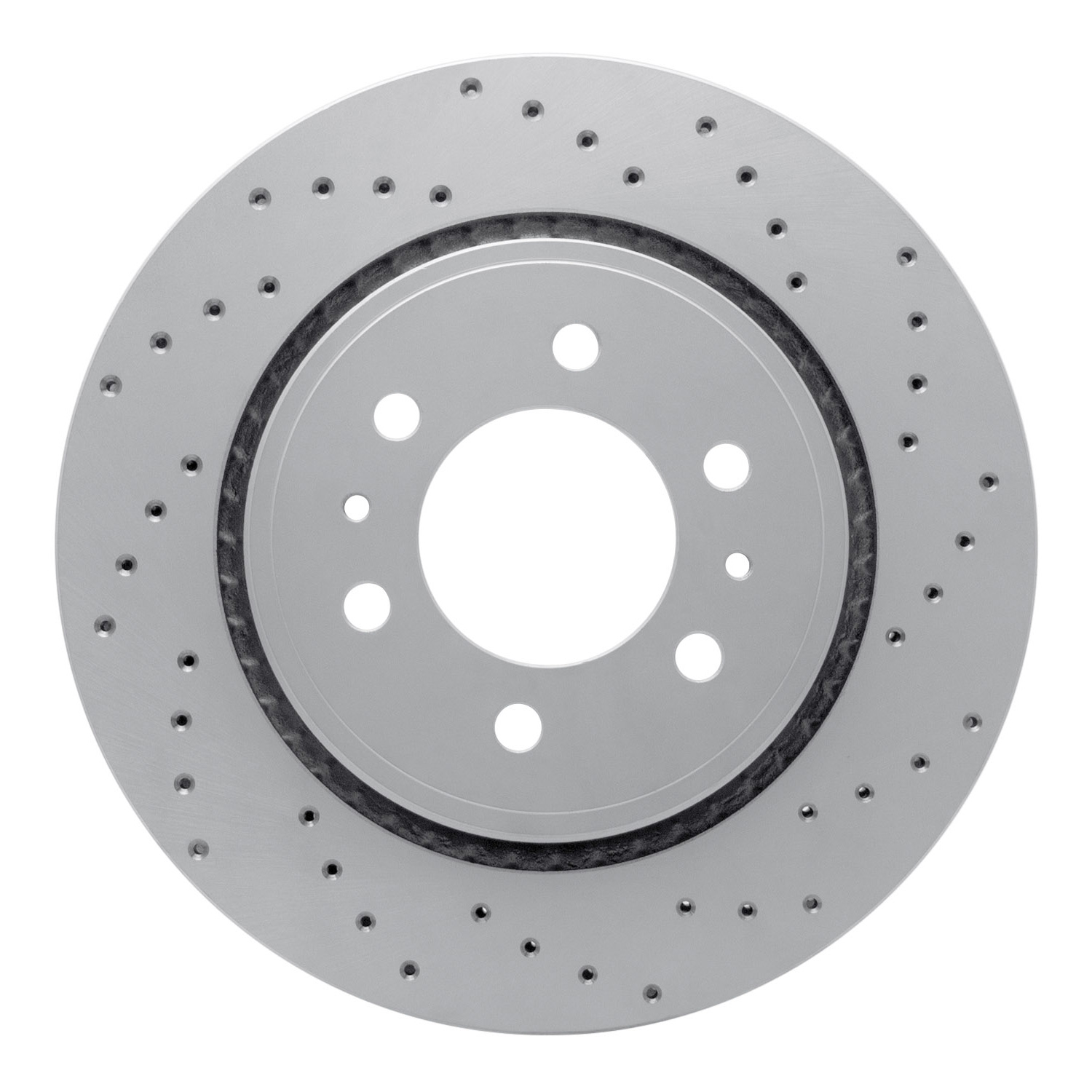

2024 Ford Transit-350 HD DFC Geoperformance Rotor - Drilled
Part Type:
Disc Brake Rotor
SKU:
820-54284R
Axle:
Rear Right
PCQ:
1
Note:
DRW; 11,000lb GVW; Vented Rear Disc
Product Specifications
| Description | Value |
|---|---|
| Bolt Hole Diameter | 12.6mm |
| Outside Diameter | 338mm |
| Height | 81.46mm |
| Bolt Hole Quantity | 6EA |
| Disc Finish | Plain |
| Directional or Non-Directional Brake Surface | Directional |
| Discard Thickness | 30mm |
| Hat Finish | Geospec Silver Grey |
| Description | Value |
|---|---|
| Stud/Lug Hole Quantity | 6 |
| Rust Resistant Coating | Yes |
| Nominal Thickness | 33mm |
| Center Hole Diameter | 129.33mm |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). | |
| Bolt Circle Diameter | 158.75mm |
| Surface Type | X Drilled |
| Weight | 28.5LB |
