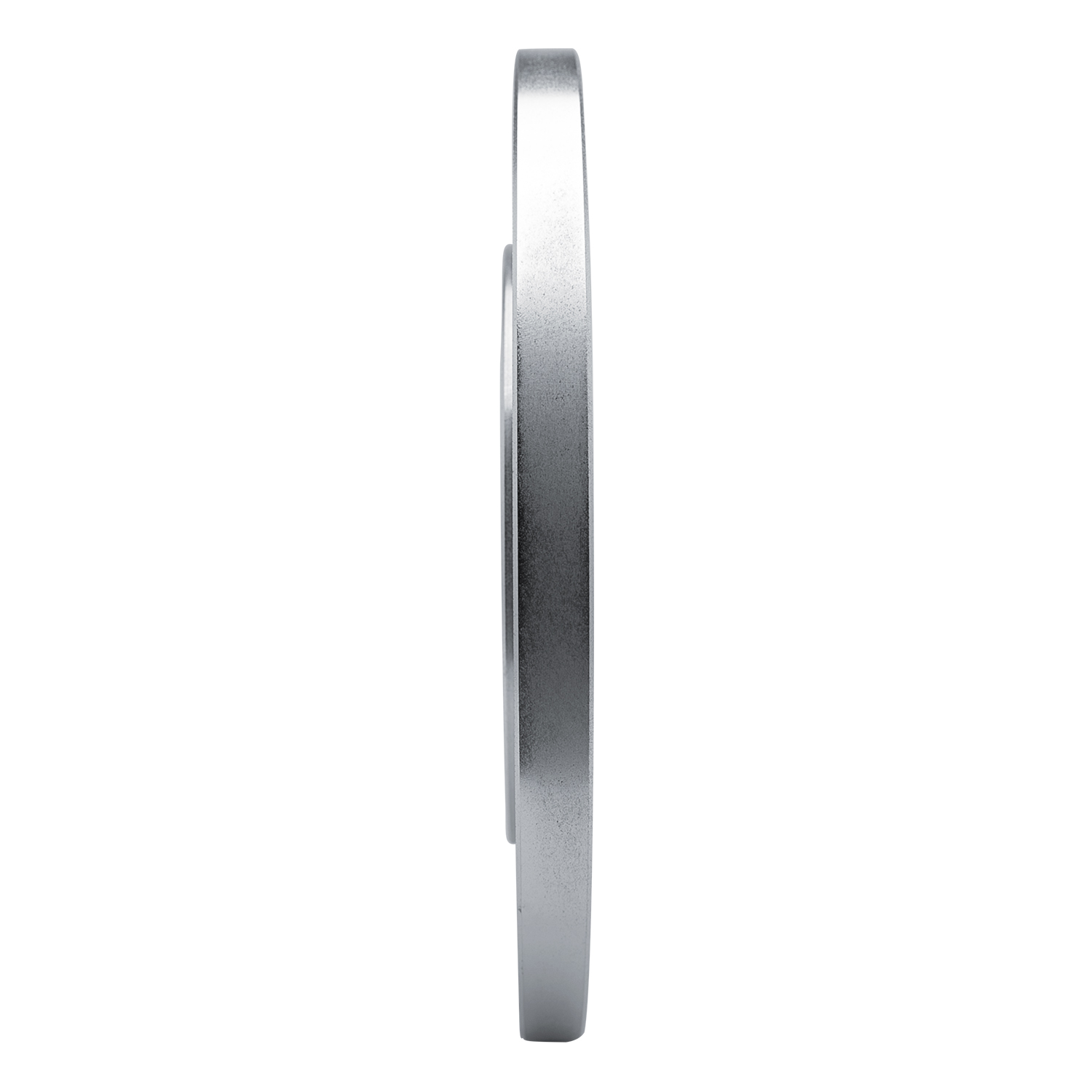

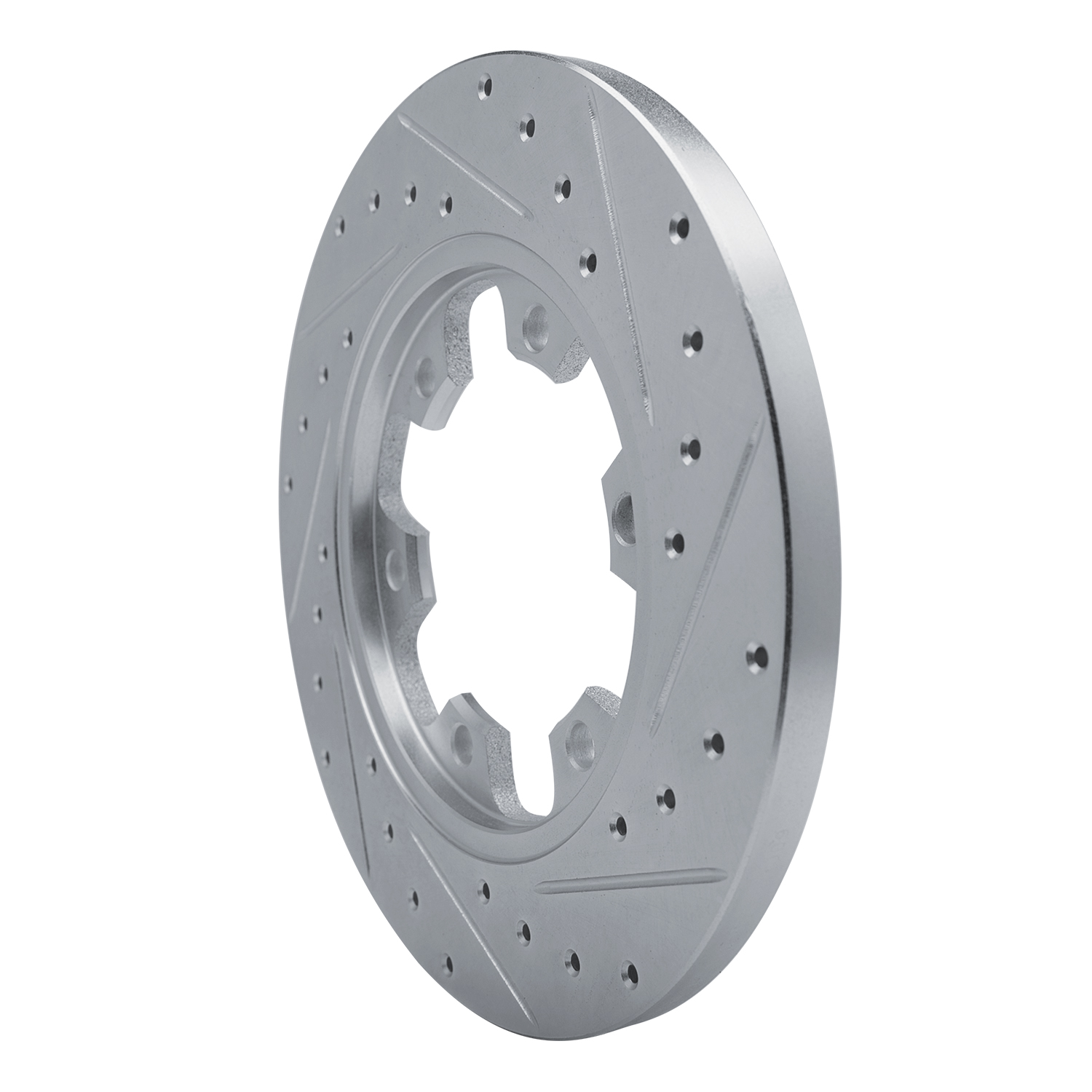

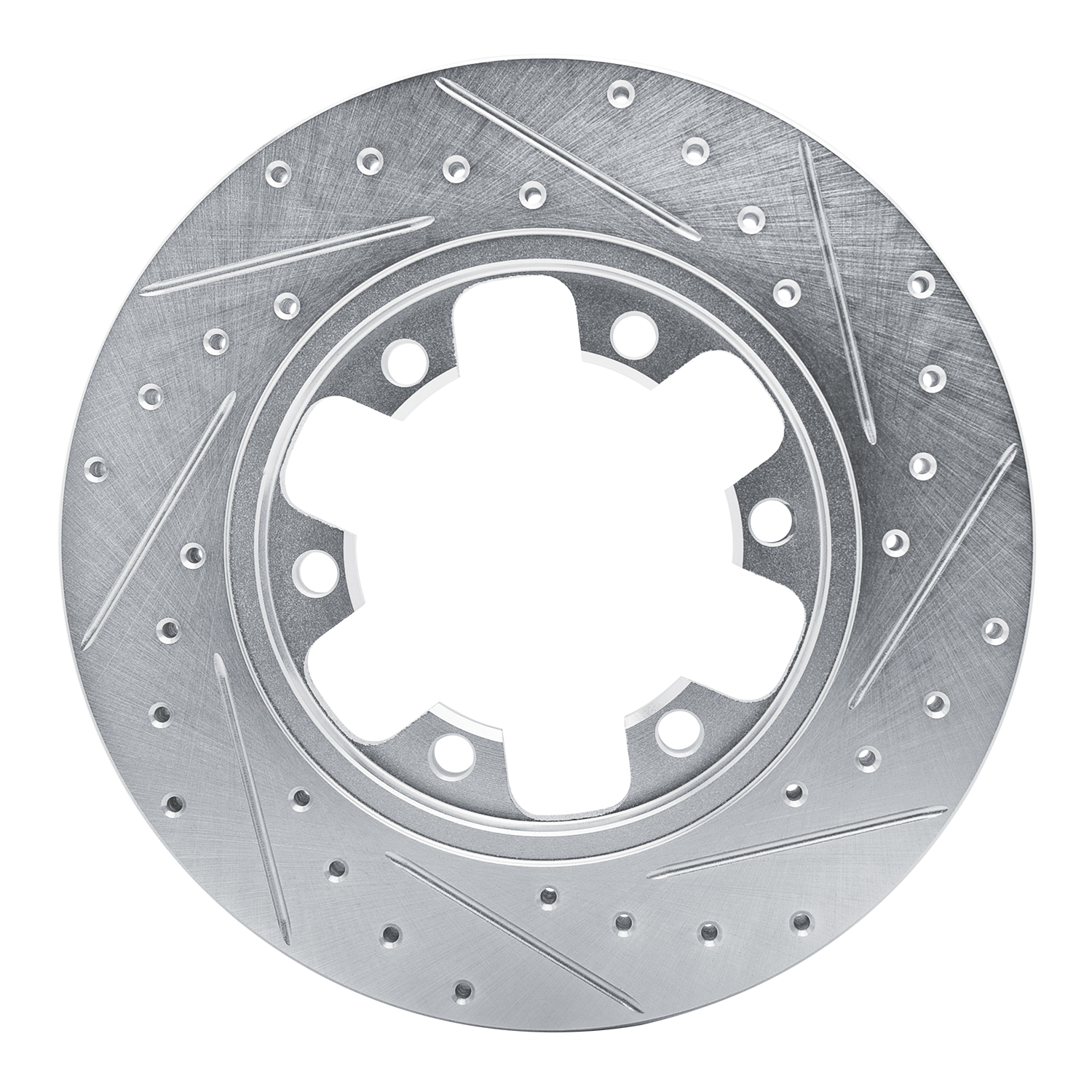

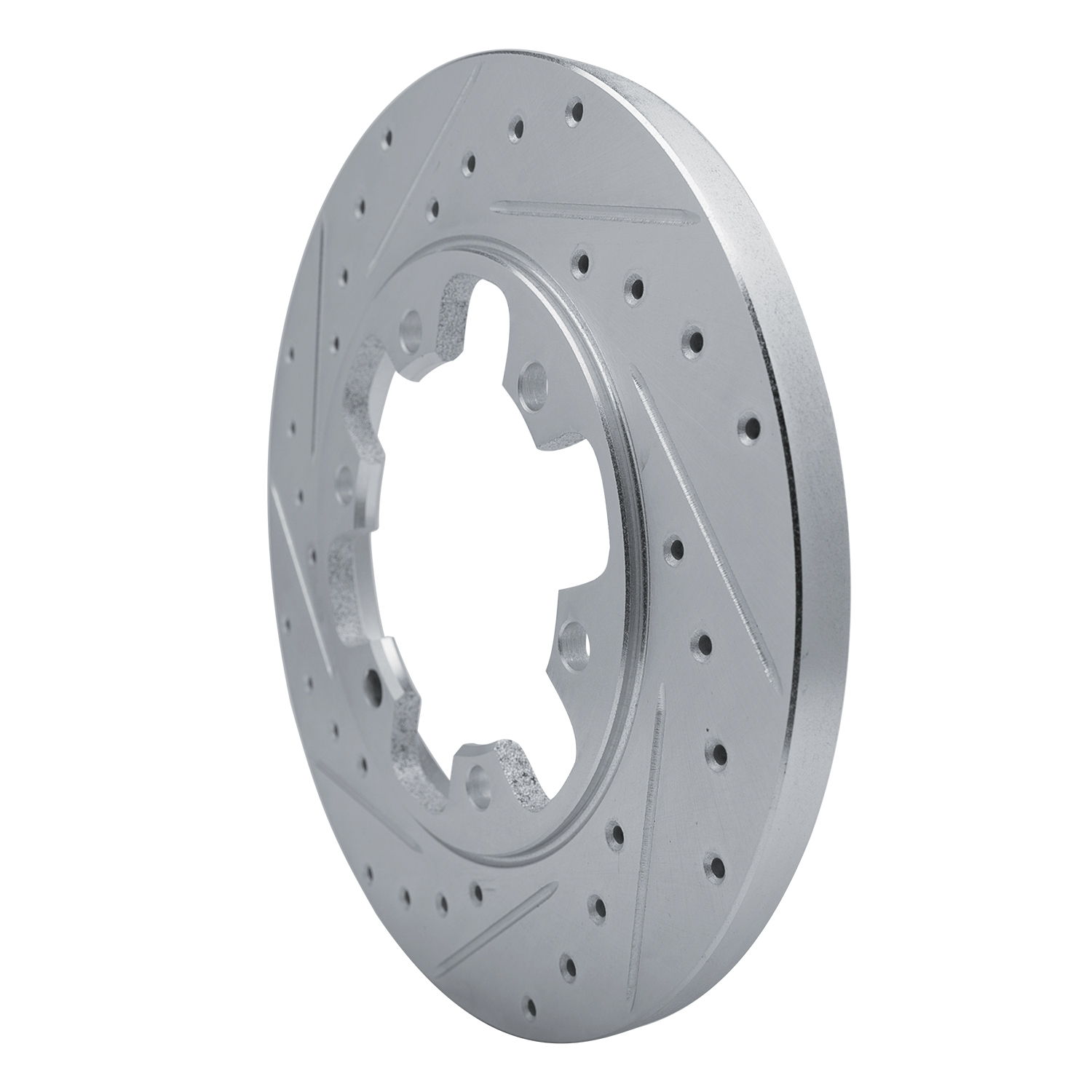

2023 Ford Transit-250 DFC Brake Rotor - Drilled and Slotted - Silver

Part Type:
Disc Brake Rotor
SKU:
631-54229L
Axle:
Rear Left
Drive Type:
AWD
PCQ:
1

Description

  • DFC Brake Rotor - Drilled and Slotted - Silver

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • New In Box, Ready To Install, No Modifications Required
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Nominal Thickness 18mm
Surface Type Slotted X Drilled
Bolt Hole Quantity 6EA
Height 22mm
Center Hole Diameter 122.5mm
Solid Or Vented Type Rotor Solid
Outside Diameter 308mm
Discard Thickness 15mm
Disc Finish Plain
Stud/Lug Hole Diameter 13.8mm
Description Value
Hat Finish Zinc Silver
Bolt Hole Diameter 13.8mm
Overall Height 22mm
Stud/Lug Hole Circle Diameter 148mm
Directional or Non-Directional Brake Surface Directional
Rust Resistant Coating Yes
Bolt Circle Diameter 148mm
Stud/Lug Hole Quantity 6
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 15.6LB
