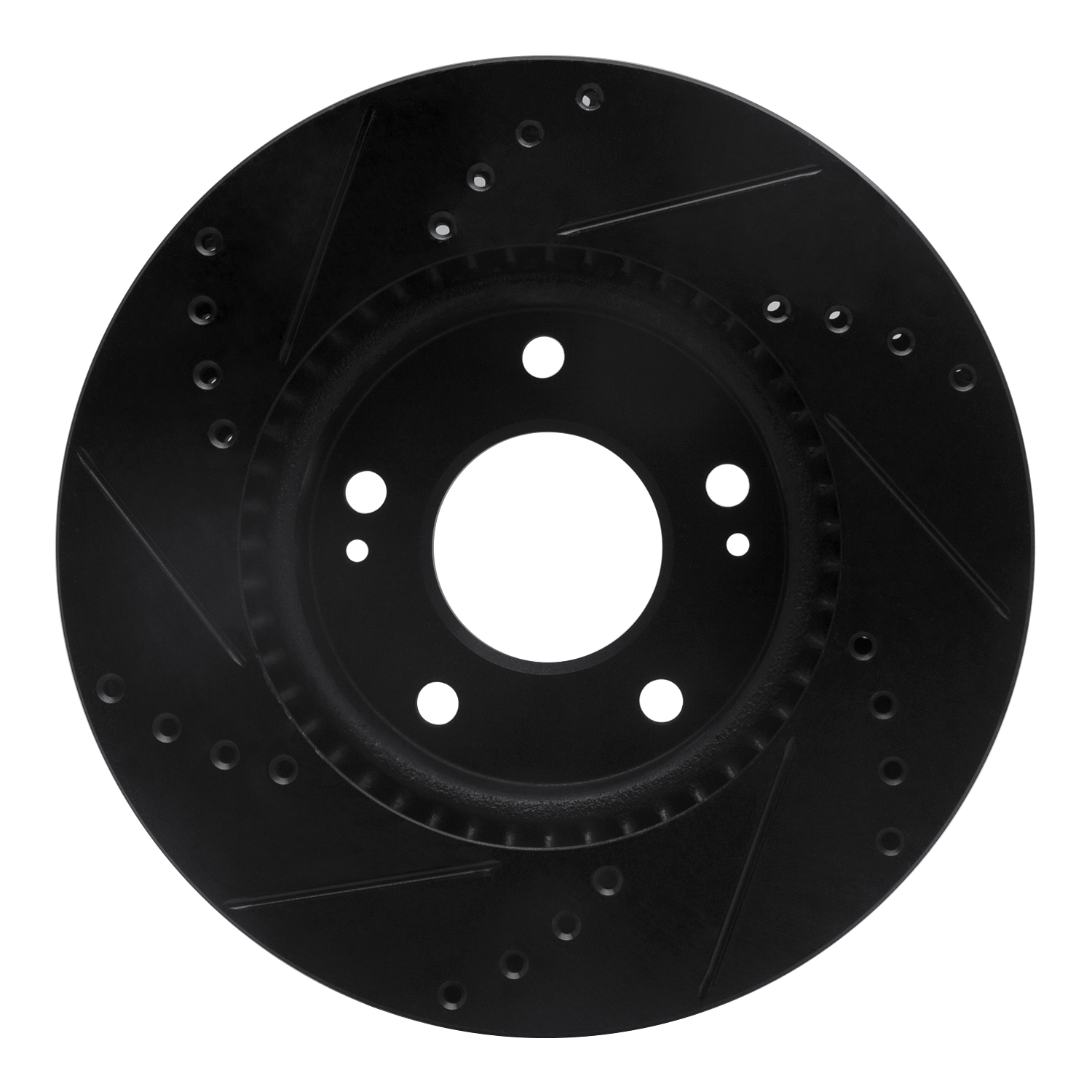

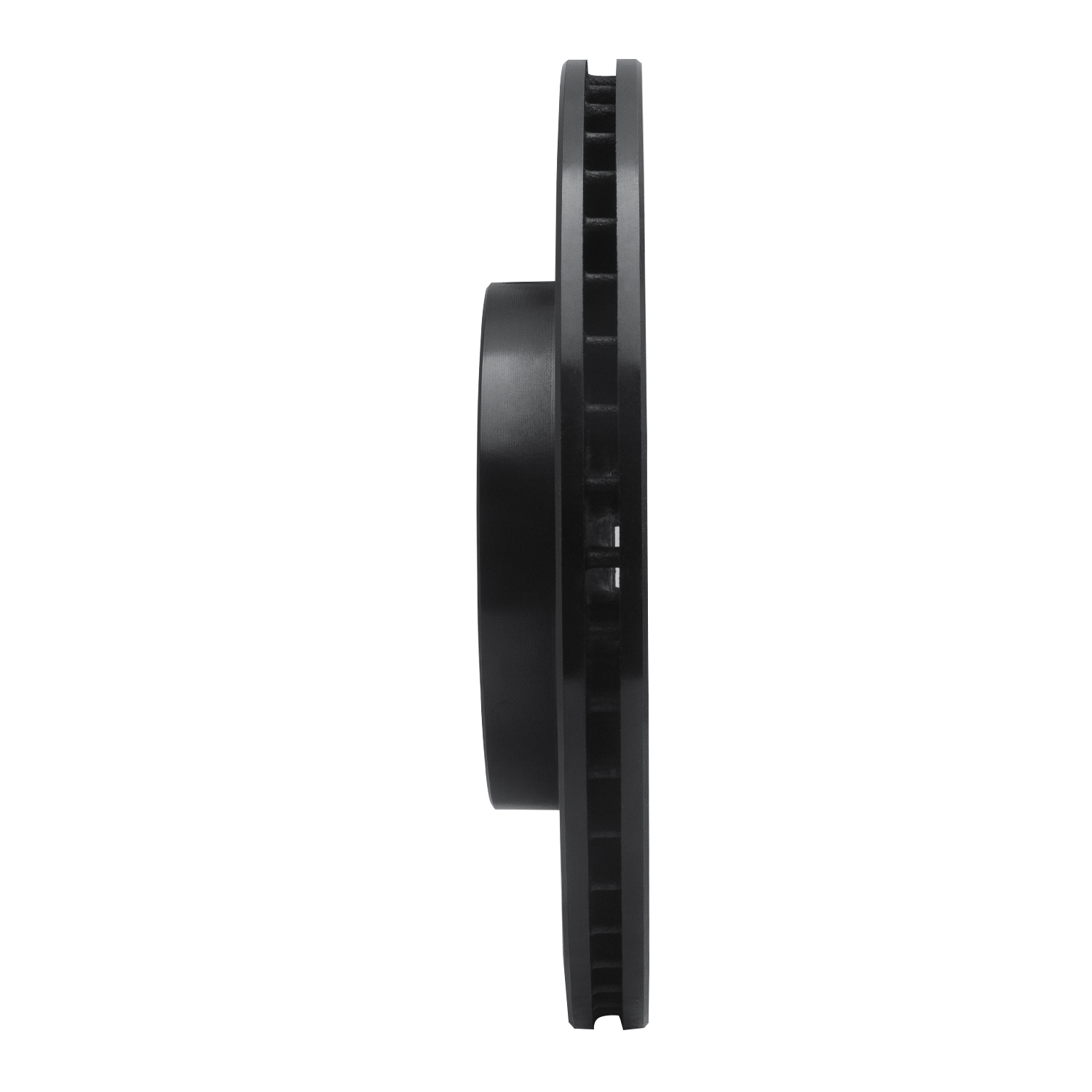

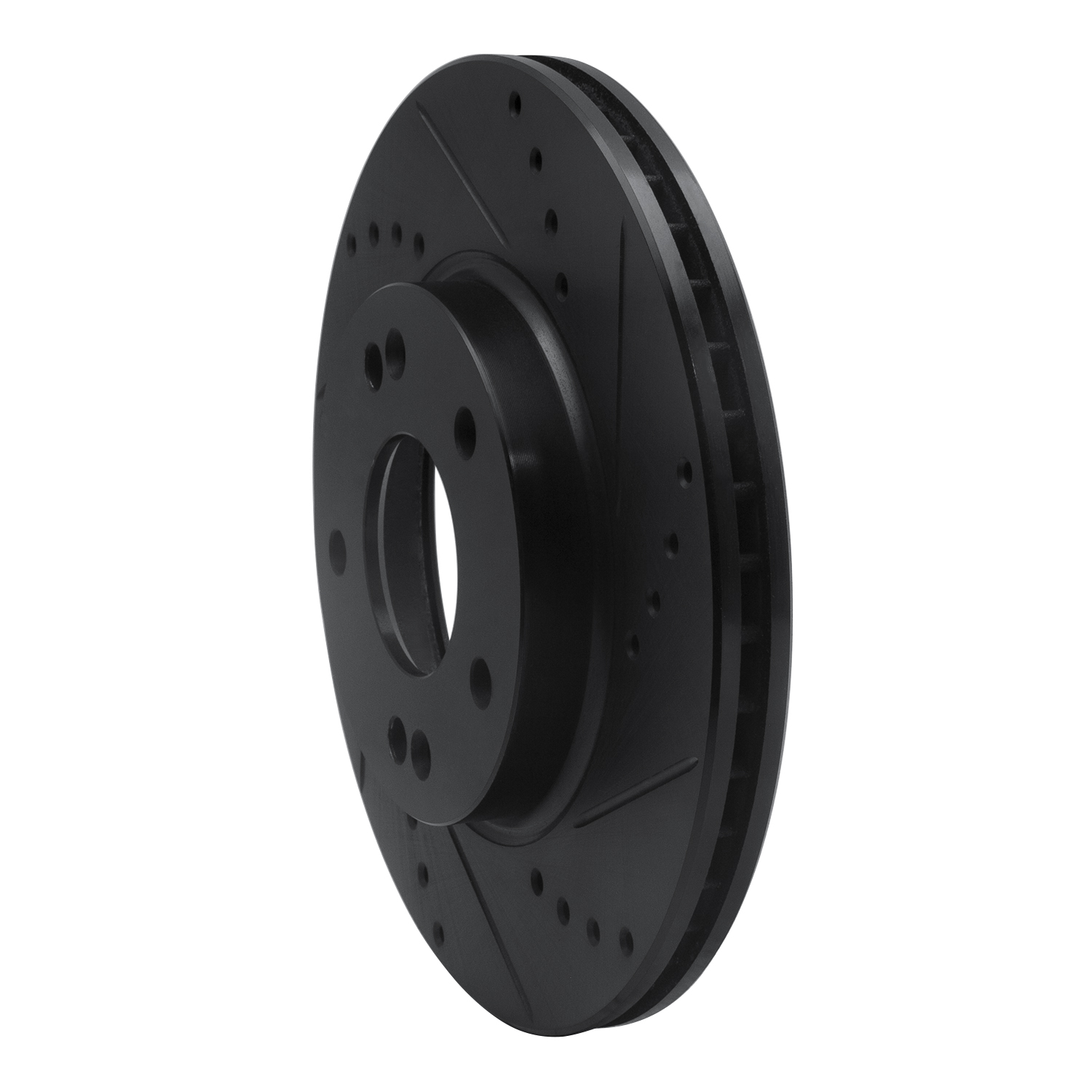

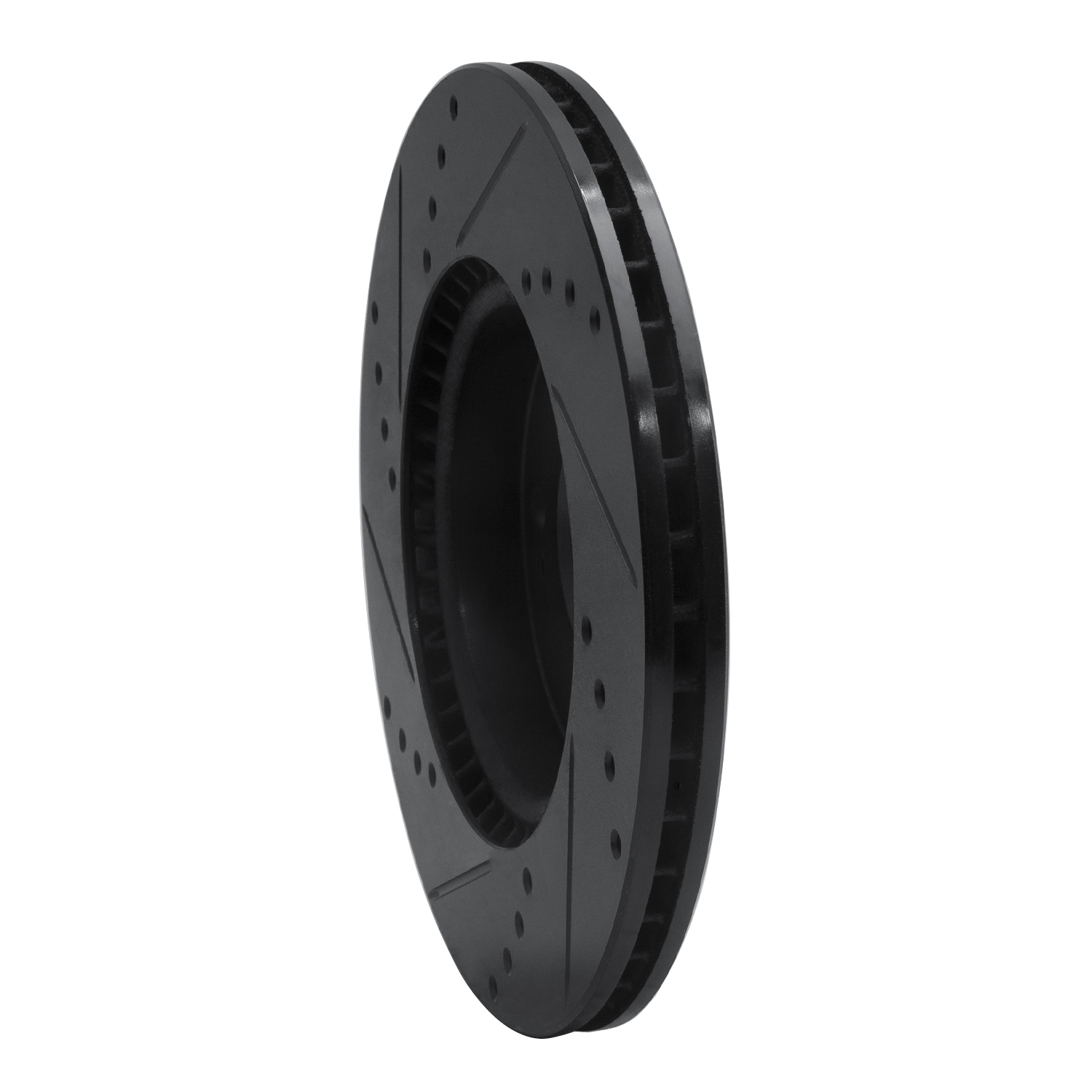

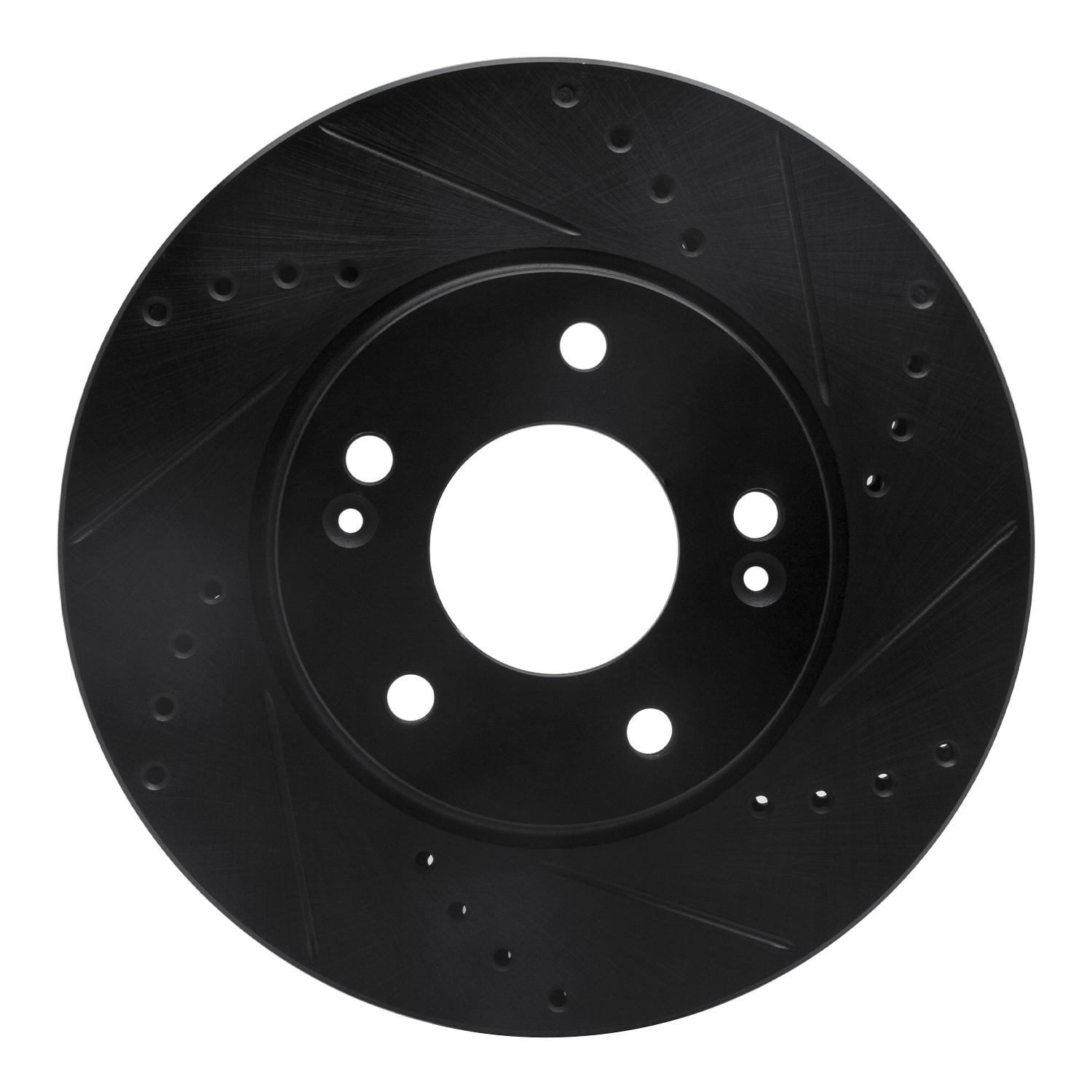

2020 Hyundai Ioniq DFC Brake Rotor - Drilled and Slotted - Black

Part Type:
Disc Brake Rotor
SKU:
633-03055R
Axle:
Front Right
PCQ:
1

Description

  • DFC Brake Rotor - Drilled and Slotted - Black

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • New In Box, Ready To Install, No Modifications Required
  • CNC-Machined To The Tightest Tolerances
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Black For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Discard Thickness 20mm
Outside Diameter 280mm
Bolt Hole Quantity 5EA
Height 45.1mm
Nominal Thickness 22mm
Hat Finish Zinc Black
Overall Height 45.1mm
Bolt Hole Diameter 12.9mm
Rust Resistant Coating Yes
Solid Or Vented Type Rotor Vented
Description Value
Surface Type Slotted X Drilled
Disc Finish Plain
Bolt Circle Diameter 114.3mm
Stud/Lug Hole Quantity 5
Center Hole Diameter 69mm
Stud/Lug Hole Diameter 12.9mm
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Circle Diameter 114.3mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 13.9LB
