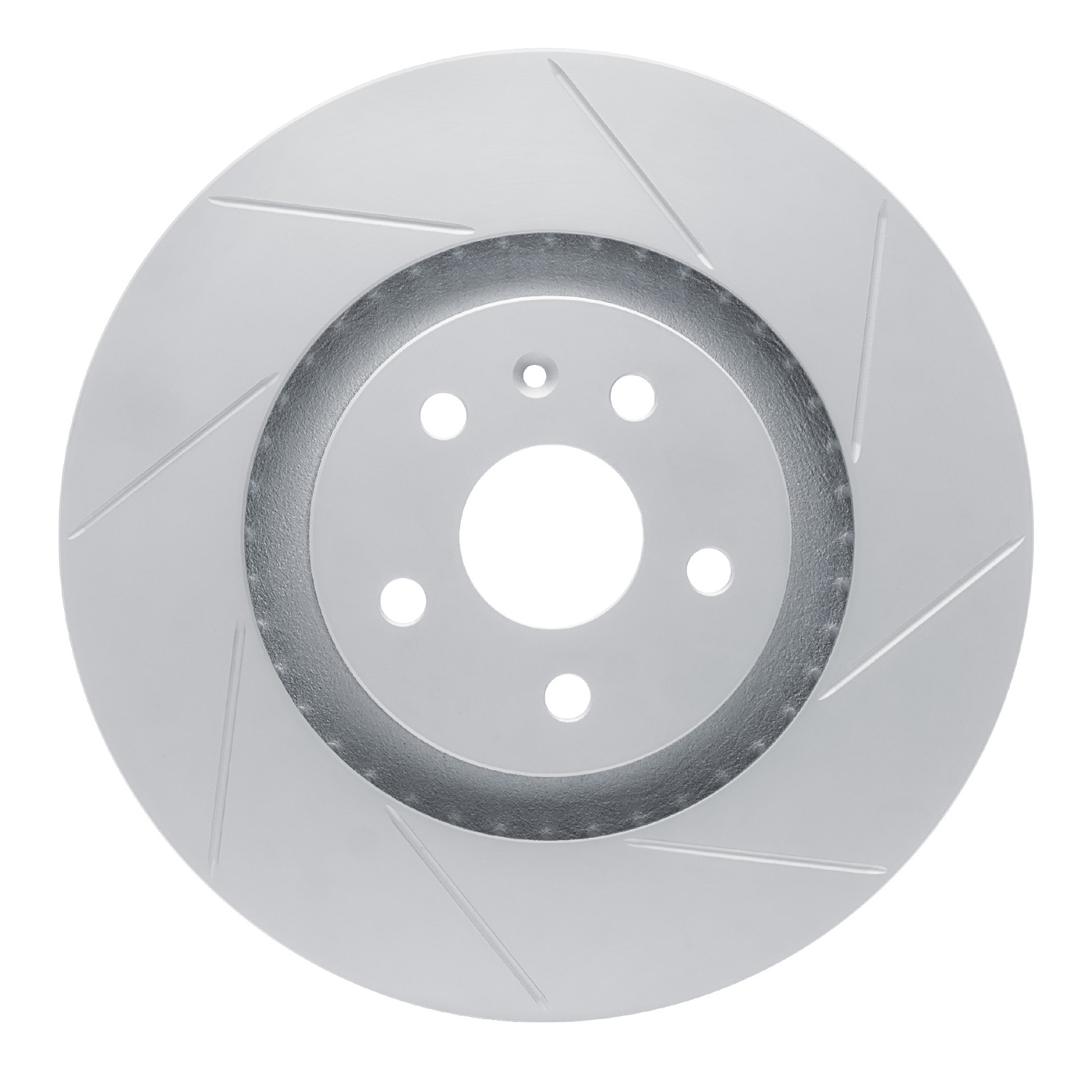

2018 Jaguar F-Type DFC Geoperformance Rotor - Slotted

Part Type:

Disc Brake Rotor

SKU:

810-20028R

Axle:

Rear Right

Sub model:

Base, R, R-Dynamic

Engine Base:

2.0L 1997cc 122ci L4 , 3.0L 2995cc 183ci V6

PCQ:

Note:

300HP

340hp

380hp

Standard Brakes

Description

Product Specifications

Description	Value
Height	38.25mm
Bolt Hole Quantity	5EA
Nominal Thickness	20mm
Discard Thickness	18mm
Stud/Lug Hole Diameter	14.1mm
Outside Diameter	325mm
Disc Finish	Geoperformance Coated
Overall Height	38.25mm
Directional or Non-Directional Brake Surface	Directional

Description	Value
Bolt Hole Diameter	14.1mm
Rust Resistant Coating	Yes
Surface Type	Slotted
Bolt Circle Diameter	108mm
Hat Finish	Geoperformance Coated
Solid Or Vented Type Rotor	Vented
Center Hole Diameter	64.5mm
Stud/Lug Hole Quantity	5
Stud/Lug Hole Circle Diameter	108mm
Weight	16.6LB
