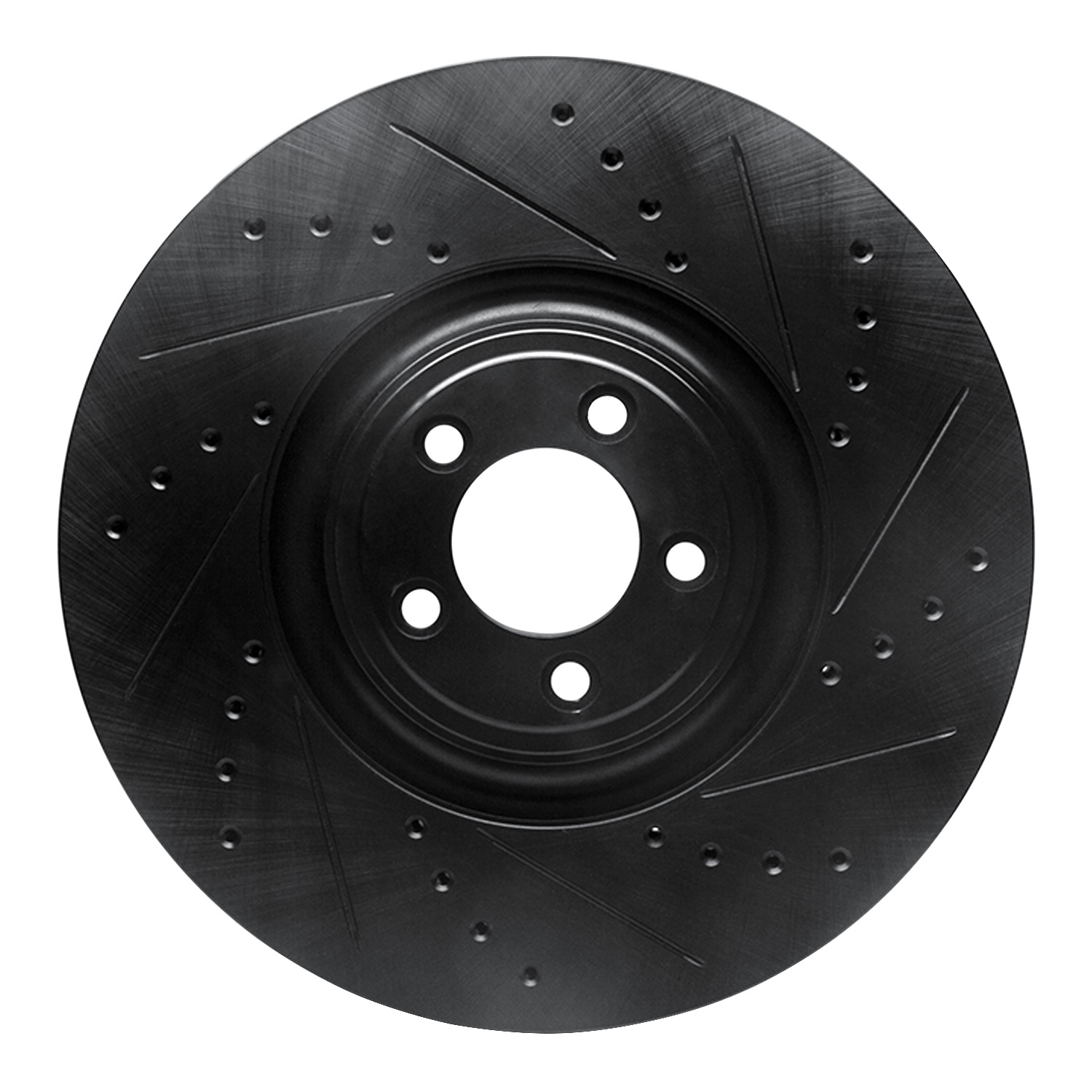

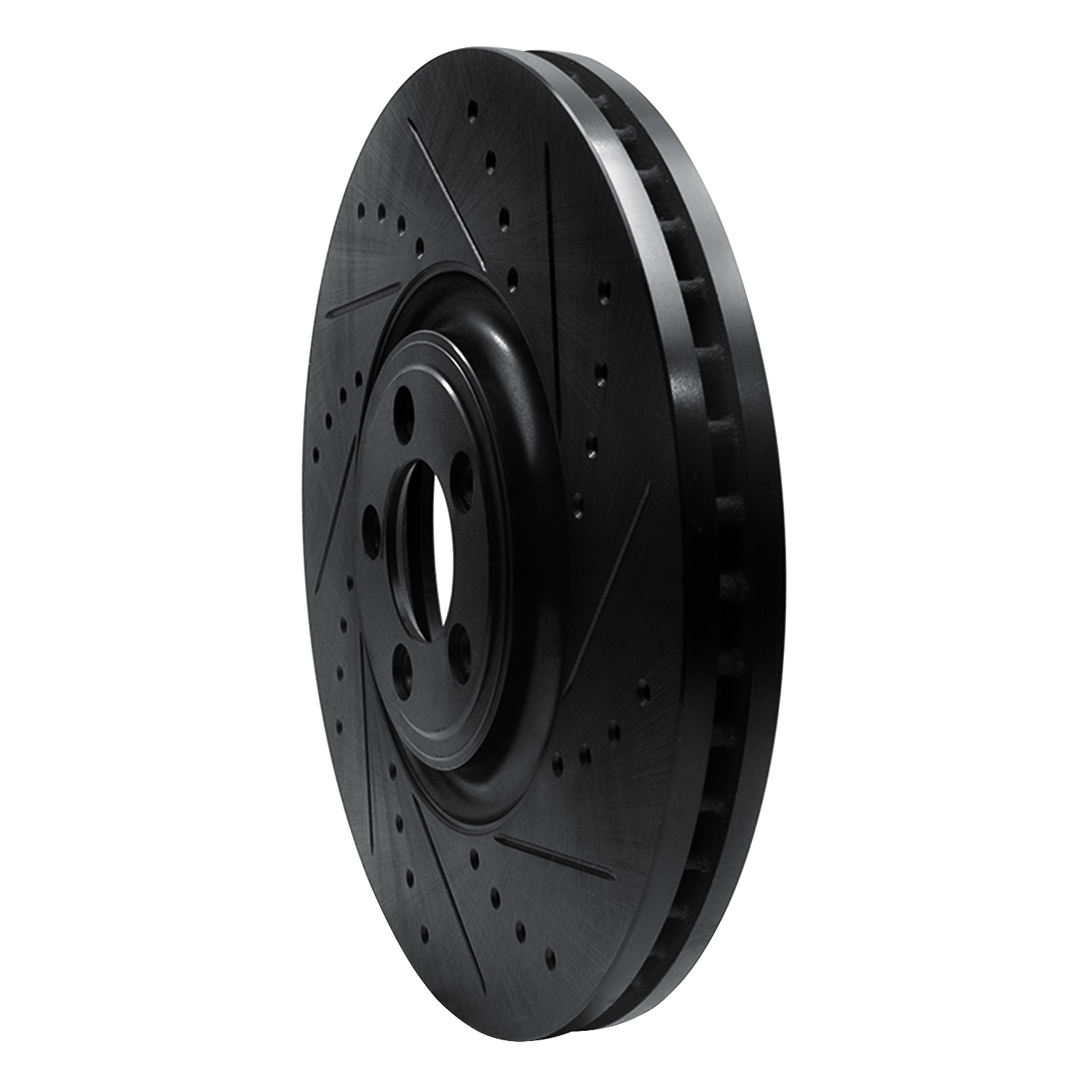

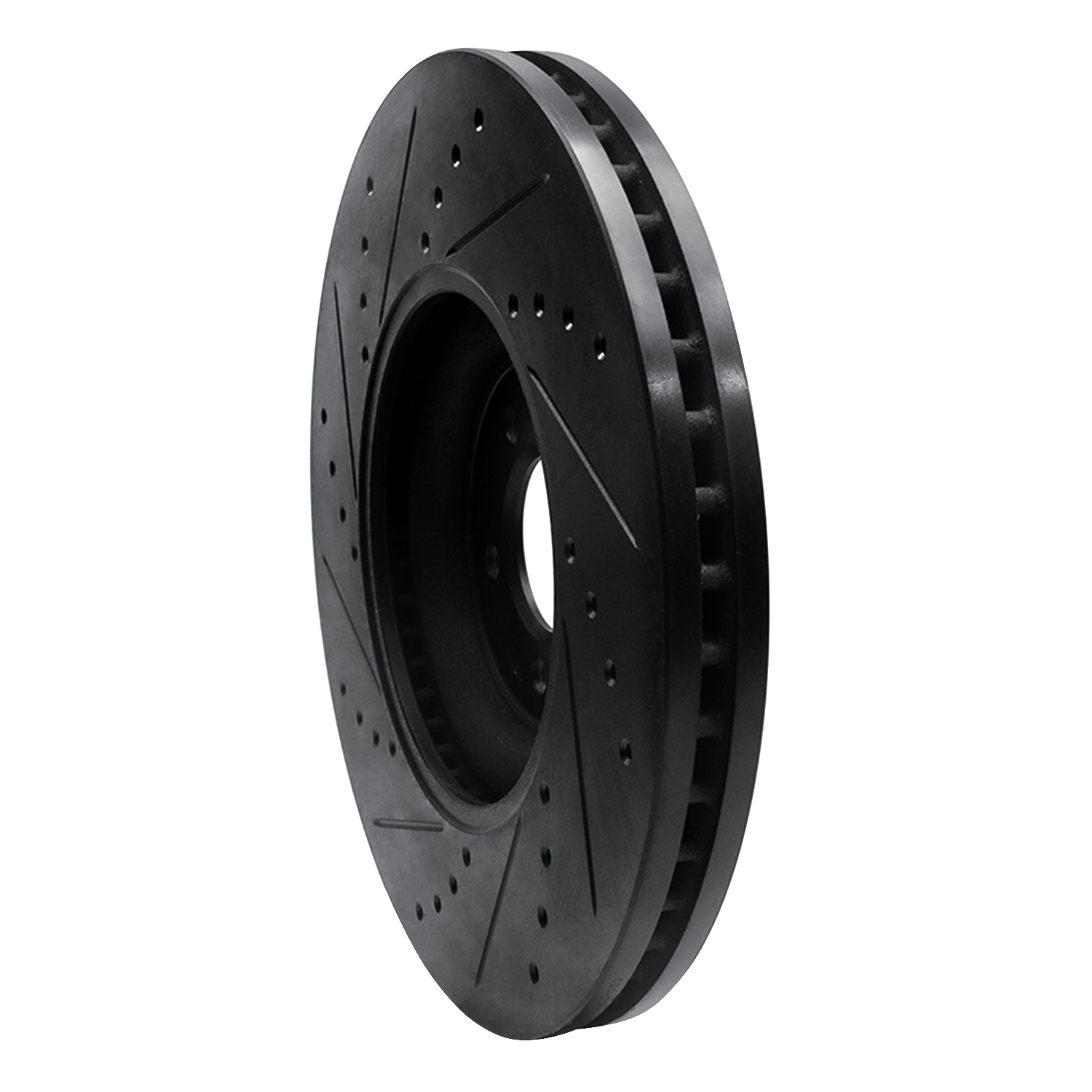

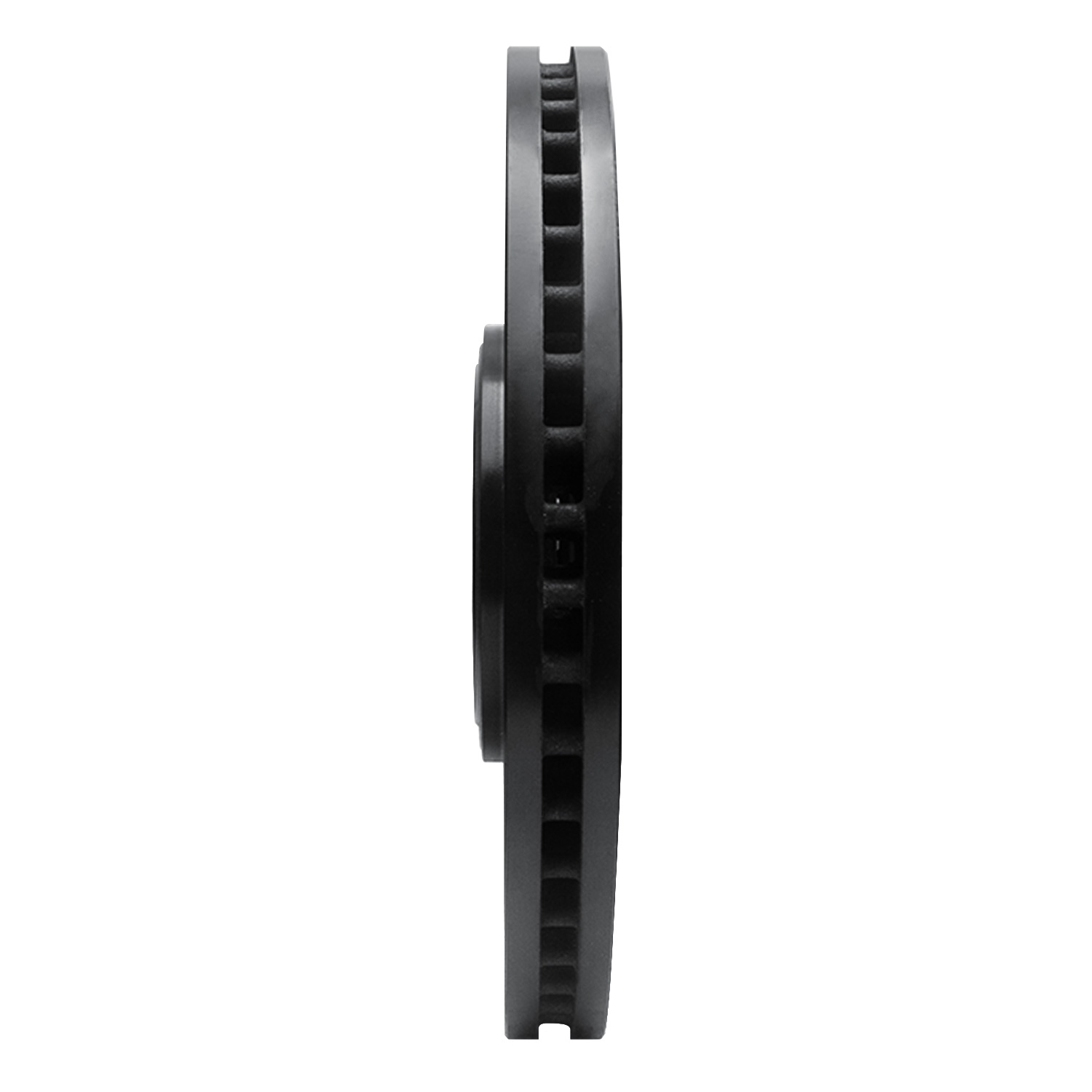

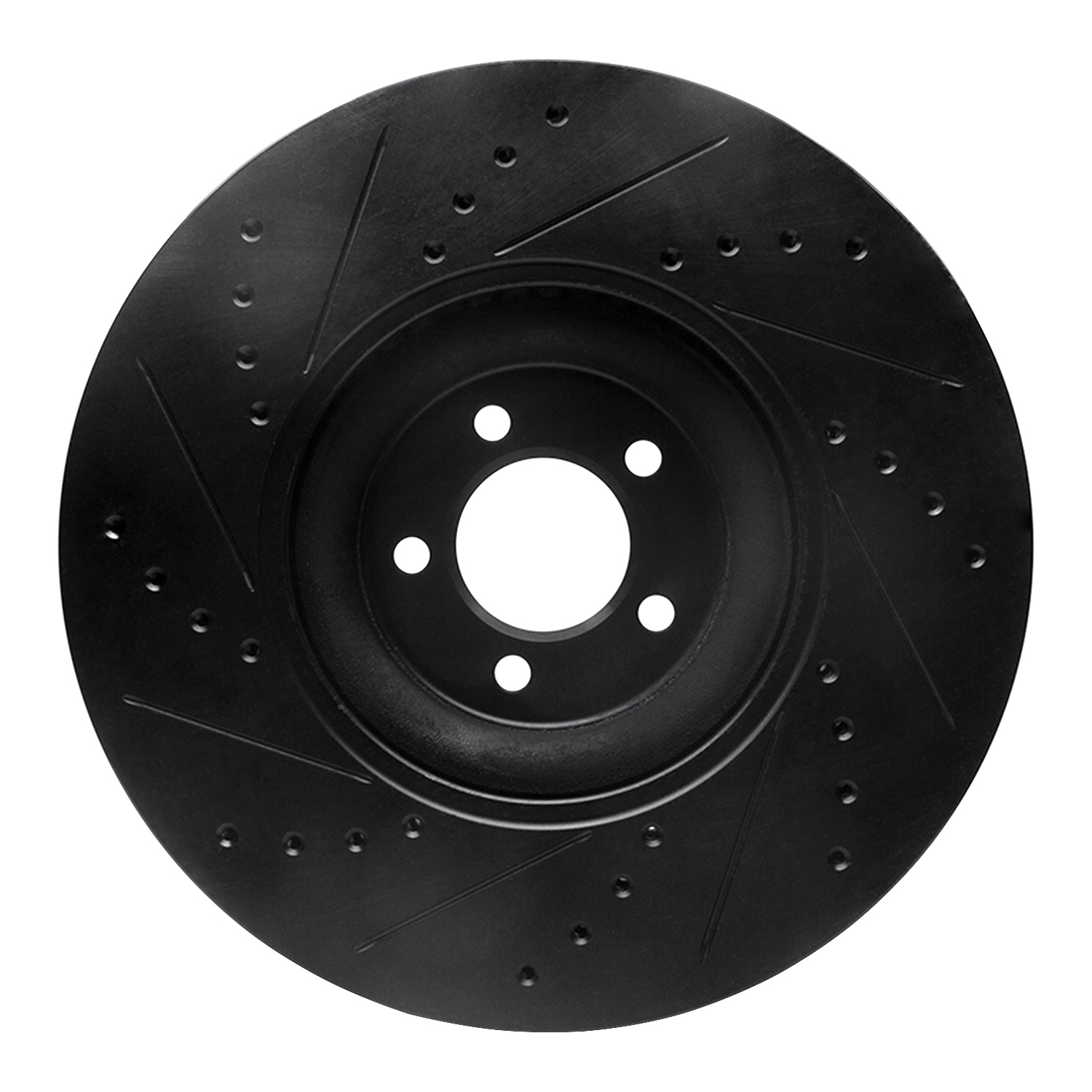

2018 Jaguar F-Type DFC Brake Rotor - Drilled and Slotted - Black
Part Type:
Disc Brake Rotor
SKU:
633-20026R
Axle:
Front Right
Sub model:
400 Sport, Base, R, R-Dynamic, SVR
Engine Base:
3.0L 2995cc 183ci V6
PCQ:
1
Note:
380hp
Iron Disc
Standard Brakes
Super Performance Braking System
Description
- DFC Brake Rotor - Drilled and Slotted - Black
Features and Benefits
- Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
- 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
- CNC-Machined To The Tightest Tolerances
- Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
- Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
- New In Box, Ready To Install, No Modifications Required
- Non-Directional Finish To Promote Faster Break-In And Smoother Stops
- Quality Tested To Ensure Long-Lasting Performance
- Zinc Plated Black For Rust Protection On The Rotor Hub, Vents, And Edge
Product Specifications
| Description | Value |
|---|---|
| Bolt Hole Diameter | 14mm |
| Nominal Thickness | 35.8mm |
| Bolt Hole Quantity | 5EA |
| Outside Diameter | 380mm |
| Rust Resistant Coating | Yes |
| Hat Finish | Zinc Black |
| Discard Thickness | 34mm |
| Height | 48mm |
| Surface Type | Slotted X Drilled |
| Description | Value |
|---|---|
| Overall Height | 48mm |
| Disc Finish | Plain |
| Solid Or Vented Type Rotor | Vented |
| Directional or Non-Directional Brake Surface | Directional |
| Center Hole Diameter | 71mm |
| Bolt Circle Diameter | 108mm |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14mm |
| Stud/Lug Hole Circle Diameter | 108mm |
| Weight | 39.35LB |
