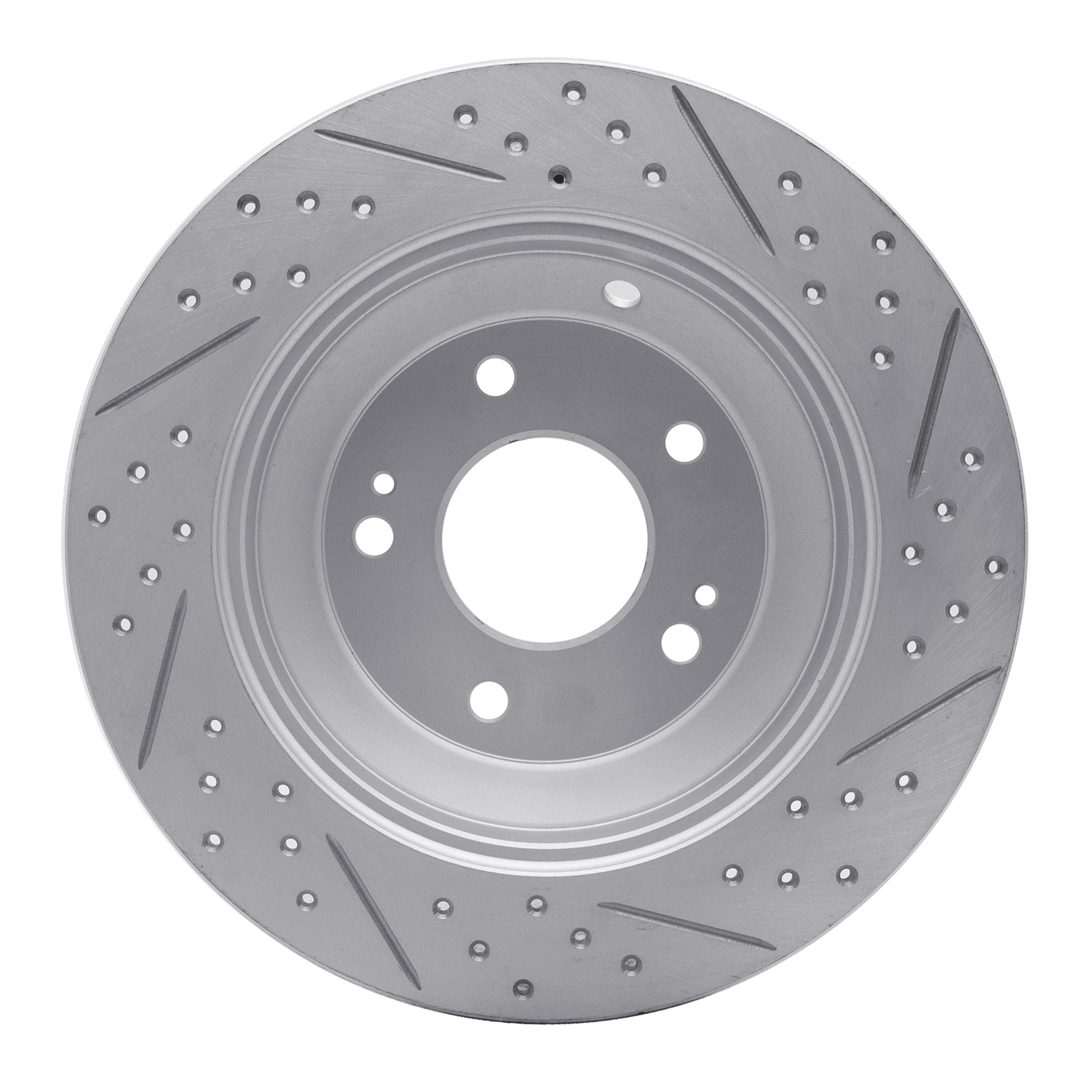

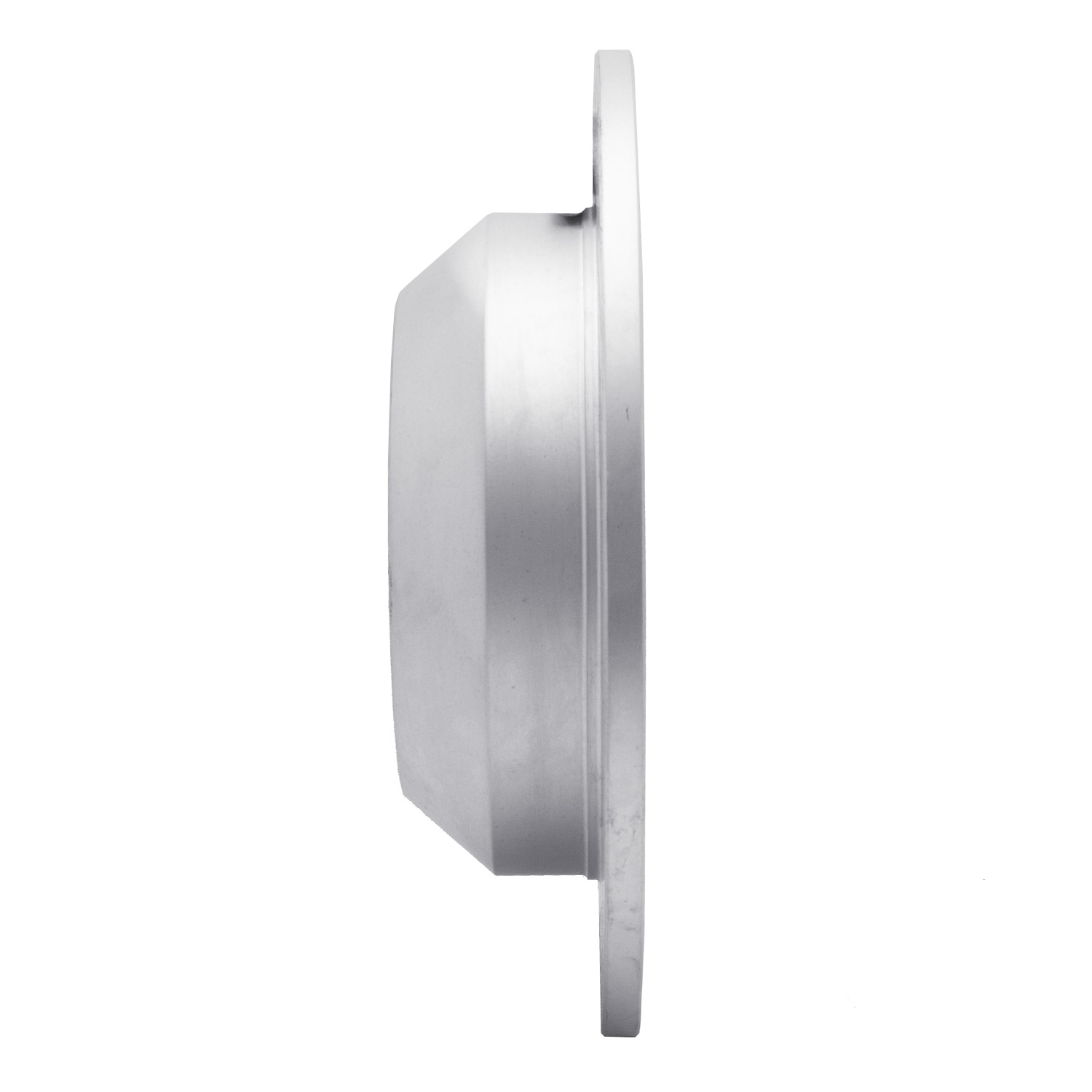

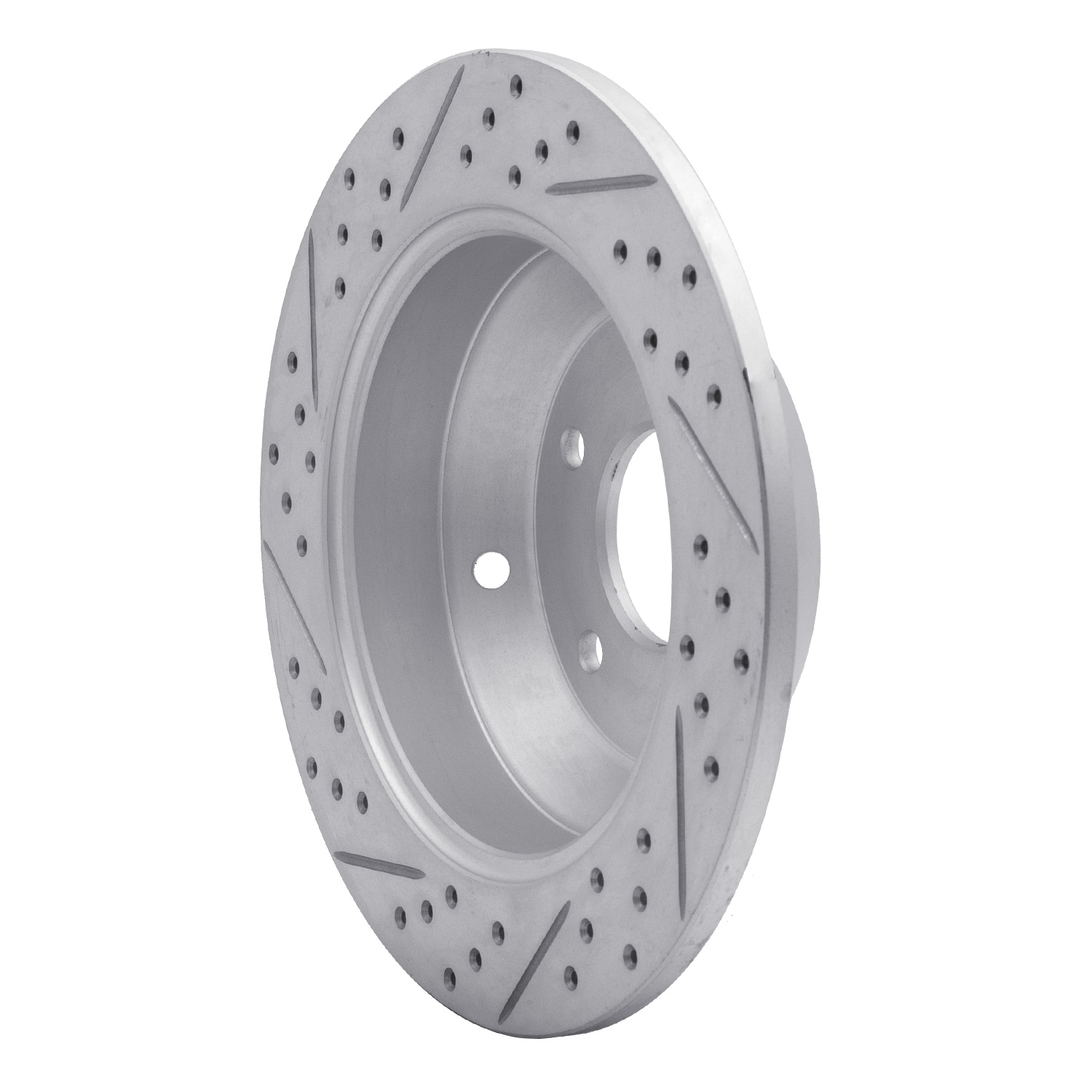

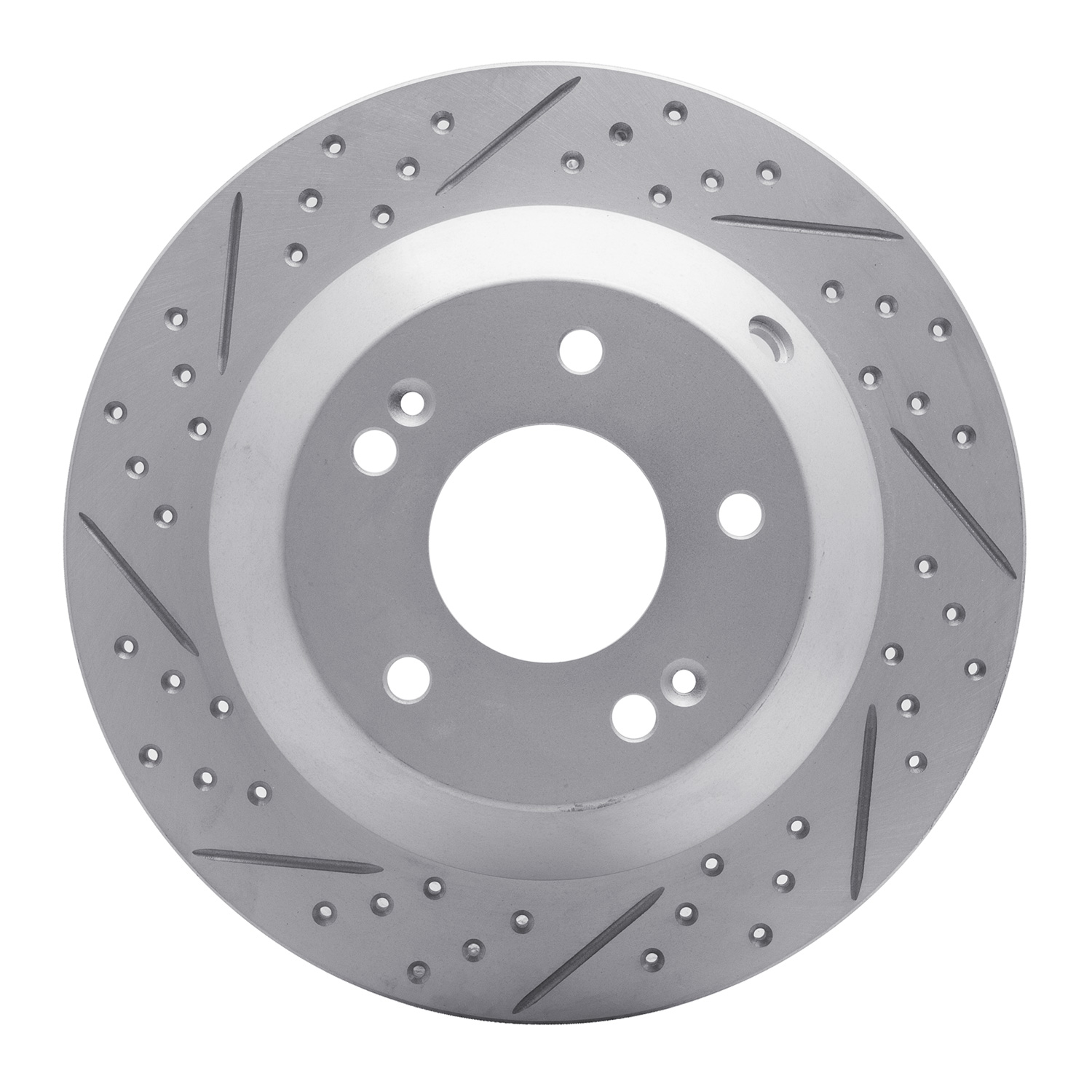

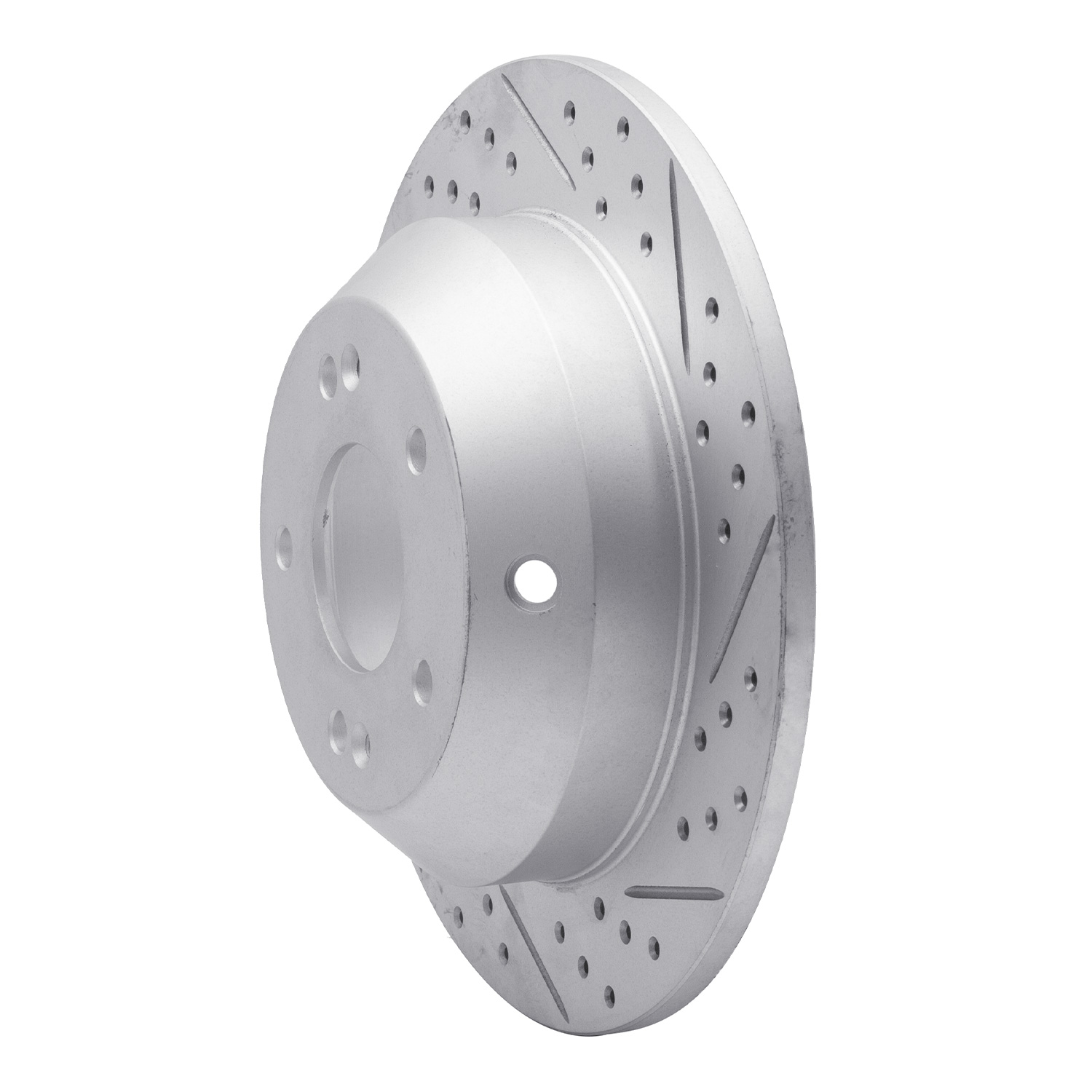

2018 Hyundai Santa Fe DFC Geoperformance Rotor - Drilled and Slotted
Part Type:
Disc Brake Rotor
SKU:
830-03050R
Axle:
Rear Right
PCQ:
1
Description
- DFC Geoperformance Rotor - Drilled and Slotted
Product Specifications
| Description | Value |
|---|---|
| Bolt Hole Quantity | 5EA |
| Discard Thickness | 9.4mm |
| Height | 71.5mm |
| Outside Diameter | 302mm |
| Rust Resistant Coating | Yes |
| Nominal Thickness | 11mm |
| Bolt Hole Diameter | 12.5mm |
| Hat Finish | Geoperformance Coated |
| Surface Type | Slotted X Drilled |
| Description | Value |
|---|---|
| Center Hole Diameter | 69mm |
| Disc Finish | Geoperformance Coated |
| Overall Height | 71.5mm |
| Bolt Circle Diameter | 114.3mm |
| Stud/Lug Hole Quantity | 5 |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Diameter | 12.5mm |
| Directional or Non-Directional Brake Surface | Directional |
| Stud/Lug Hole Circle Diameter | 114.3mm |
| Weight | 13.75LB |
