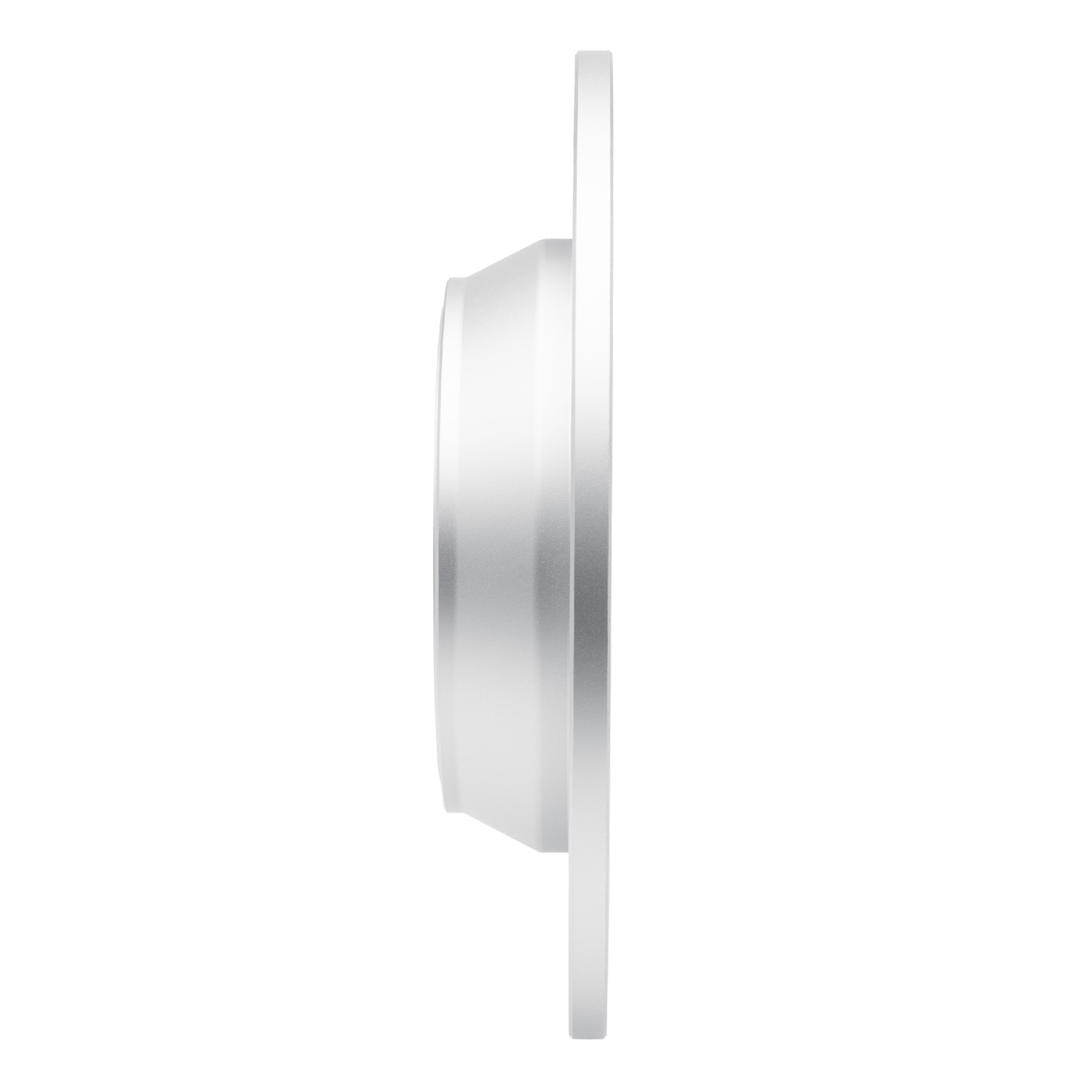

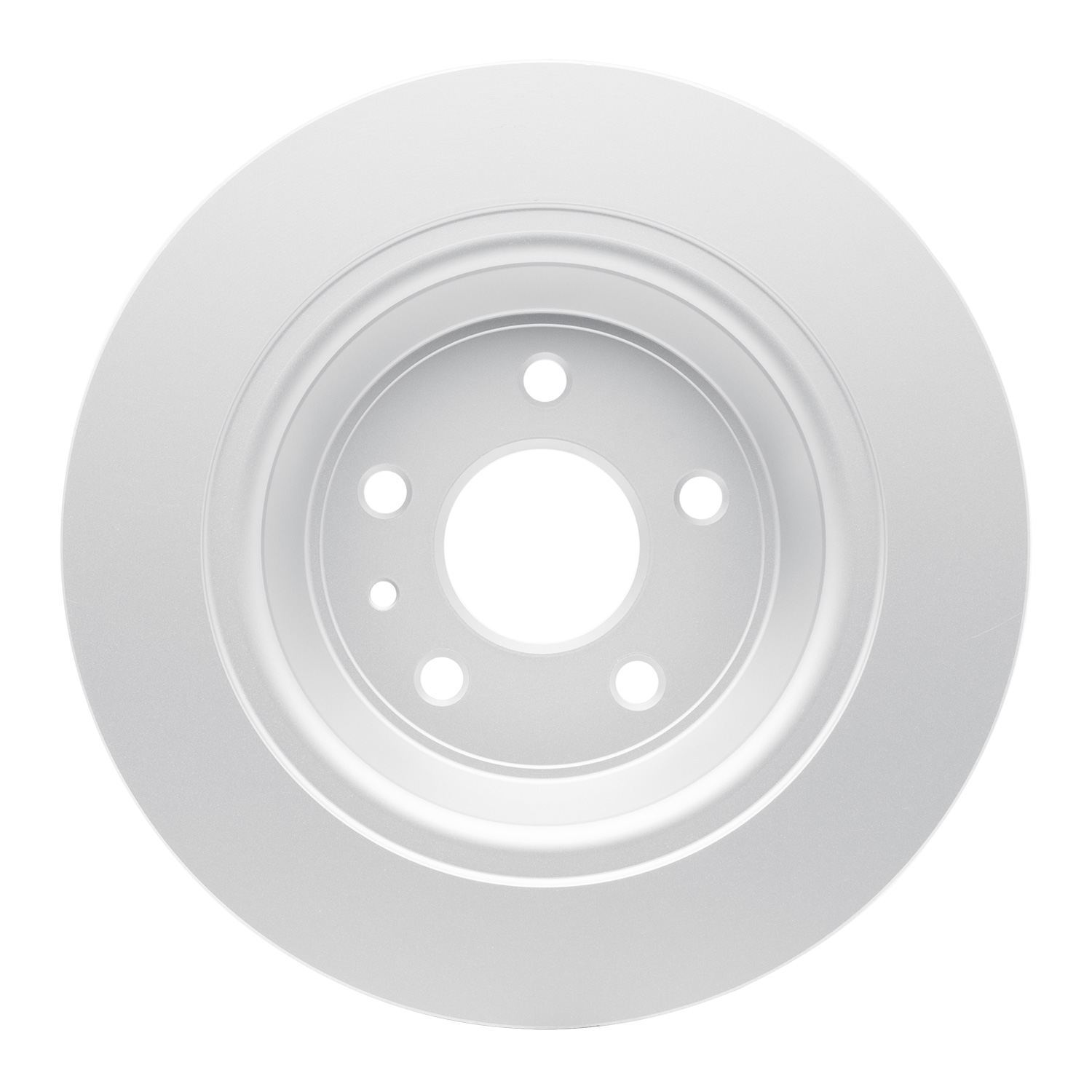

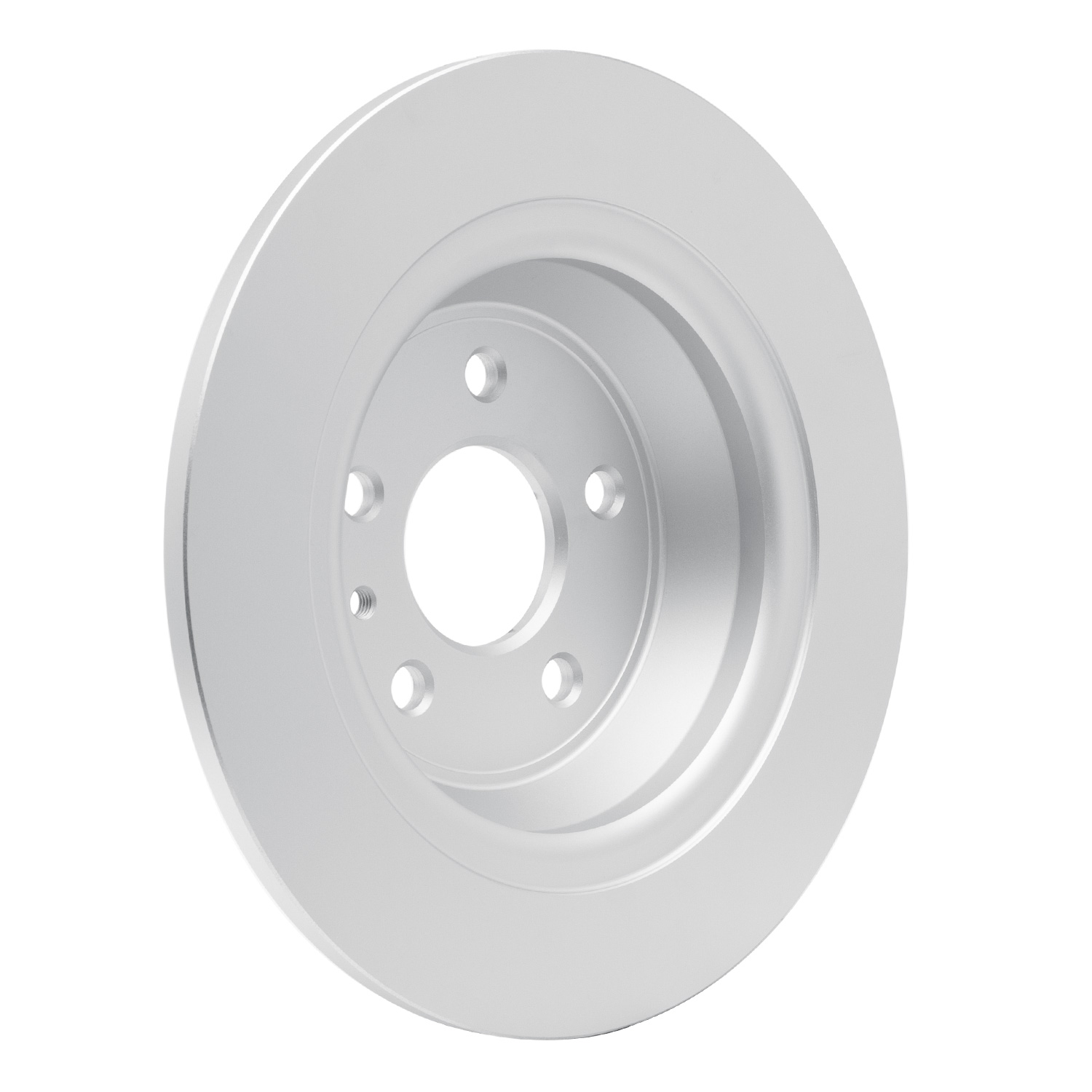

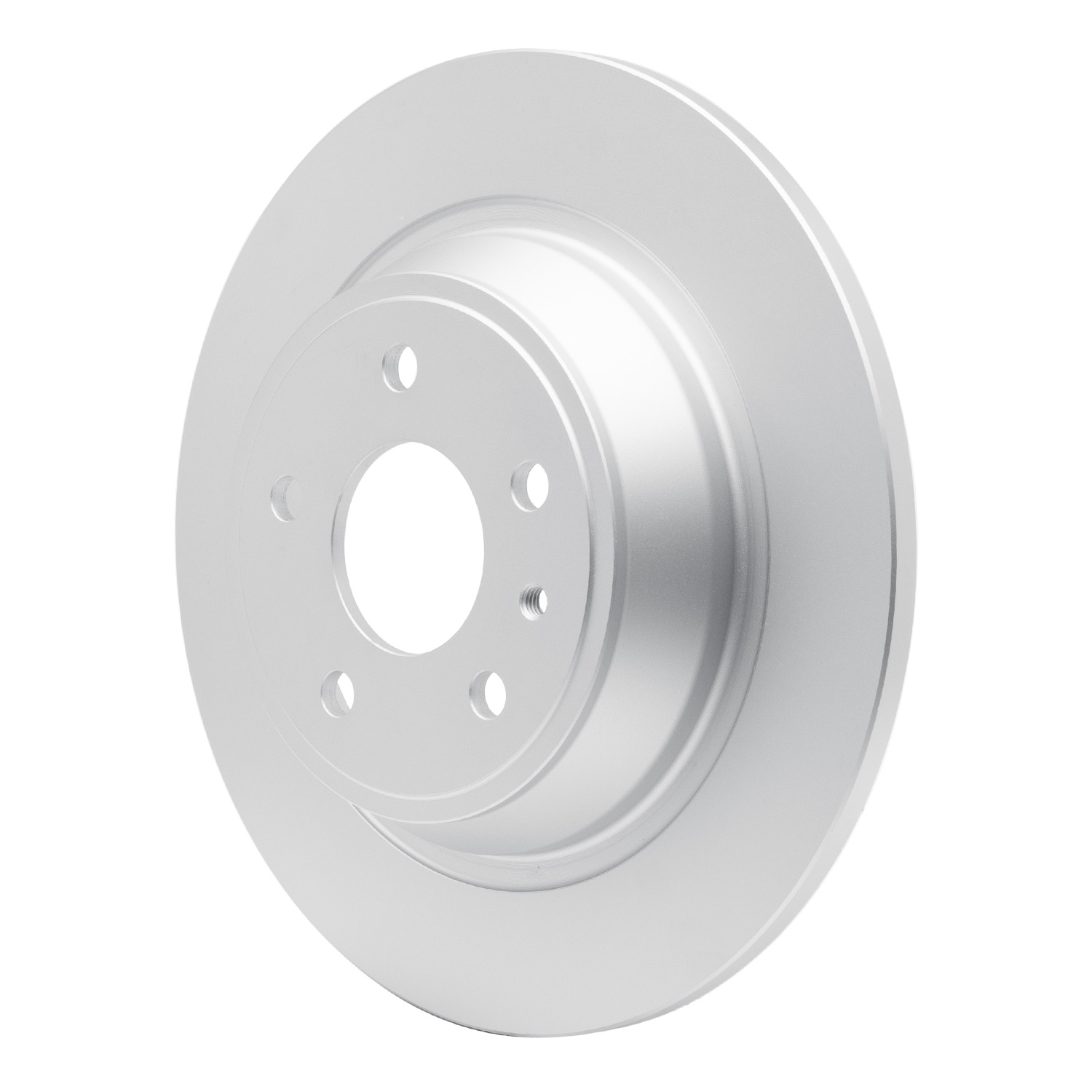

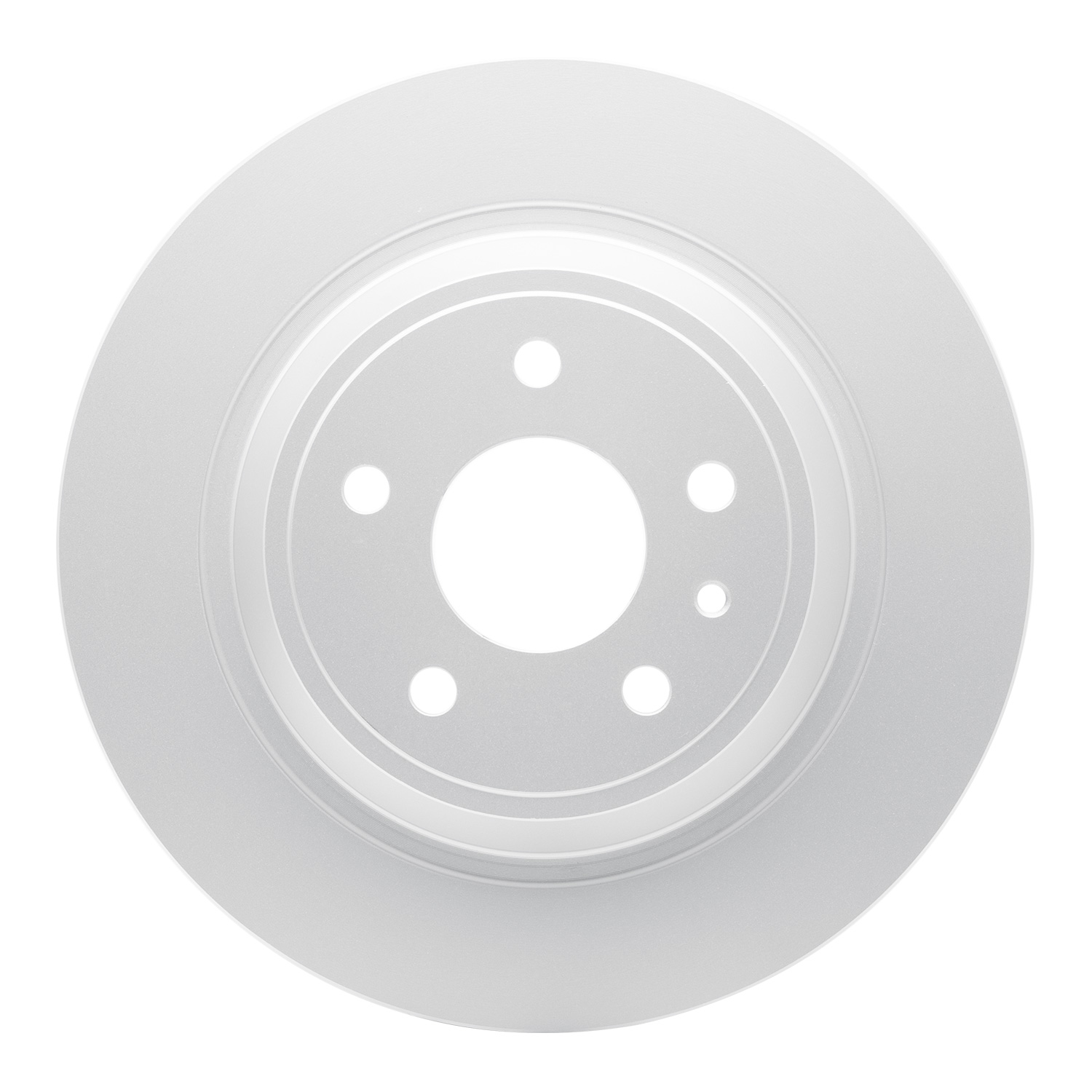

2018 Ford Fusion DFC GEOSPEC Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
604-54068
Axle:
Rear
Sub model:
Platinum, Platinum Hybrid, S, S Hybrid, SE, SE Hybrid, SE LUX Hybrid, Titanium, Titanium Hybrid
Fuel Type:
GAS
PCQ:
2

Description

  • DFC GEOSPEC Coated Rotor - Blank

Features and Benefits

  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Provides Superior Corrosion Protection Over Zinc / Conventional Painting
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Ready To Install - No Additional Pre-Degreasing Preparation Needed (Saves Time And Money During Installation Process)
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Quality Tested To Ensure Long-Lasting Performance

Product Specifications

Description Value
Bolt Hole Quantity 5EA
Inside Diameter 63.6mm
Discard Thickness 9.5mm
Bolt Hole Diameter 13.8mm
Height 50.9mm
Outside Diameter 302mm
Nominal Thickness 11mm
Rust Resistant Coating Yes
Solid Or Vented Type Rotor Solid
Disc Finish Plain
Description Value
Hat Finish GEOSPEC Silver Grey
Overall Height 50.9mm
Stud/Lug Hole Diameter 13.8mm
Surface Type Smooth
Stud/Lug Hole Quantity 5
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Directional or Non-Directional Brake Surface Non-Directional
Center Hole Diameter 63.6mm
Stud/Lug Hole Circle Diameter 108mm
Weight 12.45LB
