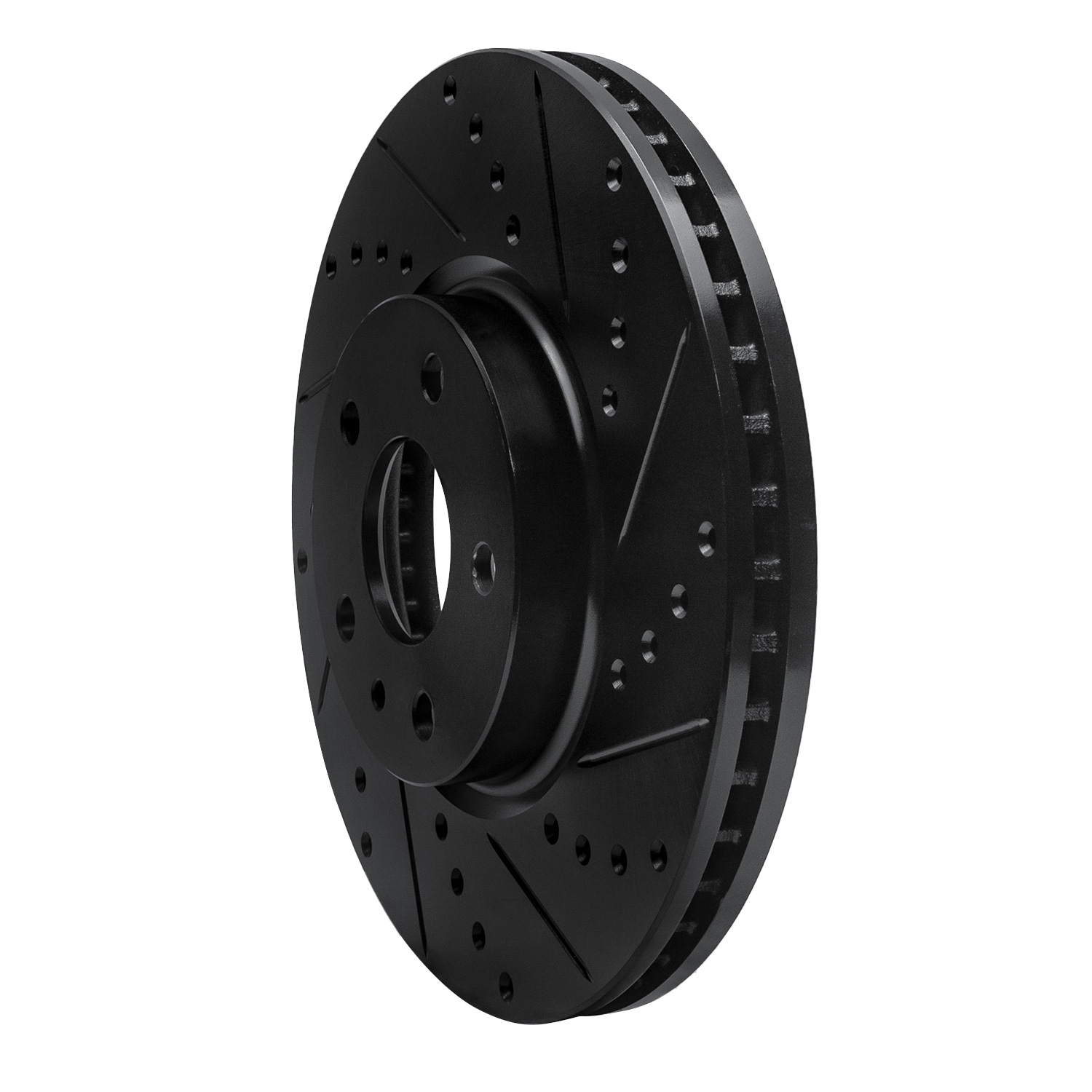

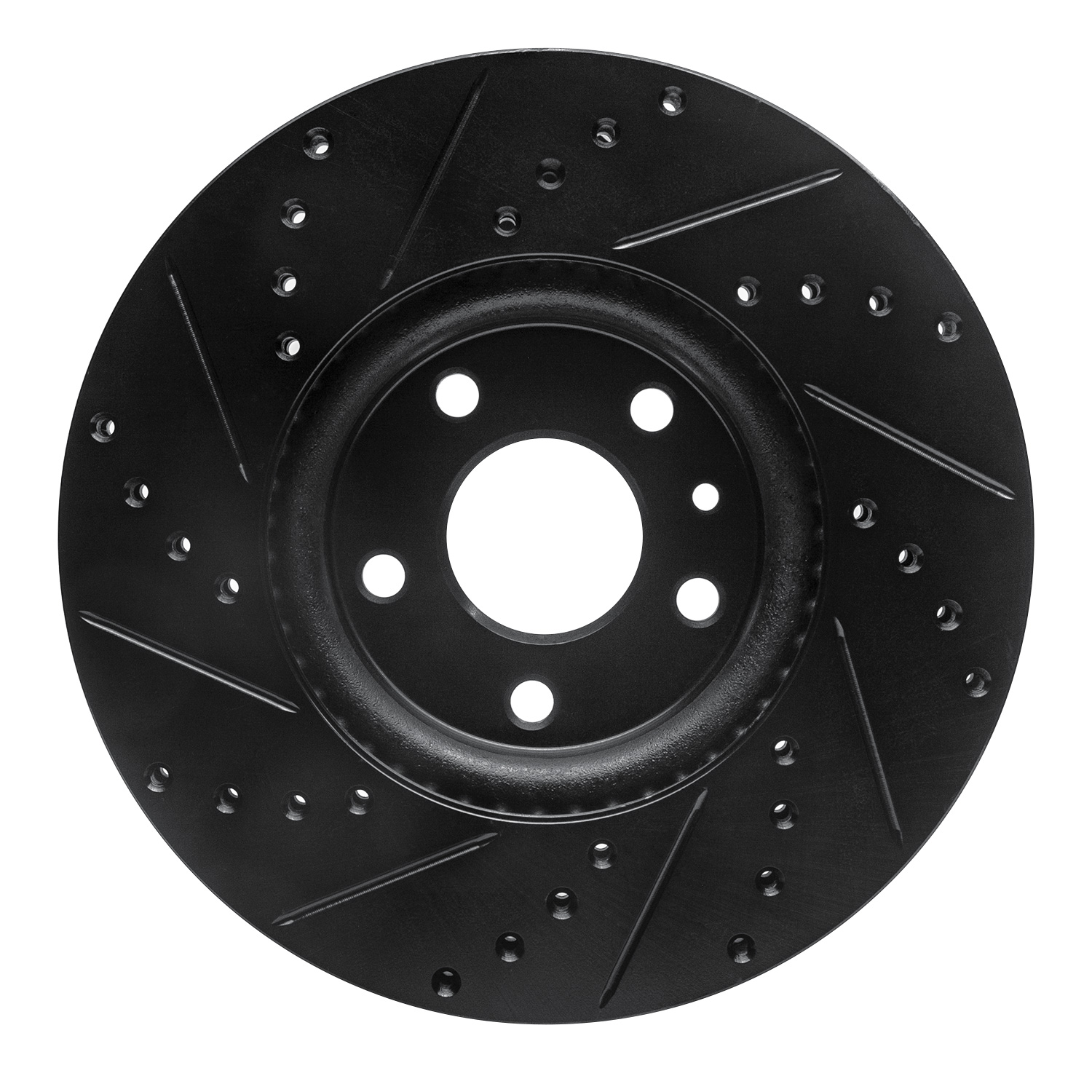

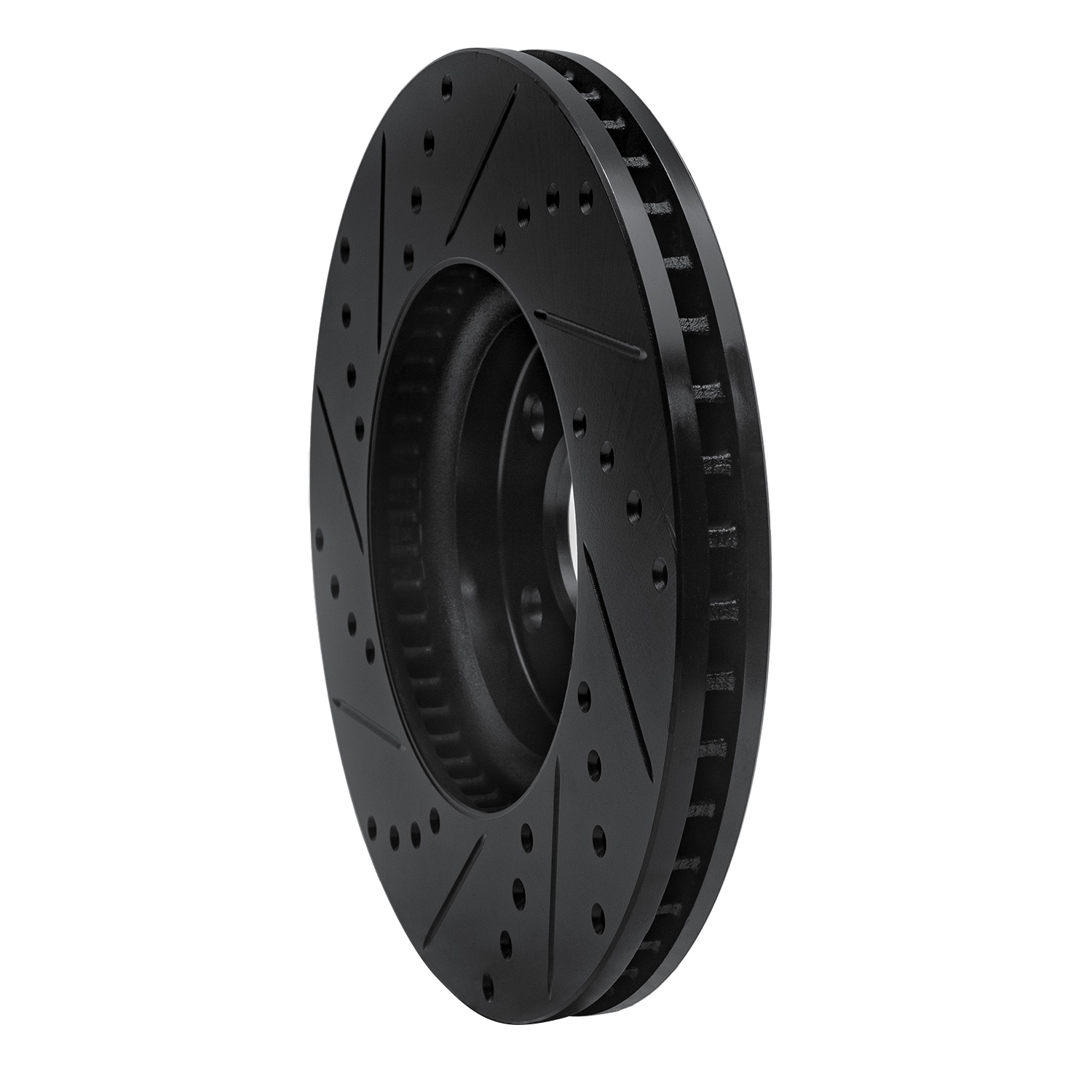

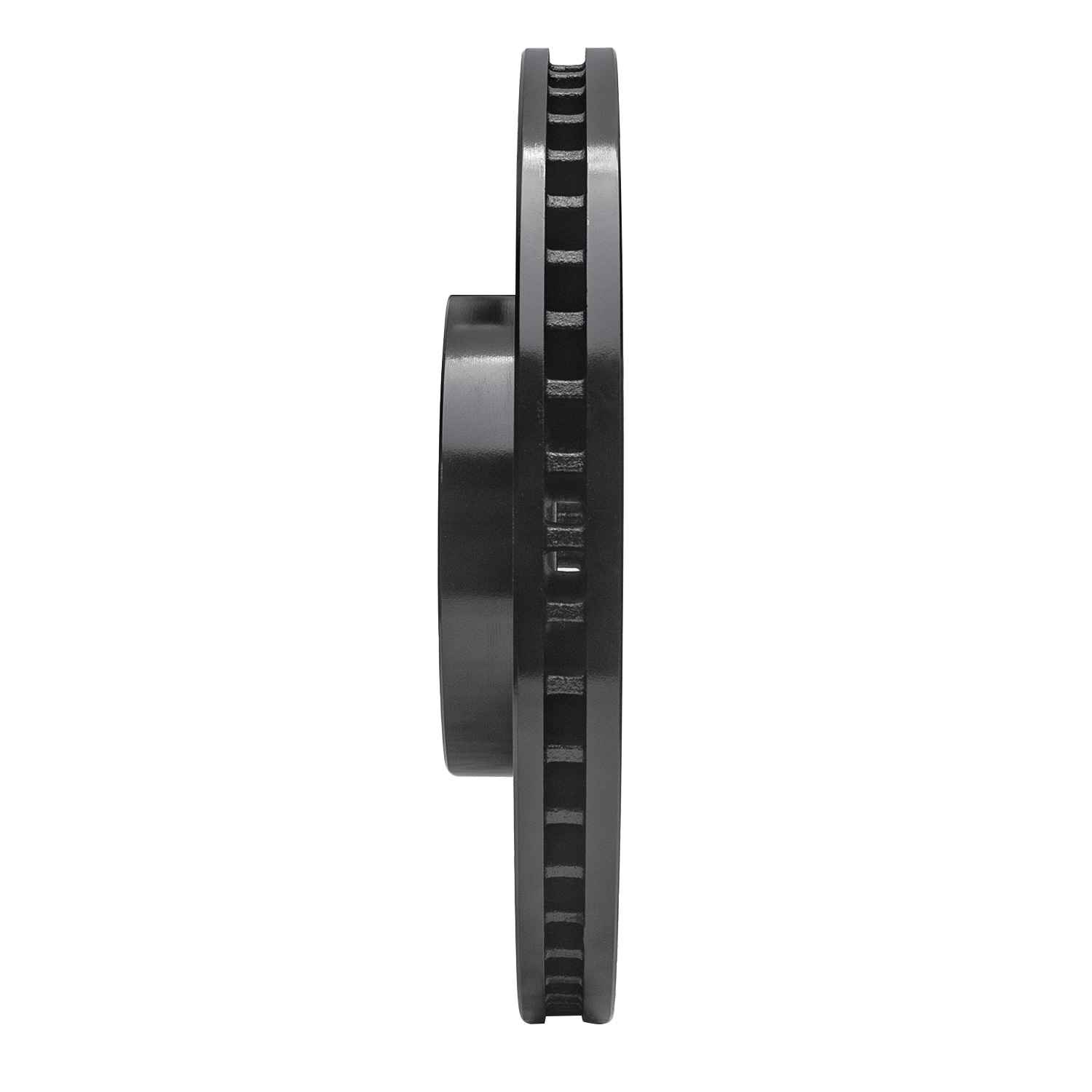

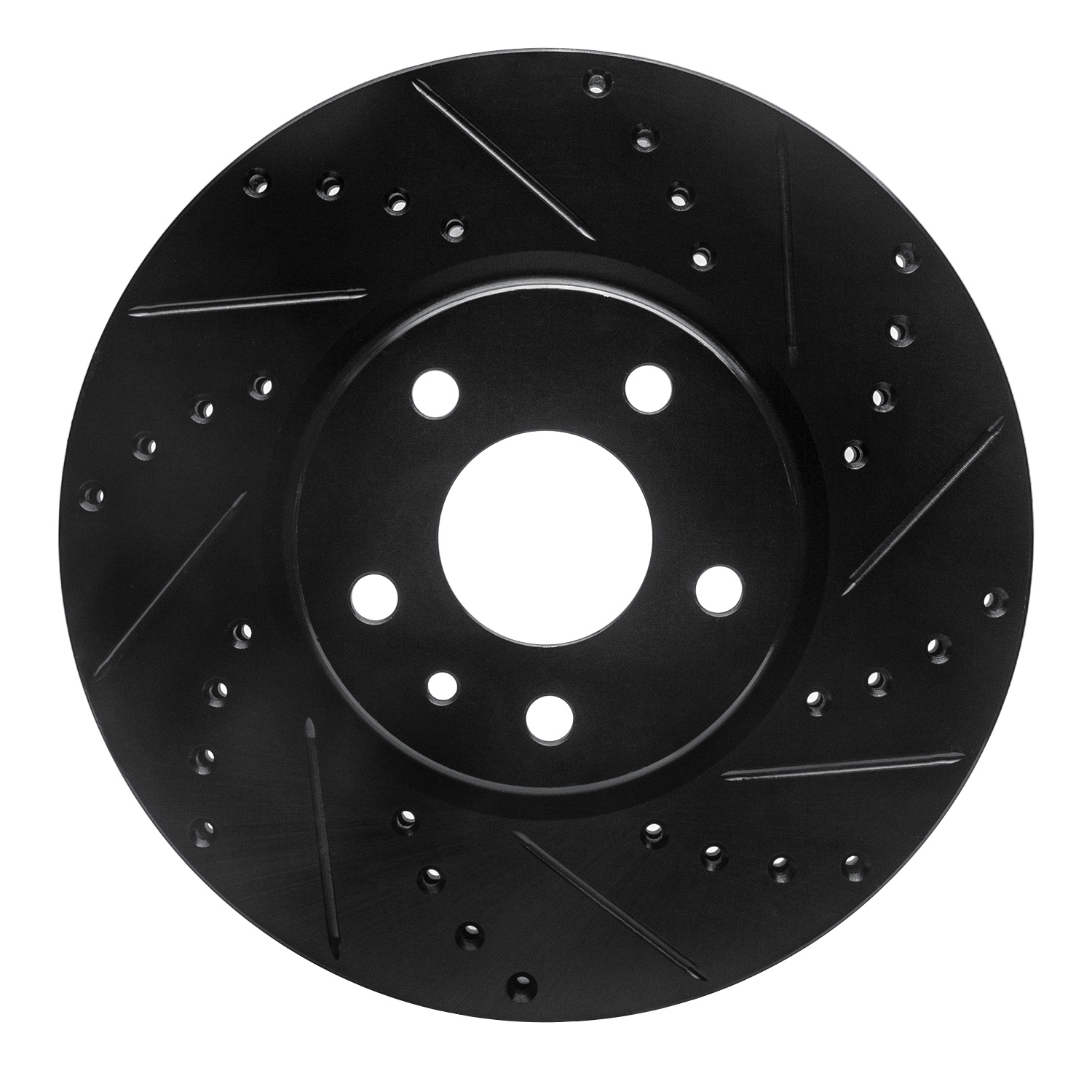

2018 Ford Fusion DFC Brake Rotor - Drilled and Slotted - Black

Part Type:
Disc Brake Rotor
SKU:
633-54259R
Axle:
Front Right
Sub model:
Platinum, Platinum Hybrid, S, S Hybrid, SE, SE Hybrid, SE LUX Hybrid, Titanium, Titanium Hybrid
Fuel Type:
GAS
PCQ:
1

Description

  • DFC Brake Rotor - Drilled and Slotted - Black

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • CNC-Machined To The Tightest Tolerances
  • New In Box, Ready To Install, No Modifications Required
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Black For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Bolt Hole Quantity 5EA
Bolt Hole Diameter 13.8mm
Nominal Thickness 28mm
Discard Thickness 26.5mm
Outside Diameter 300mm
Rust Resistant Coating Yes
Hat Finish Zinc Black
Disc Finish Plain
Height 51mm
Overall Height 51.1mm
Description Value
Solid Or Vented Type Rotor Vented
Center Hole Diameter 63.55mm
Surface Type Slotted X Drilled
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Stud/Lug Hole Quantity 5
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Diameter 13.7mm
Bolt Circle Diameter 108mm
Stud/Lug Hole Circle Diameter 108mm
Weight 20.65LB
