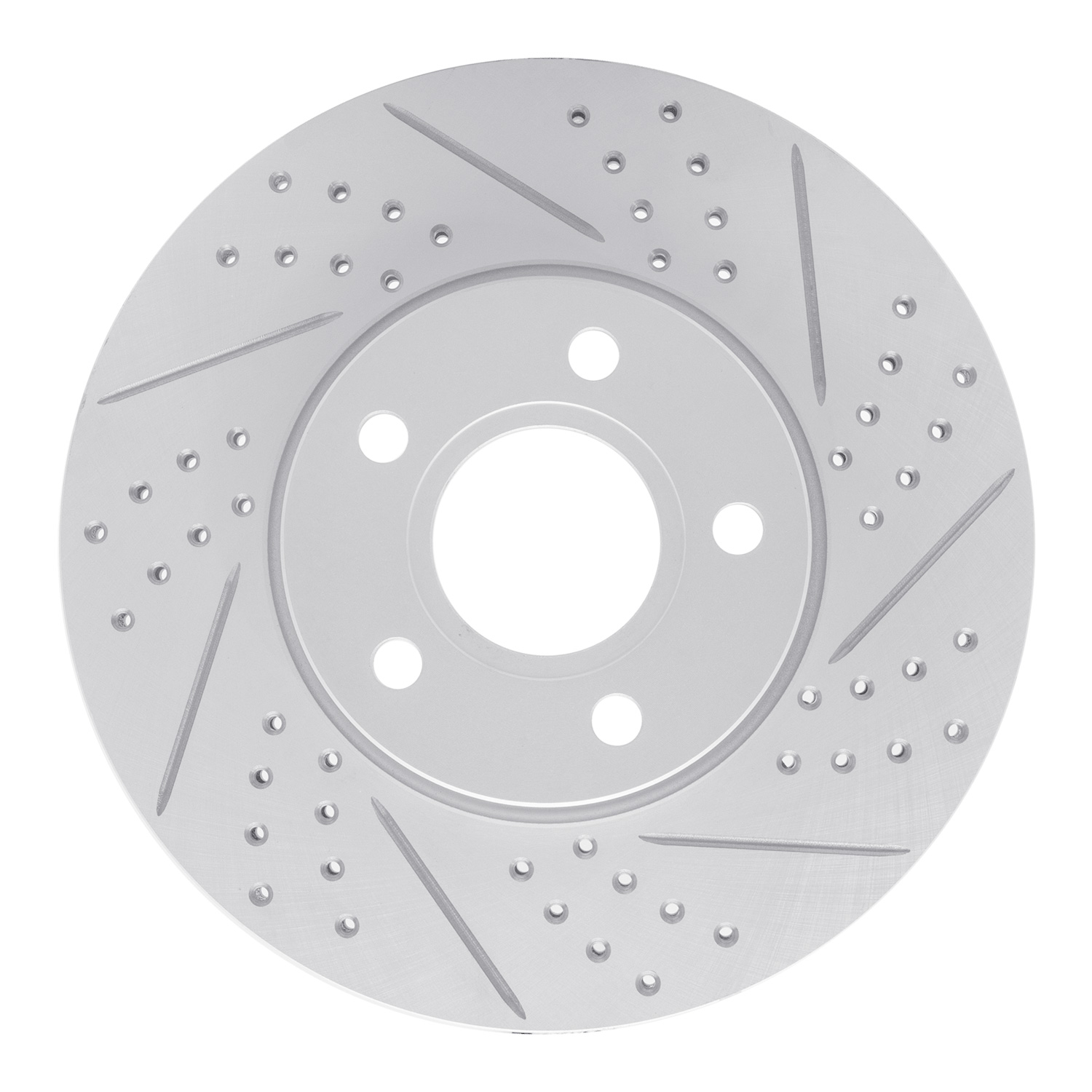

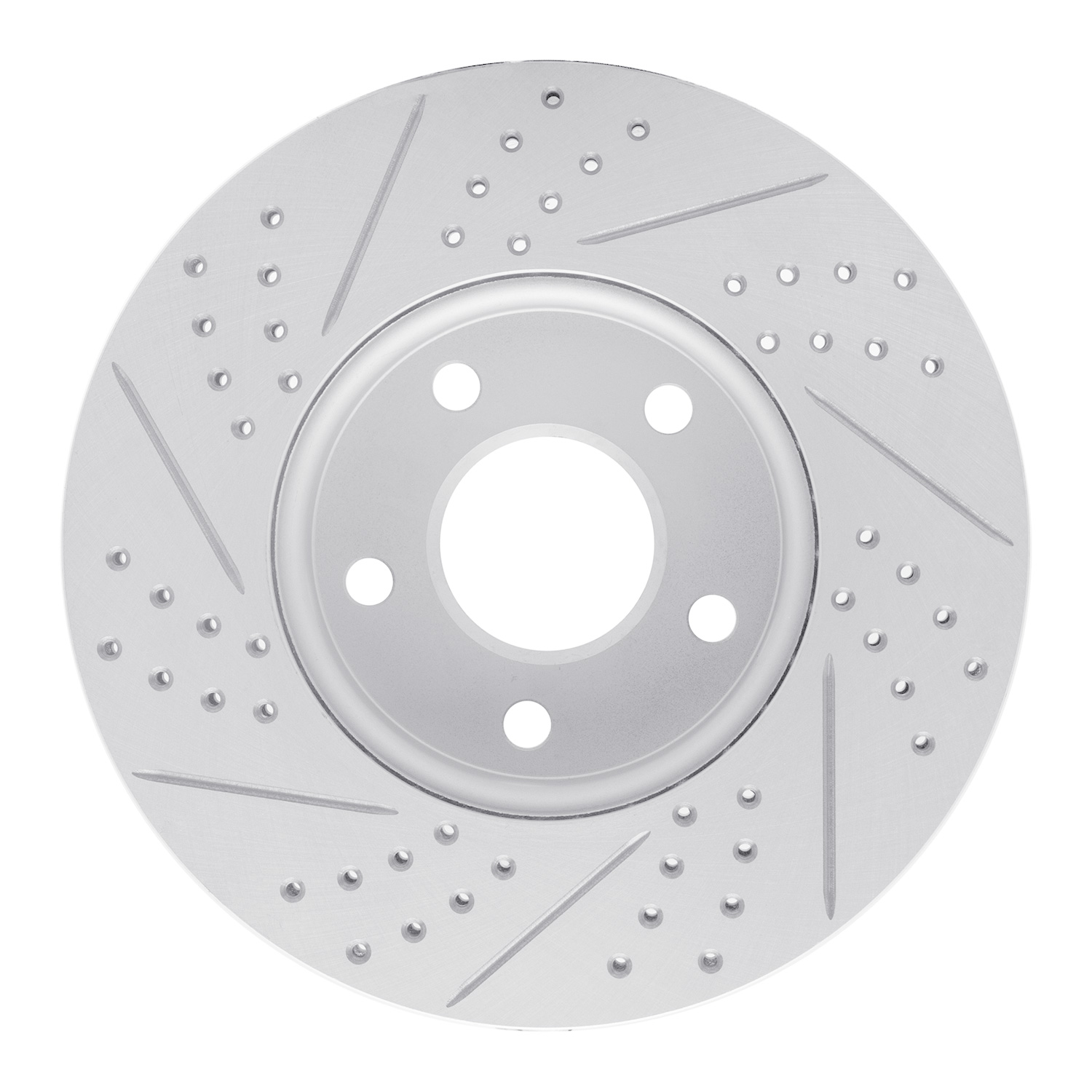

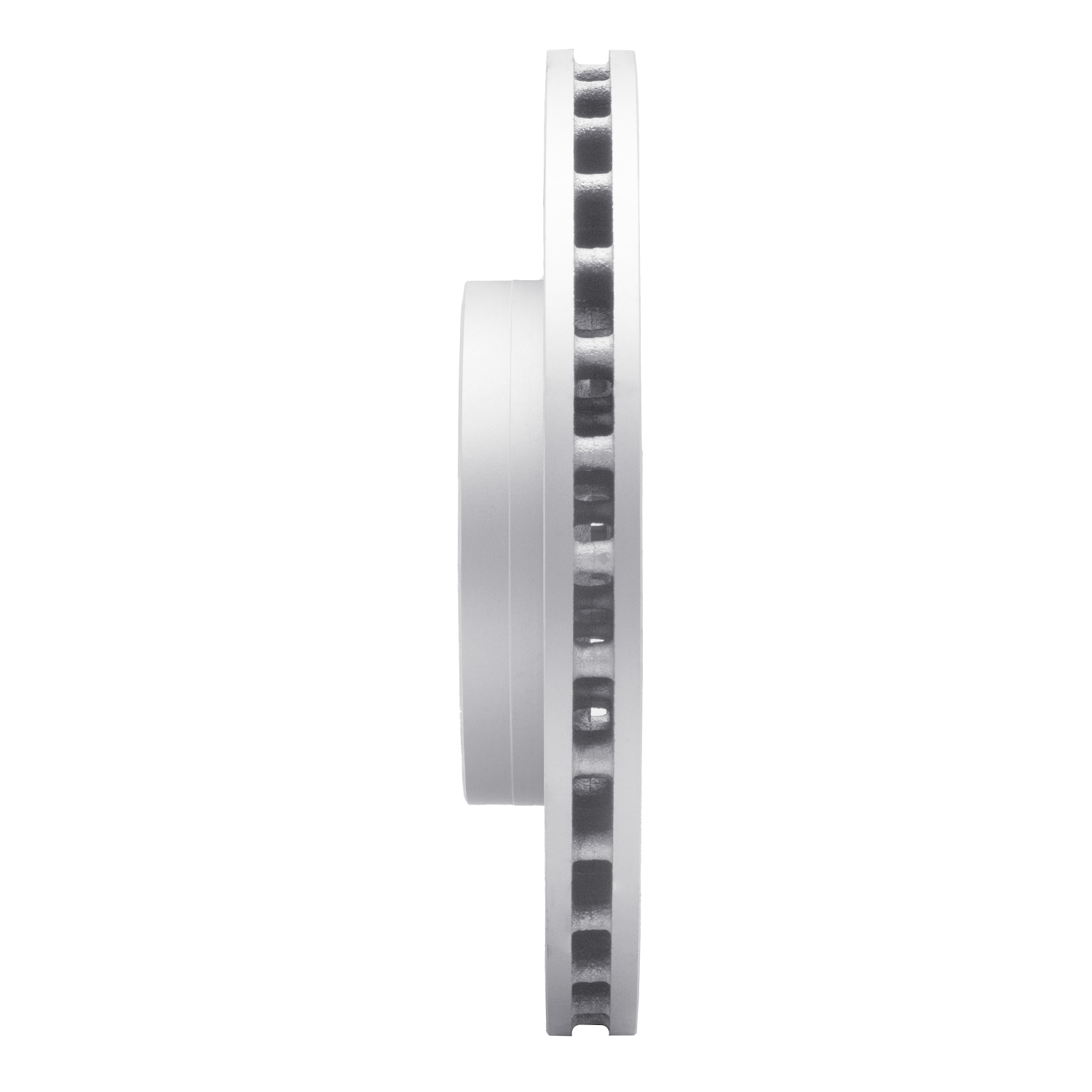

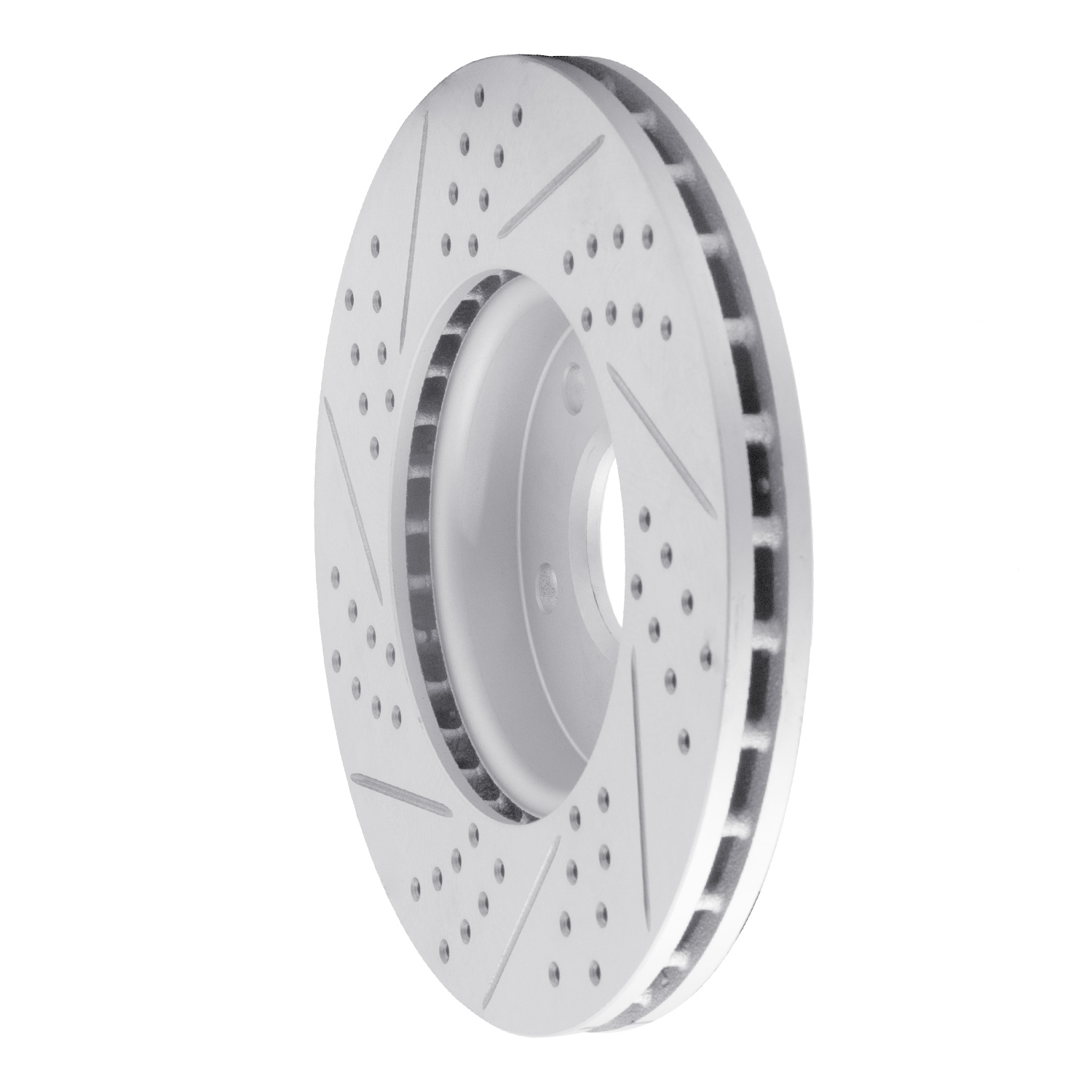

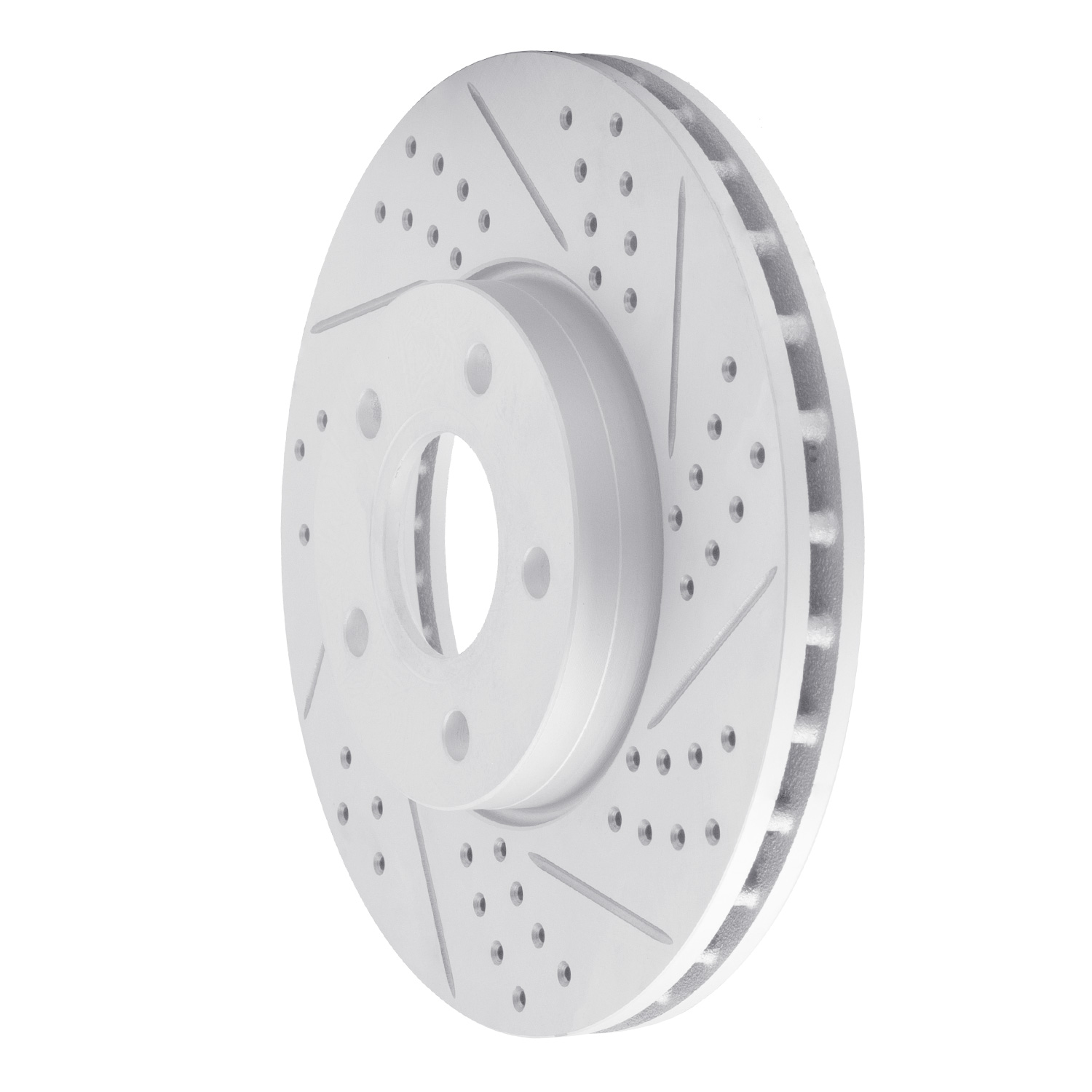

2018 Ford Focus DFC Geoperformance Rotor - Drilled and Slotted
Part Type:
Disc Brake Rotor
SKU:
830-54067R
Axle:
Front Right
Sub model:
Electric, S, SE, SEL, Titanium
PCQ:
1
Note:
Rear Disc
Rear Drum
Description
- DFC Geoperformance Rotor - Drilled and Slotted
Product Specifications
| Description | Value |
|---|---|
| Bolt Hole Quantity | 5EA |
| Outside Diameter | 278mm |
| Bolt Hole Diameter | 13.7mm |
| Height | 48.8mm |
| Discard Thickness | 23mm |
| Nominal Thickness | 25.1mm |
| Rust Resistant Coating | Yes |
| Disc Finish | Plain |
| Overall Height | 48.8mm |
| Center Hole Diameter | 63.6mm |
| Description | Value |
|---|---|
| Directional or Non-Directional Brake Surface | Directional |
| Hat Finish | Geospec Silver Grey |
| Surface Type | Slotted X Drilled |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). | |
| Bolt Circle Diameter | 108mm |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 13.7mm |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Circle Diameter | 108mm |
| Weight | 15.4LB |
