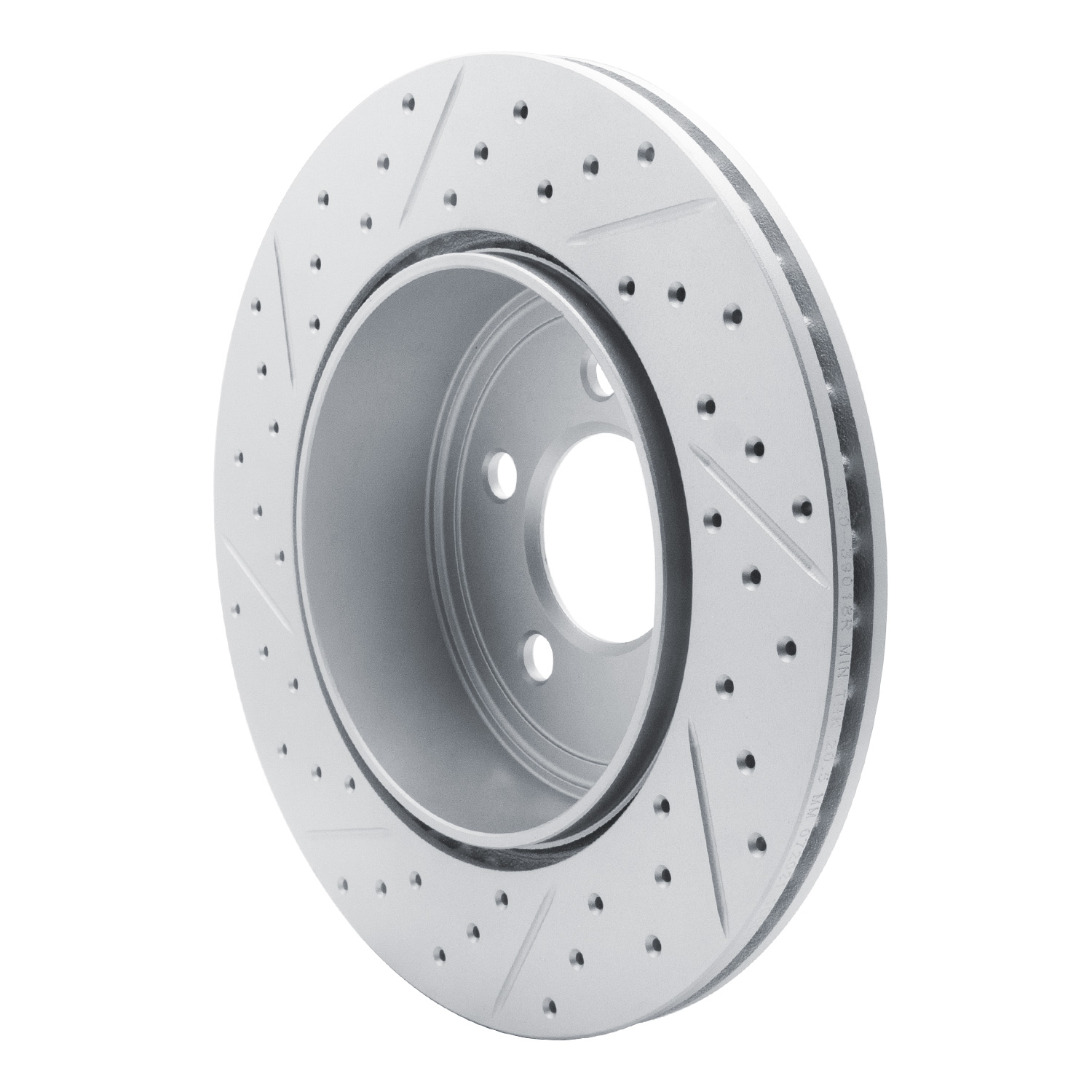

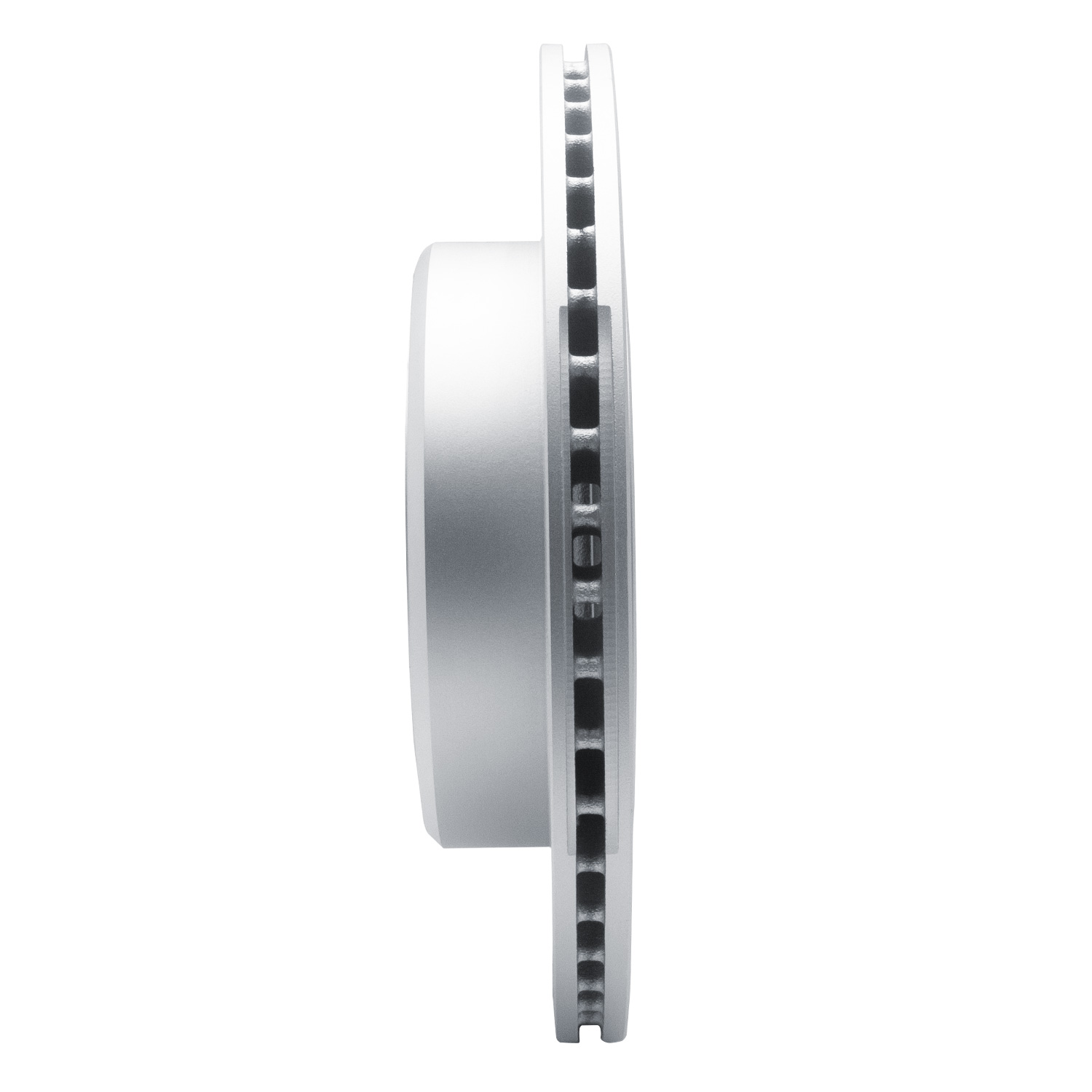

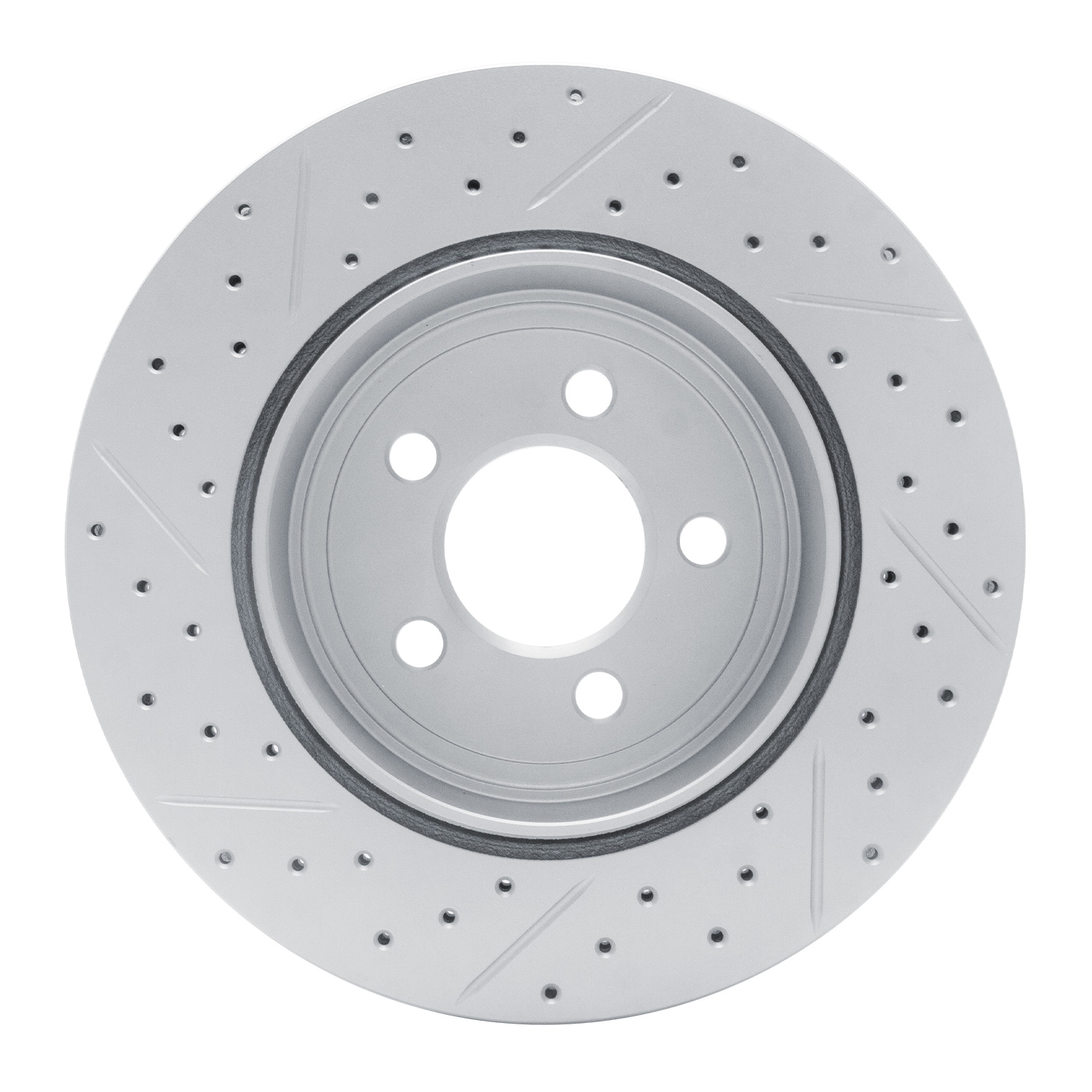

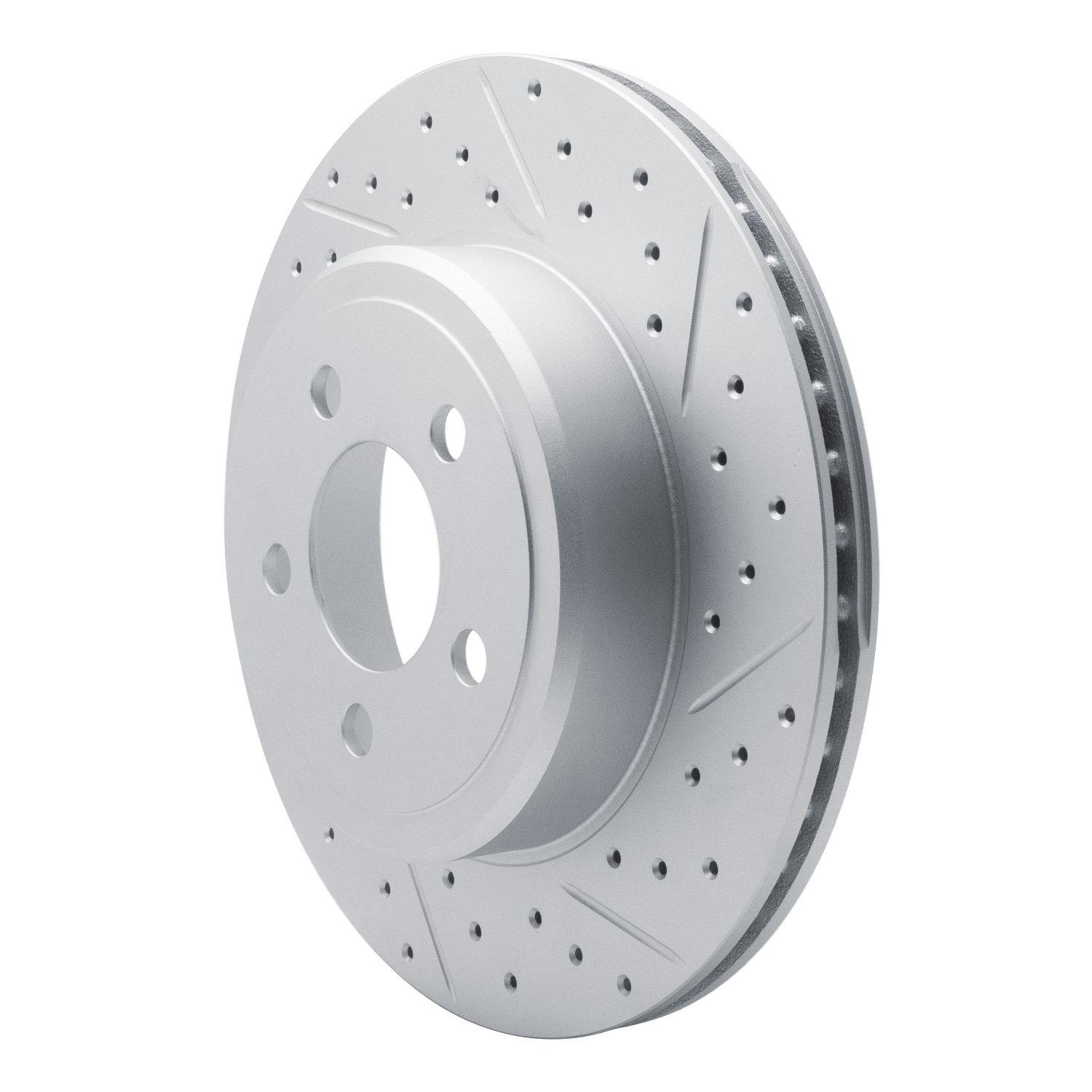

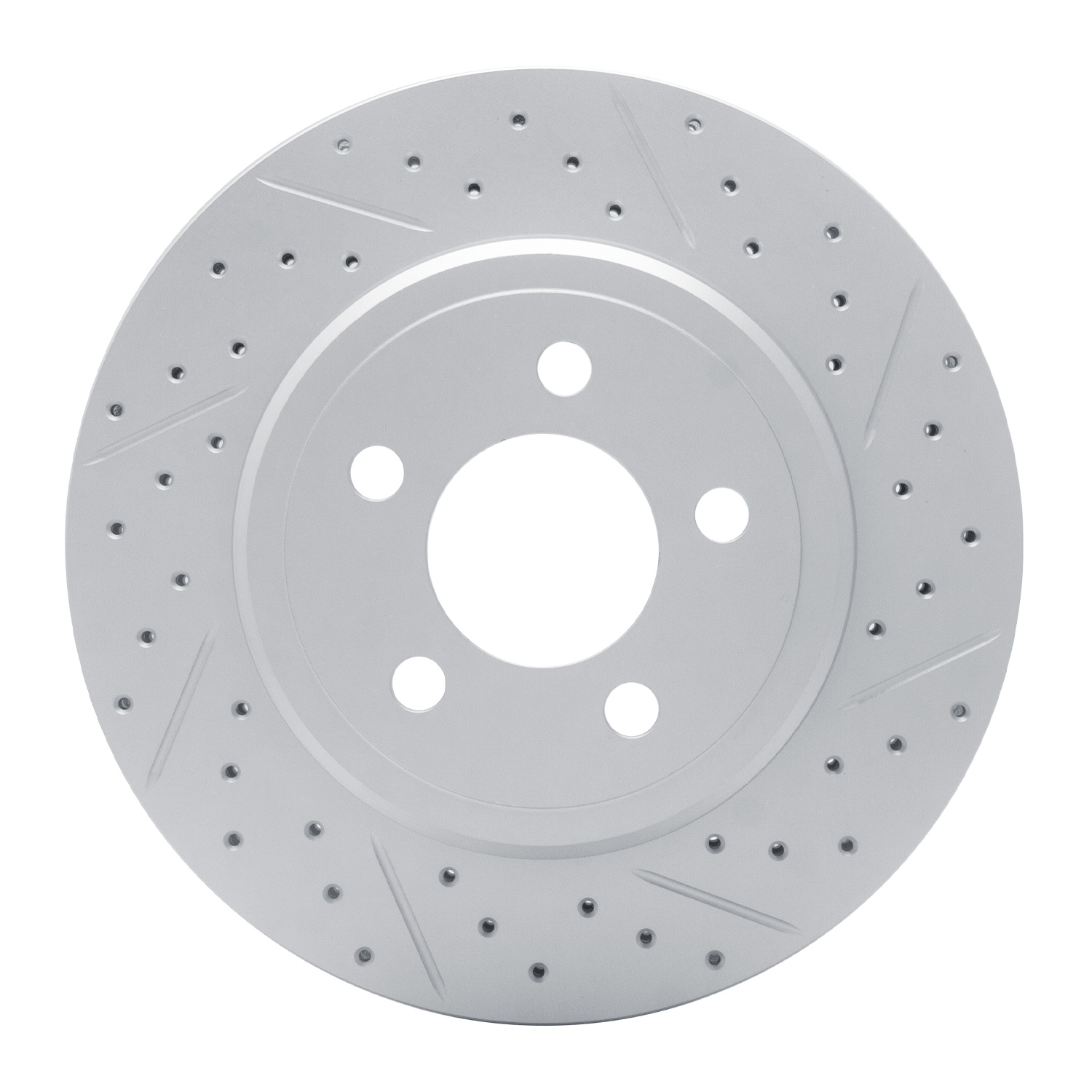

2018 Chrysler 300 DFC Geoperformance Rotor - Drilled and Slotted
Part Type:
Disc Brake Rotor
SKU:
830-39018R
Axle:
Rear Right
Engine Base:
3.6L 3604cc 220ci V6 , 5.7L 345ci V8
Drive Type:
AWD
PCQ:
1
Description
- DFC Geoperformance Rotor - Drilled and Slotted
Product Specifications
| Description | Value |
|---|---|
| Bolt Hole Quantity | 5EA |
| Nominal Thickness | 22mm |
| Bolt Hole Diameter | 16.7mm |
| Height | 67.4mm |
| Outside Diameter | 320mm |
| Disc Finish | Geoperformance Coated |
| Hat Finish | Geoperformance Coated |
| Discard Thickness | 20.5mm |
| Solid Or Vented Type Rotor | Vented |
| Description | Value |
|---|---|
| Overall Height | 67.4mm |
| Center Hole Diameter | 72.6mm |
| Rust Resistant Coating | Yes |
| Stud/Lug Hole Circle Diameter | 115mm |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Slotted X Drilled |
| Stud/Lug Hole Diameter | 16.7mm |
| Bolt Circle Diameter | 115mm |
| Directional or Non-Directional Brake Surface | Directional |
| Weight | 18.1LB |
