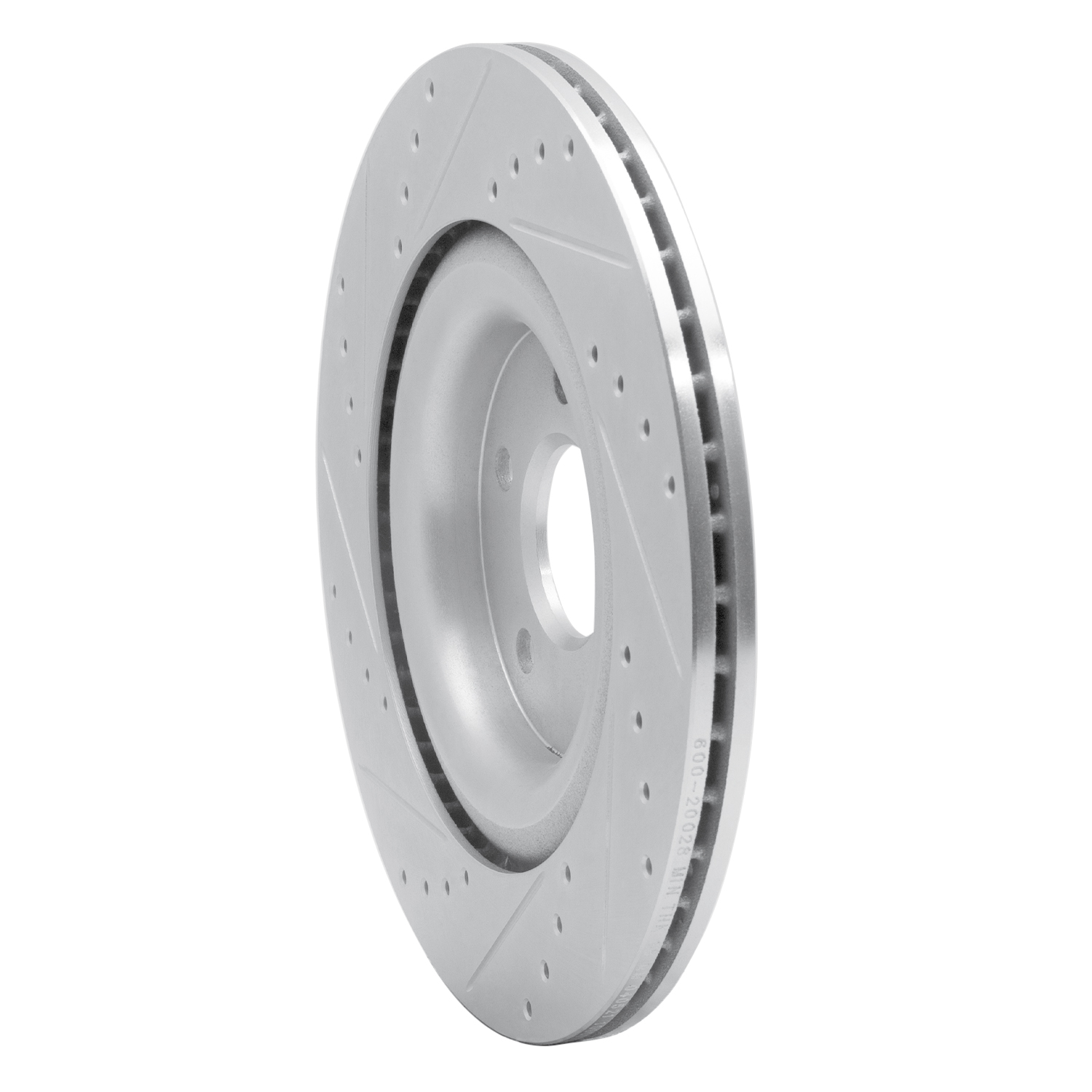

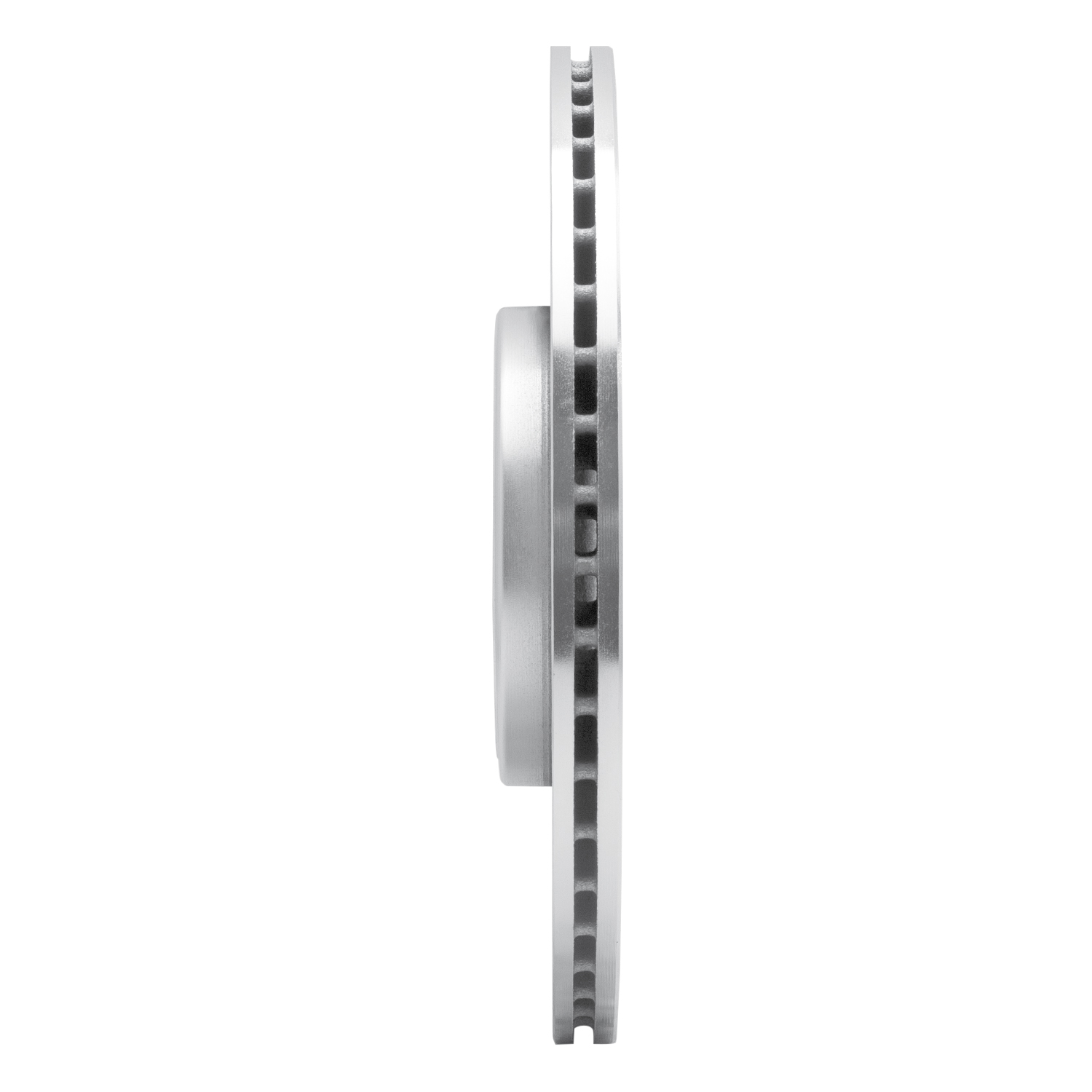

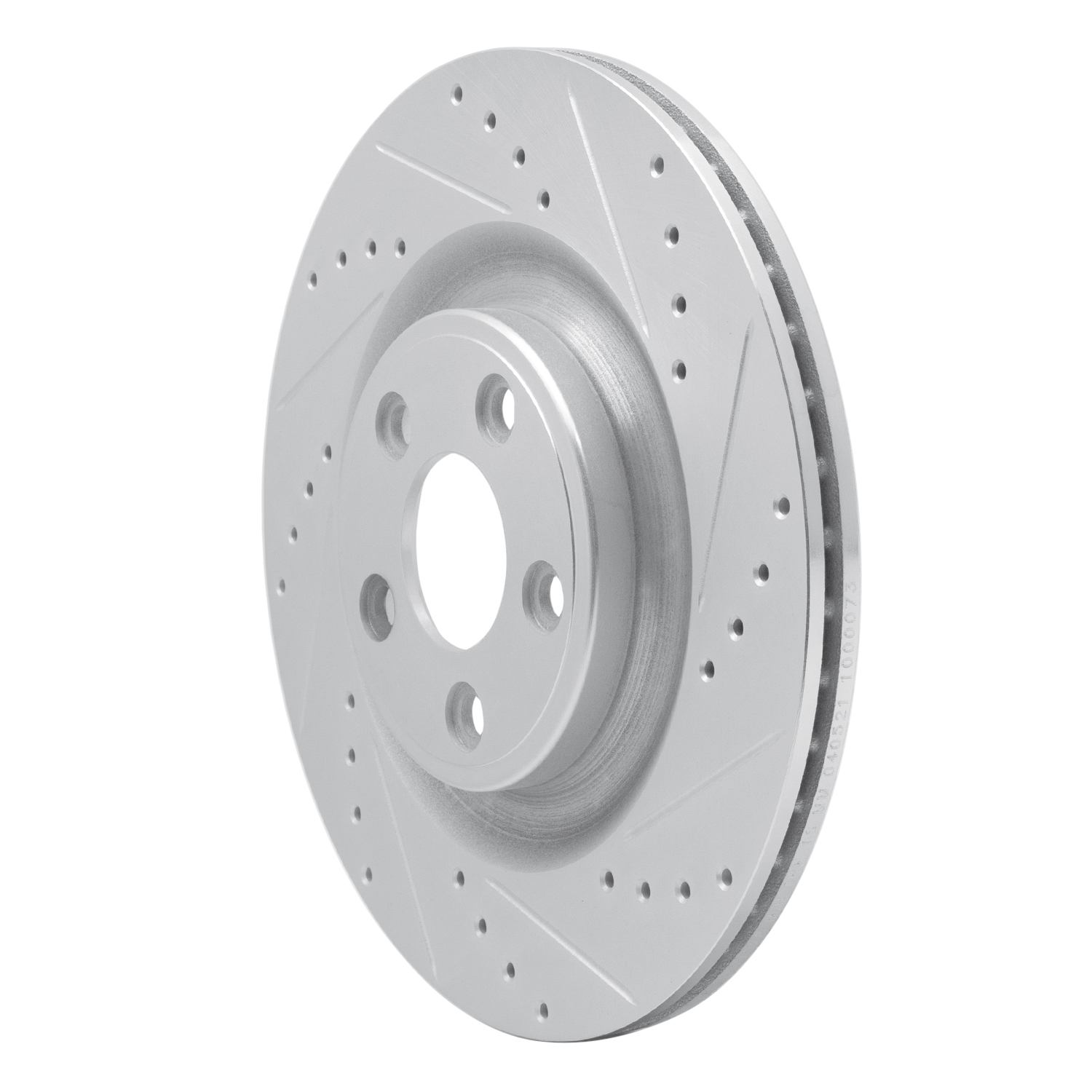

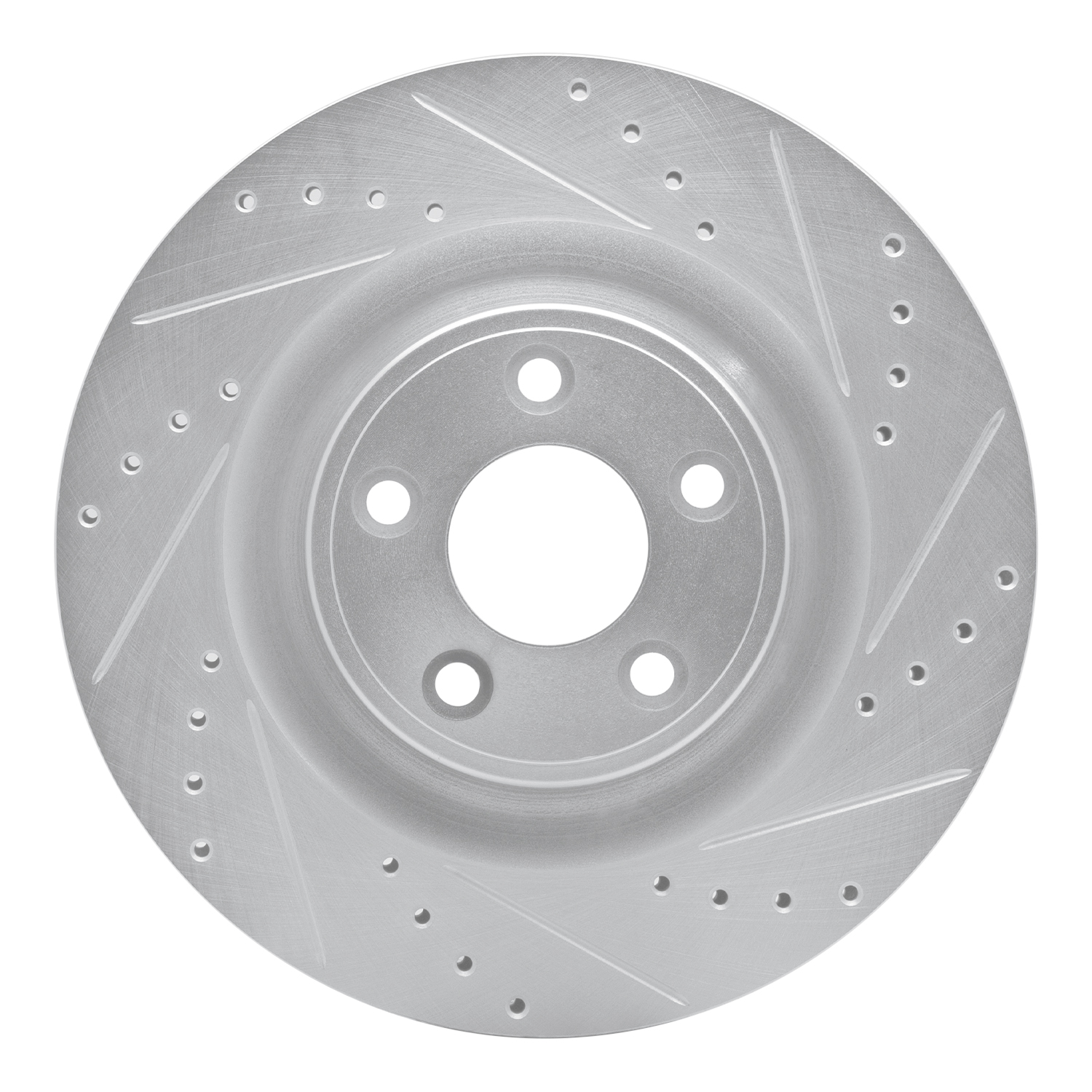

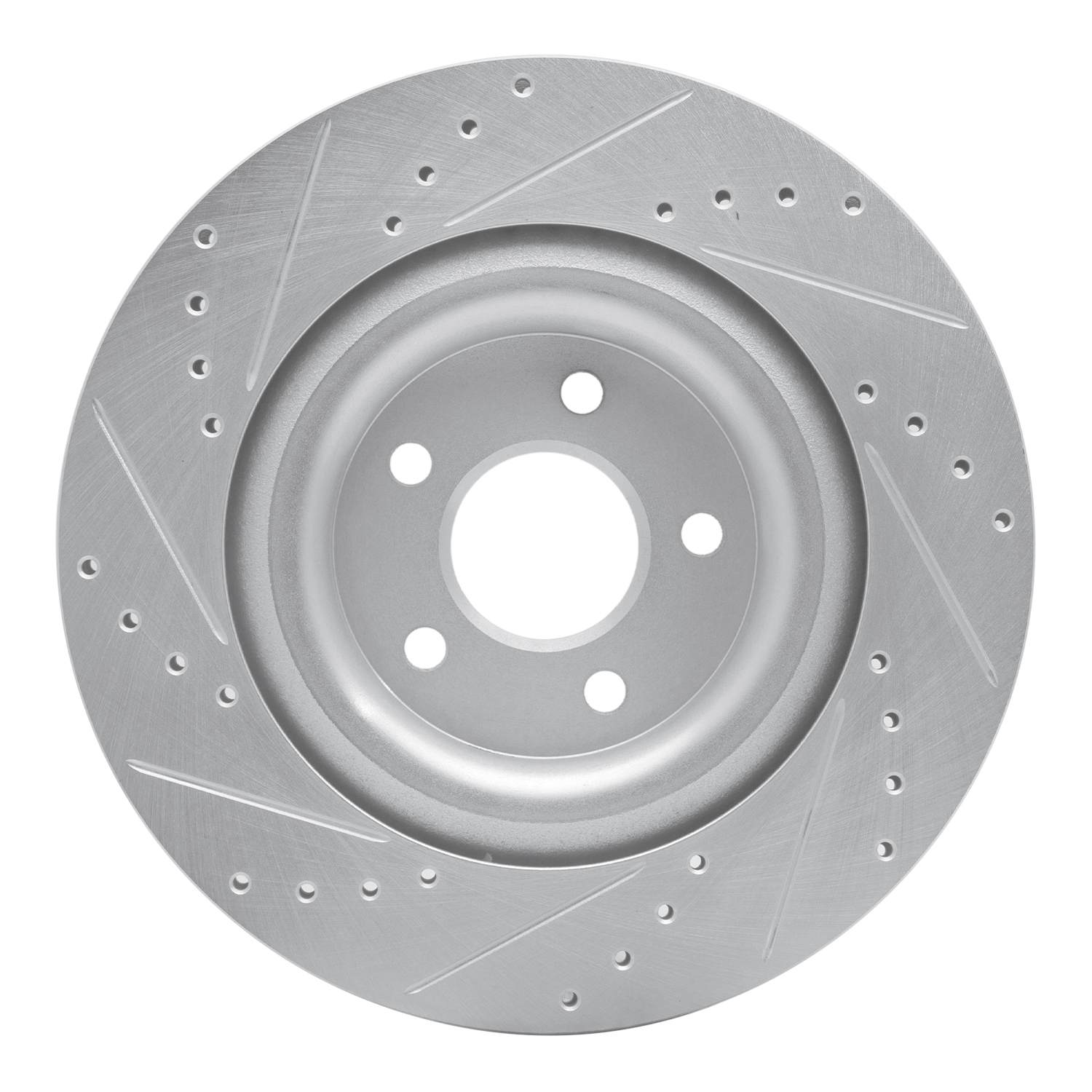

2017 Jaguar F-Type DFC Brake Rotor - Drilled and Slotted - Silver

Part Type:

Disc Brake Rotor

SKU:

631-20028R

Axle:

Rear Right

Sub model:

Premium, S

PCQ:

Description

Features and Benefits

New In Box, Ready To Install, No Modifications Required
100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
CNC-Machined To The Tightest Tolerances
Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
Non-Directional Finish To Promote Faster Break-In And Smoother Stops
Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
Quality Tested To Ensure Long-Lasting Performance
Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description	Value
Disc Finish	Plain
Outside Diameter	325mm
Discard Thickness	18mm
Bolt Hole Quantity	5EA
Overall Height	38.25mm
Bolt Hole Diameter	14.1mm
Stud/Lug Hole Circle Diameter	108mm
Height	38.25mm
Surface Type	Slotted X Drilled

Description	Value
Rust Resistant Coating	Yes
Solid Or Vented Type Rotor	Vented
Nominal Thickness	20mm
Stud/Lug Hole Diameter	14.1mm
Center Hole Diameter	64.5mm
Hat Finish	Zinc Silver
Stud/Lug Hole Quantity	5
Directional or Non-Directional Brake Surface	Directional
Bolt Circle Diameter	108mm
Weight	16.6LB
