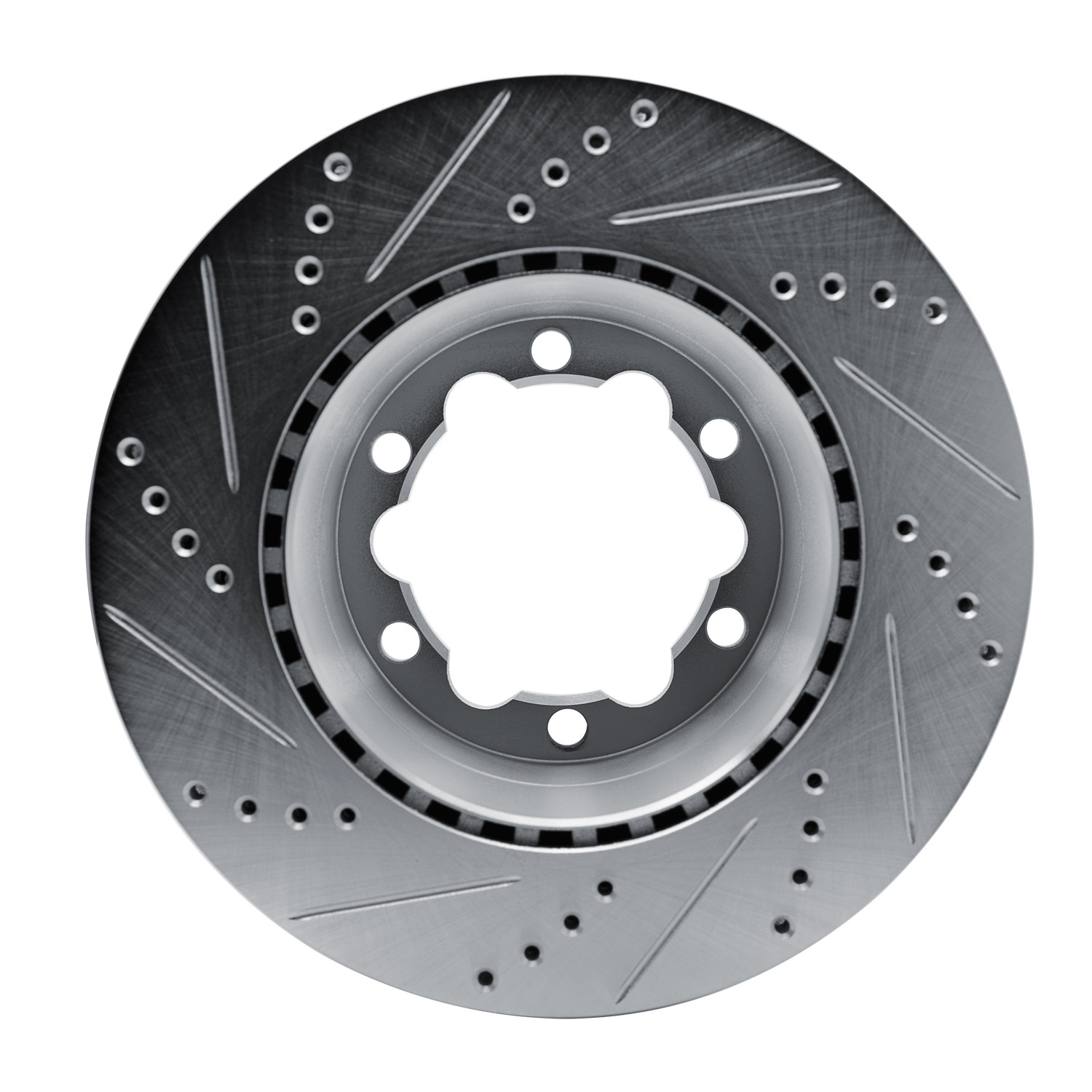

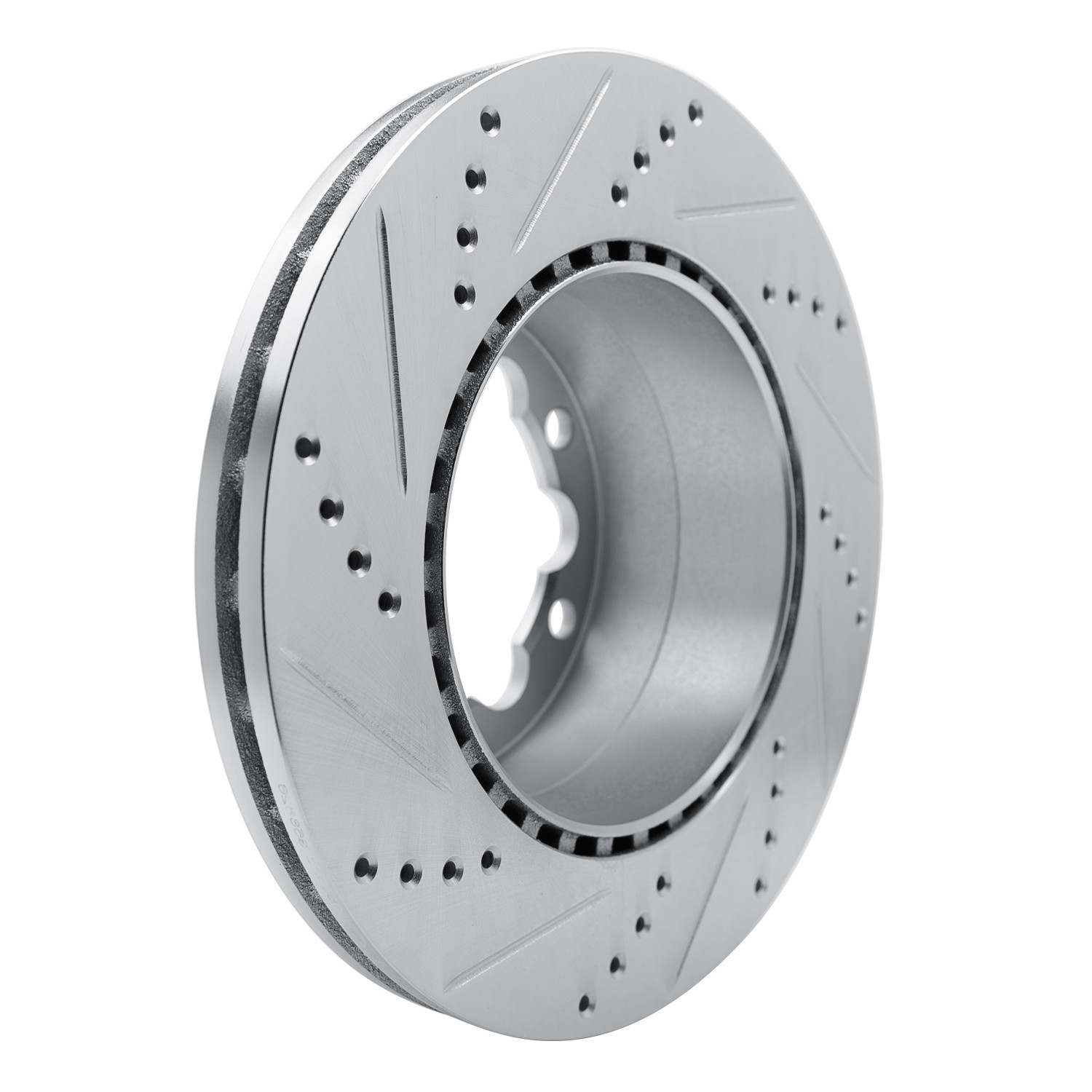

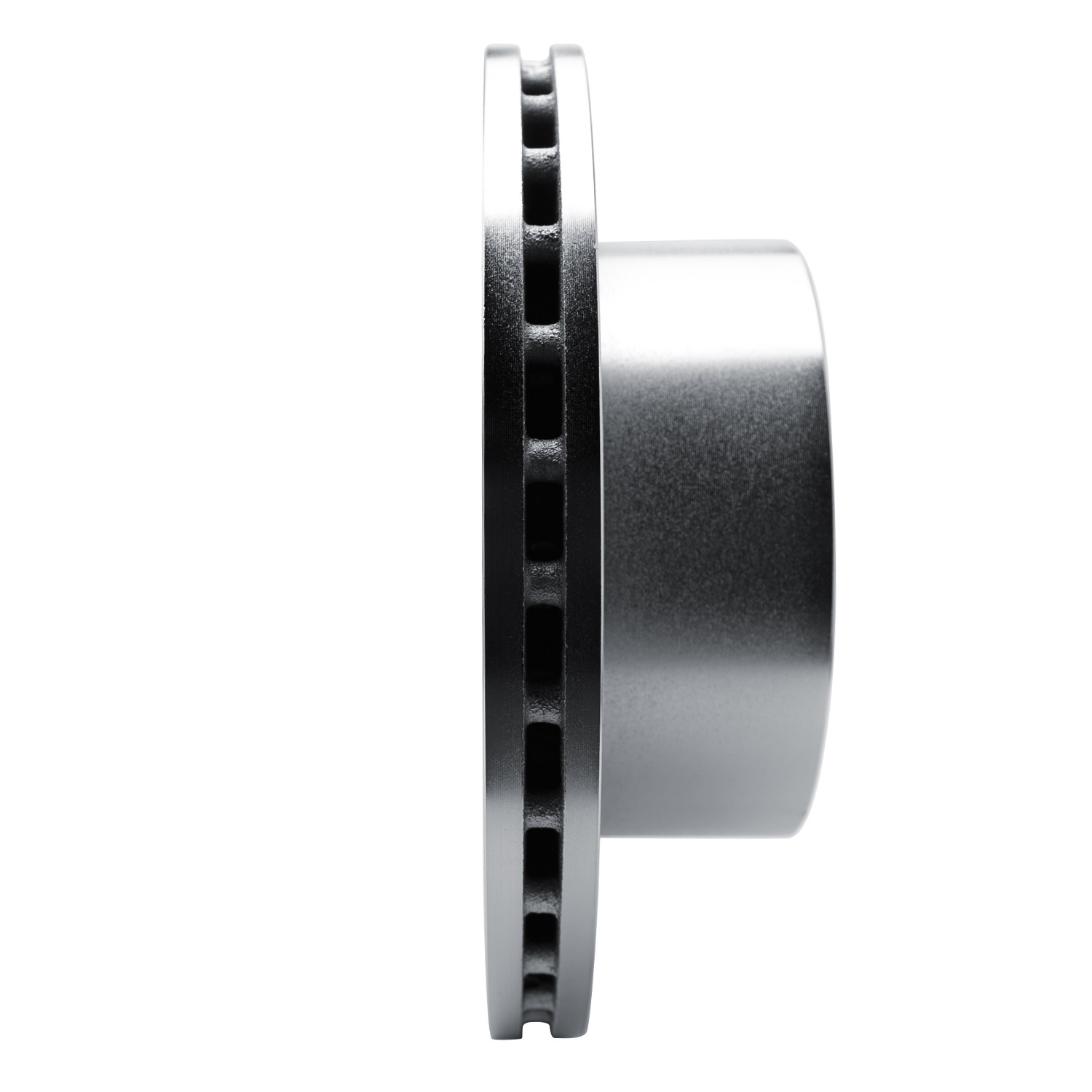

2014 Freightliner Sprinter 3500 DFC Brake Rotor - Drilled and Slotted - Silver

Part Type:

Disc Brake Rotor

SKU:

631-63134R

Axle:

Rear Right

PCQ:

Description

Features and Benefits

100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
New In Box, Ready To Install, No Modifications Required
Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
CNC-Machined To The Tightest Tolerances
Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
Non-Directional Finish To Promote Faster Break-In And Smoother Stops
Quality Tested To Ensure Long-Lasting Performance
Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description	Value
Solid Or Vented Type Rotor	Vented
Height	93.15mm
Rust Resistant Coating	Yes
Bolt Hole Quantity	6EA
Stud/Lug Hole Circle Diameter	145.2mm
Discard Thickness	25mm
Overall Height	93.15mm
Outside Diameter	303mm
Surface Type	Slotted X Drilled

Description	Value
Nominal Thickness	28mm
Stud/Lug Hole Quantity	6
Disc Finish	Plain
Stud/Lug Hole Diameter	15mm
Hat Finish	Zinc Silver
	This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Directional or Non-Directional Brake Surface	Directional
Center Hole Diameter	120mm
Bolt Circle Diameter	145.2mm
Weight	22.55LB
