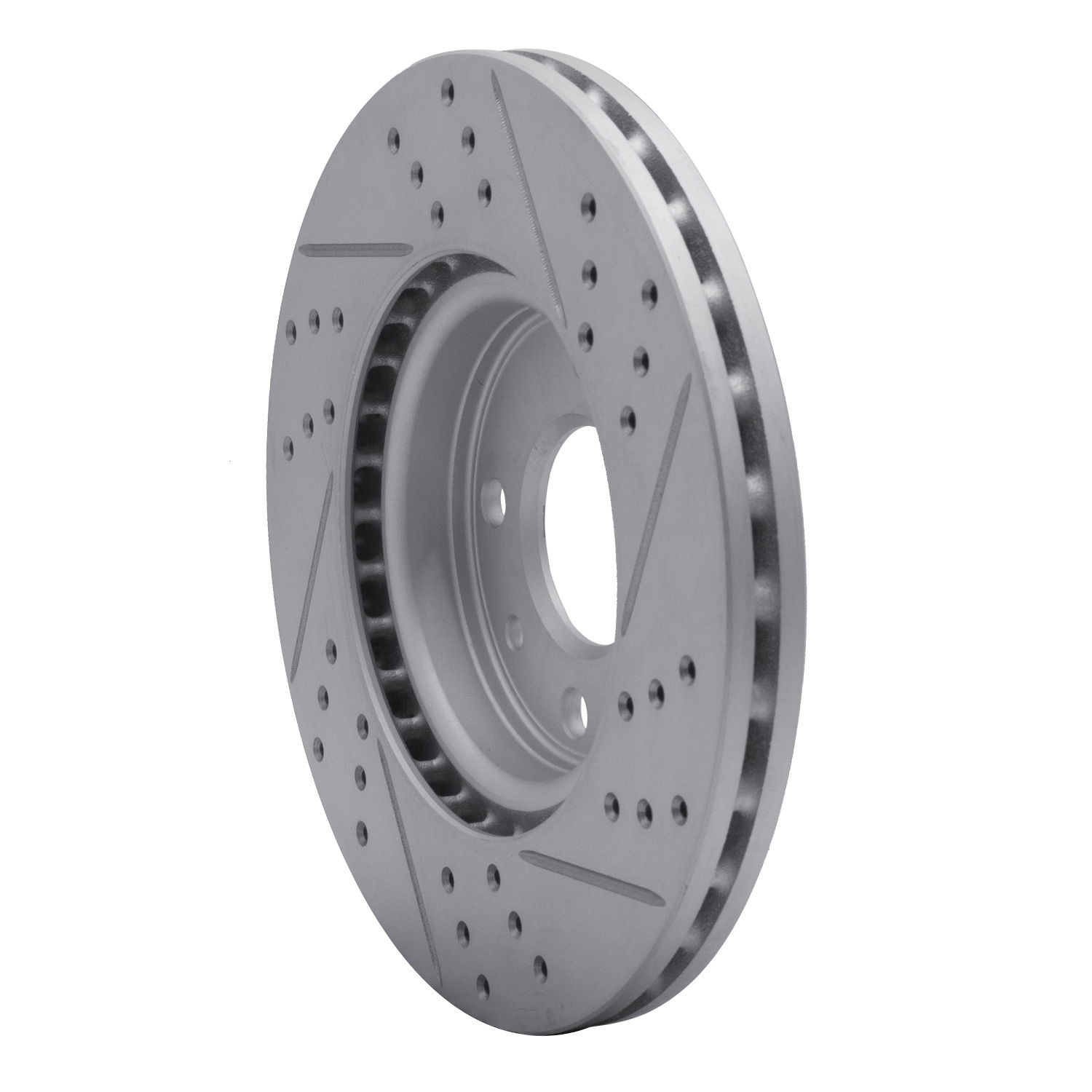

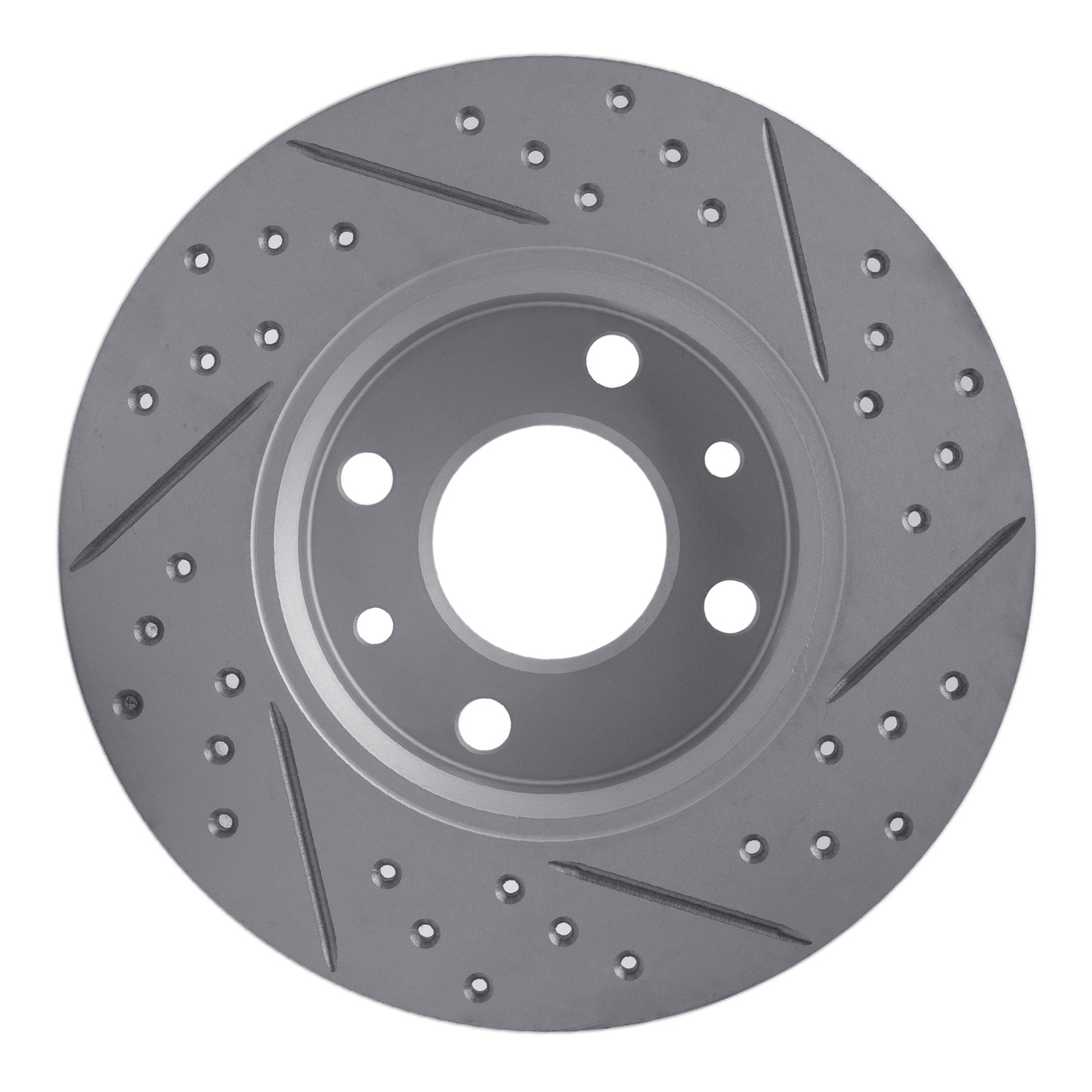

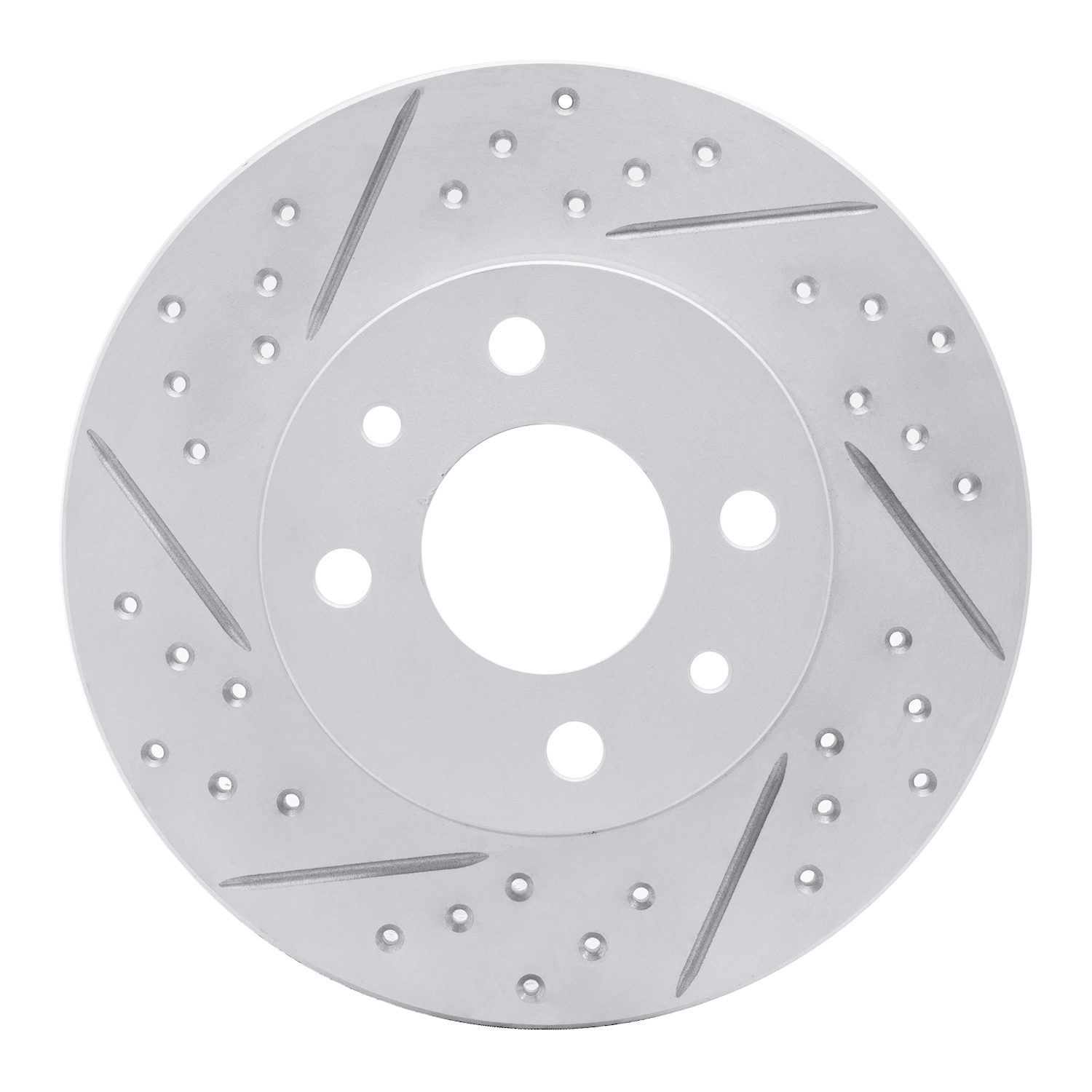

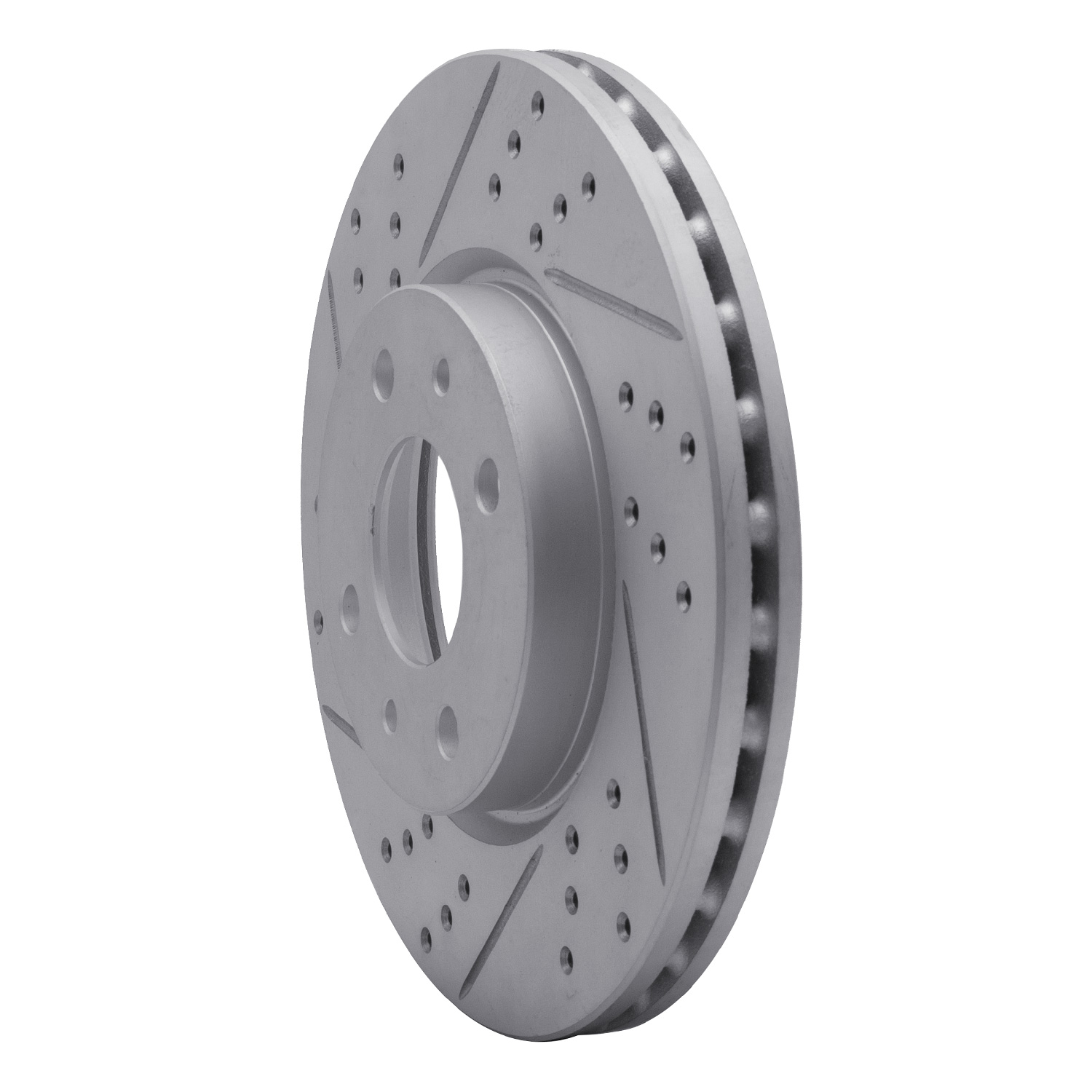

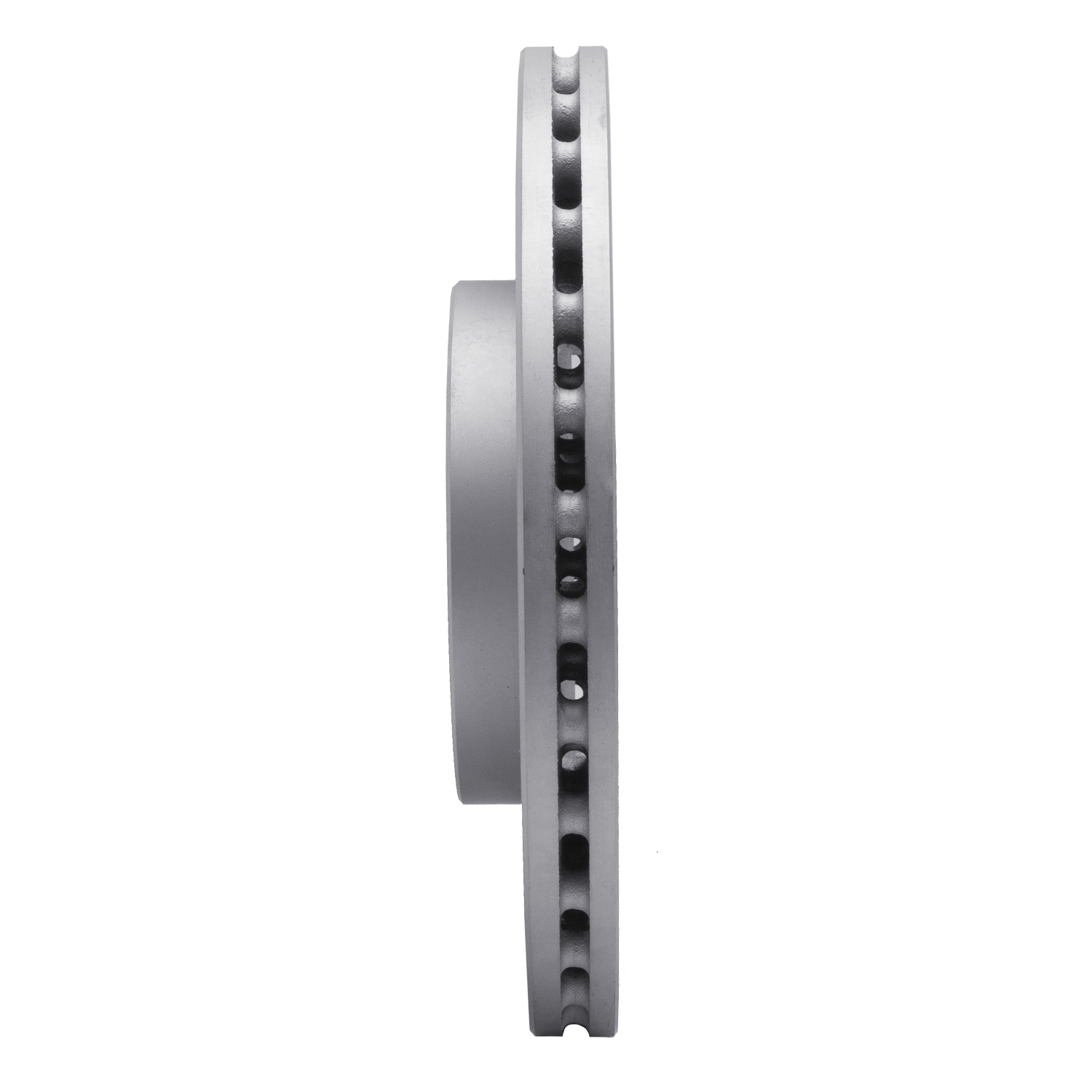

2012 Fiat 500 DFC Geoperformance Rotor - Drilled and Slotted

Part Type:
Disc Brake Rotor
SKU:
830-07002L
Axle:
Front Left
Sub model:
Gucci, Lounge, Pop, Sport
PCQ:
1
Note:

(USA/CANADA)

Description

  • DFC Geoperformance Rotor - Drilled and Slotted

Product Specifications

Description Value
Bolt Hole Quantity 4EA
Nominal Thickness 22mm
Height 40.5mm
Outside Diameter 258mm
Bolt Hole Diameter 13.3mm
Disc Finish Plain
Hat Finish Geospec Silver Grey
Discard Thickness 20.2mm
Surface Type Slotted X Drilled
Directional or Non-Directional Brake Surface Directional
Description Value
Solid Or Vented Type Rotor Vented
Rust Resistant Coating Yes
Stud/Lug Hole Circle Diameter 98mm
Overall Height 40.5mm
Center Hole Diameter 59mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Stud/Lug Hole Quantity 4
Stud/Lug Hole Diameter 13.3mm
Bolt Circle Diameter 98mm
Weight 11.55LB
