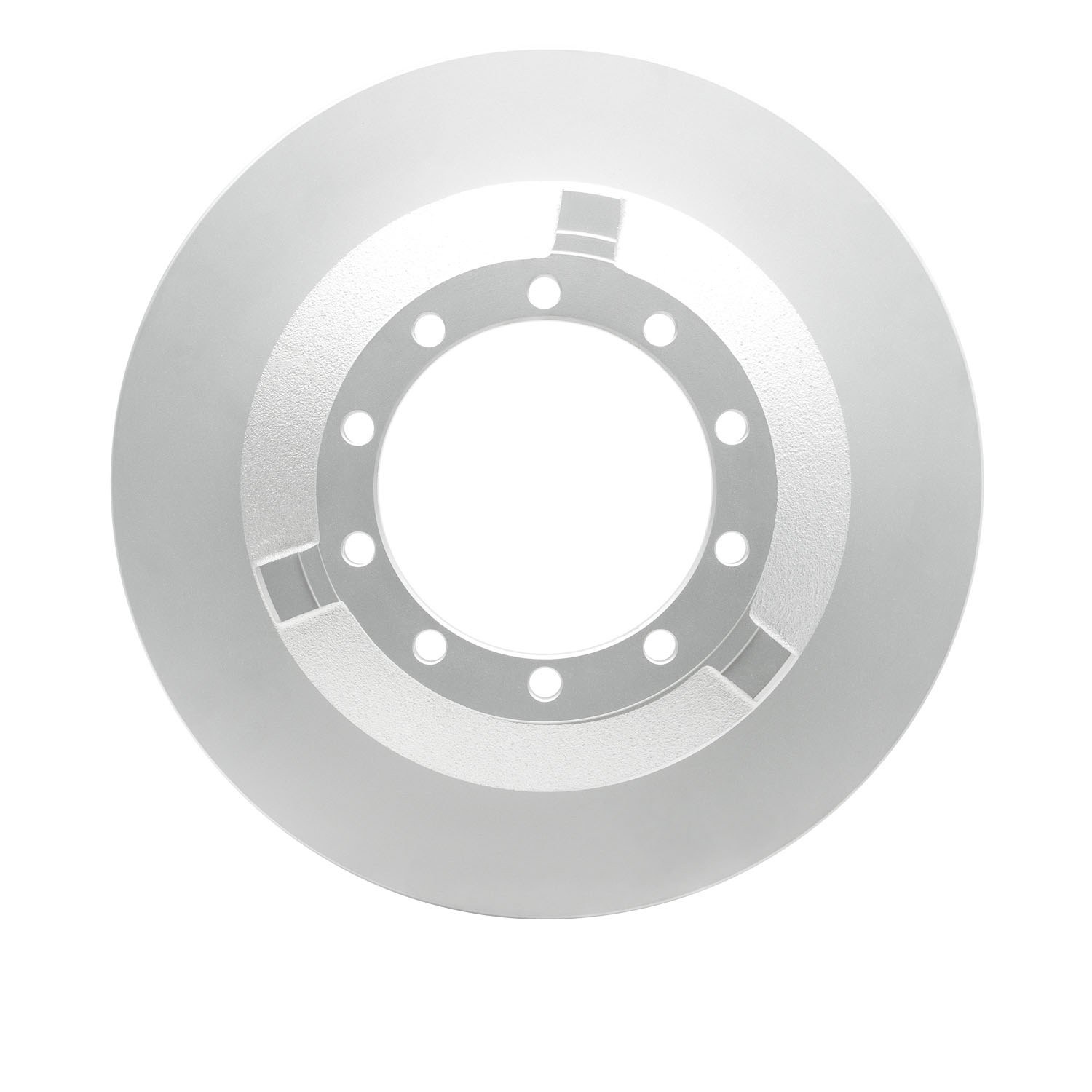

2007 Itasca Sunova DFC GEOSPEC Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
604-54159
Axle:
Front
PCQ:
2
Note:

Ford Chassis

Description

  • DFC GEOSPEC Coated Rotor - Blank

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • CNC-Machined To The Tightest Tolerances
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Ready To Install - No Additional Pre-Degreasing Preparation Needed (Saves Time And Money During Installation Process)
  • Quality Tested To Ensure Long-Lasting Performance
  • Provides Superior Corrosion Protection Over Zinc / Conventional Painting

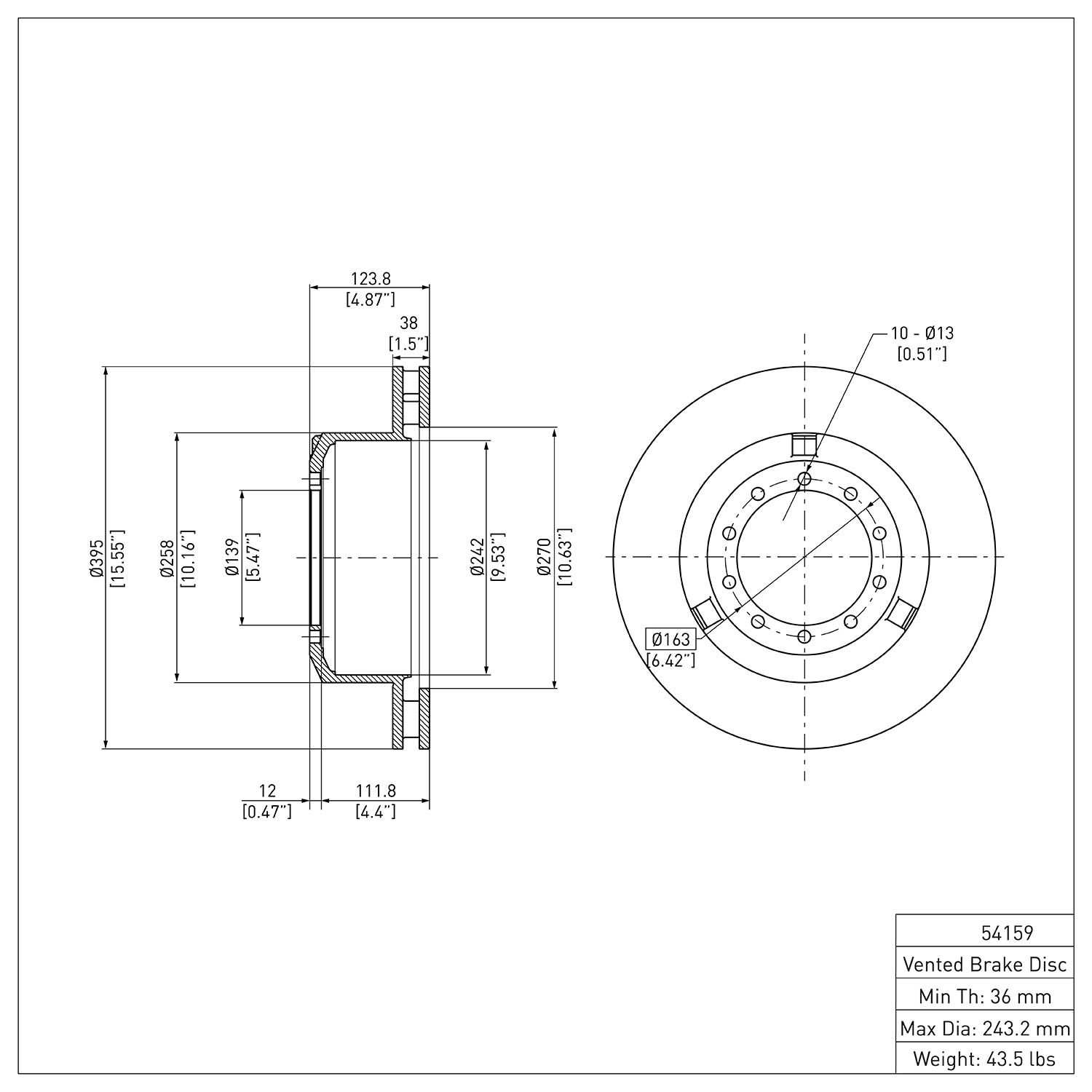

Product Specifications

Description Value
Height 123.8mm
Bolt Hole Quantity 10EA
Inside Diameter 139.4mm
Rust Resistant Coating Yes
Nominal Thickness 38.1mm
Outside Diameter 395mm
Discard Thickness 36mm
Stud/Lug Hole Quantity 10
Directional or Non-Directional Brake Surface Non-Directional
Bolt Hole Diameter 13mm
Description Value
Disc Finish Plain
Stud/Lug Hole Circle Diameter 163.2mm
Hat Finish GEOSPEC Silver Grey
Overall Height 123.8mm
Surface Type Smooth
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Center Hole Diameter 139.4mm
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Diameter 13mm
Weight 45.65LB
