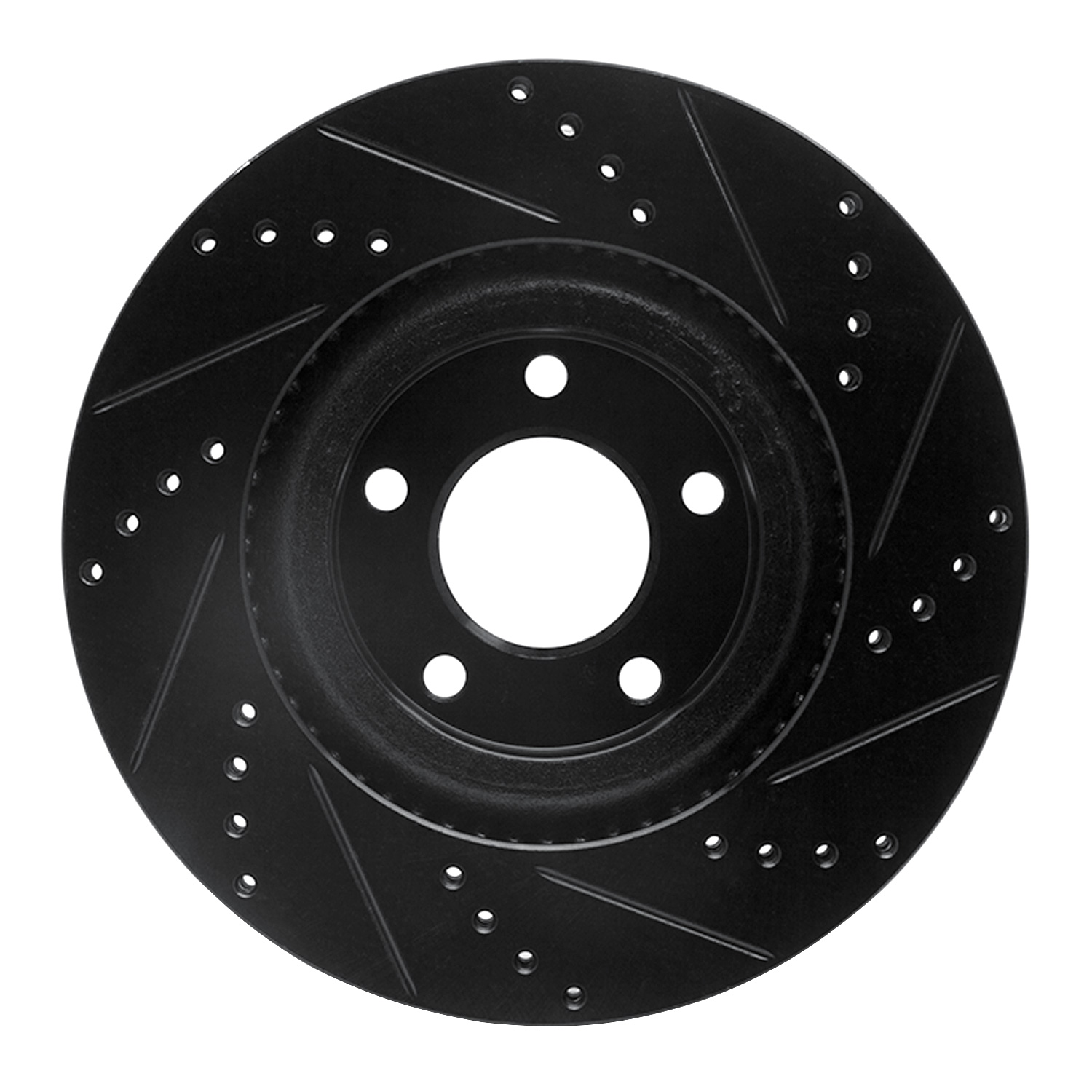

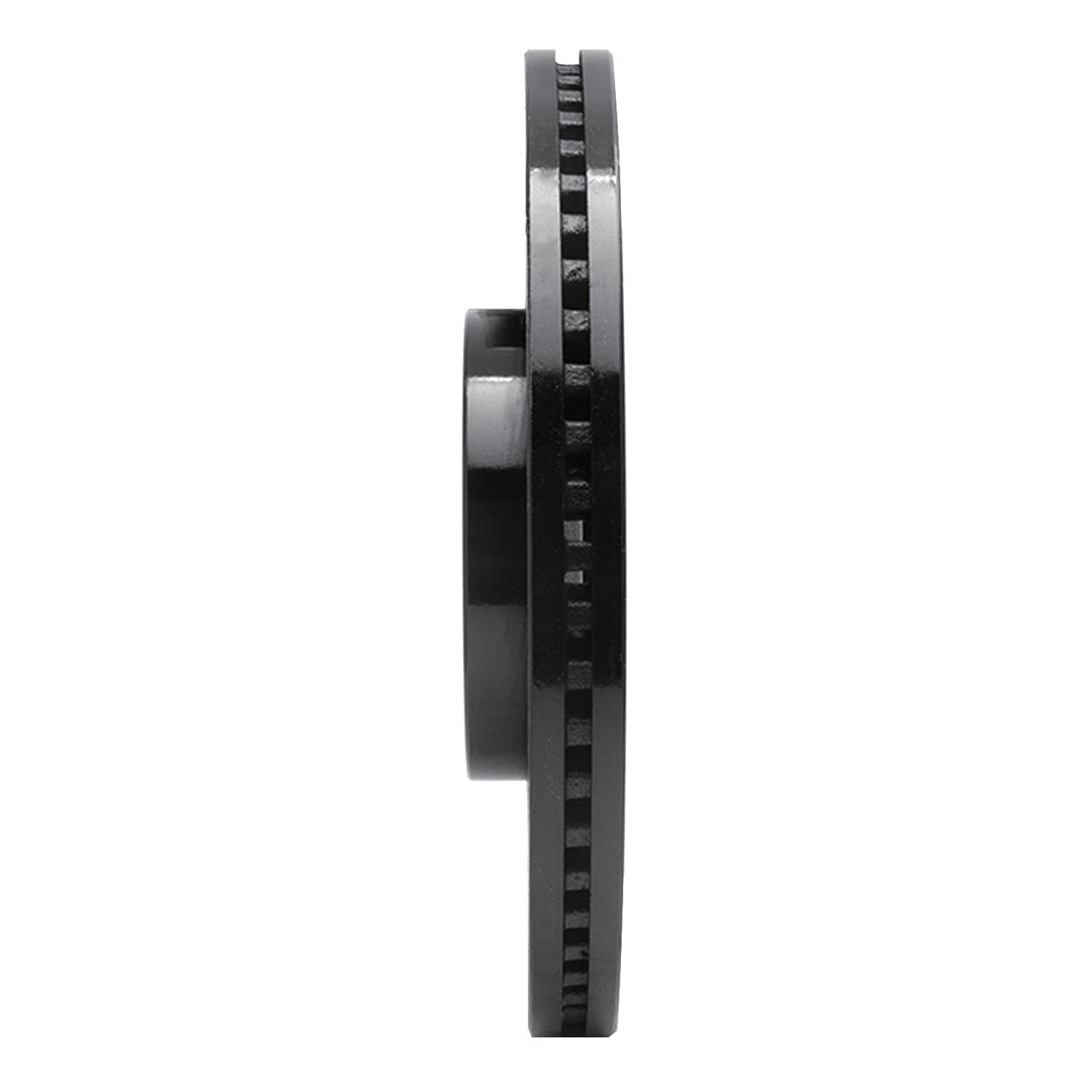

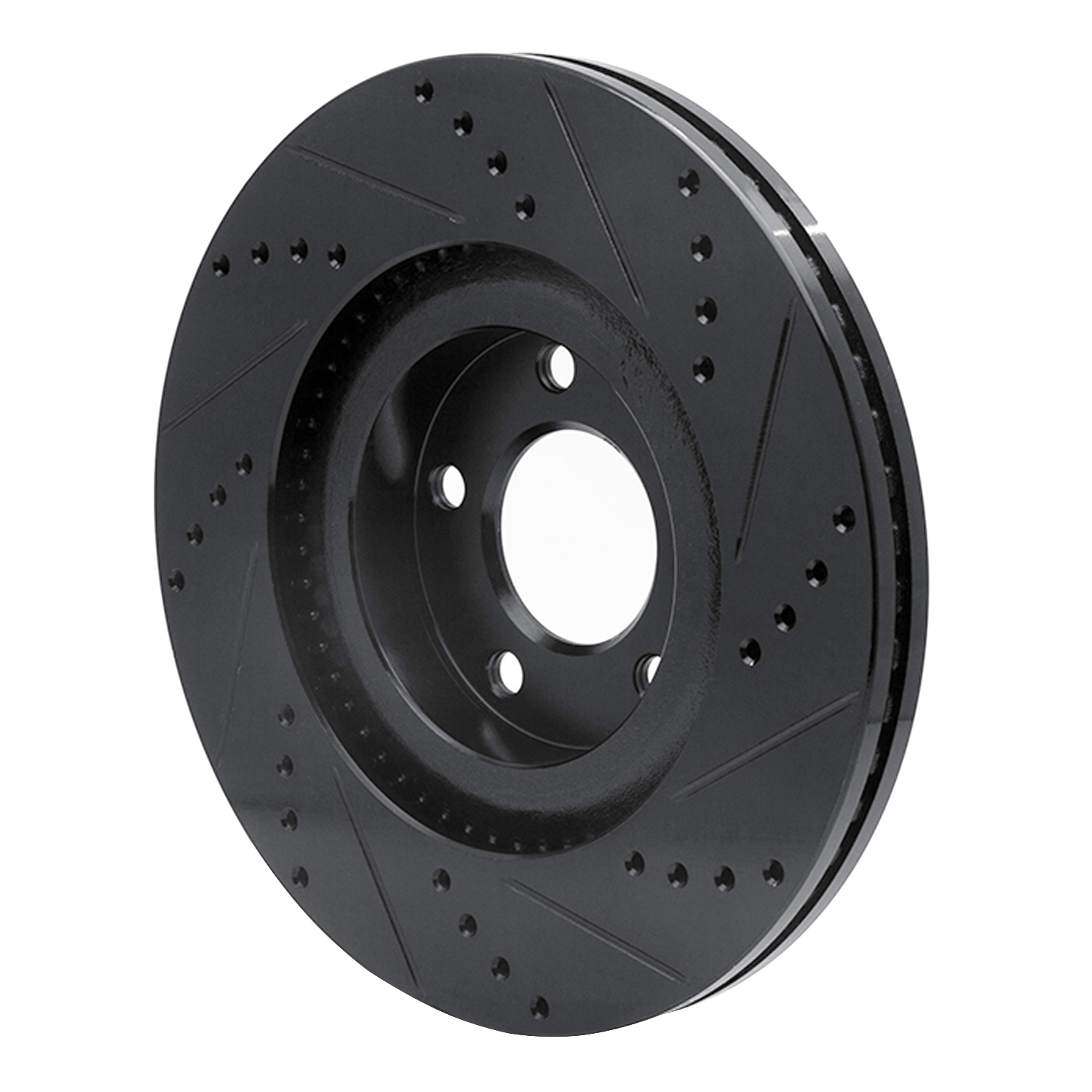

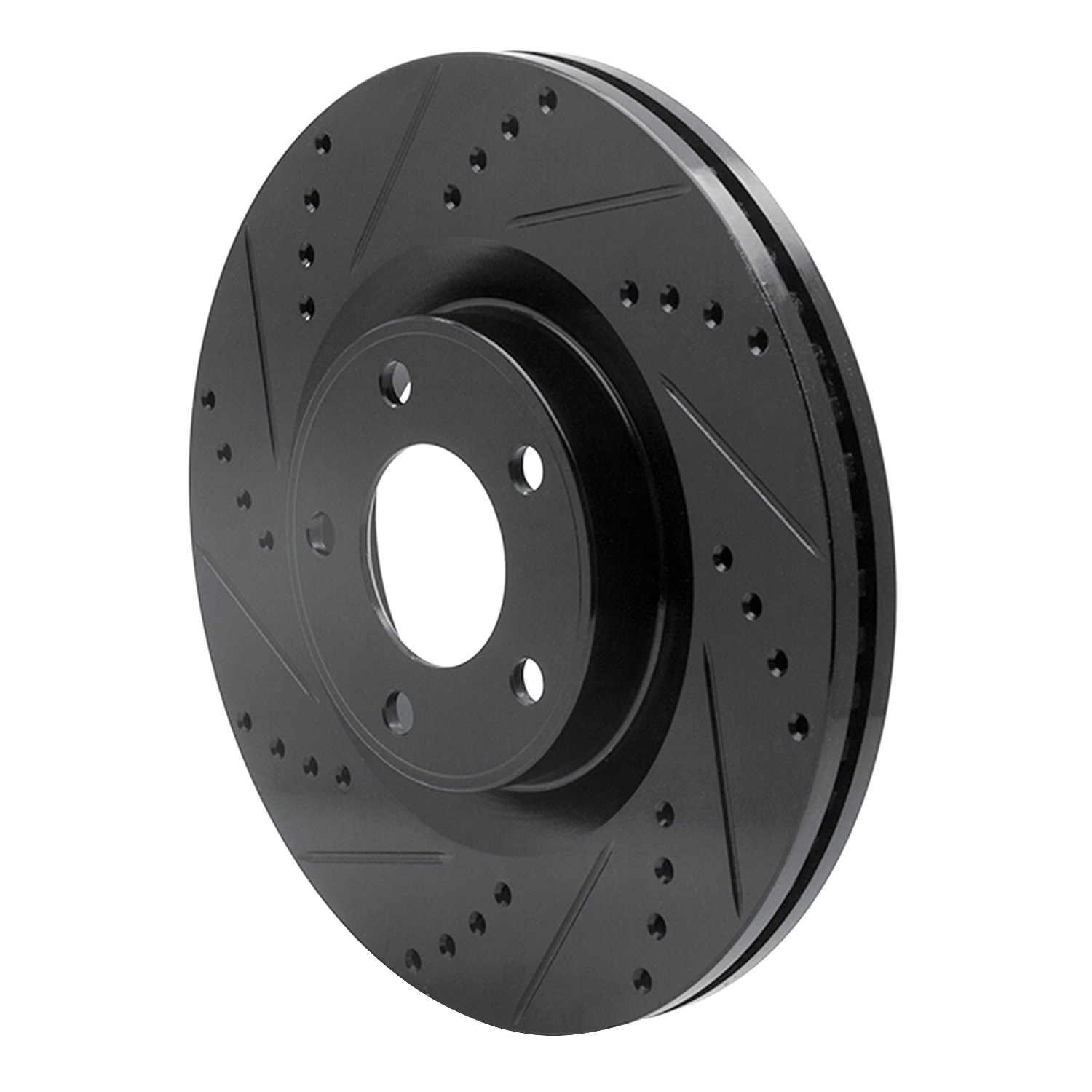

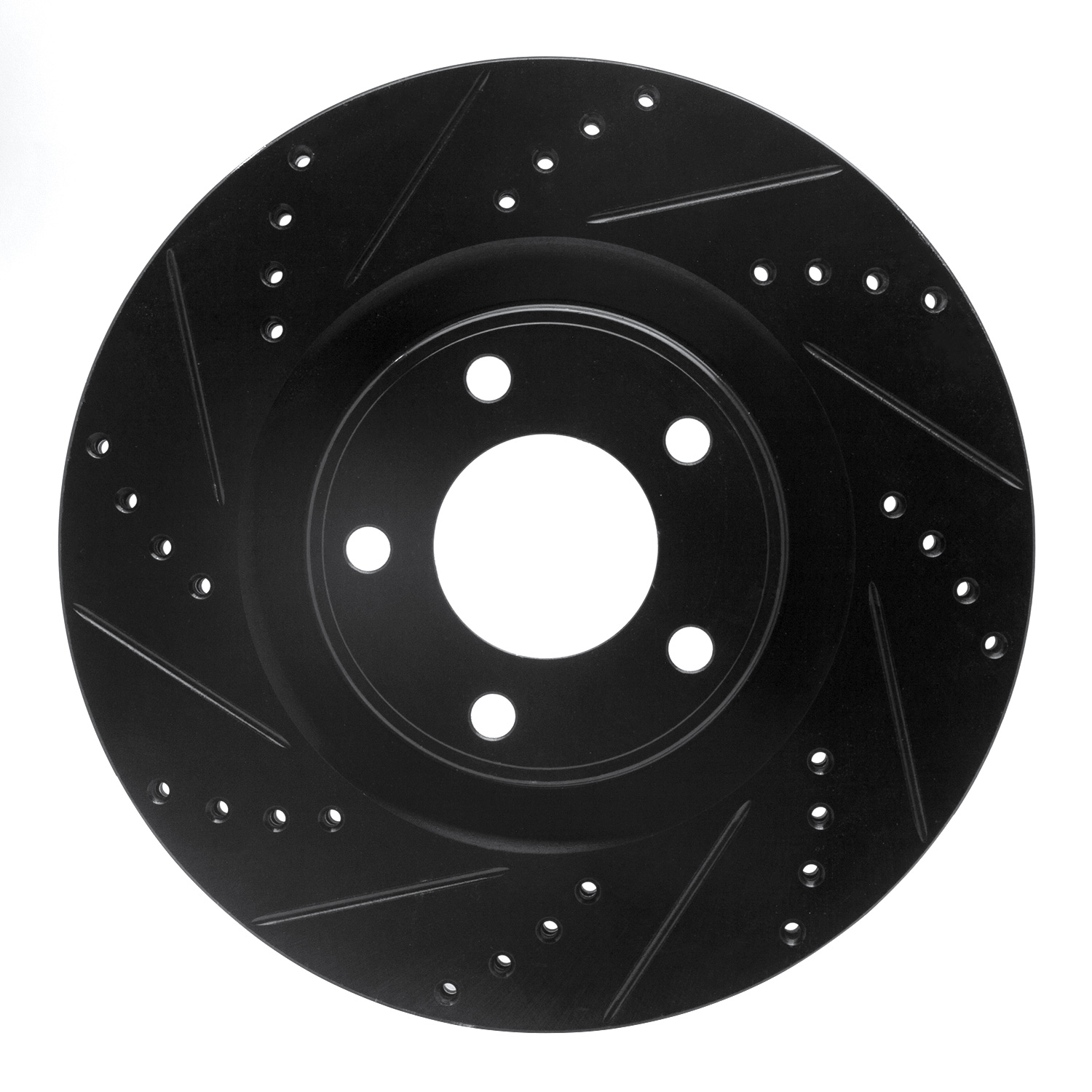

2007 Ford Edge DFC Brake Rotor - Drilled and Slotted - Black

Part Type:
Disc Brake Rotor
SKU:
633-54089L
Axle:
Front Left
Drive Type:
AWD
PCQ:
1

Description

  • DFC Brake Rotor - Drilled and Slotted - Black

Features and Benefits

  • New In Box, Ready To Install, No Modifications Required
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • CNC-Machined To The Tightest Tolerances
  • Quality Tested To Ensure Long-Lasting Performance
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Zinc Plated Black For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Disc Finish Plain
Outside Diameter 320mm
Bolt Hole Quantity 5EA
Nominal Thickness 28mm
Solid Or Vented Type Rotor Vented
Height 48.3mm
Discard Thickness 26mm
Hat Finish Zinc Black
Stud/Lug Hole Quantity 5
Directional or Non-Directional Brake Surface Directional
Description Value
Bolt Hole Diameter 14mm
Overall Height 48.3mm
Stud/Lug Hole Diameter 14mm
Stud/Lug Hole Circle Diameter 114.3mm
Rust Resistant Coating Yes
Center Hole Diameter 72mm
Surface Type Slotted X Drilled
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Bolt Circle Diameter 114.3mm
Weight 23.7LB
