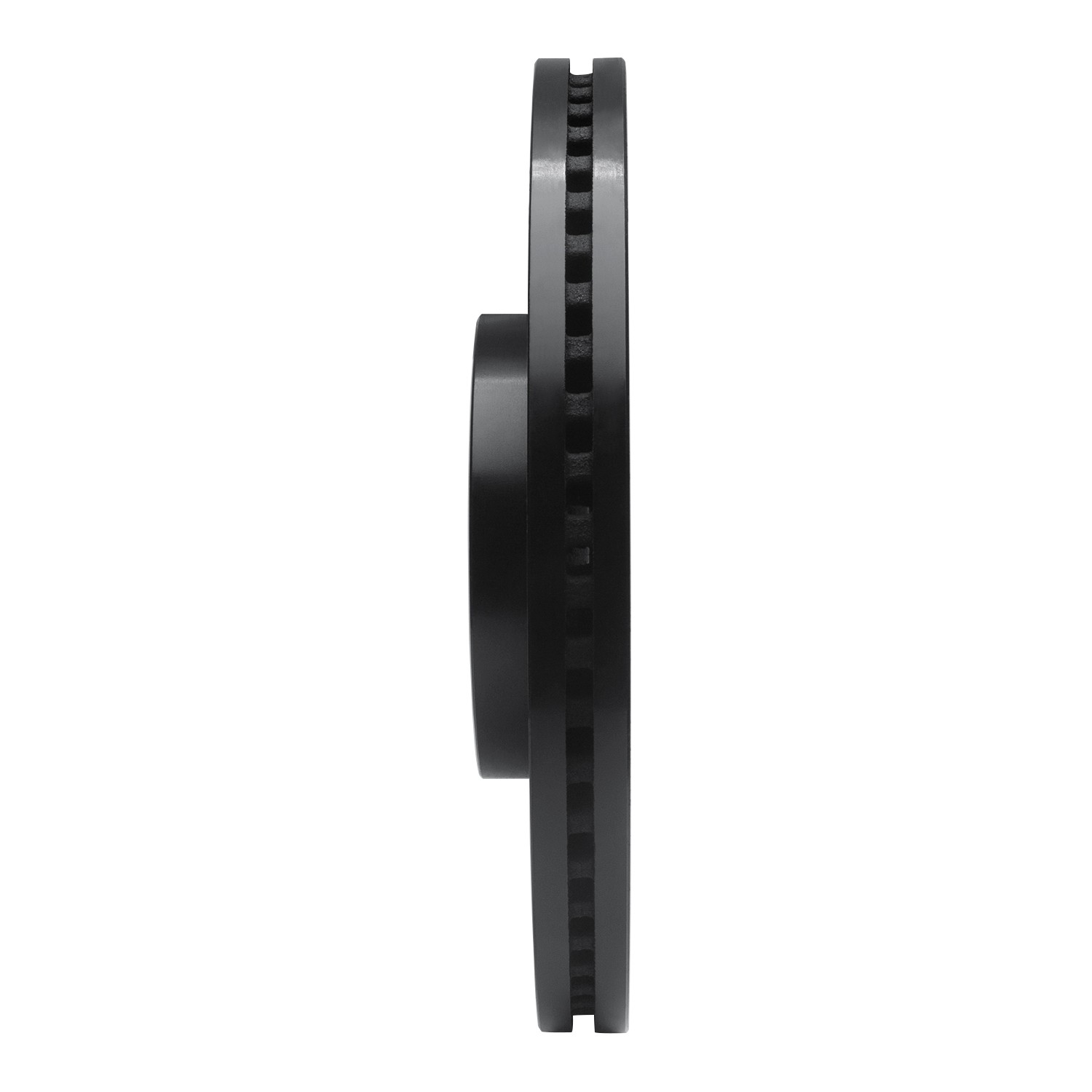

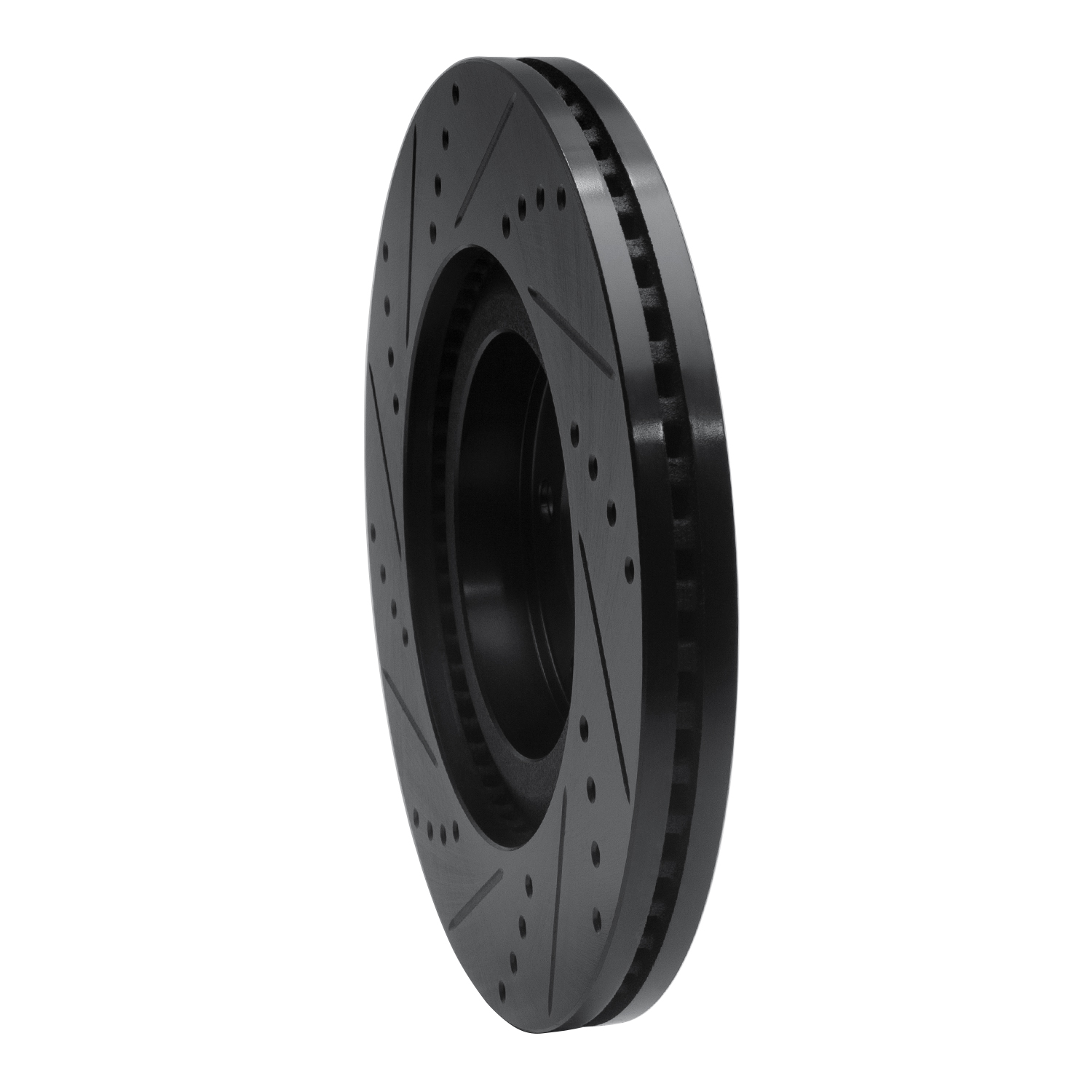

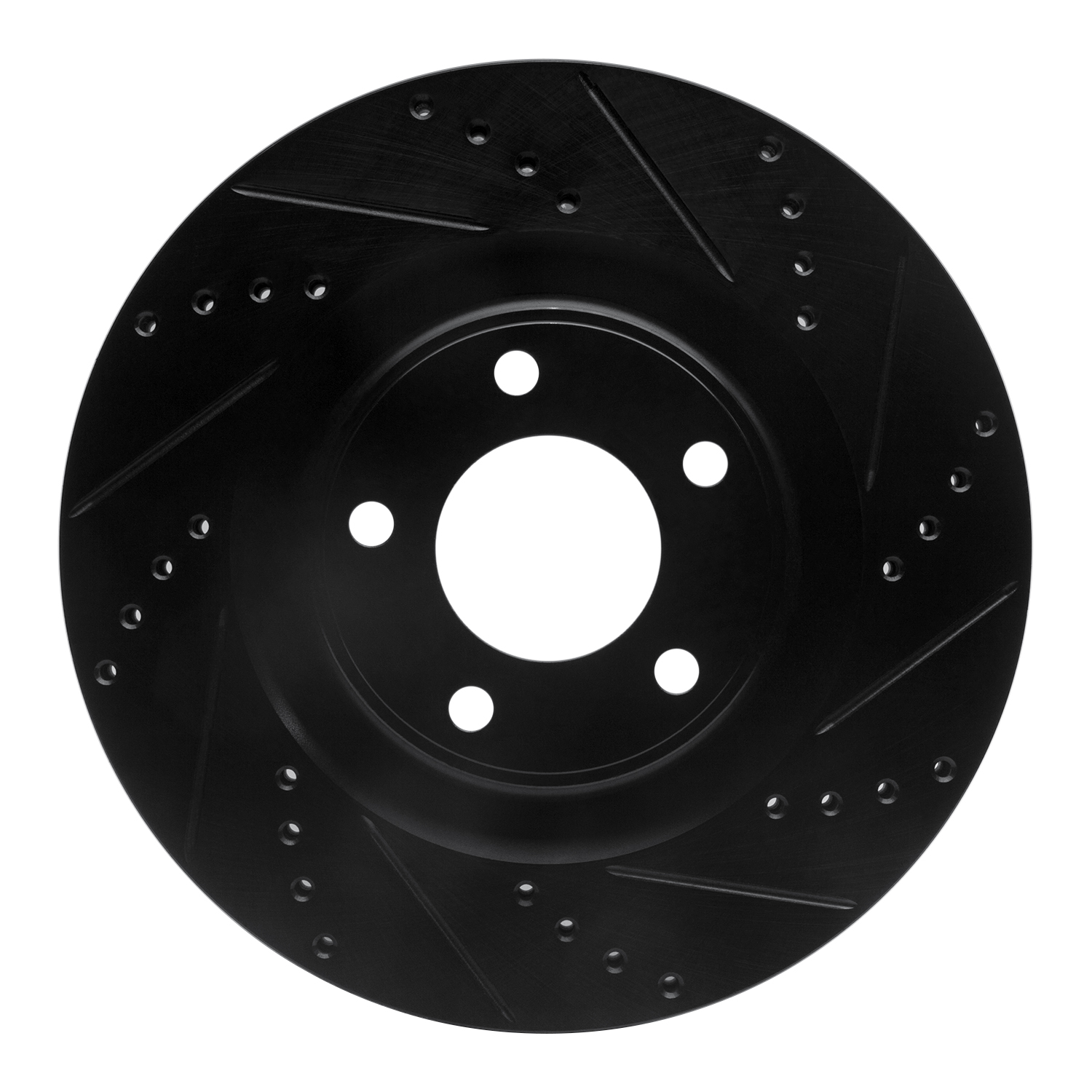

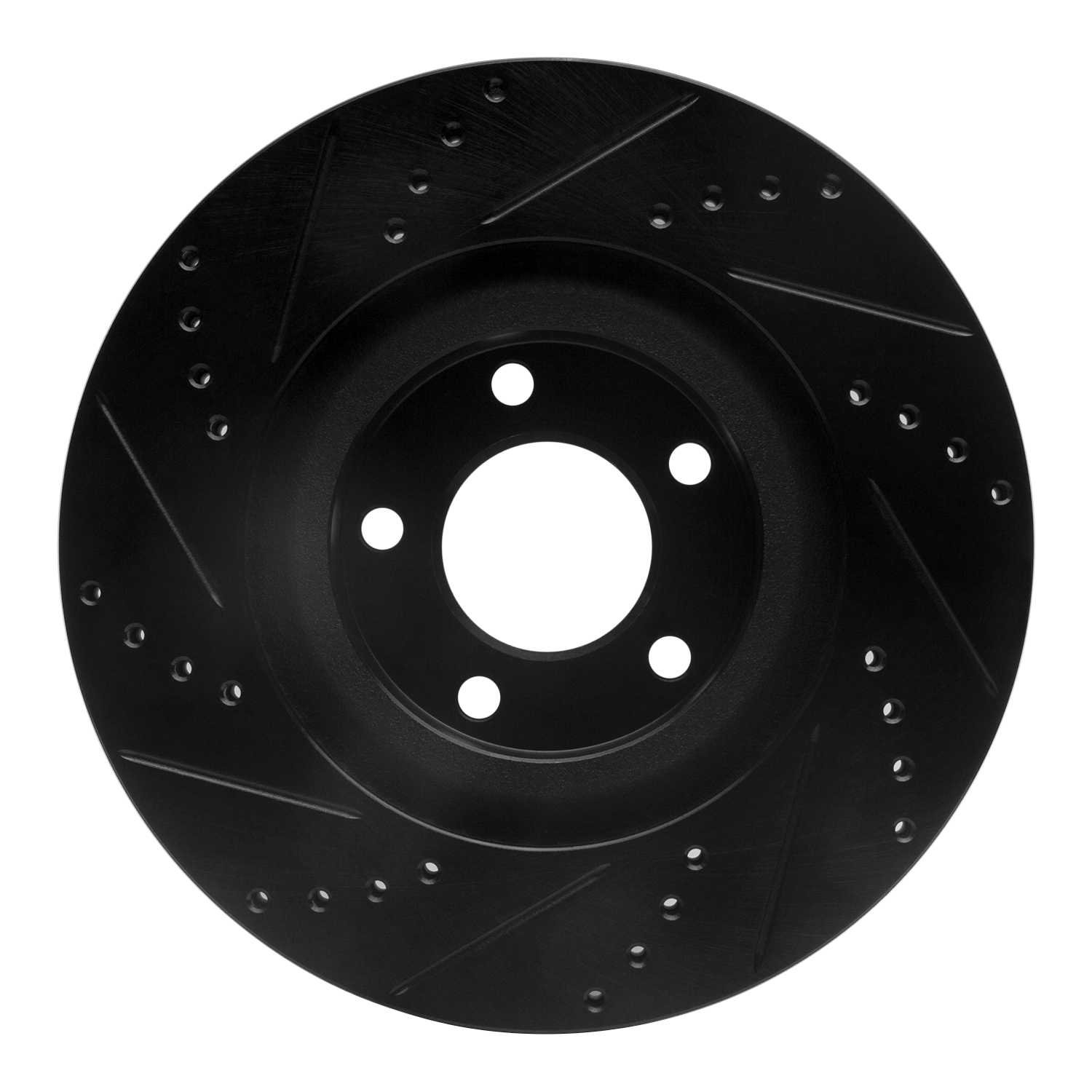

2007 Ford Edge DFC Brake Rotor - Drilled and Slotted - Black

Part Type:
Disc Brake Rotor
SKU:
633-54089R
Axle:
Front Right
Drive Type:
AWD
PCQ:
1

Description

  • DFC Brake Rotor - Drilled and Slotted - Black

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • CNC-Machined To The Tightest Tolerances
  • New In Box, Ready To Install, No Modifications Required
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Black For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Nominal Thickness 28mm
Bolt Hole Diameter 14mm
Bolt Hole Quantity 5EA
Height 48.3mm
Hat Finish Zinc Black
Rust Resistant Coating Yes
Outside Diameter 320mm
Disc Finish Plain
Overall Height 48.3mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Description Value
Discard Thickness 26mm
Directional or Non-Directional Brake Surface Directional
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Circle Diameter 114.3mm
Surface Type Slotted X Drilled
Center Hole Diameter 72mm
Bolt Circle Diameter 114.3mm
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 14mm
Weight 23.7LB
