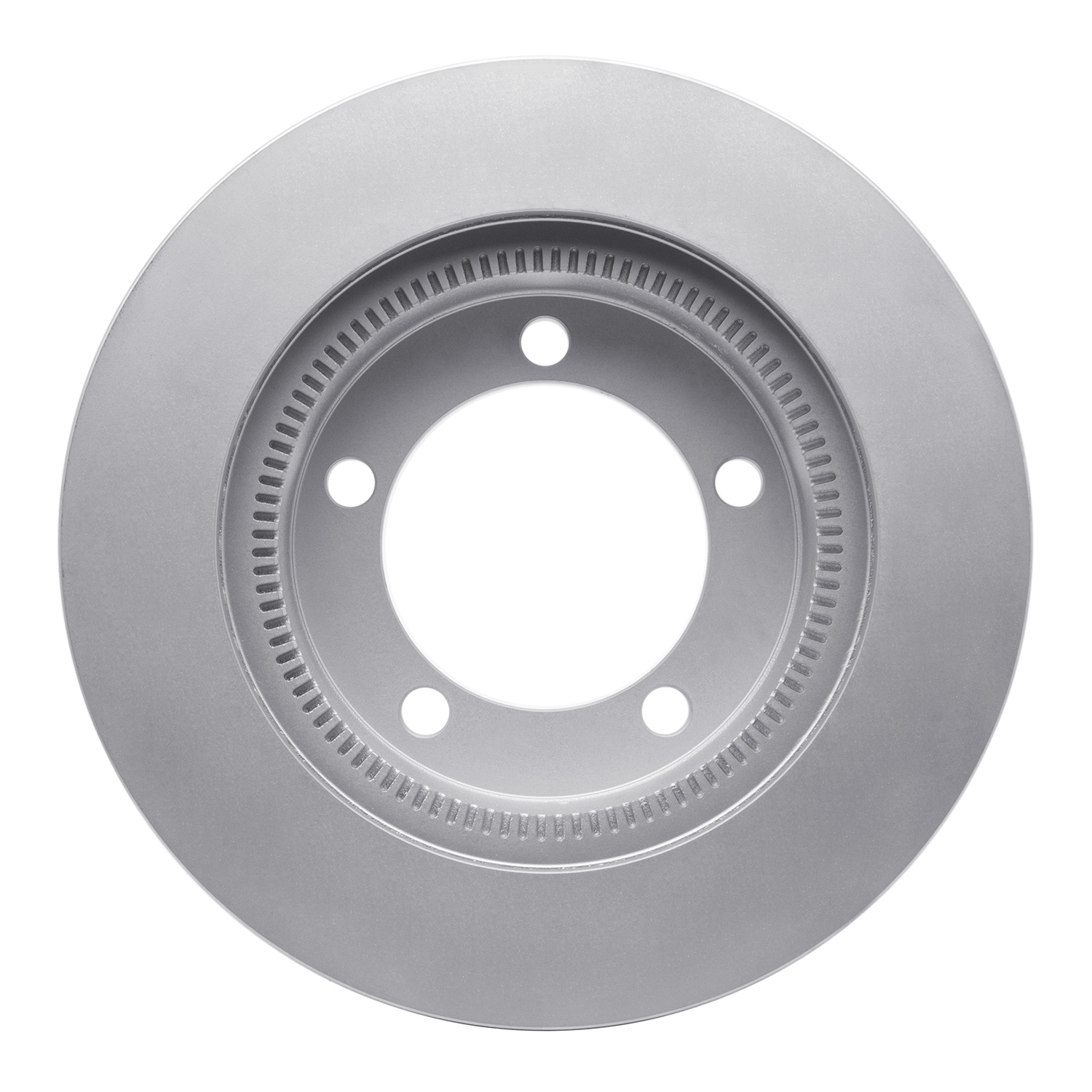

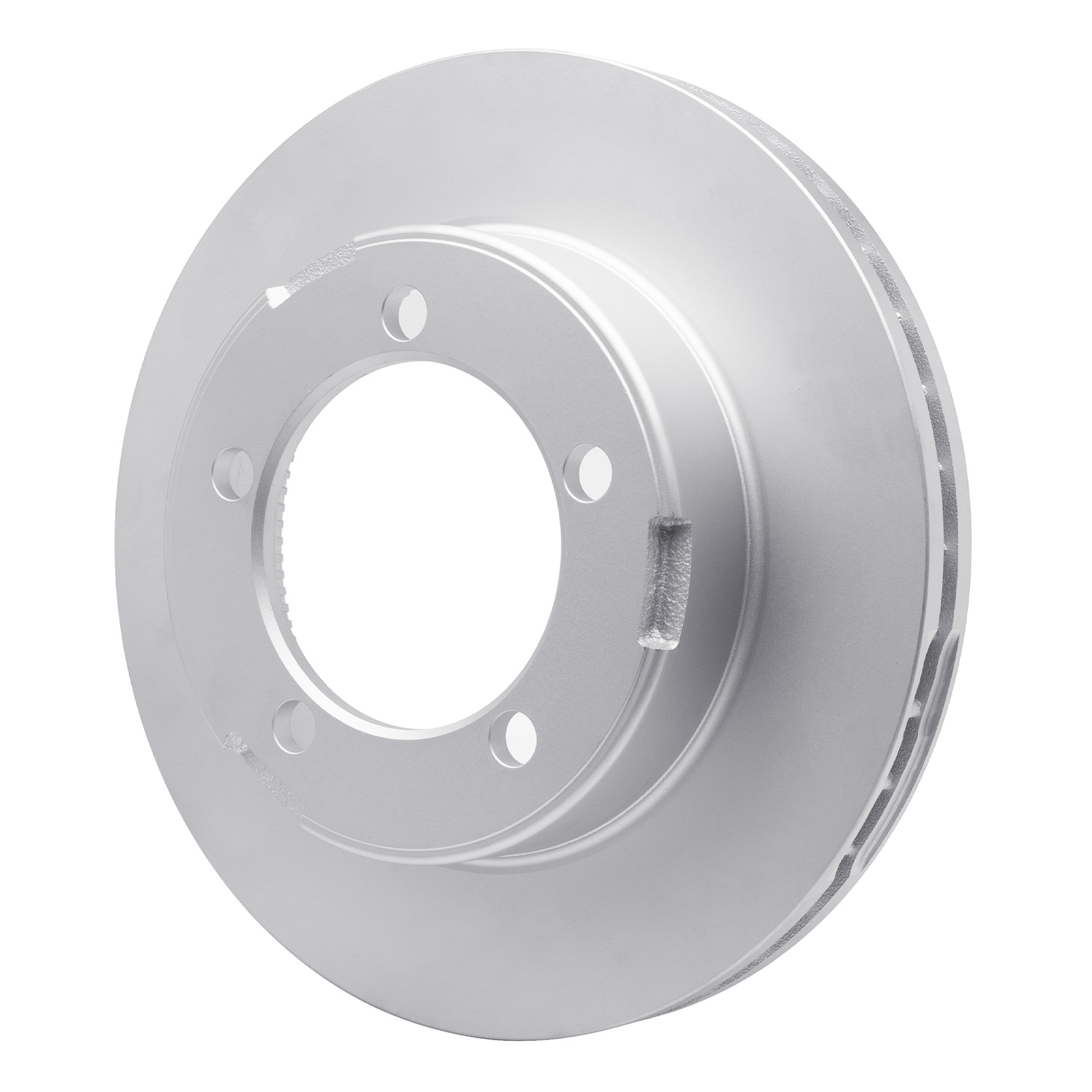

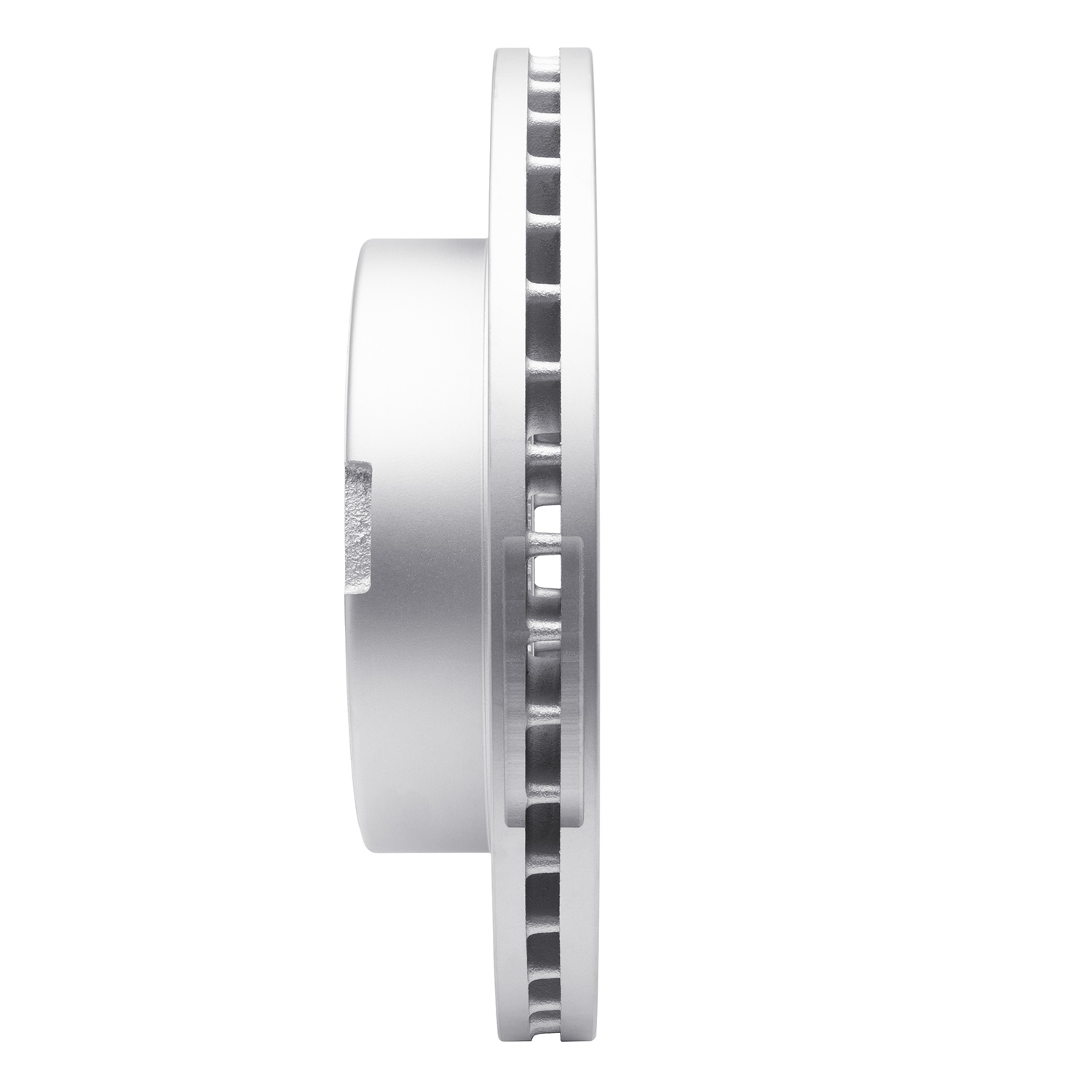

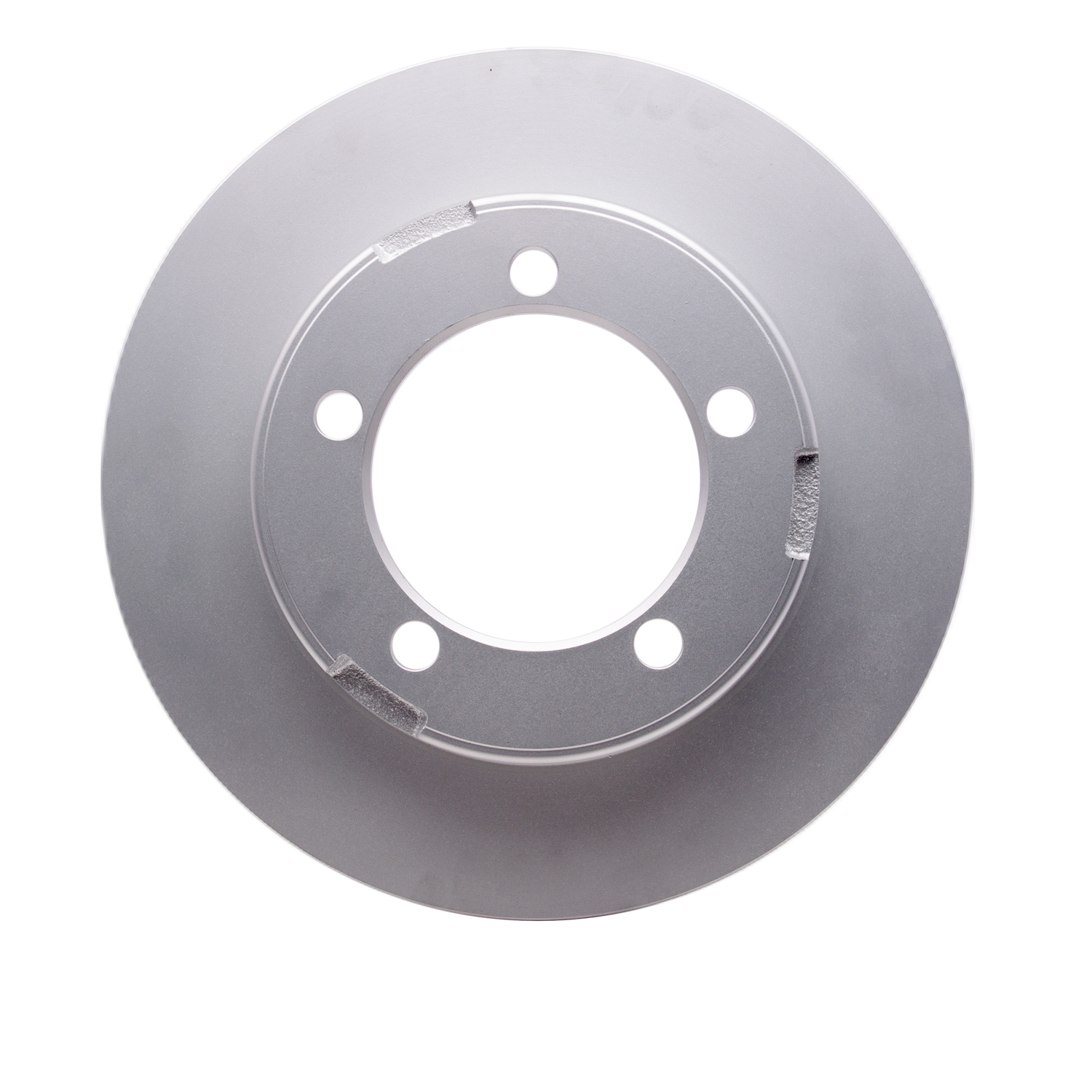

2005 Itasca Sunova DFC GEOSPEC Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
604-54257
Axle:
Rear
Sub model:
34A, 35N
PCQ:
2
Note:

Workhorse Chassis; 5 Hole Hat Shaped Rotor

Description

  • Disc Brake Rotor - GEOSPEC Coated

Features and Benefits

  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • CNC-Machined To The Tightest Tolerances
  • Ready To Install - No Additional Pre-Degreasing Preparation Needed (Saves Time And Money During Installation Process)
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Quality Tested To Ensure Long-Lasting Performance
  • Provides Superior Corrosion Protection Over Zinc / Conventional Painting

Product Specifications

Description Value
Inside Diameter 137mm
Height 89mm
Outside Diameter 381mm
Bolt Hole Quantity 5EA
Discard Thickness 33.53mm
Rust Resistant Coating Yes
Disc Finish Plain
Nominal Thickness 36.5mm
Hat Finish GEOSPEC Silver Grey
Surface Type Smooth
Description Value
Overall Height 89mm
Bolt Hole Diameter 19.6mm
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Circle Diameter 171.5mm
Stud/Lug Hole Diameter 19.6mm
Center Hole Diameter 137mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Stud/Lug Hole Quantity 5
Directional or Non-Directional Brake Surface Non-Directional
Weight 40.6LB
