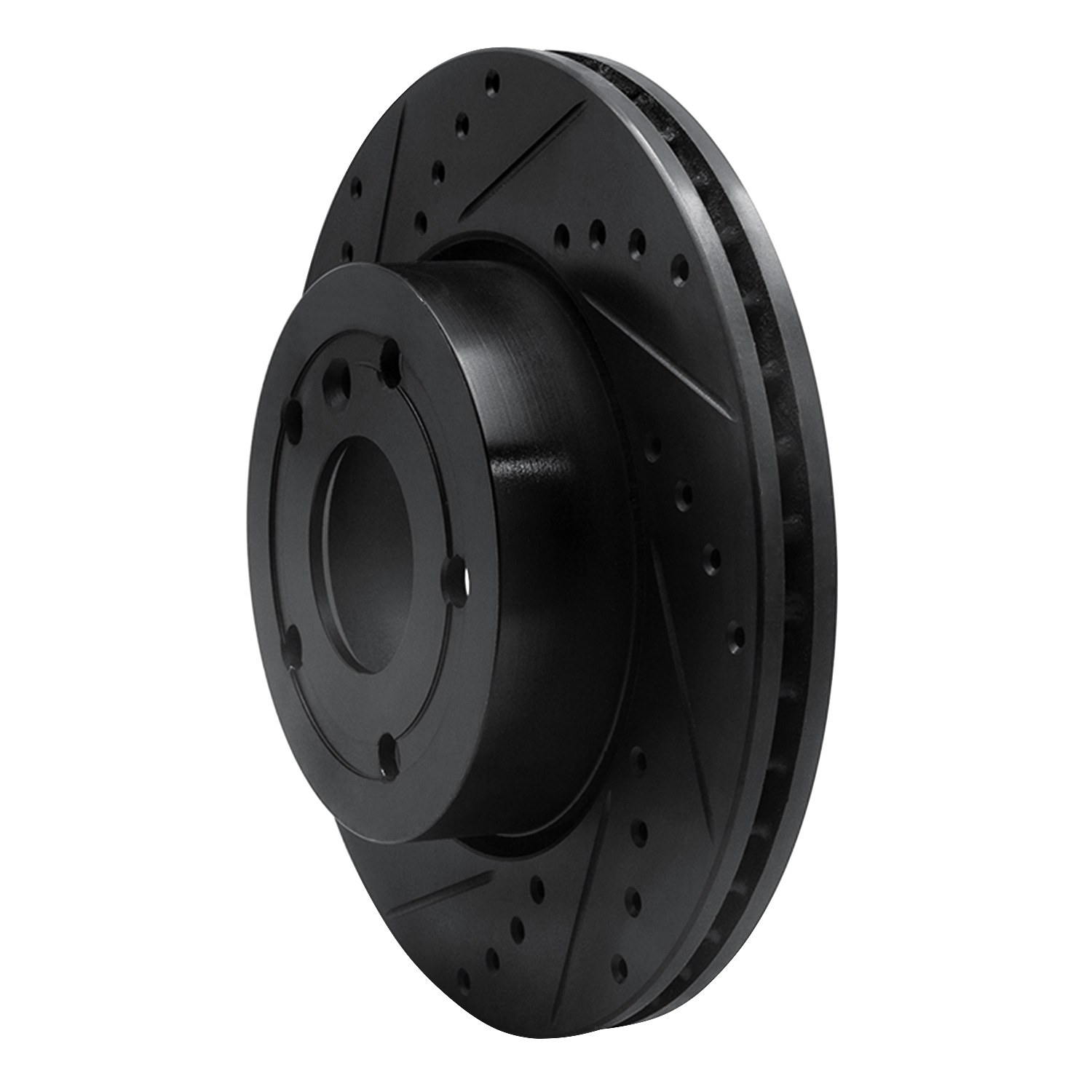

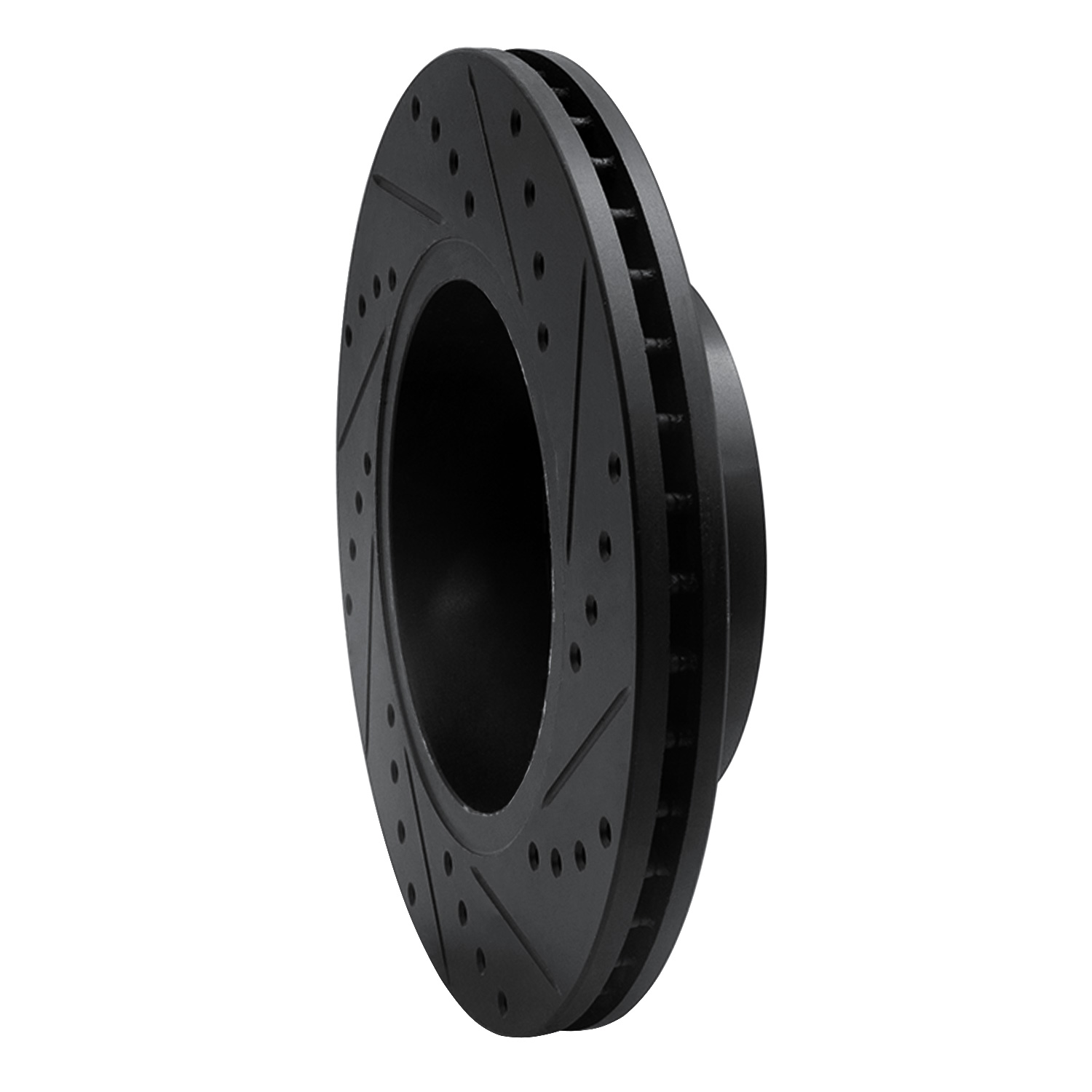

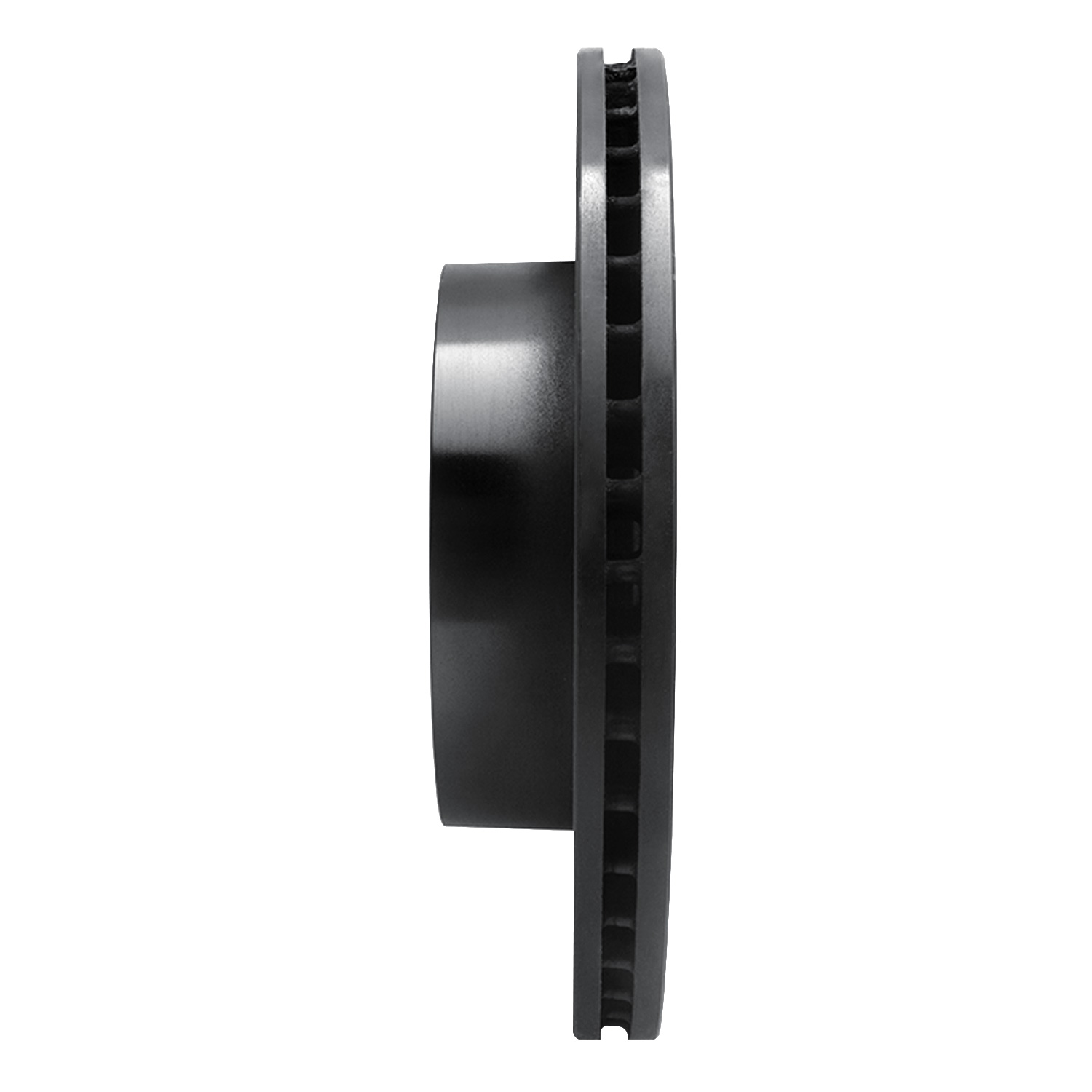

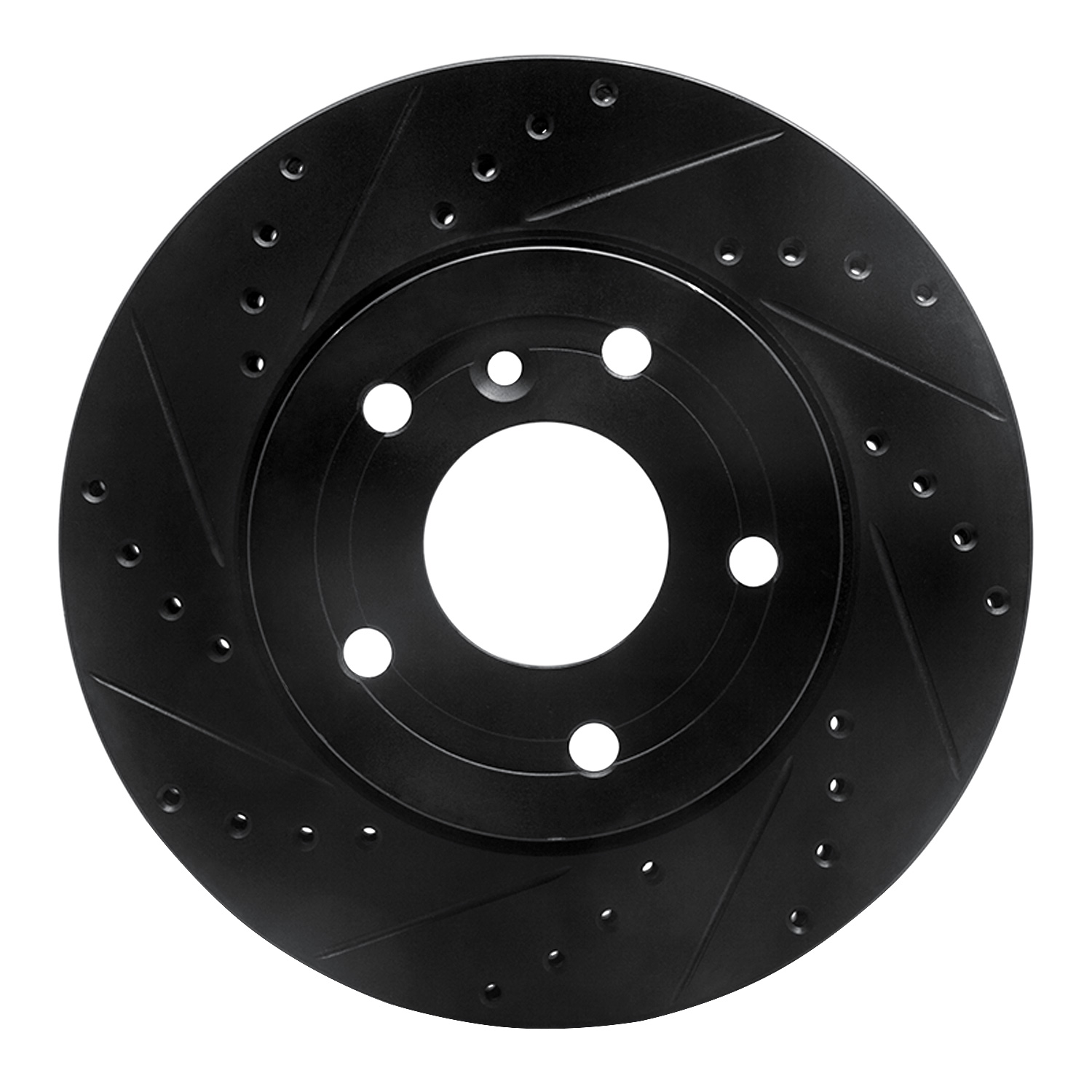

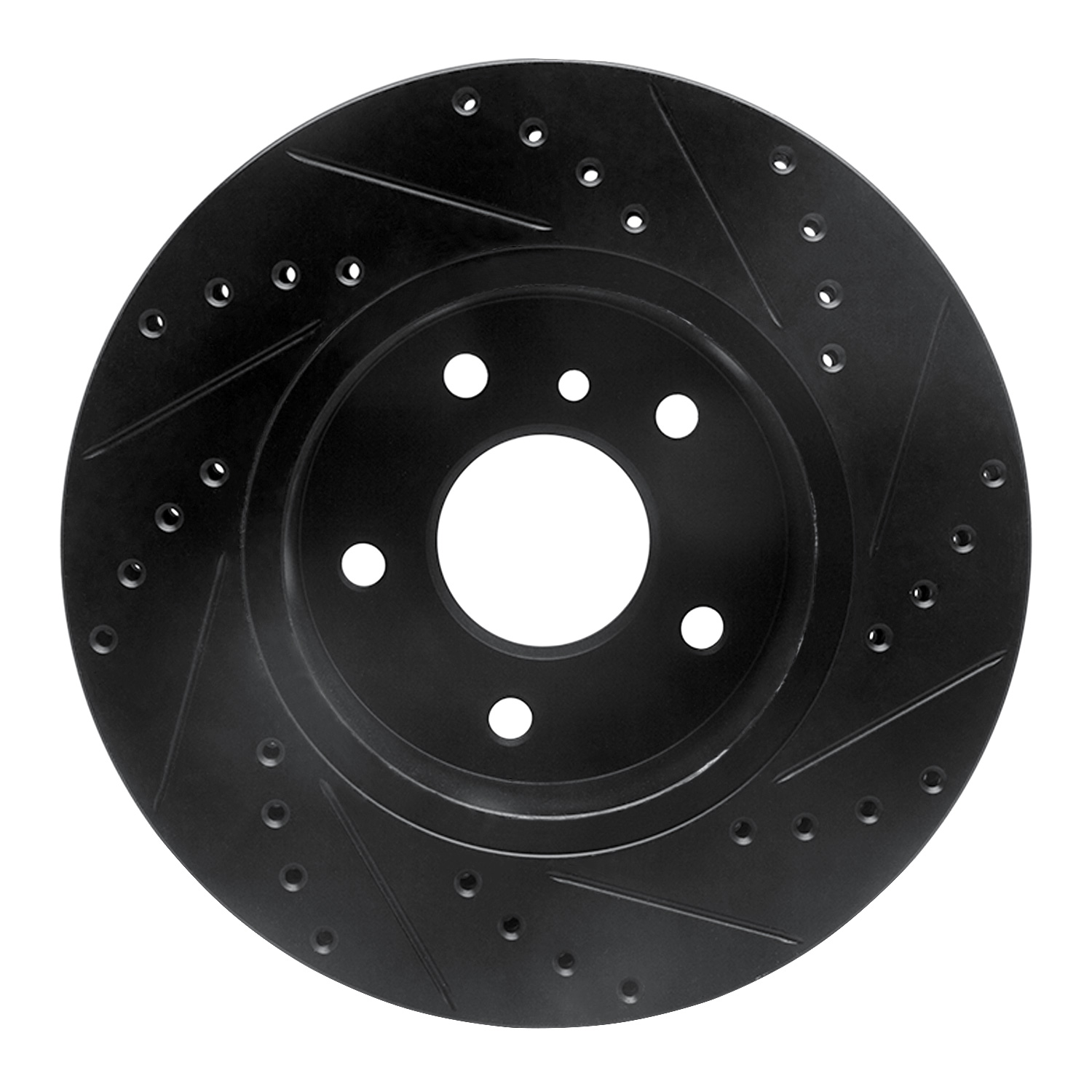

1996 Land Rover Range Rover DFC Brake Rotor - Drilled and Slotted - Black

Part Type:
Disc Brake Rotor
SKU:
633-11003L
Axle:
Front Left
Sub model:
SE
PCQ:
1

Description

  • DFC Brake Rotor - Drilled and Slotted - Black

Features and Benefits

  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • CNC-Machined To The Tightest Tolerances
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • New In Box, Ready To Install, No Modifications Required
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Black For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Solid Or Vented Type Rotor Vented
Outside Diameter 296mm
Bolt Hole Quantity 5EA
Rust Resistant Coating Yes
Stud/Lug Hole Diameter 14.3mm
Height 64.7mm
Nominal Thickness 25mm
Overall Height 64.7mm
Bolt Circle Diameter 120mm
Discard Thickness 22mm
Description Value
Hat Finish Zinc Black
Surface Type Slotted X Drilled
Bolt Hole Diameter 14.3mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Disc Finish Plain
Center Hole Diameter 70mm
Stud/Lug Hole Quantity 5
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Circle Diameter 120mm
Weight 18.5LB
