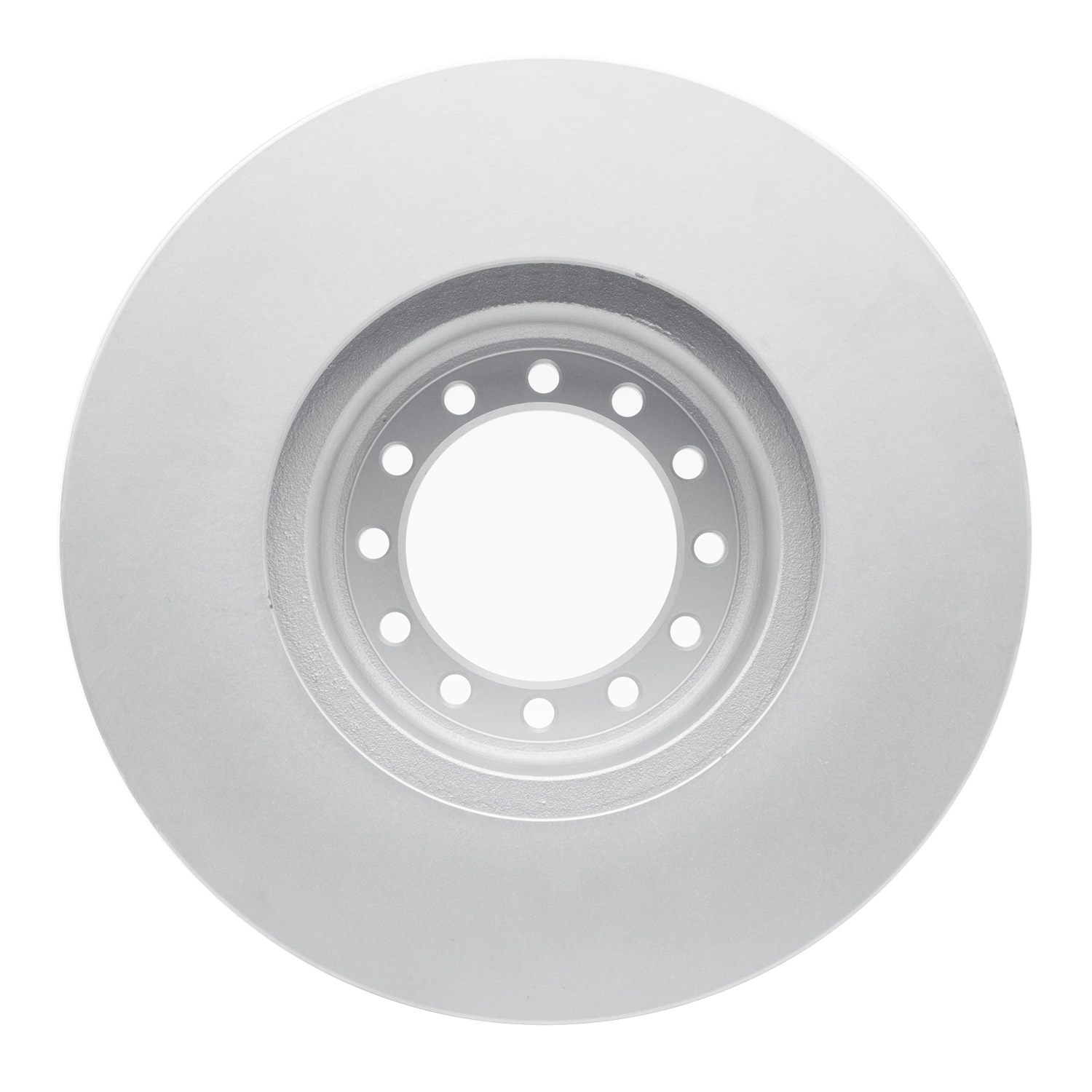

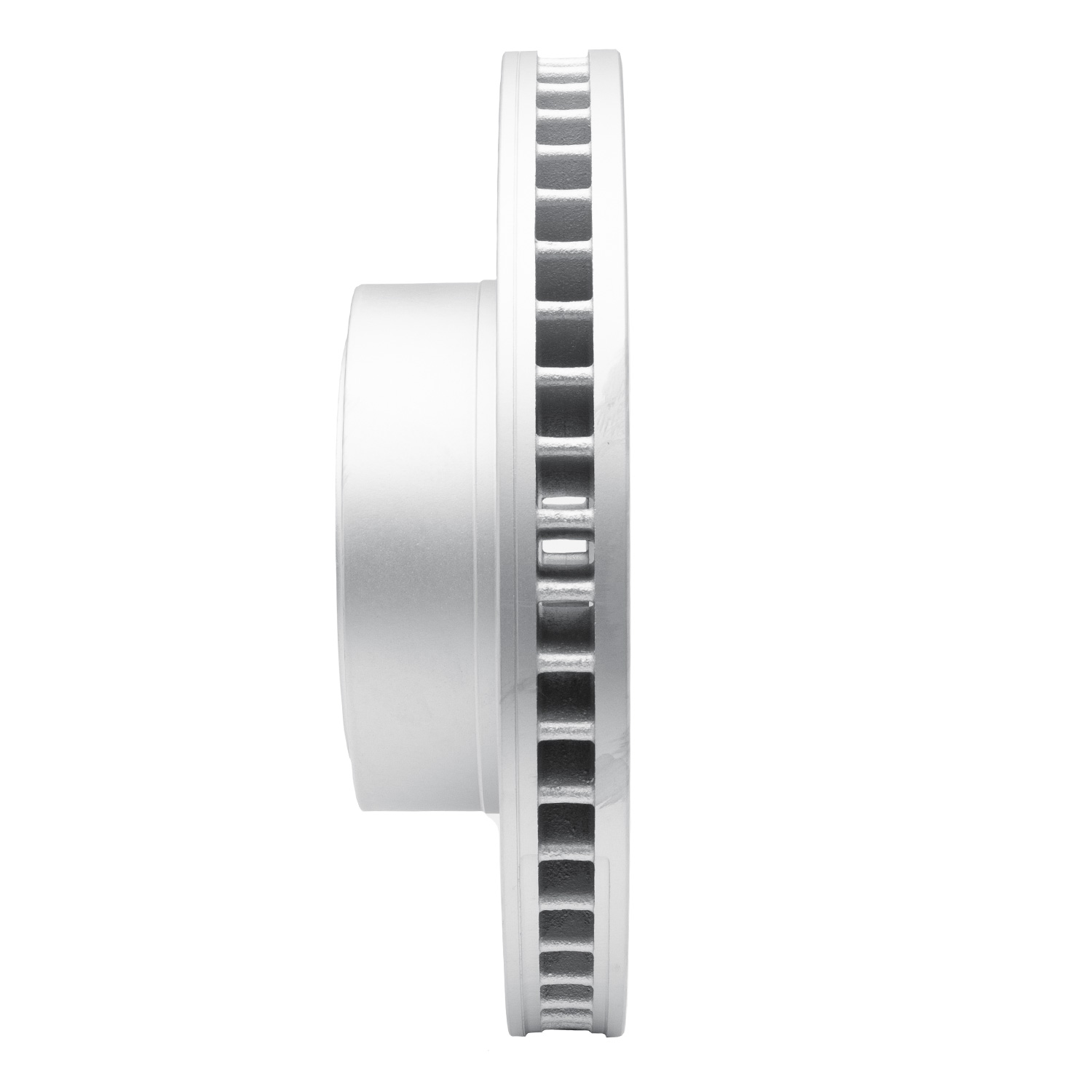

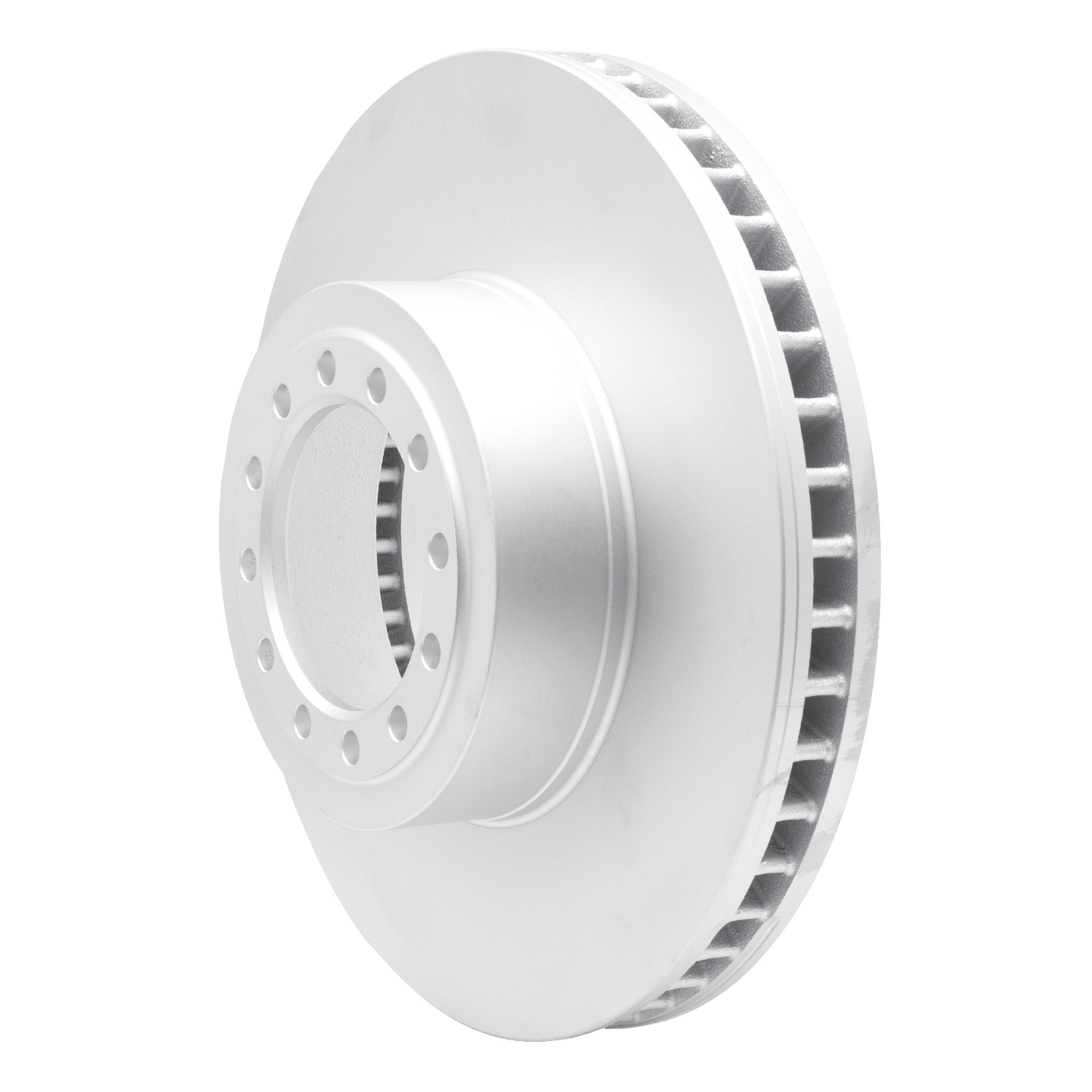

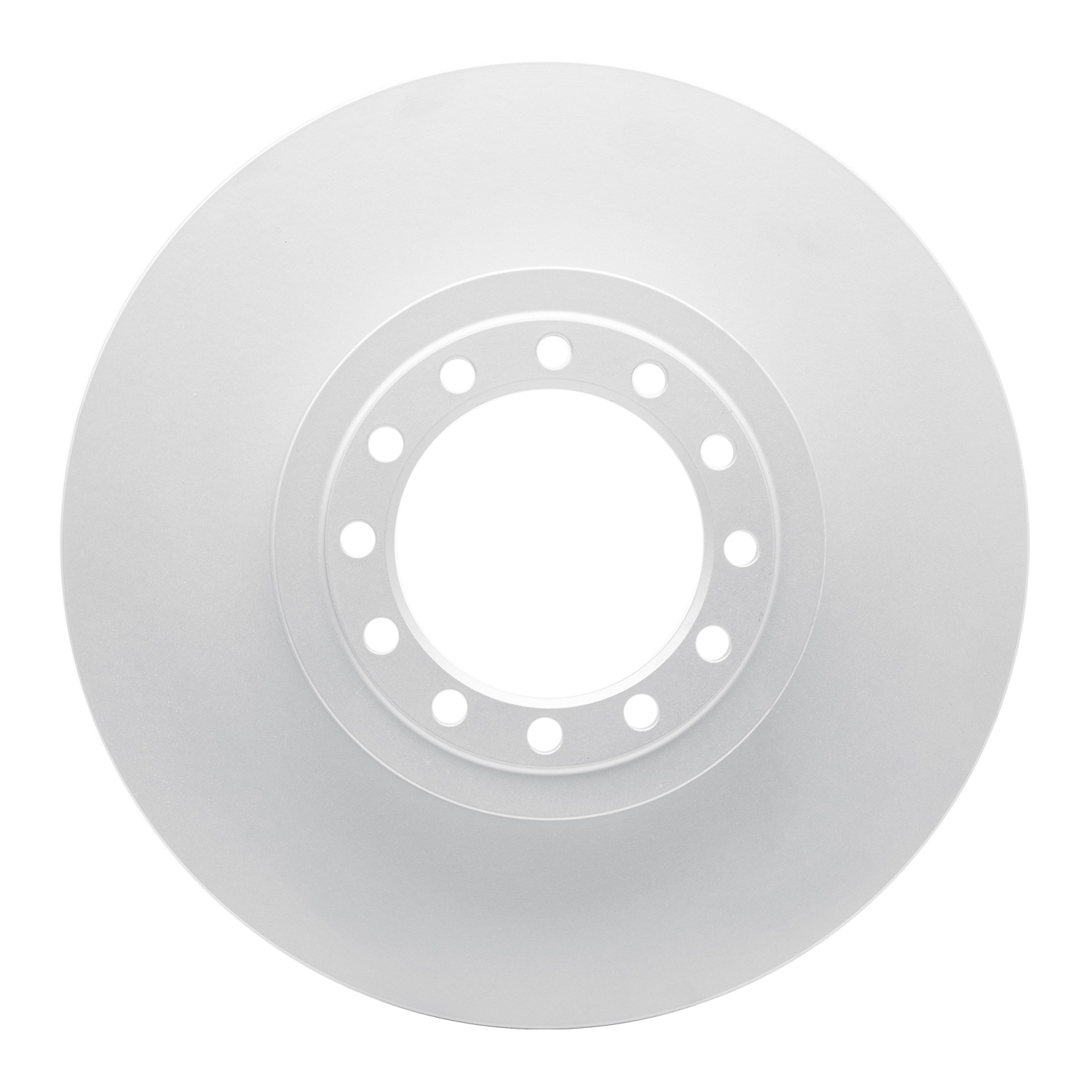

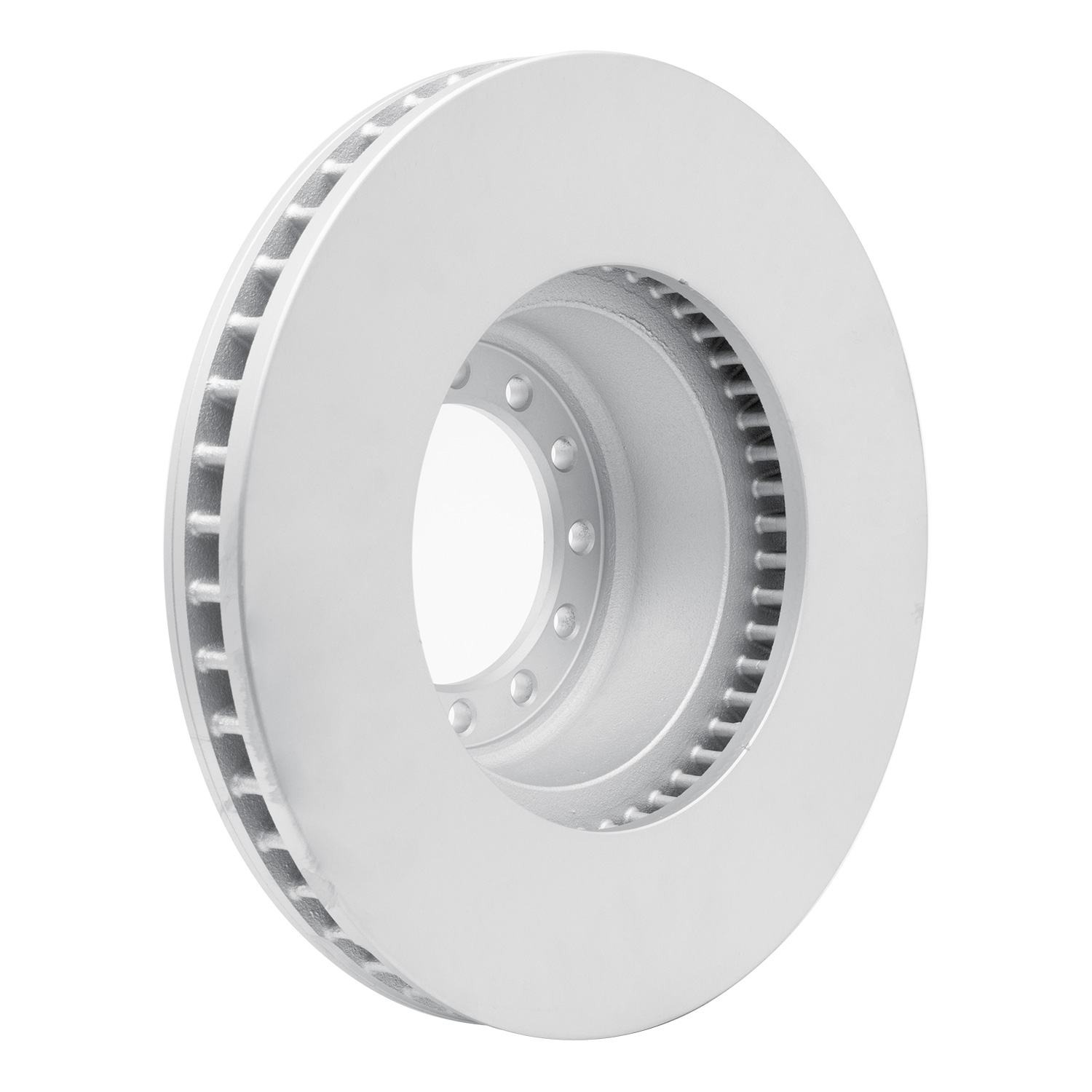

2023 Isuzu NQR DFC GEOSPEC Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
604-37011
Axle:
Front
PCQ:
2
Note:

From 06/10

Description

  • Disc Brake Rotor - GEOSPEC Coated

Features and Benefits

  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • CNC-Machined To The Tightest Tolerances
  • Provides Superior Corrosion Protection Over Zinc / Conventional Painting
  • Quality Tested To Ensure Long-Lasting Performance
  • Ready To Install - No Additional Pre-Degreasing Preparation Needed (Saves Time And Money During Installation Process)

Product Specifications

Description Value
Inside Diameter 110mm
Discard Thickness 39mm
Nominal Thickness 42mm
Bolt Hole Quantity 12EA
Height 100mm
Hat Finish GEOSPEC Silver Grey
Stud/Lug Hole Diameter 12.4mm
Outside Diameter 363mm
Solid Or Vented Type Rotor Vented
Rust Resistant Coating Yes
Description Value
Center Hole Diameter 110mm
Bolt Hole Diameter 12.4mm
Directional or Non-Directional Brake Surface Non-Directional
Overall Height 100mm
Stud/Lug Hole Circle Diameter 136mm
Disc Finish Plain
Surface Type Smooth
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Stud/Lug Hole Quantity 12
Weight 41.65LB
