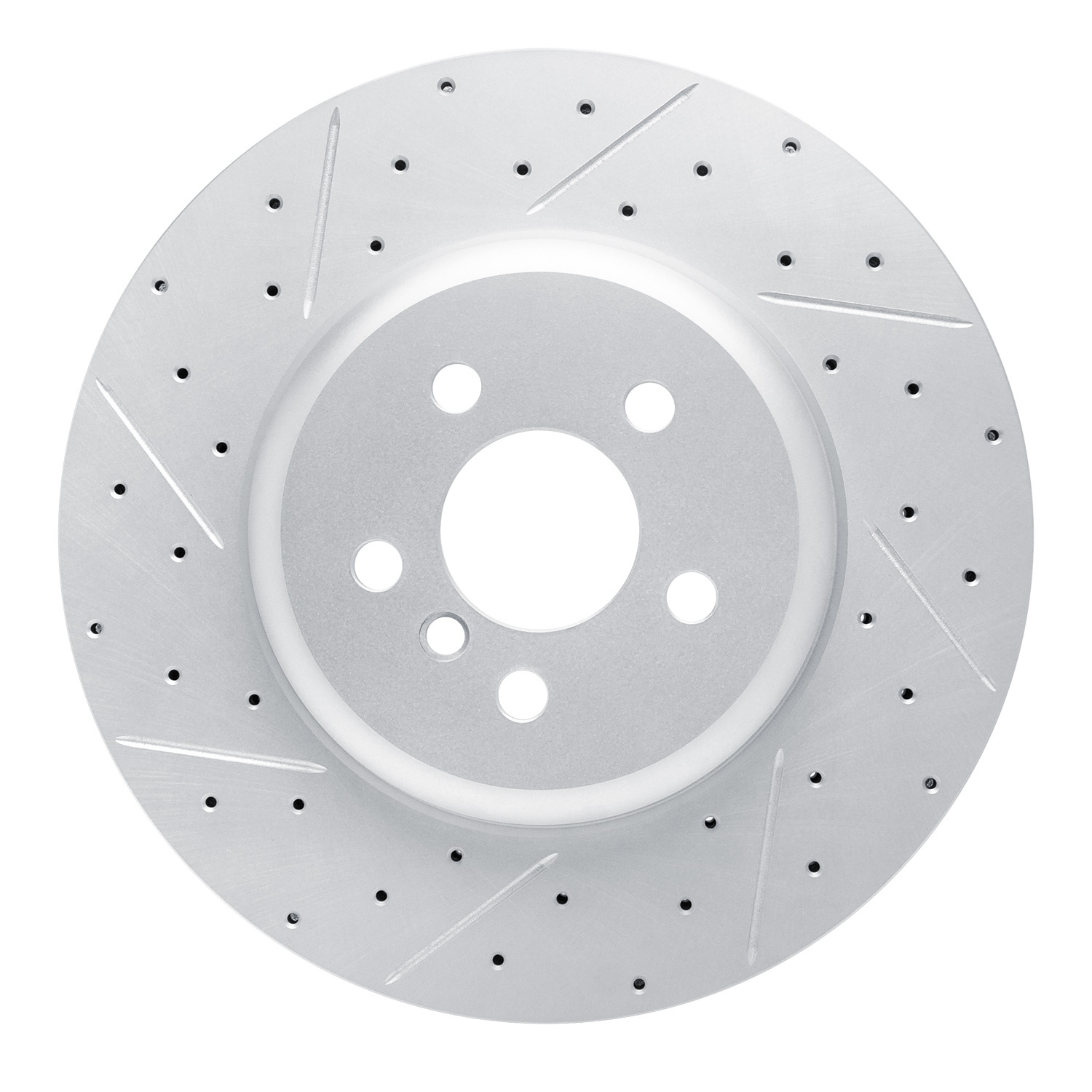

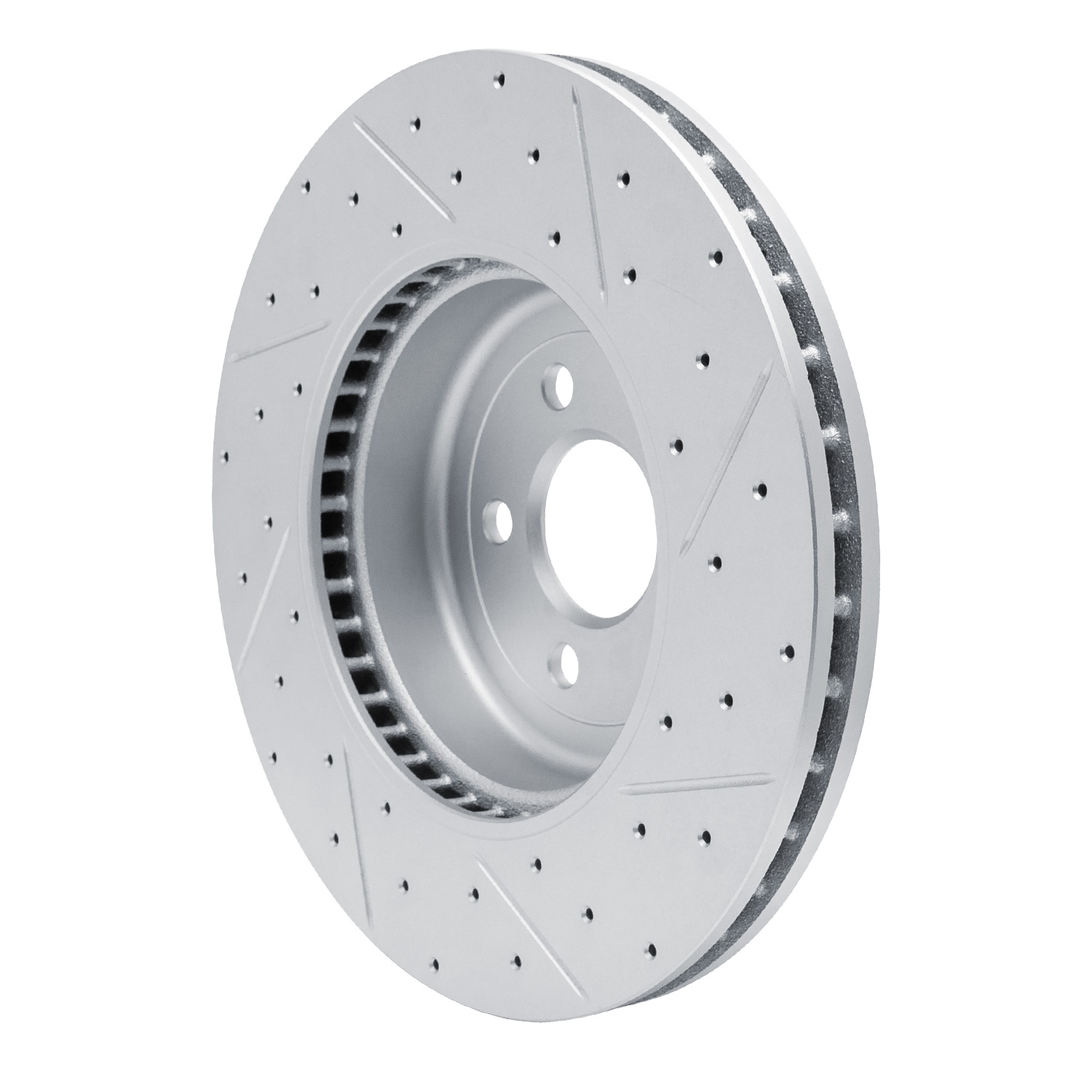

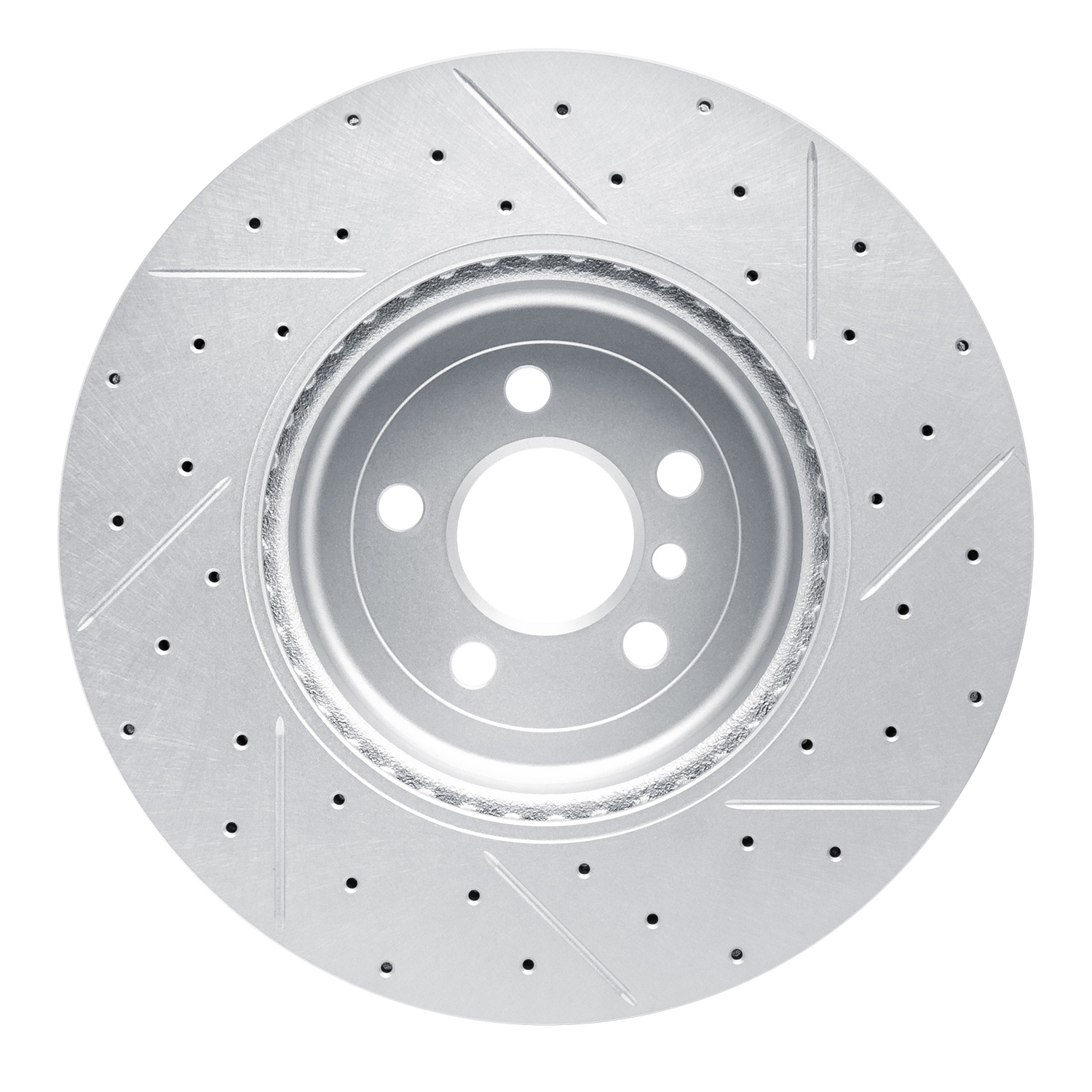

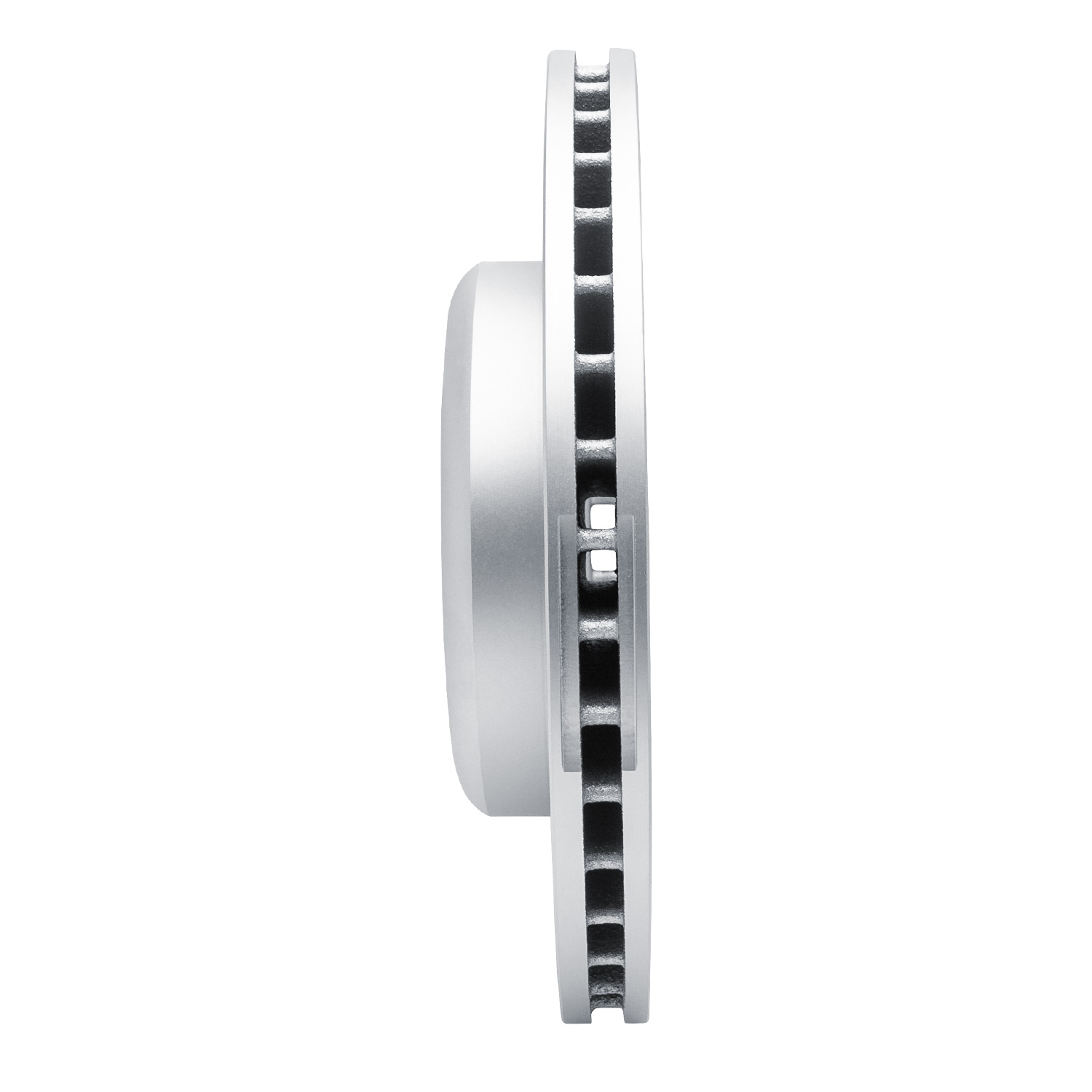

2023 BMW X6 DFC Geoperformance Rotor - Drilled and Slotted

Part Type:
Disc Brake Rotor
SKU:
830-31168L
Axle:
Front Left
Sub model:
xDrive40i
PCQ:
1
Note:

Base Brakes; Full Cast Replacement for Aluminum Hat Disc

Description

  • DFC Geoperformance Rotor - Drilled and Slotted

Product Specifications

Description Value
Disc Finish Plain
Bolt Hole Quantity 5EA
Nominal Thickness 30mm
Outside Diameter 348mm
Directional or Non-Directional Brake Surface Directional
Discard Thickness 28.4mm
Hat Finish Geospec Silver Grey
Height 66.6mm
Description Value
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Surface Type Slotted X Drilled
Solid Or Vented Type Rotor Vented
Bolt Hole Diameter 16.7mm
Stud/Lug Hole Quantity 5
Center Hole Diameter 67mm
Rust Resistant Coating Yes
Bolt Circle Diameter 112mm
Weight 26.4LB
