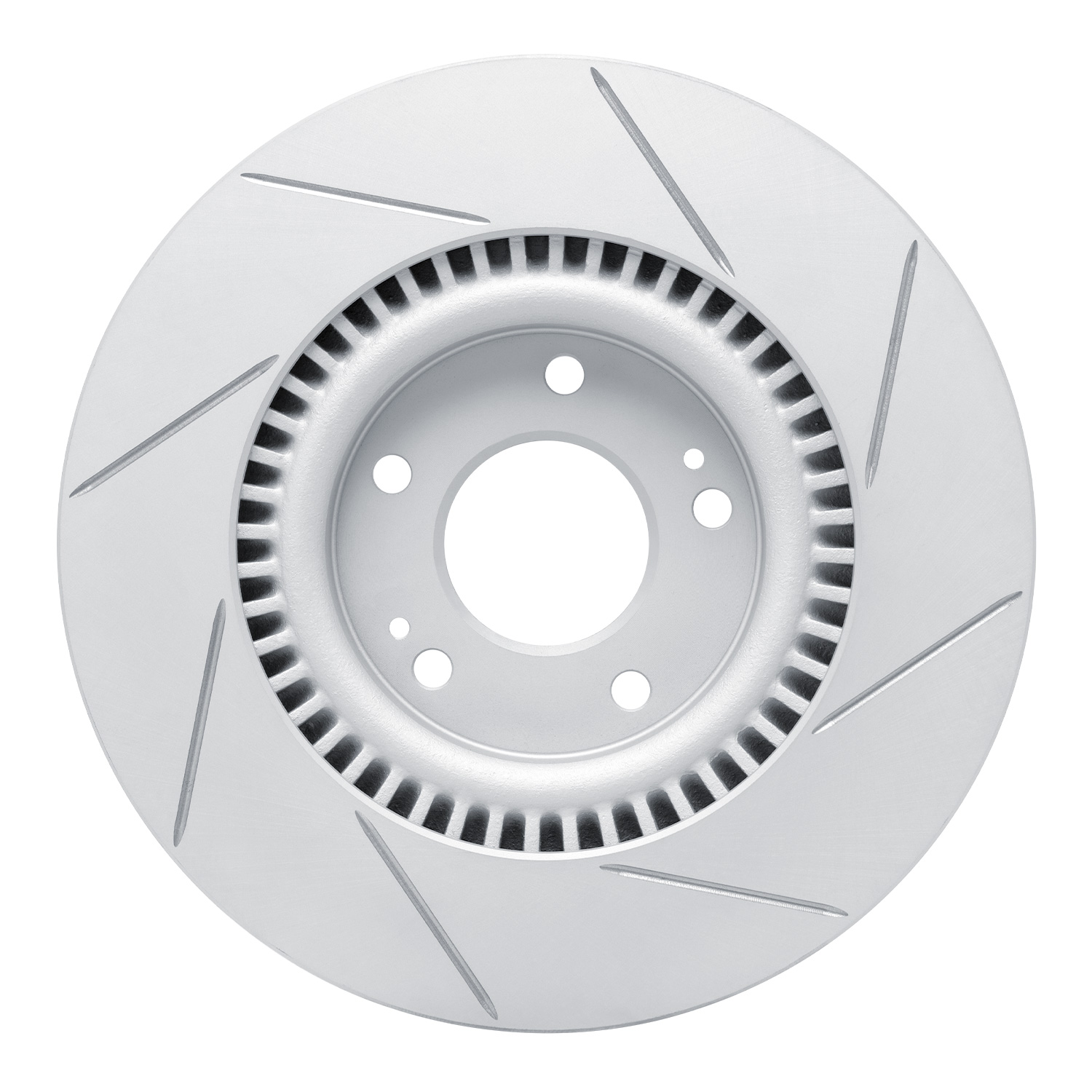

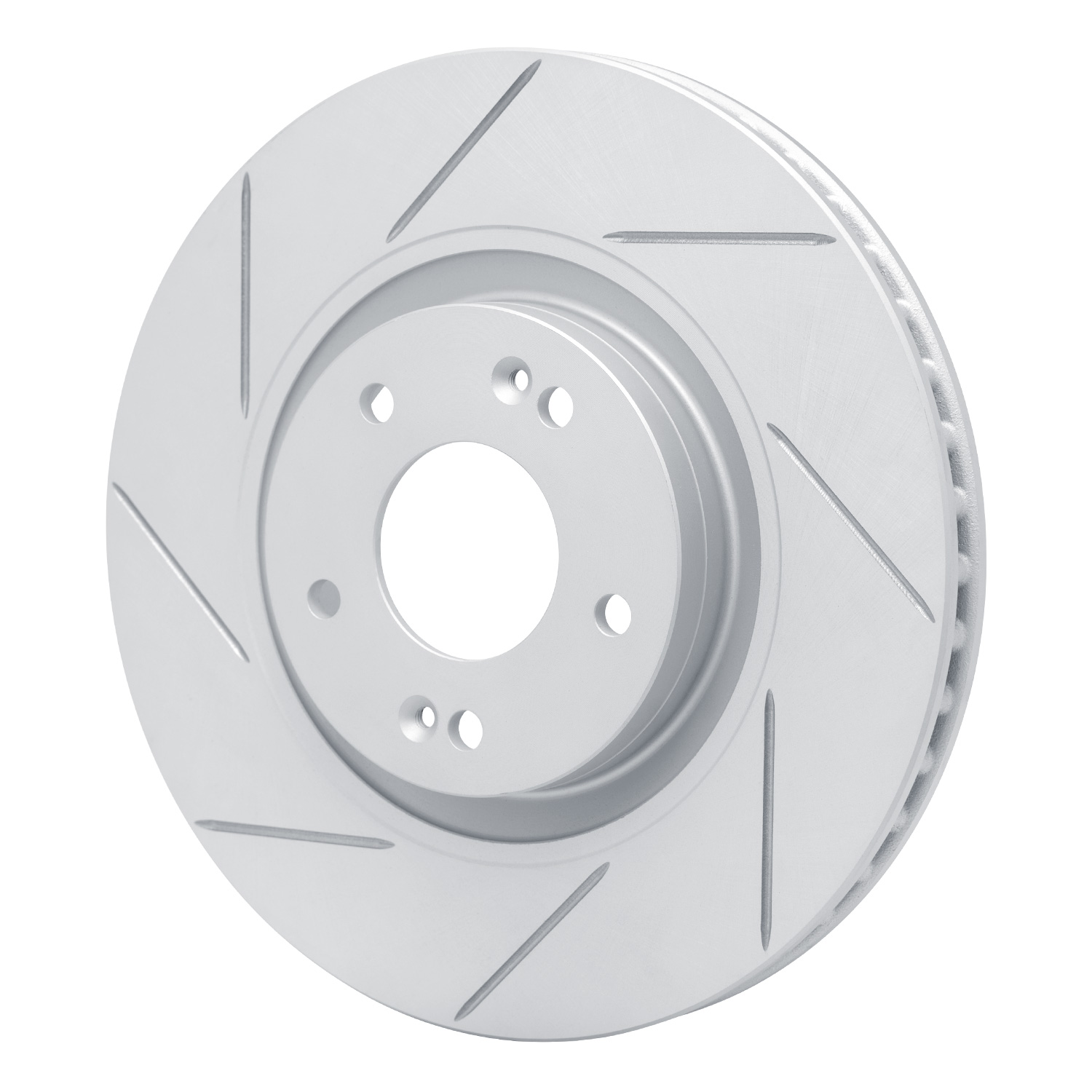

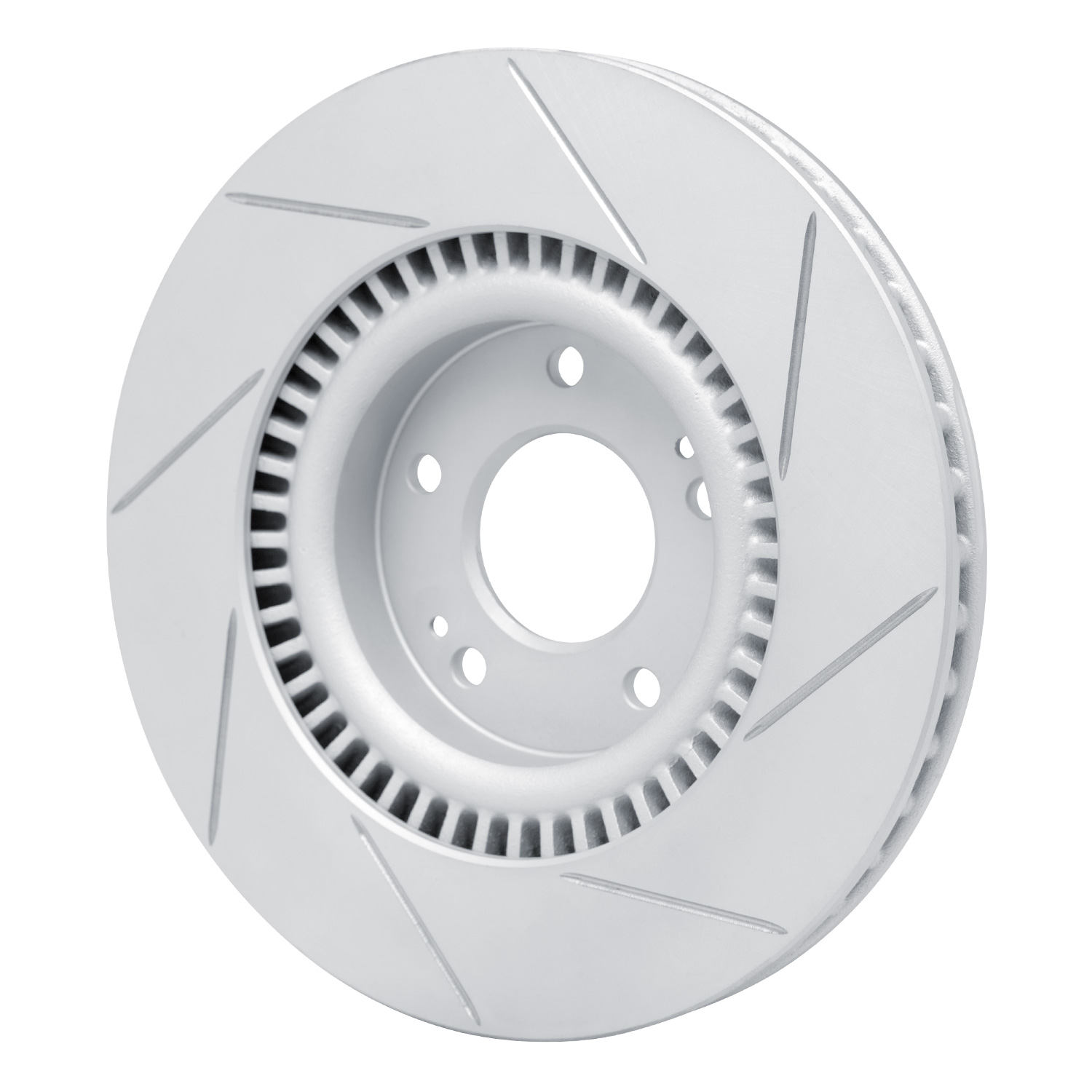

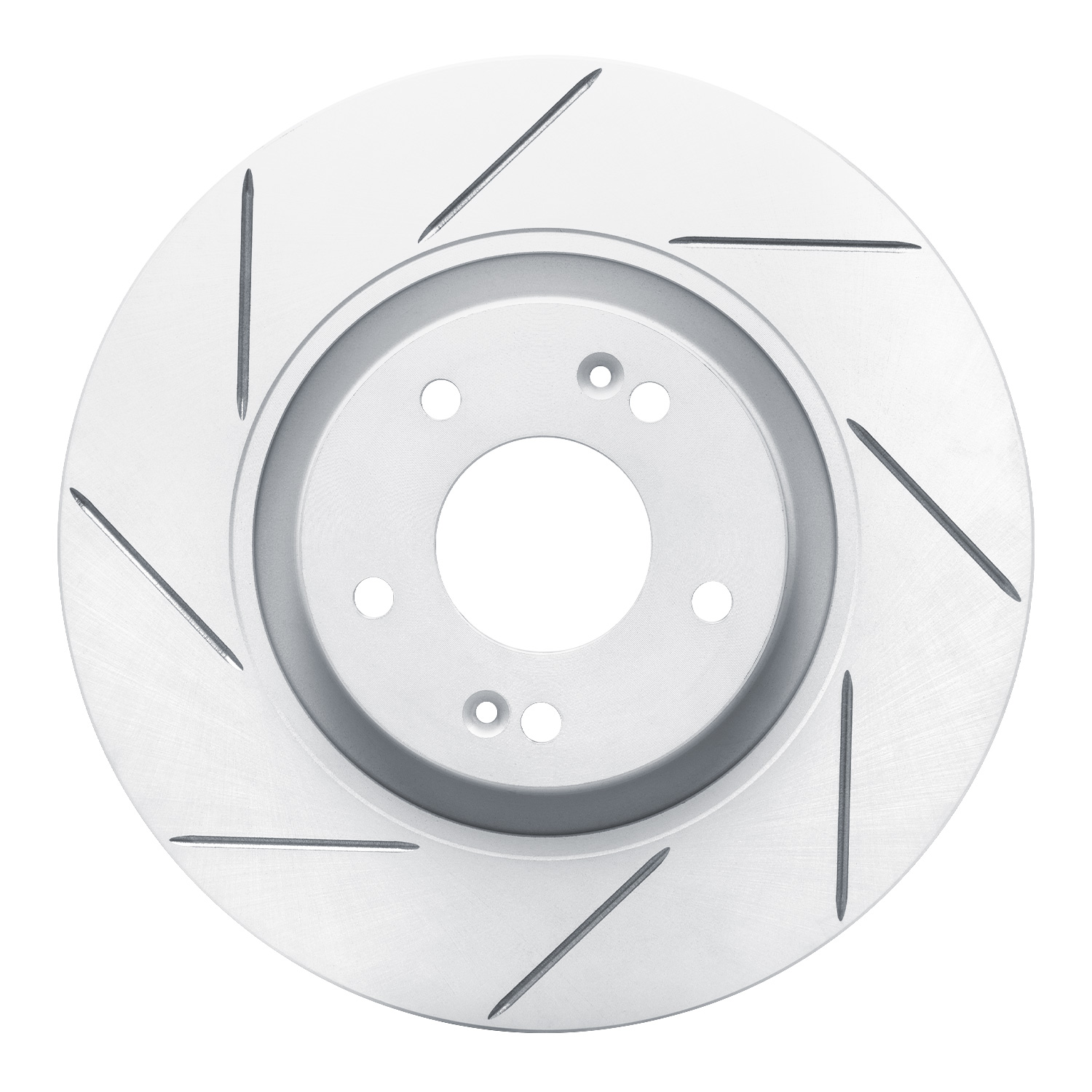

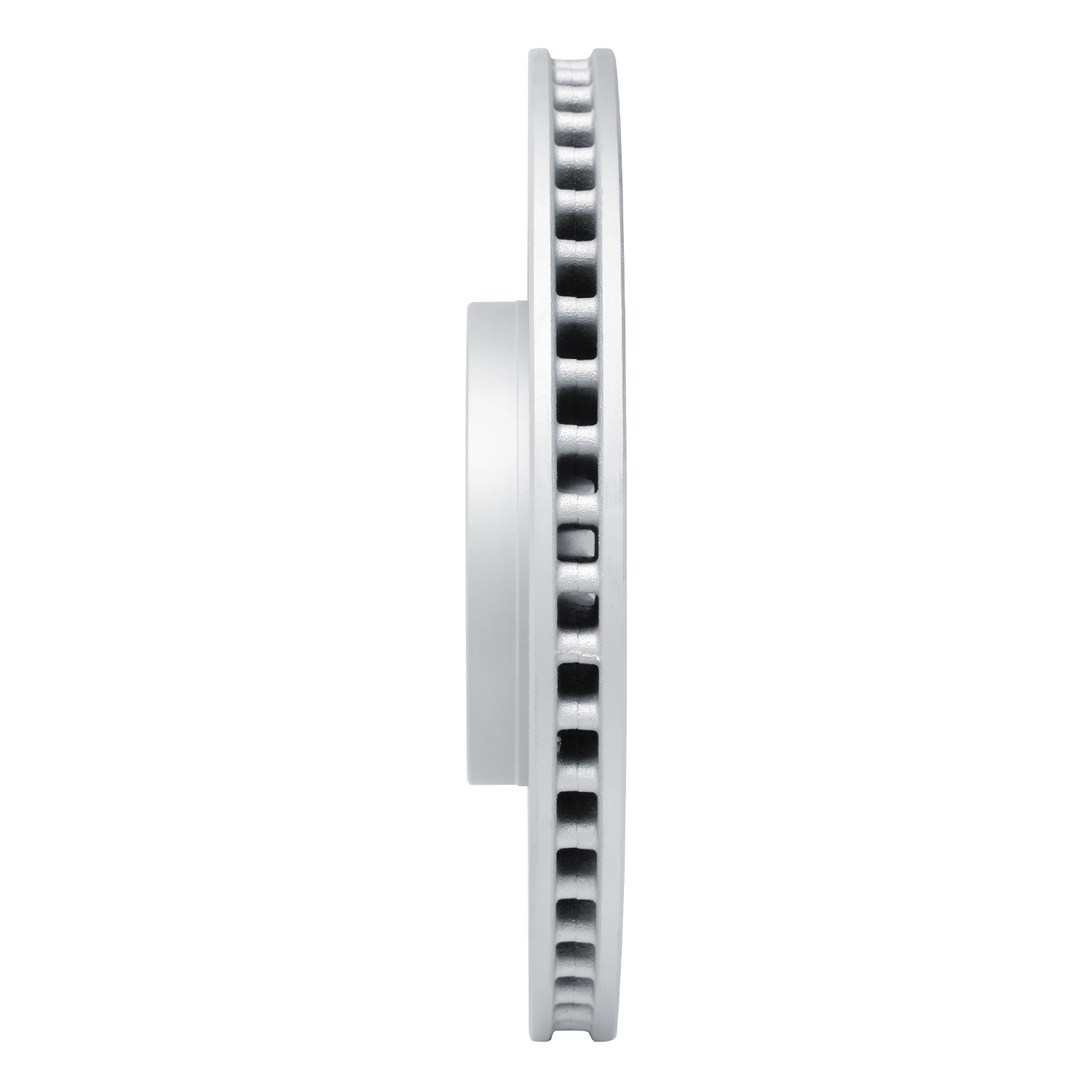

2020 Hyundai Nexo DFC Geoperformance Rotor - Slotted

Part Type:
Disc Brake Rotor
SKU:
810-03003L
Axle:
Front Left
PCQ:
1

Product Specifications

Description Value
Disc Finish Plain
Height 47.5mm
Bolt Hole Quantity 5EA
Rust Resistant Coating Yes
Hat Finish Geospec Silver Grey
Nominal Thickness 28mm
Outside Diameter 320mm
Overall Height 47.5mm
Surface Type Slotted
Description Value
Solid Or Vented Type Rotor Vented
Discard Thickness 26.4mm
Bolt Circle Diameter 114.3mm
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 12.3mm
Center Hole Diameter 69mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Circle Diameter 114.3mm
Weight 21.5LB
