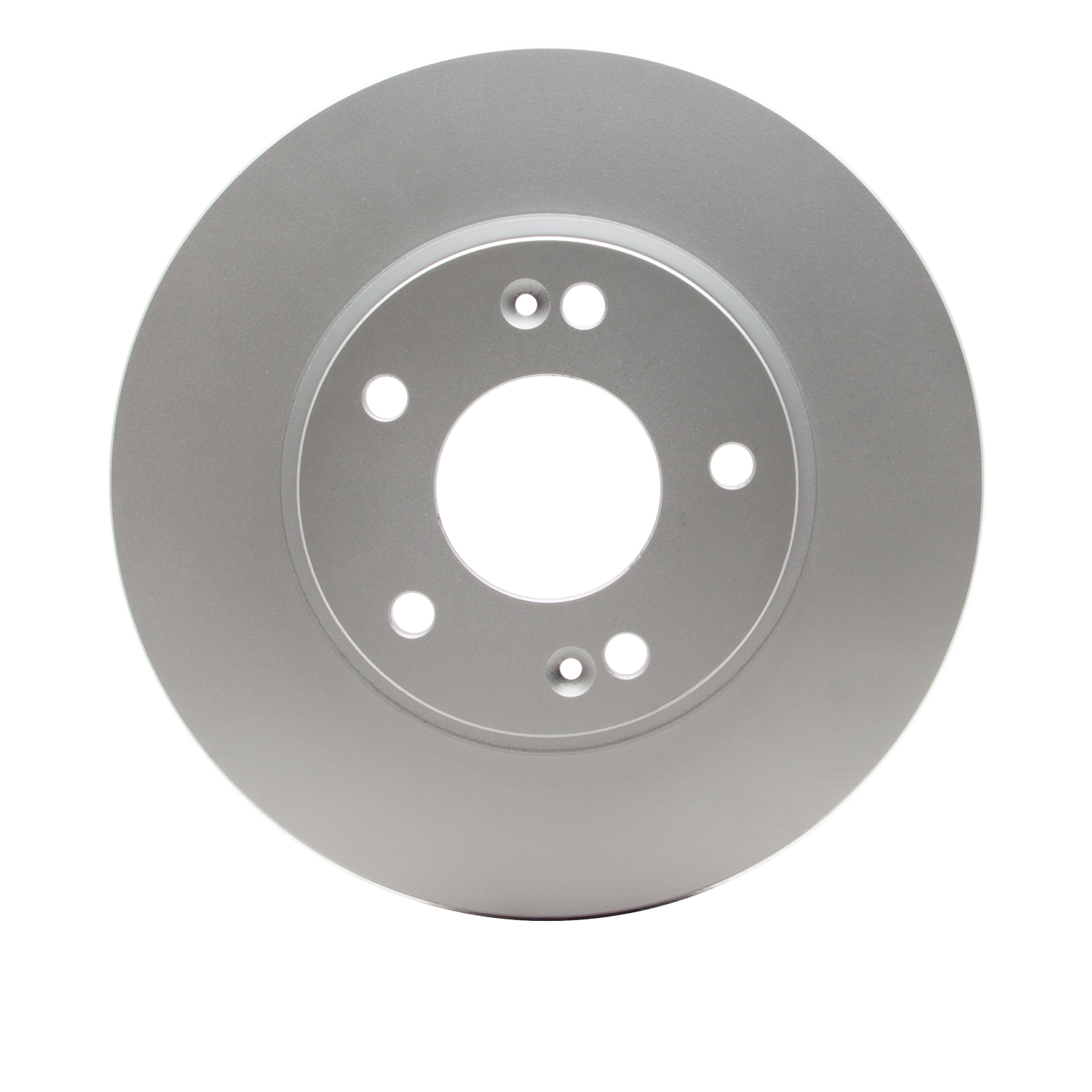

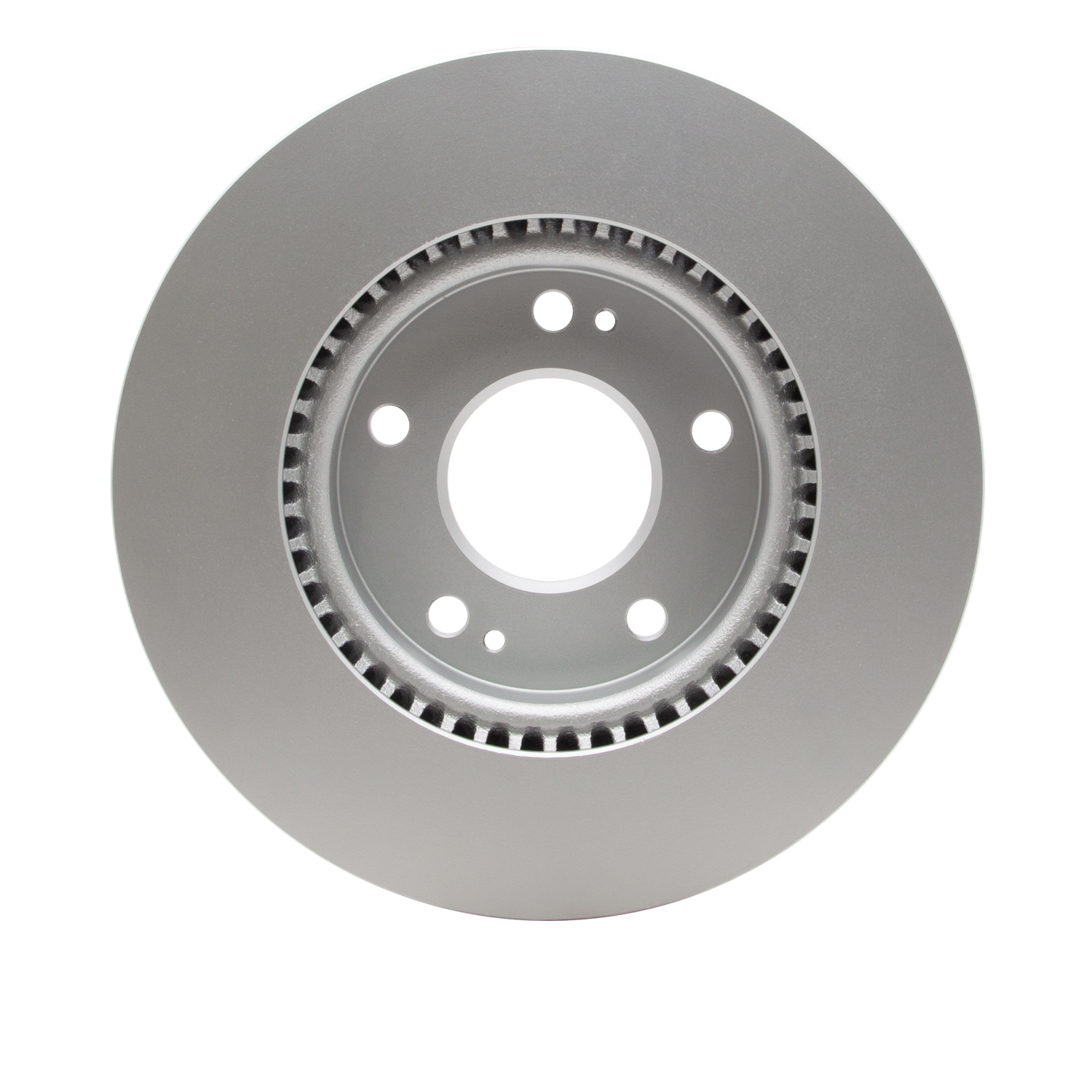

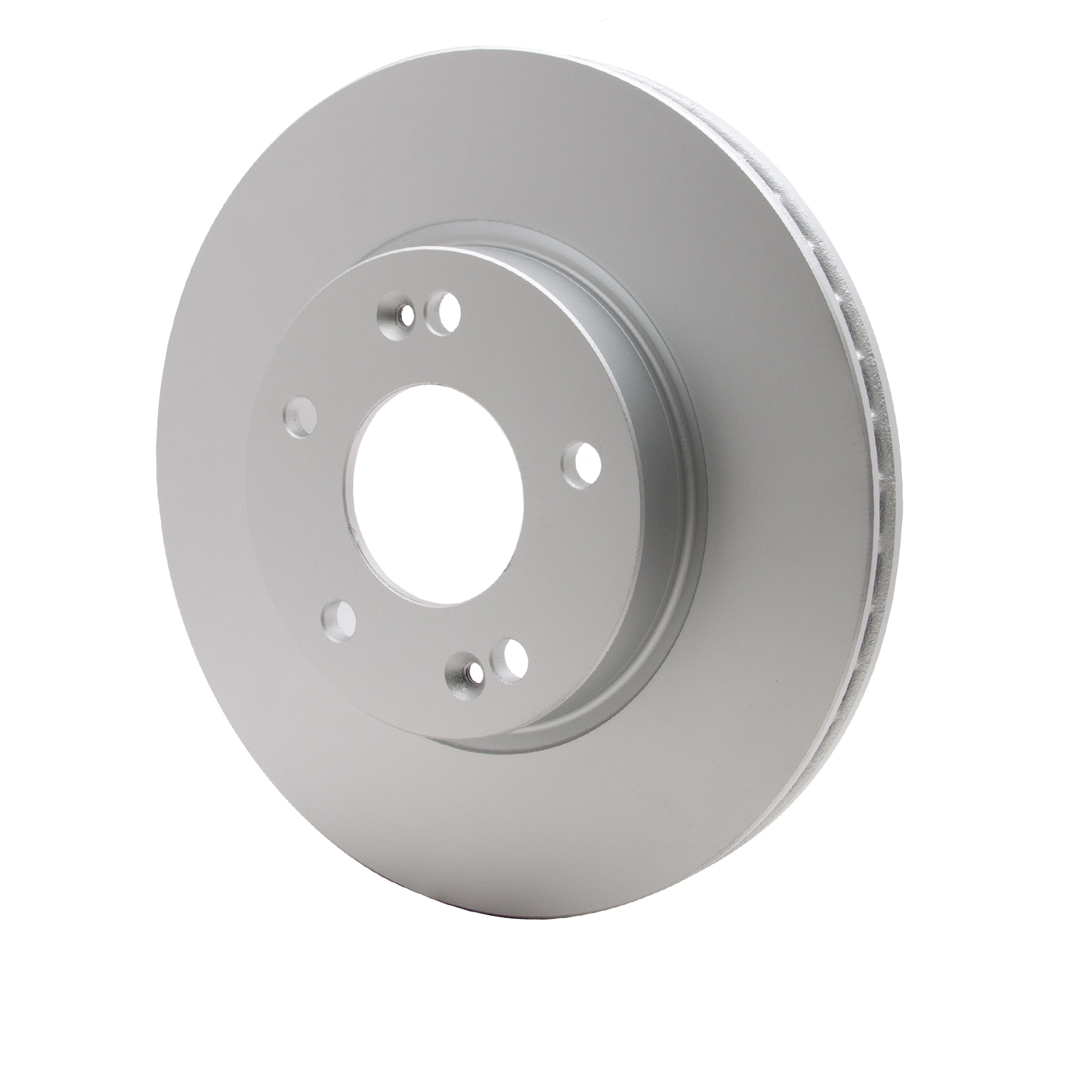

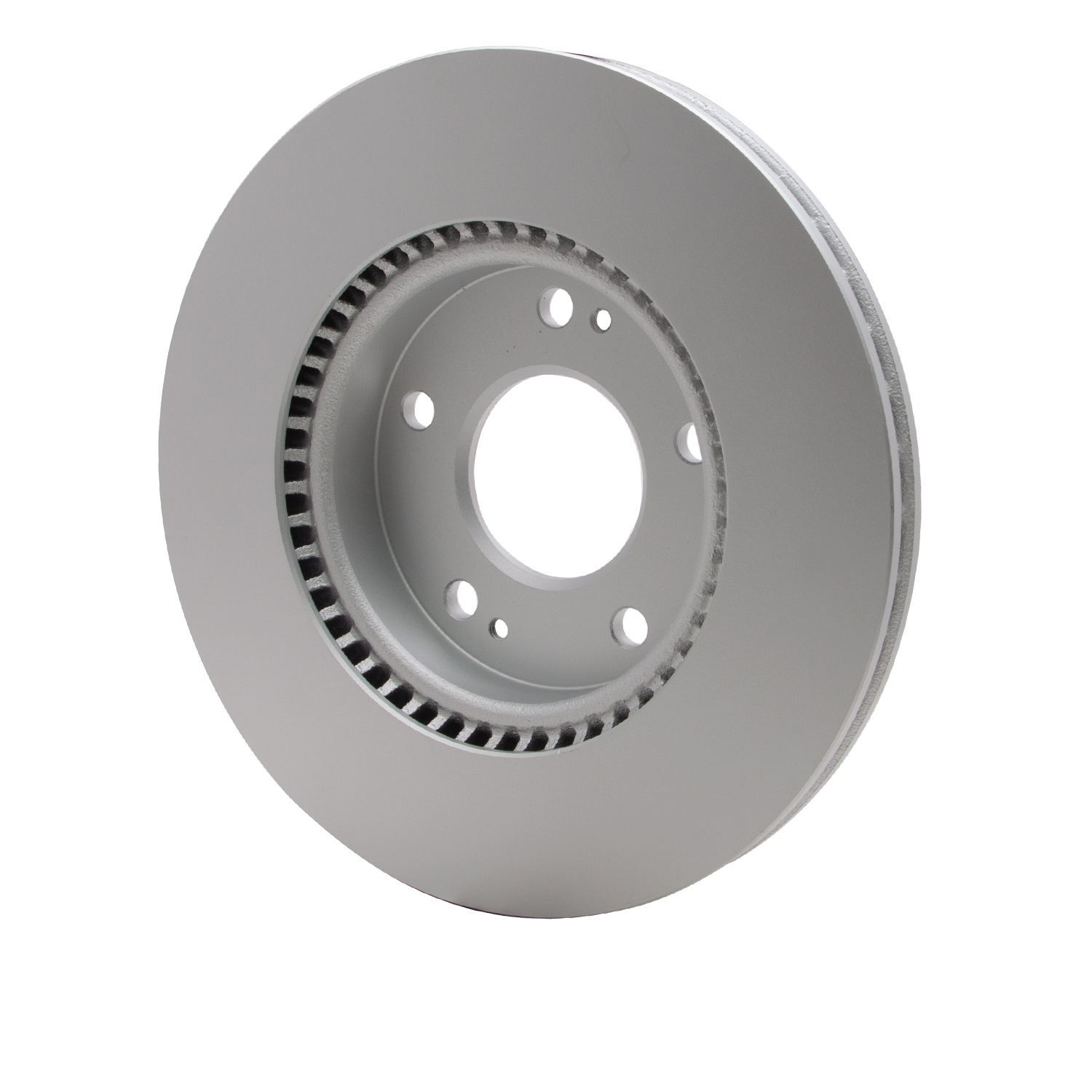

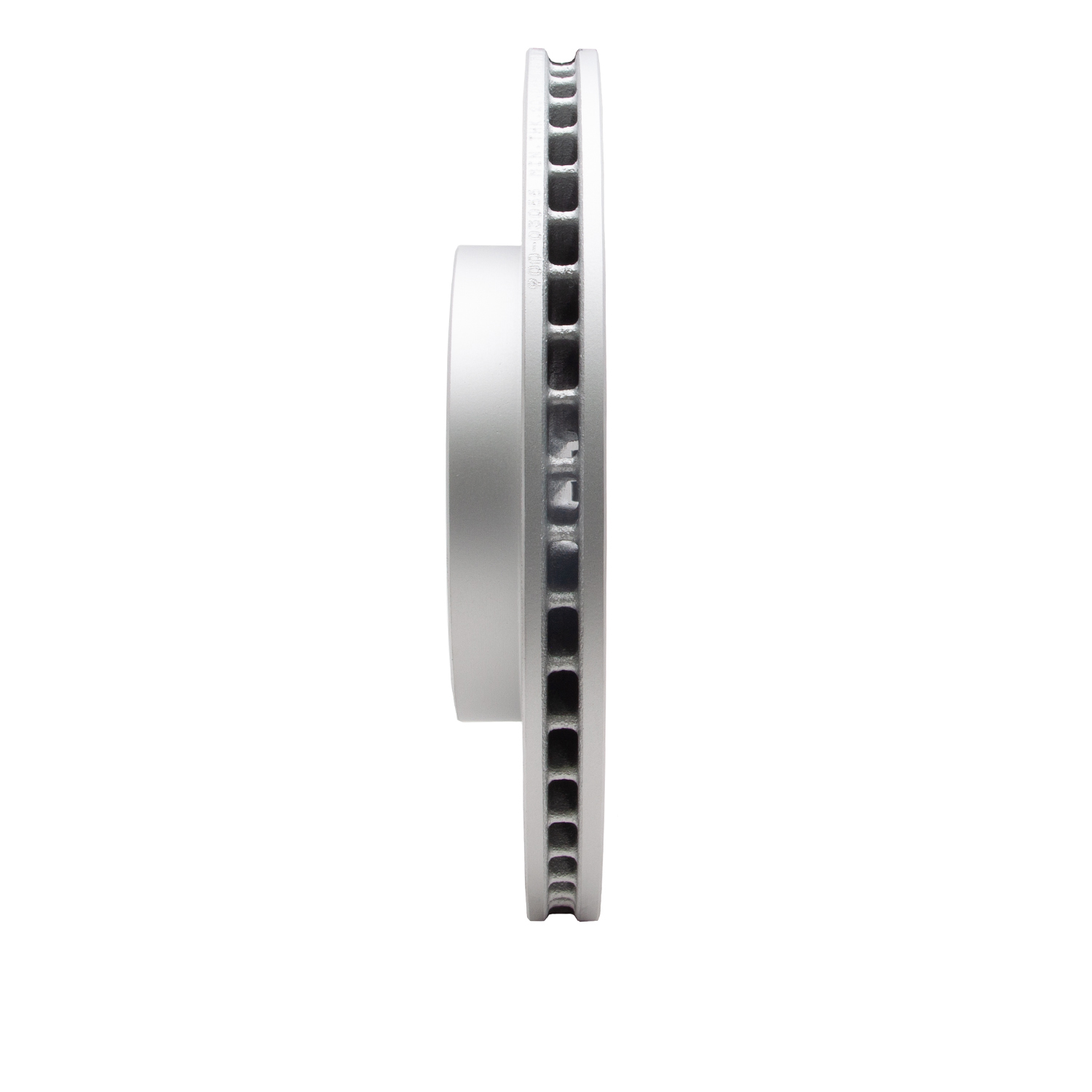

2020 Hyundai Ioniq DFC GEOSPEC Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
604-03055
Axle:
Front
PCQ:
2

Description

  • DFC GEOSPEC Coated Rotor - Blank

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • CNC-Machined To The Tightest Tolerances
  • Ready To Install - No Additional Pre-Degreasing Preparation Needed (Saves Time And Money During Installation Process)
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Provides Superior Corrosion Protection Over Zinc / Conventional Painting
  • Quality Tested To Ensure Long-Lasting Performance

Product Specifications

Description Value
Outside Diameter 280mm
Inside Diameter 69mm
Bolt Hole Quantity 5EA
Discard Thickness 20mm
Hat Finish GEOSPEC Silver Grey
Height 45.1mm
Overall Height 45.1mm
Rust Resistant Coating Yes
Solid Or Vented Type Rotor Vented
Nominal Thickness 22mm
Description Value
Stud/Lug Hole Quantity 5
Surface Type Smooth
Stud/Lug Hole Diameter 12.9mm
Bolt Hole Diameter 12.9mm
Directional or Non-Directional Brake Surface Non-Directional
Disc Finish Plain
Center Hole Diameter 69mm
Stud/Lug Hole Circle Diameter 114.3mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 13.9LB
