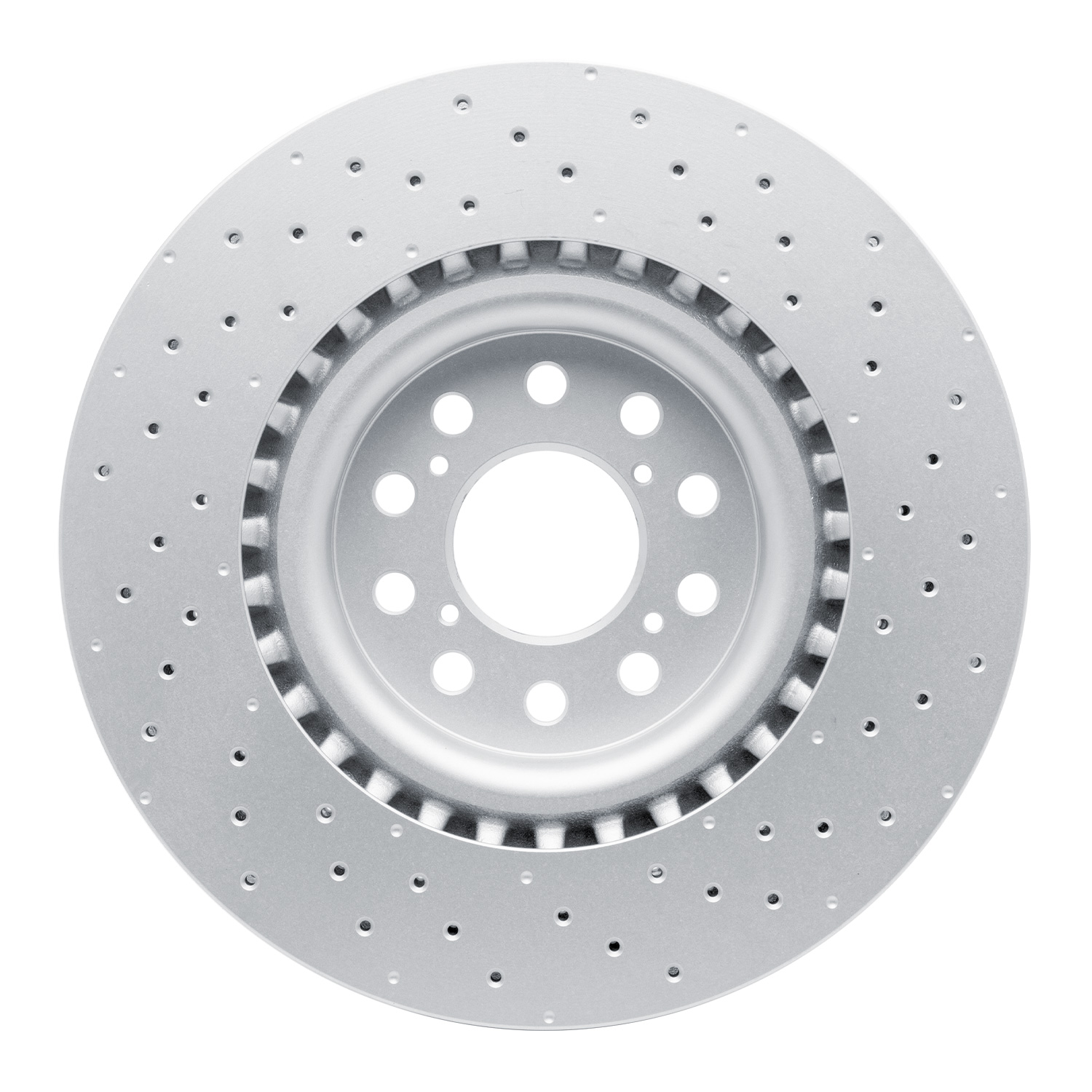

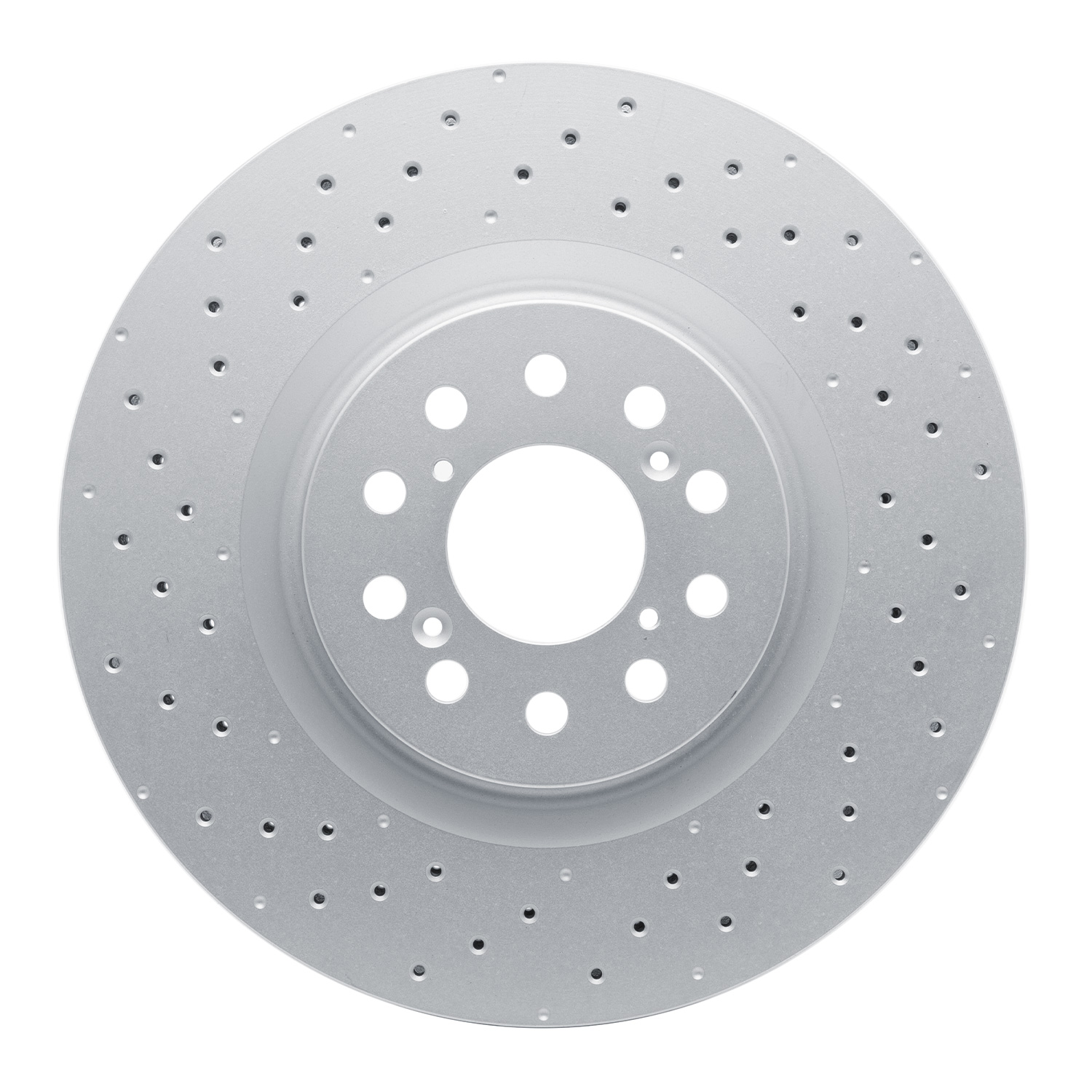

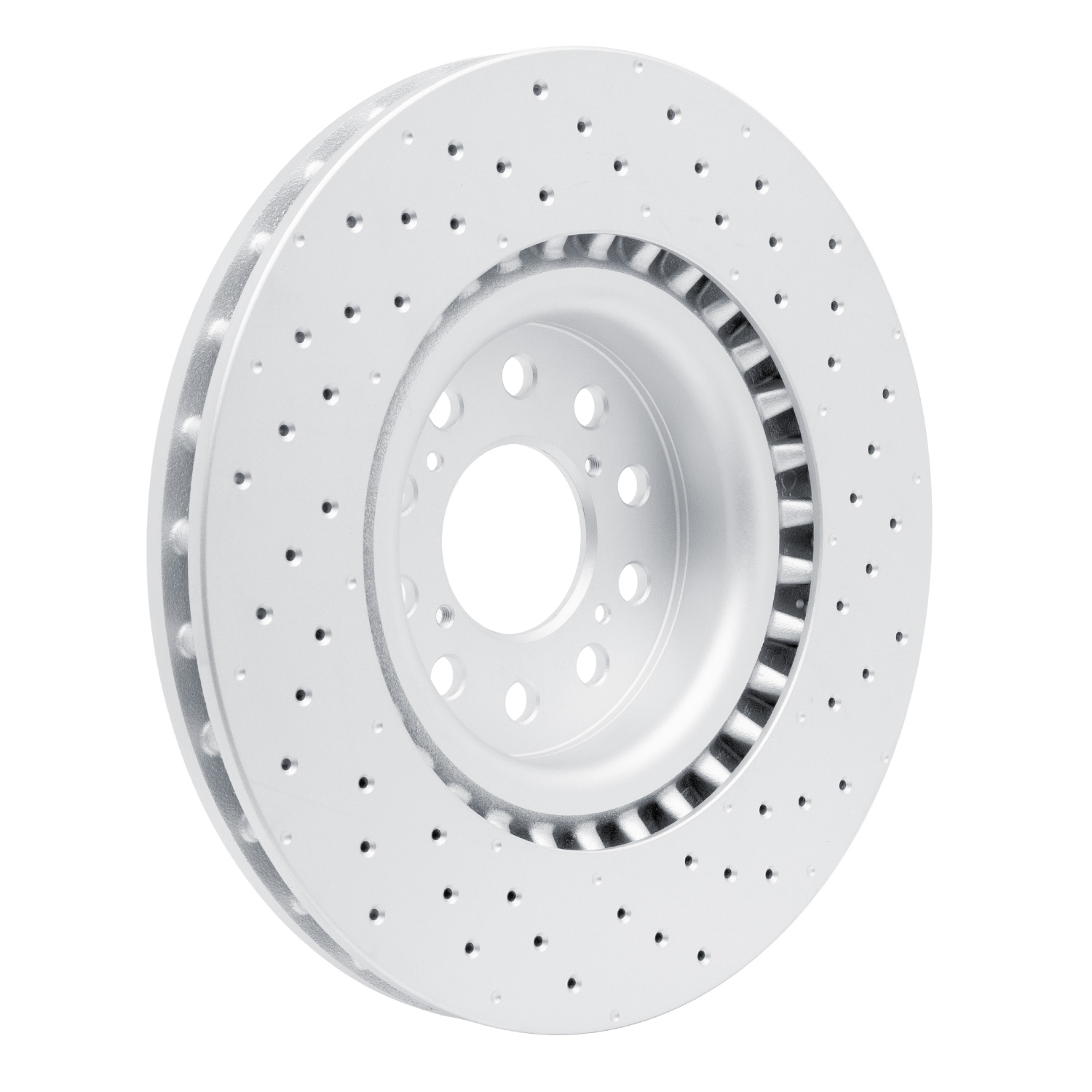

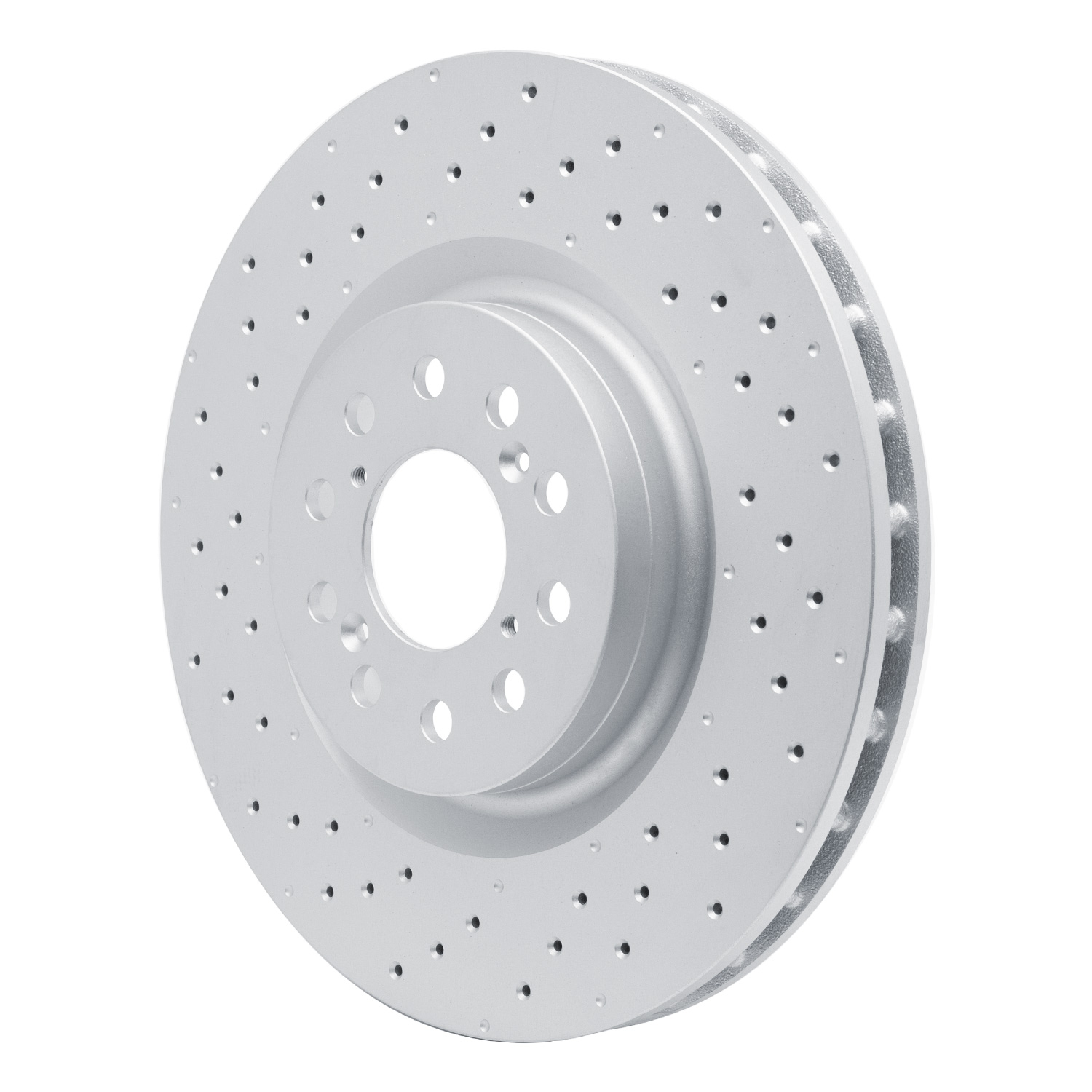

2020 Honda Civic DFC Hi-Carbon Alloy GEOMET Coated Rotor - Drilled

Part Type:
Disc Brake Rotor
SKU:
920-59065
Axle:
Front
Sub model:
Type R
PCQ:
2
Note:

Optional Full Cast Drilled Front Disc

Description

  • DFC Hi-Carbon Alloy Rotor - Drilled

Features and Benefits

  • 100% Precision Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Disc Thickness Variation (DTV) - 010 MM Maximum
  • Fined Turned Finish (16 RMS) For Improved Initial Rotor And Pad Break-In
  • Geomet® Coated To Provide High-Performance Corrosion Protection
  • Lateral Runout - 050 MM Maximum
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation

Product Specifications

Description Value
Height 55mm
Outside Diameter 350mm
Bolt Hole Quantity 5EA
Nominal Thickness 32mm
Rust Resistant Coating Yes
Discard Thickness 30mm
Center Hole Diameter 70.1mm
Disc Finish Plain
Description Value
Stud/Lug Hole Quantity 5
Surface Type X Drilled
Bolt Circle Diameter 120mm
Hat Finish GEOMET Grey
Solid Or Vented Type Rotor Vented
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Directional or Non-Directional Brake Surface Non-Directional
Weight 27.35LB
