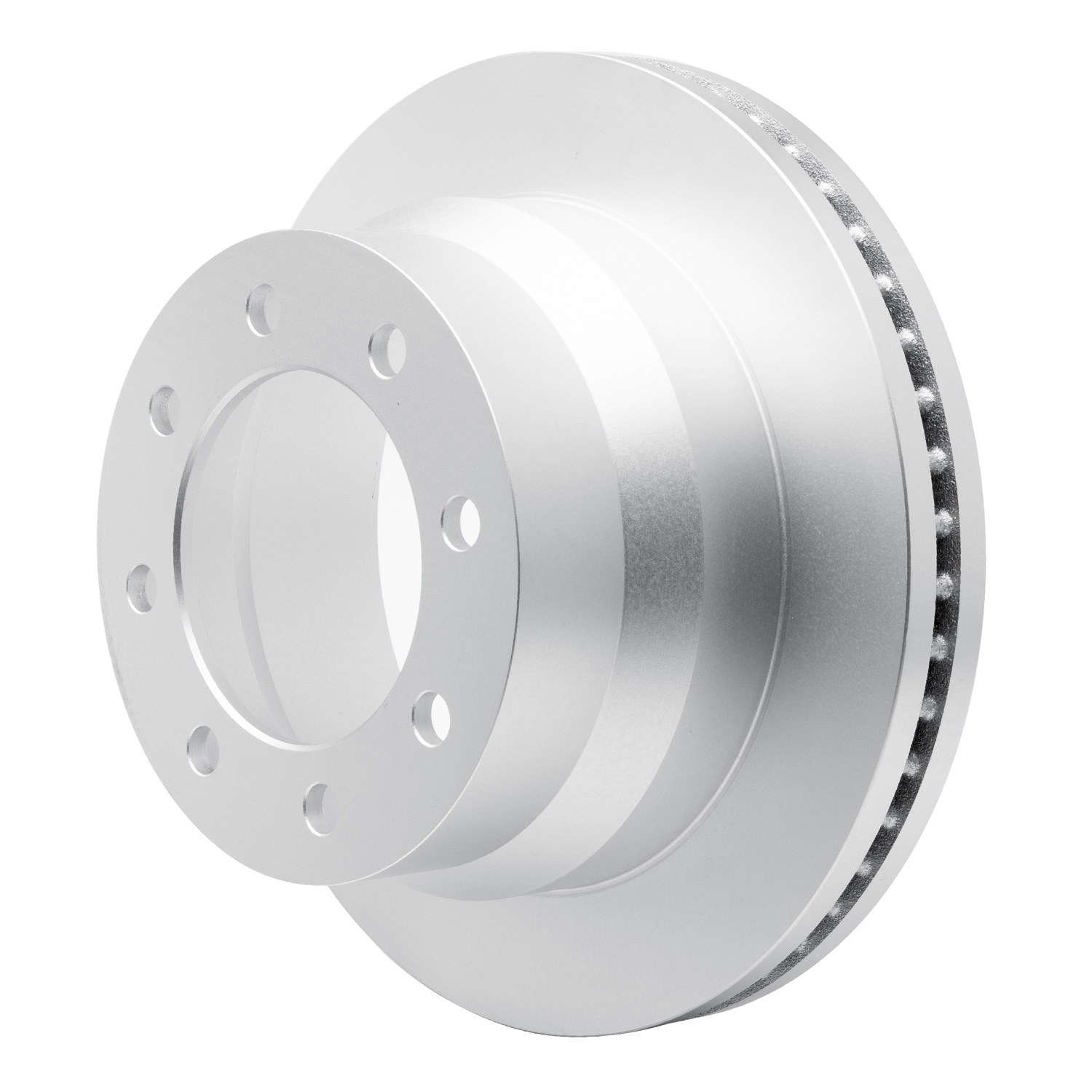

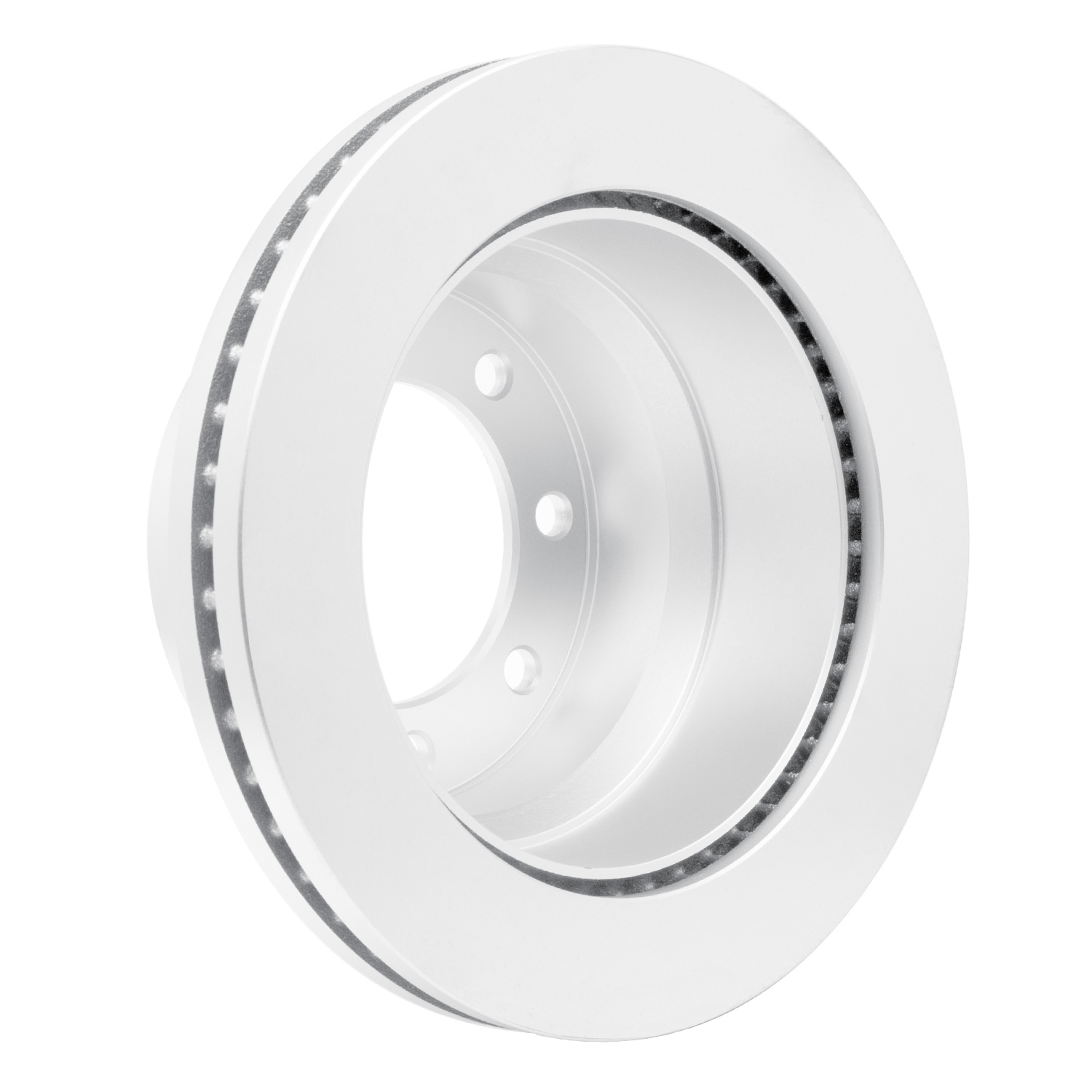

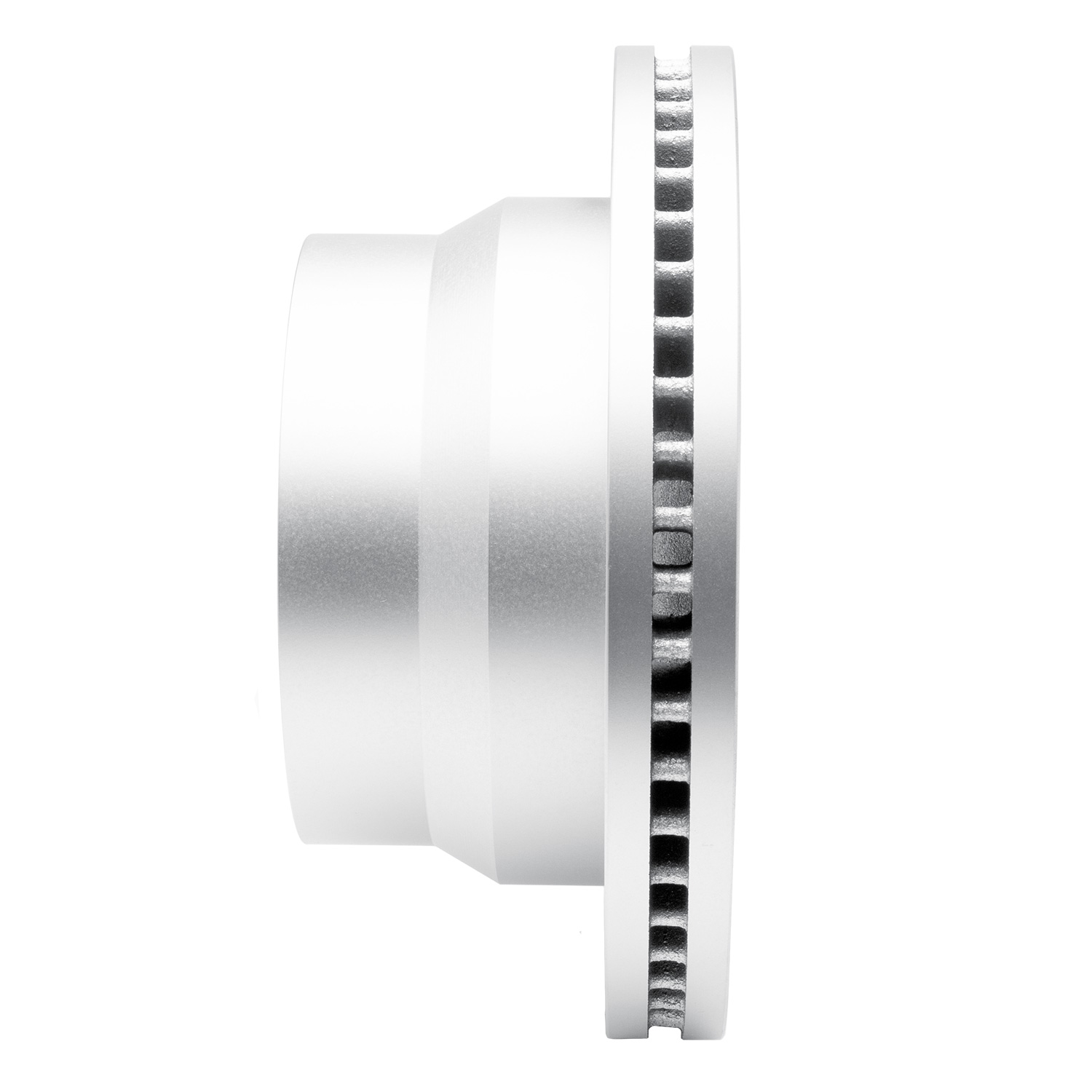

2020 GMC Savana 4500 DFC GEOSPEC Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
604-48056
Axle:
Rear
PCQ:
2
Note:

Cutaway Commercial Chassis

Description

  • DFC GEOSPEC Coated Rotor - Blank

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Provides Superior Corrosion Protection Over Zinc / Conventional Painting
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Quality Tested To Ensure Long-Lasting Performance
  • Ready To Install - No Additional Pre-Degreasing Preparation Needed (Saves Time And Money During Installation Process)

Product Specifications

Description Value
Inside Diameter 123.1mm
Outside Diameter 345.5mm
Bolt Hole Quantity 8EA
Bolt Hole Diameter 16.2mm
Height 146.2mm
Nominal Thickness 40mm
Discard Thickness 38mm
Overall Height 146.2mm
Surface Type Smooth
Disc Finish Plain
Description Value
Hat Finish GEOSPEC Silver Grey
Solid Or Vented Type Rotor Vented
Rust Resistant Coating Yes
Stud/Lug Hole Quantity 8
Center Hole Diameter 123.1mm
Directional or Non-Directional Brake Surface Non-Directional
Stud/Lug Hole Diameter 16.2mm
Stud/Lug Hole Circle Diameter 165mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 38.05LB
