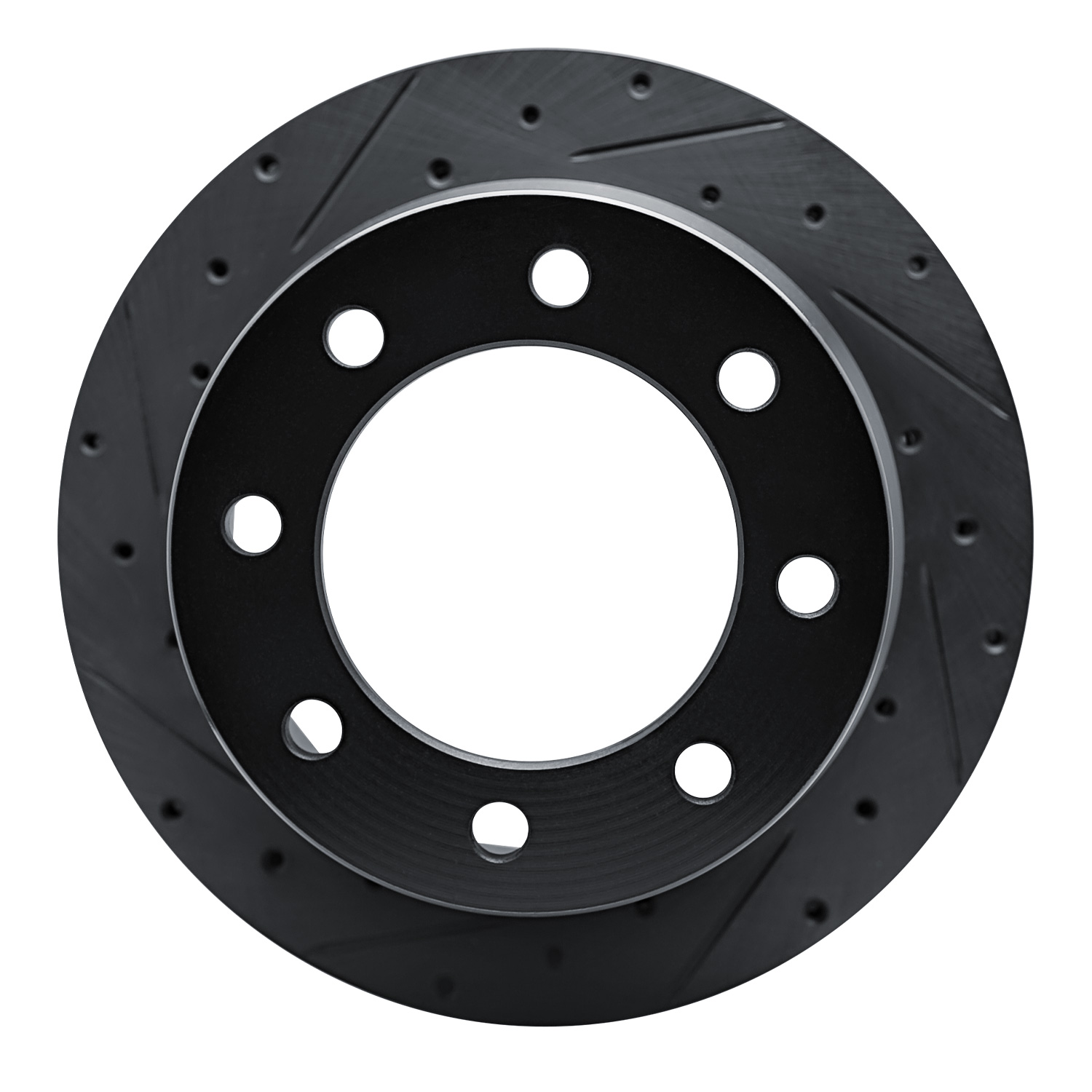

2020 GMC Savana 4500 DFC Brake Rotor - Drilled and Slotted - Black

Part Type:
Disc Brake Rotor
SKU:
633-48056L
Axle:
Rear Left
PCQ:
1
Note:

Cutaway Commercial Chassis

Description

  • DFC Brake Rotor - Drilled and Slotted - Black

Features and Benefits

  • New In Box, Ready To Install, No Modifications Required
  • CNC-Machined To The Tightest Tolerances
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Black For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Discard Thickness 38mm
Bolt Hole Quantity 8EA
Nominal Thickness 40mm
Outside Diameter 345.5mm
Rust Resistant Coating Yes
Overall Height 146.2mm
Surface Type Slotted X Drilled
Height 146.2mm
Center Hole Diameter 123.1mm
Solid Or Vented Type Rotor Vented
Description Value
Bolt Hole Diameter 16.2mm
Stud/Lug Hole Diameter 16.2mm
Disc Finish Plain
Bolt Circle Diameter 165mm
Hat Finish Zinc Black
Stud/Lug Hole Quantity 8
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Circle Diameter 165mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 38.05LB
