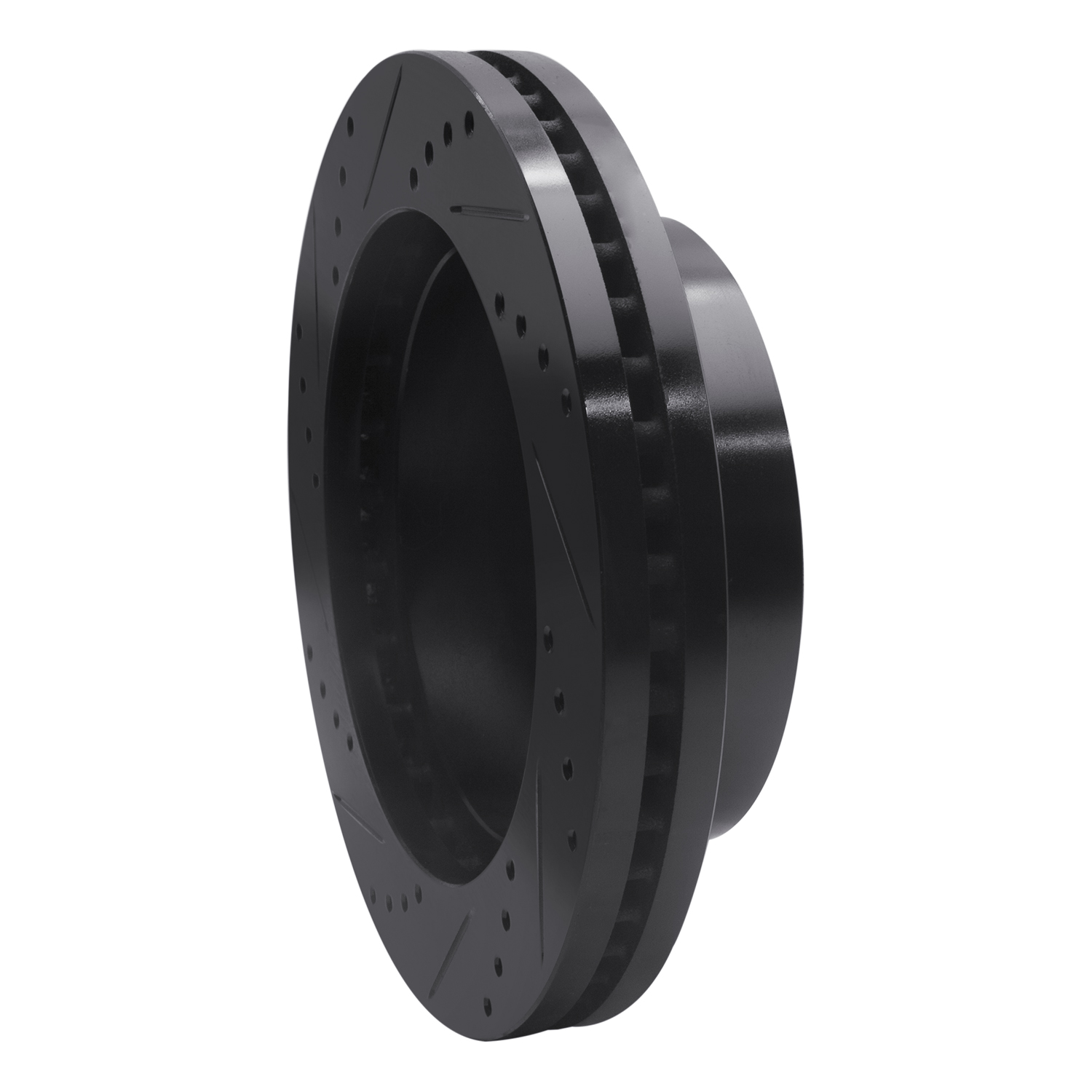

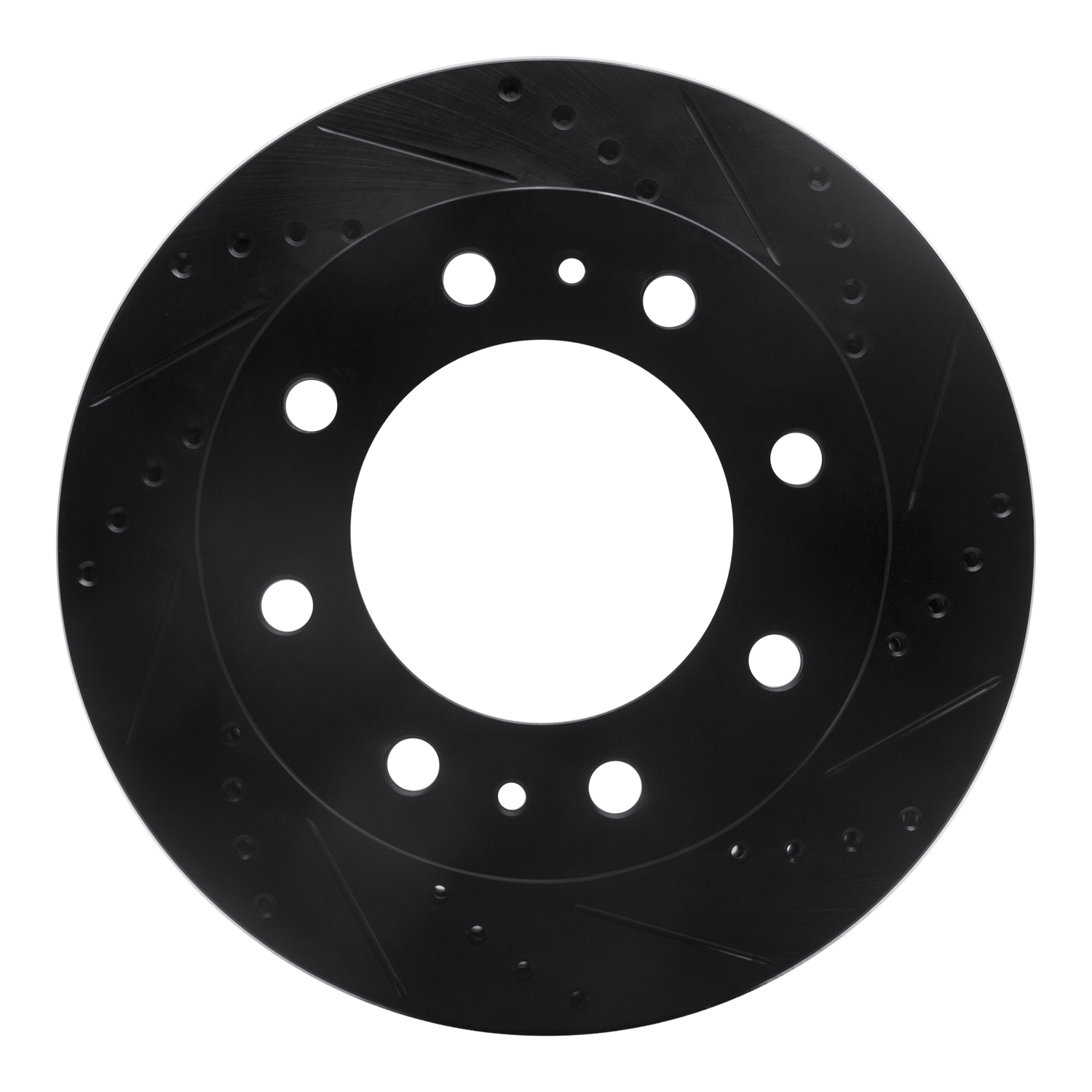

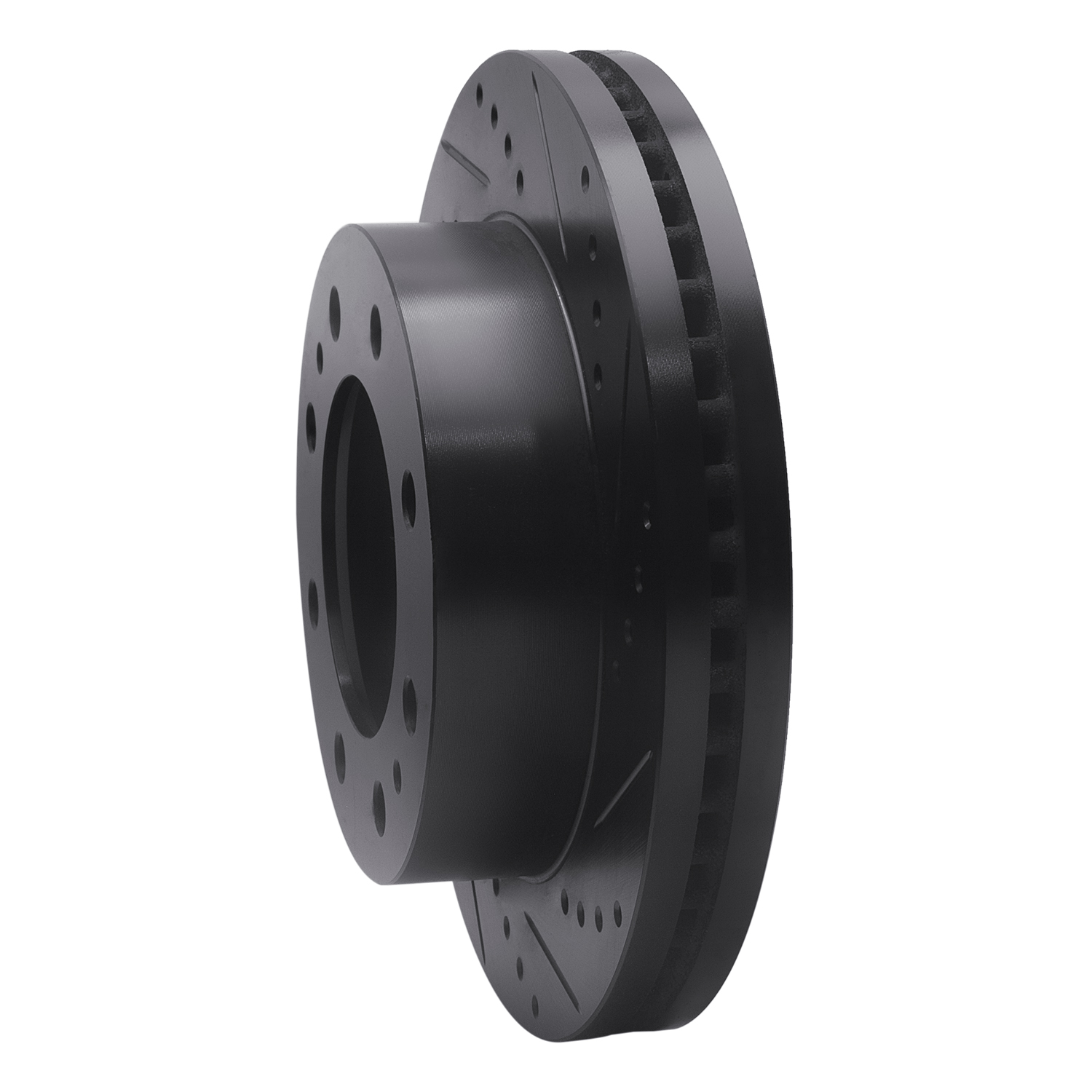

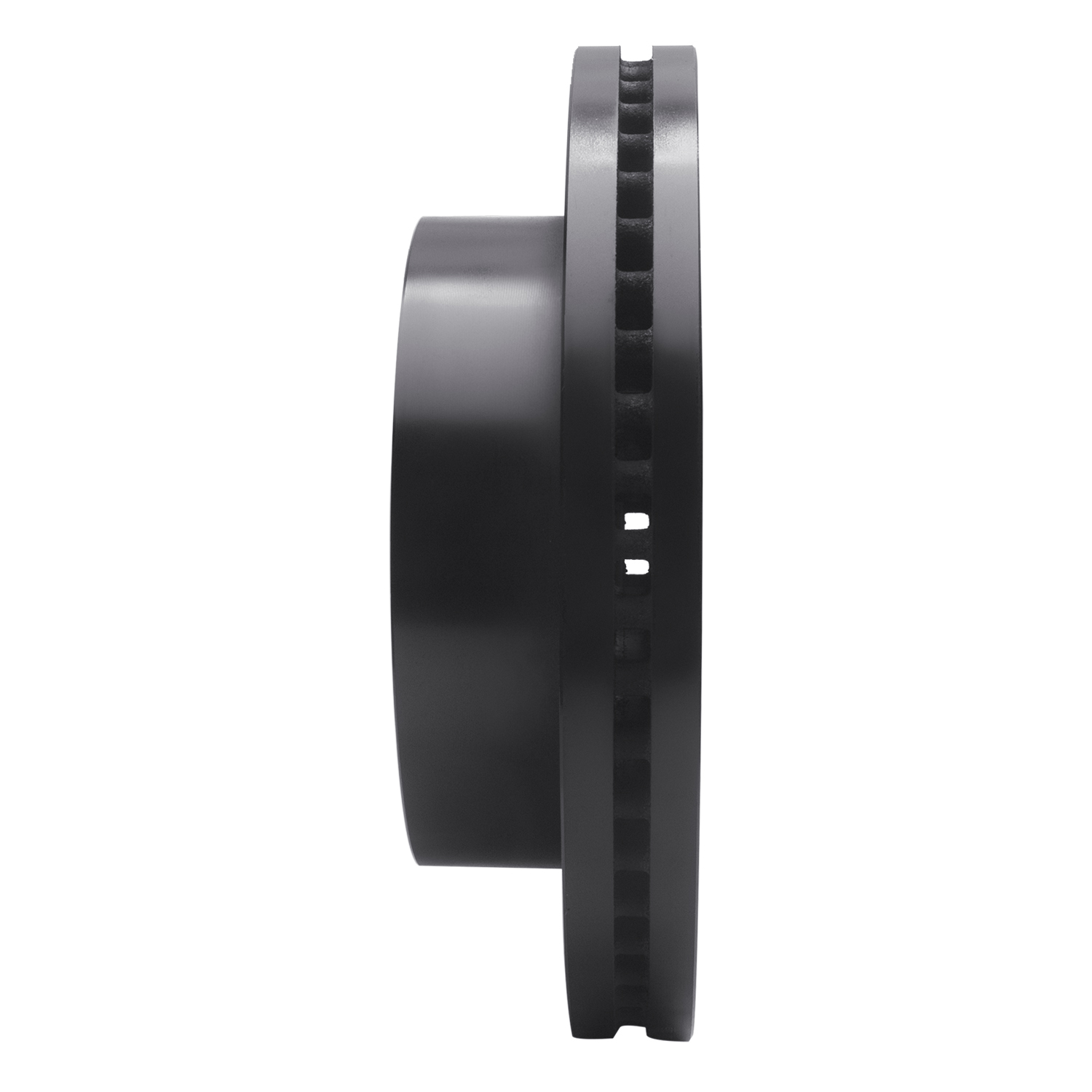

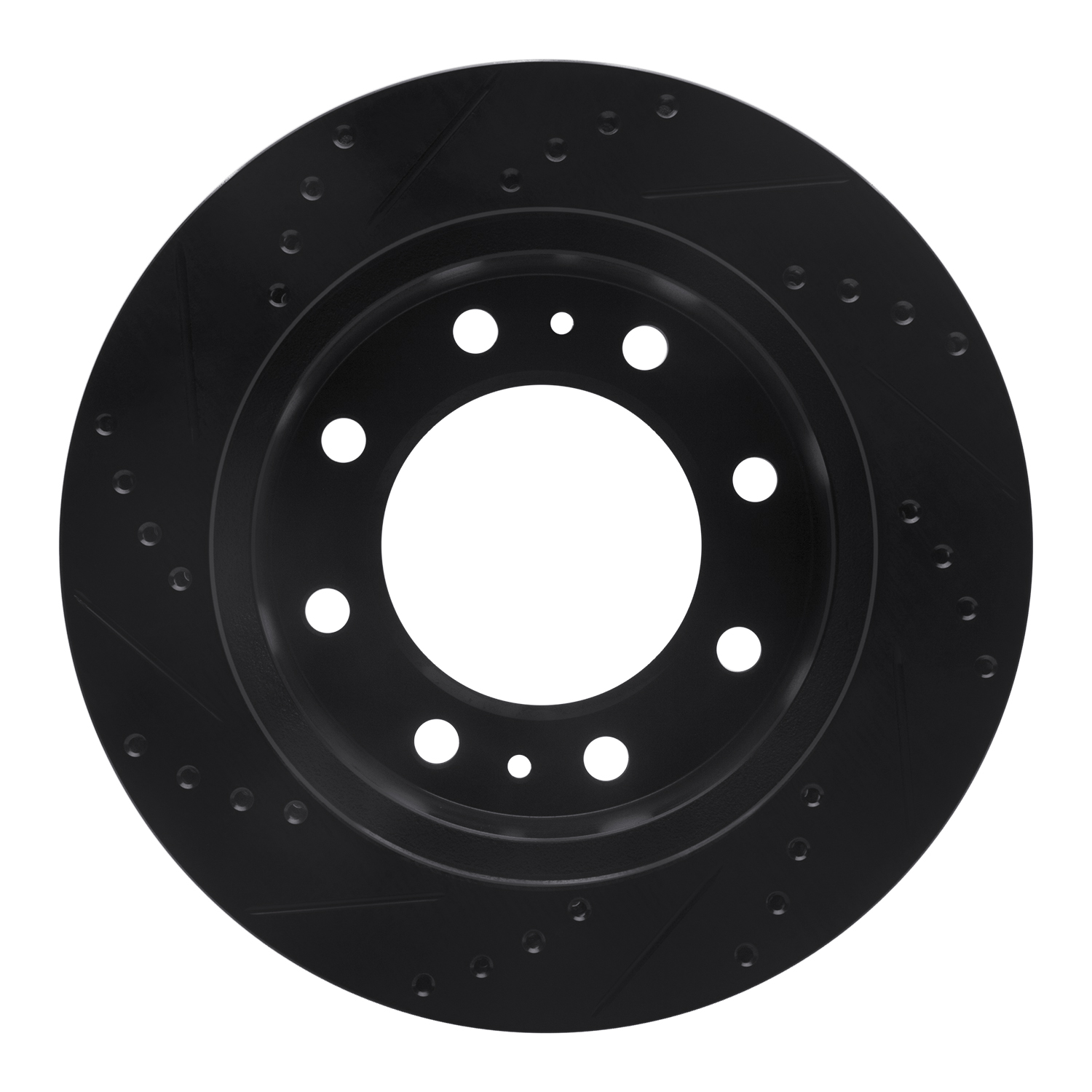

2020 GMC Savana 4500 DFC Brake Rotor - Drilled and Slotted - Black

Part Type:
Disc Brake Rotor
SKU:
633-48051R
Axle:
Front Right
PCQ:
1
Note:

Cutaway Commercial Chassis

Description

  • DFC Brake Rotor - Drilled and Slotted - Black

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • CNC-Machined To The Tightest Tolerances
  • New In Box, Ready To Install, No Modifications Required
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Black For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Nominal Thickness 38mm
Bolt Hole Quantity 8EA
Height 89.3mm
Surface Type Slotted X Drilled
Rust Resistant Coating Yes
Outside Diameter 325mm
Disc Finish Plain
Center Hole Diameter 118.2mm
Stud/Lug Hole Diameter 16.4mm
Discard Thickness 36.5mm
Description Value
Hat Finish Zinc Black
Bolt Hole Diameter 16.4mm
Bolt Circle Diameter 165.1mm
Overall Height 89.3mm
Stud/Lug Hole Quantity 8
Solid Or Vented Type Rotor Vented
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Circle Diameter 165.1mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 29.75LB
