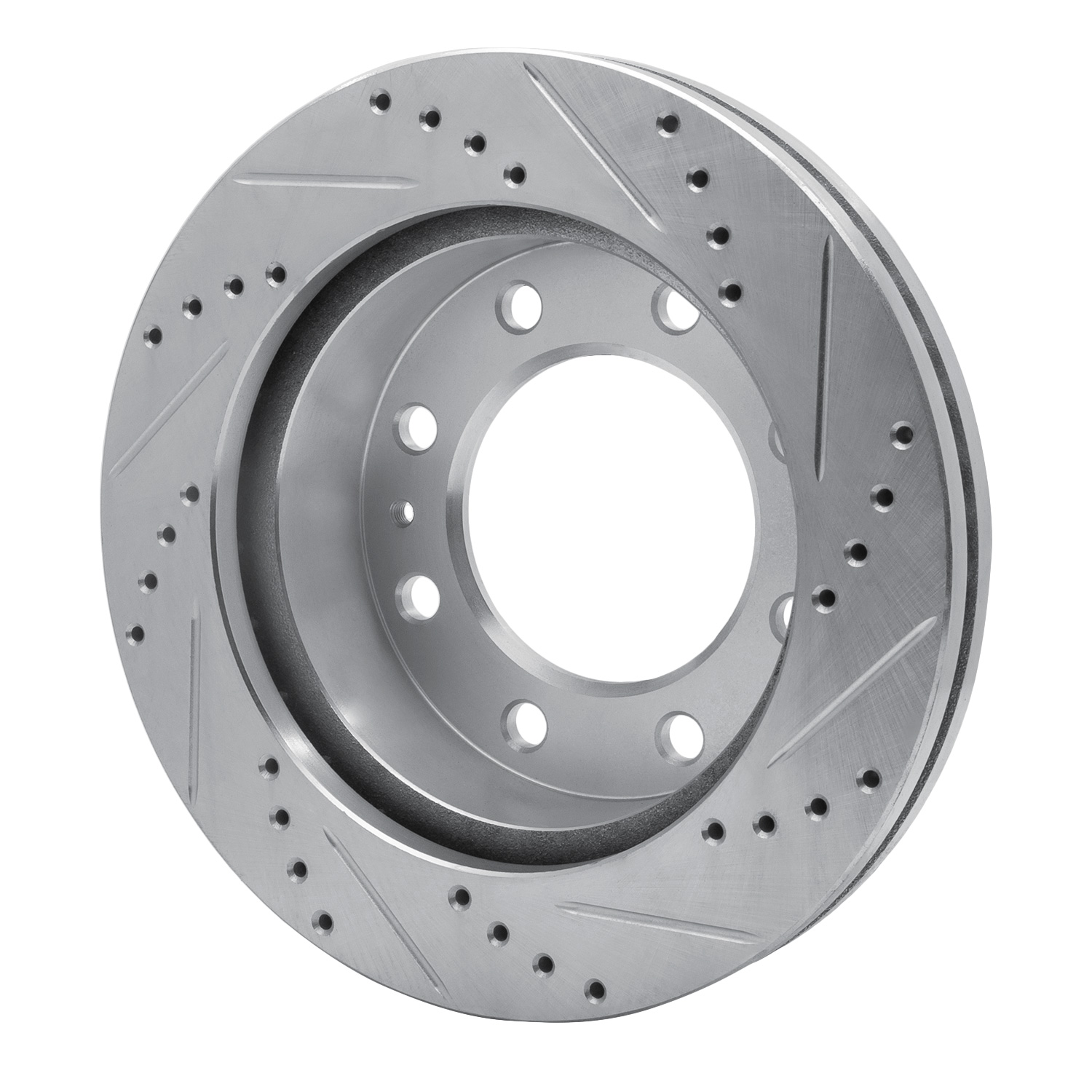

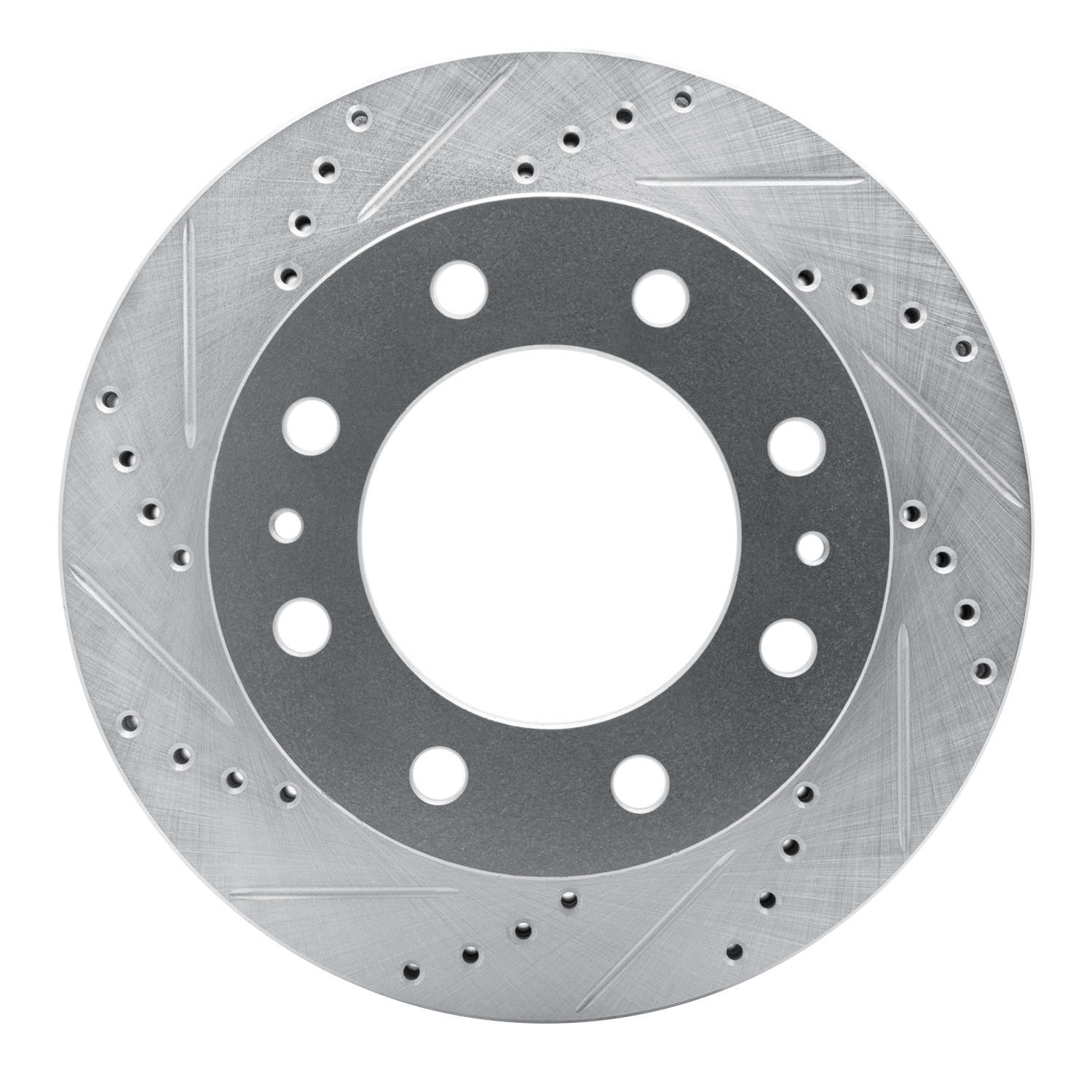

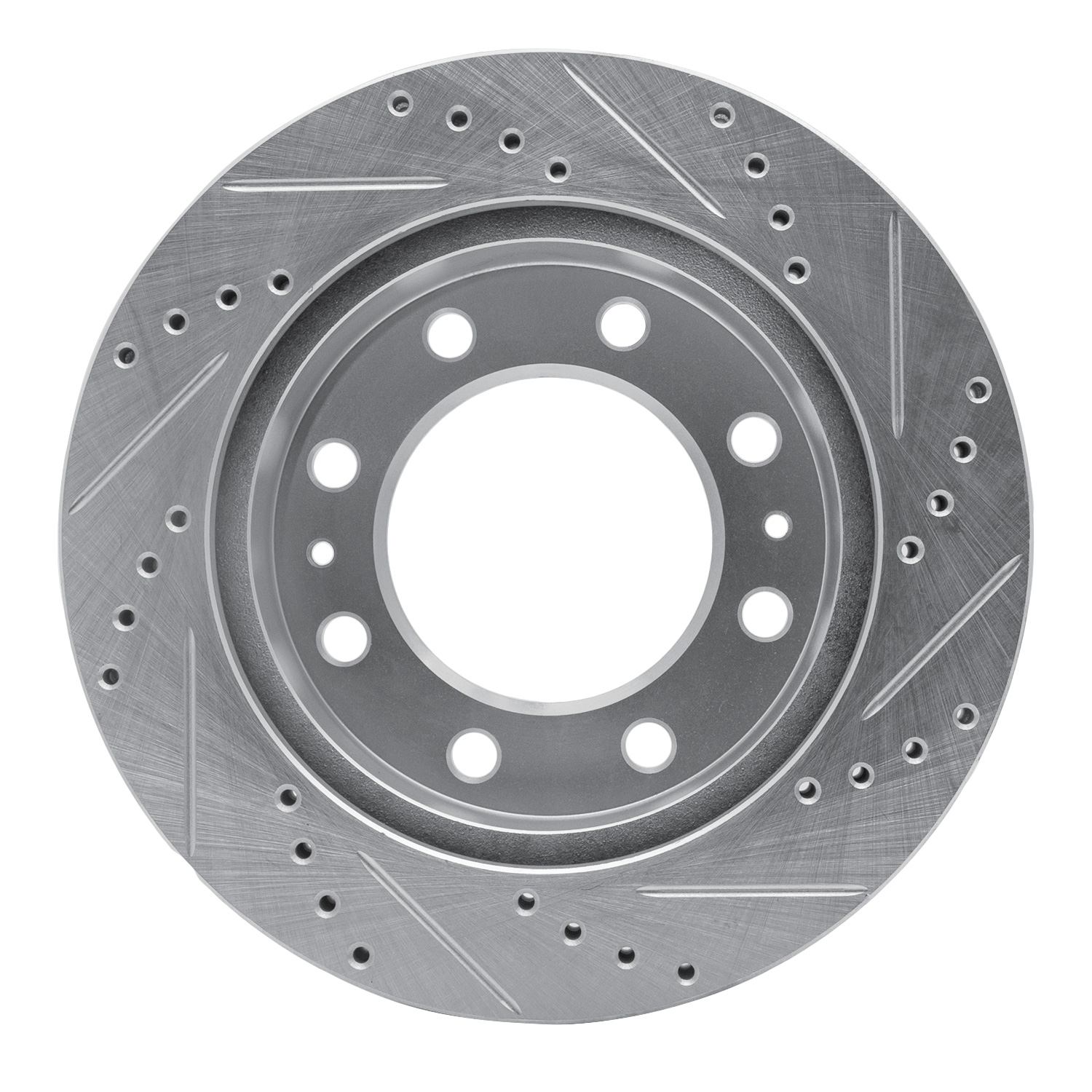

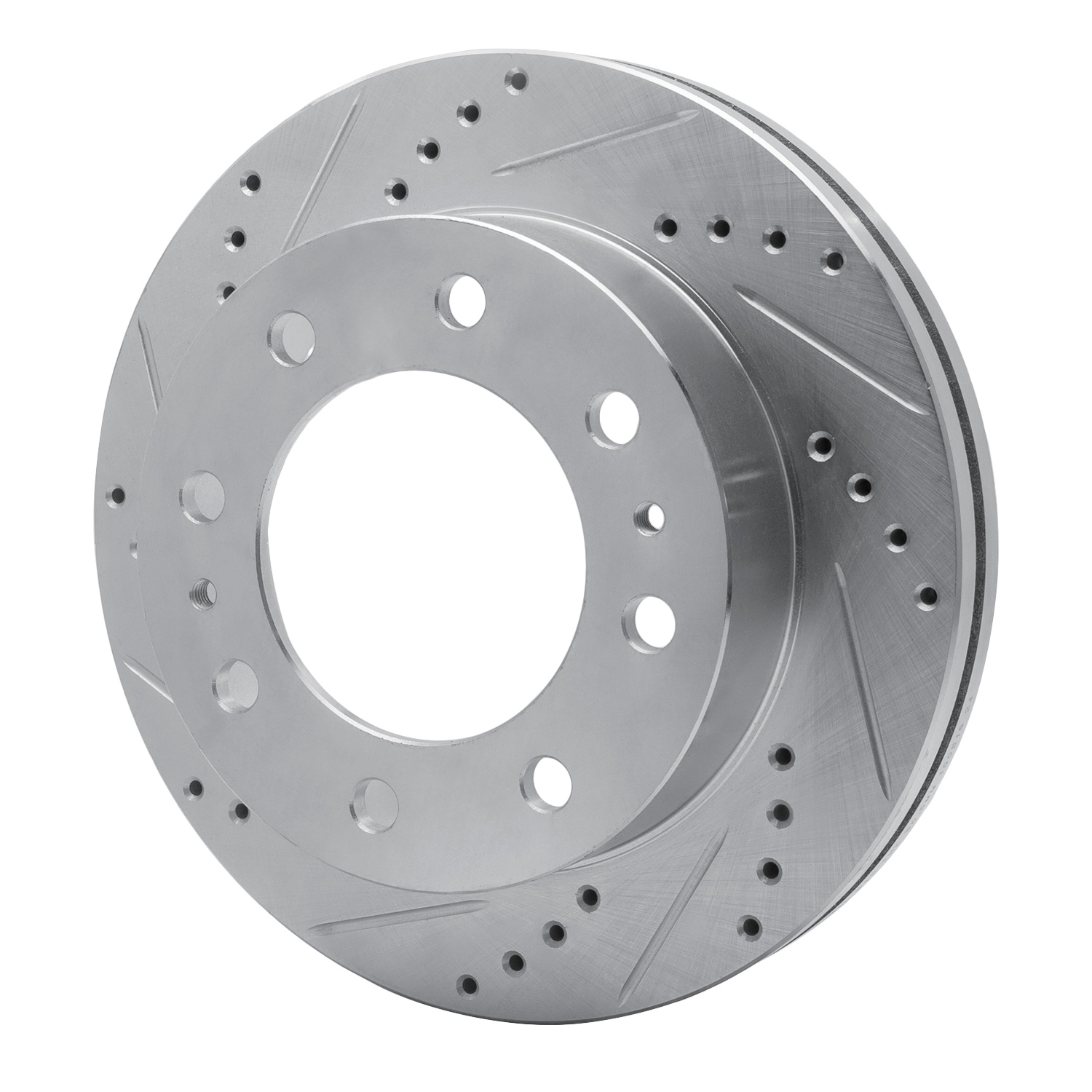

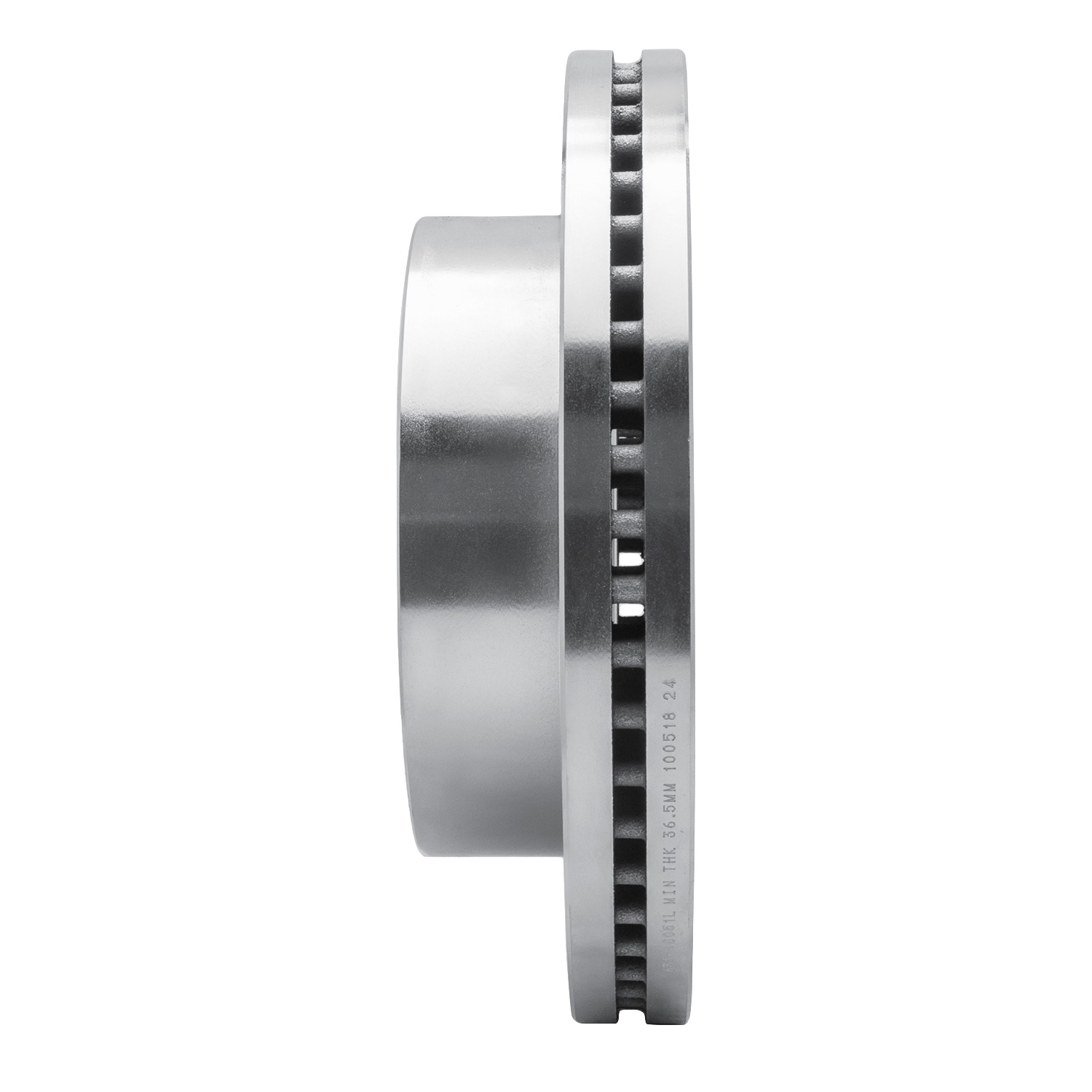

2020 GMC Savana 4500 DFC Brake Rotor - Drilled and Slotted - Silver

Part Type:
Disc Brake Rotor
SKU:
631-48051L
Axle:
Front Left
PCQ:
1
Note:

Cutaway Commercial Chassis

Description

  • DFC Brake Rotor - Drilled and Slotted - Silver

Features and Benefits

  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • New In Box, Ready To Install, No Modifications Required
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • CNC-Machined To The Tightest Tolerances
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Bolt Hole Quantity 8EA
Rust Resistant Coating Yes
Discard Thickness 36.5mm
Height 89.3mm
Outside Diameter 325mm
Surface Type Slotted X Drilled
Overall Height 89.3mm
Nominal Thickness 38mm
Hat Finish Zinc Silver
Center Hole Diameter 118.2mm
Description Value
Solid Or Vented Type Rotor Vented
Bolt Hole Diameter 16.4mm
Stud/Lug Hole Circle Diameter 165.1mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Stud/Lug Hole Diameter 16.4mm
Disc Finish Plain
Stud/Lug Hole Quantity 8
Directional or Non-Directional Brake Surface Directional
Bolt Circle Diameter 165.1mm
Weight 29.75LB
