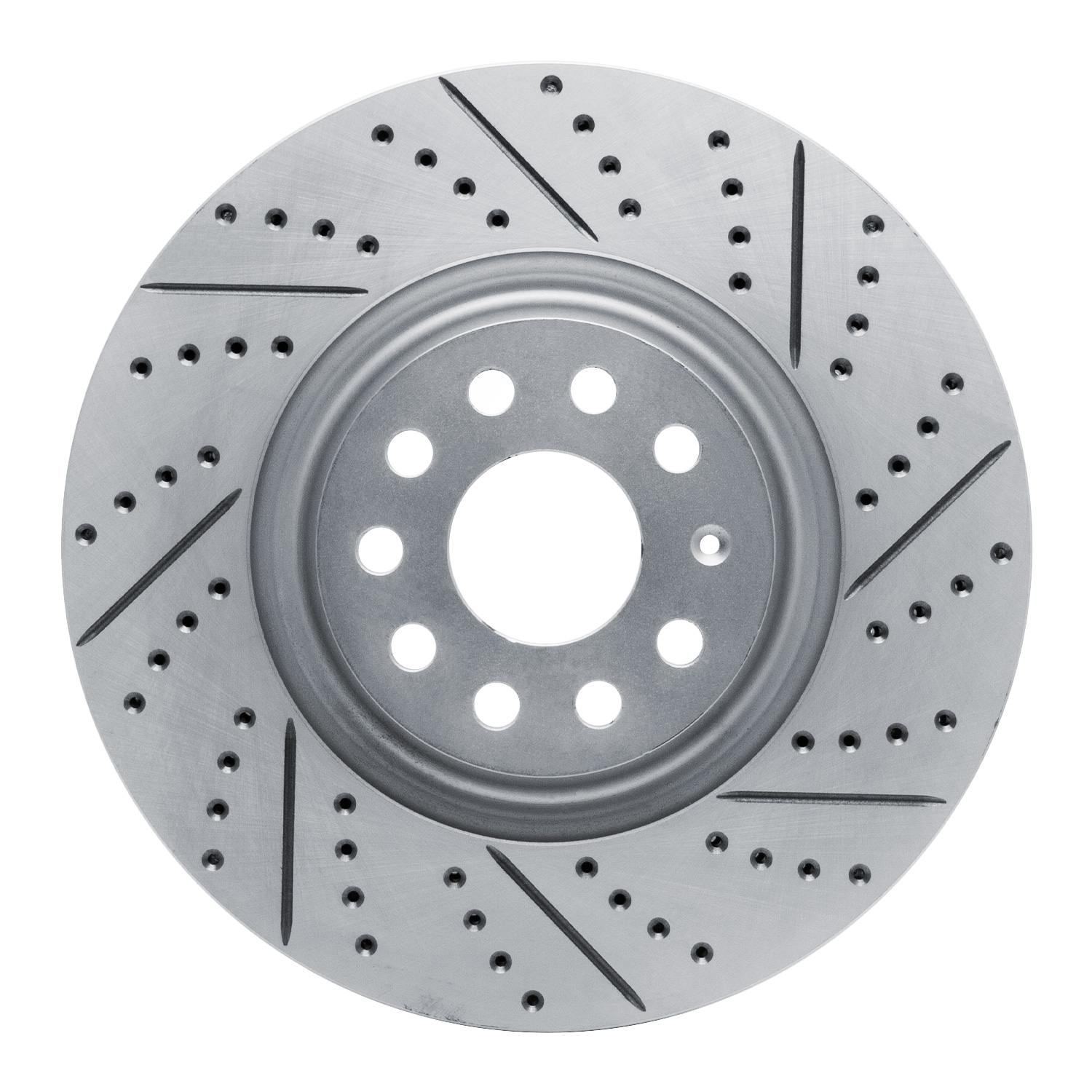

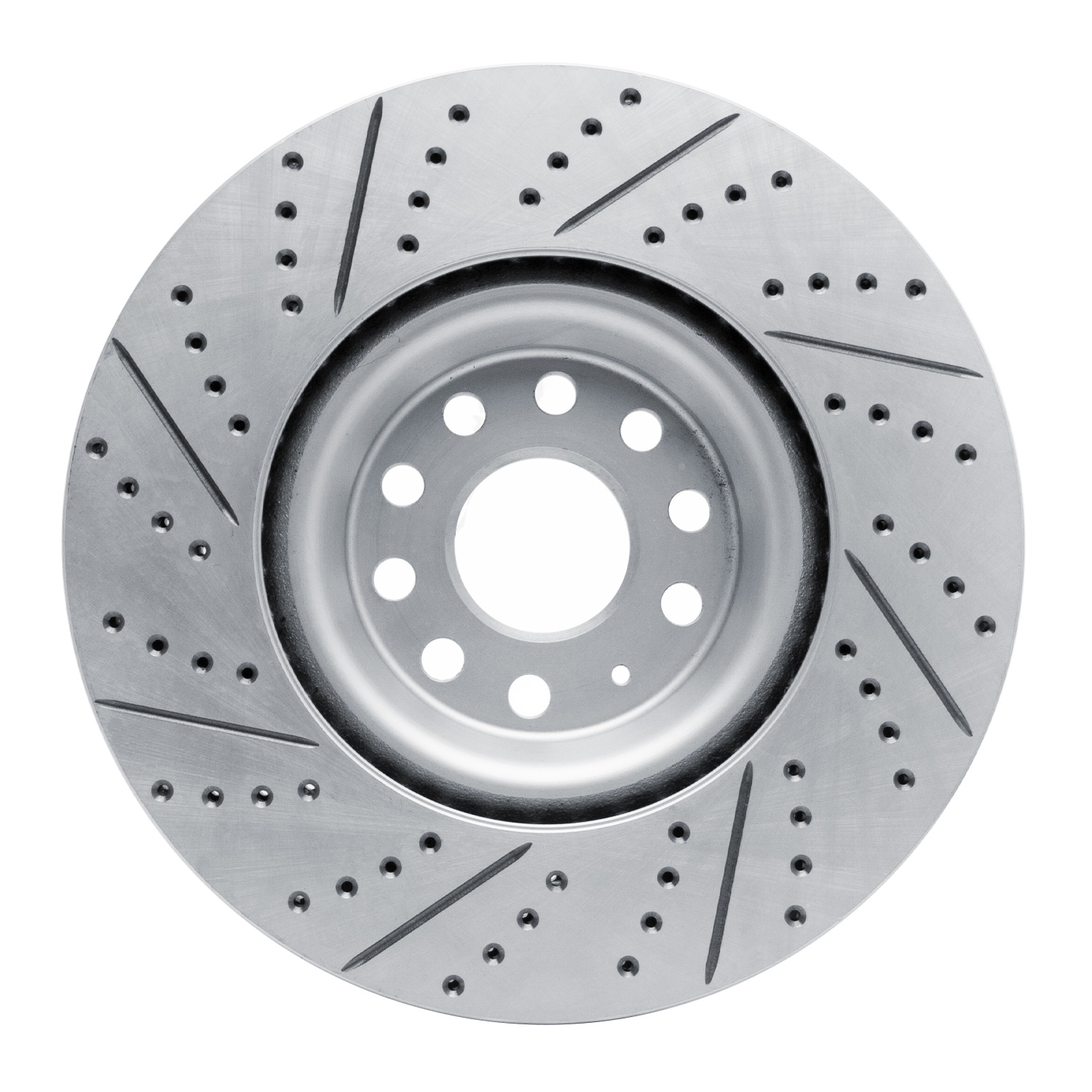

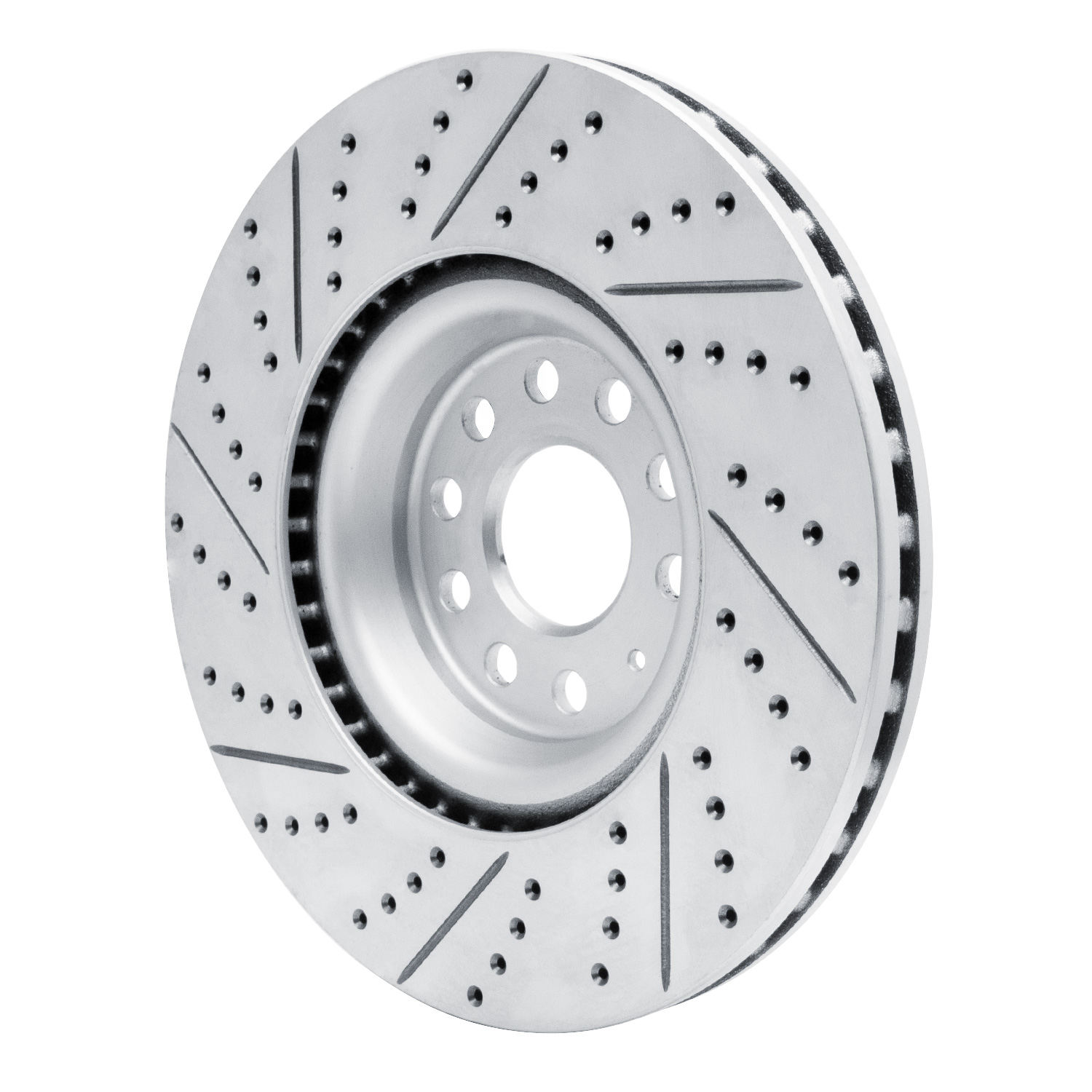

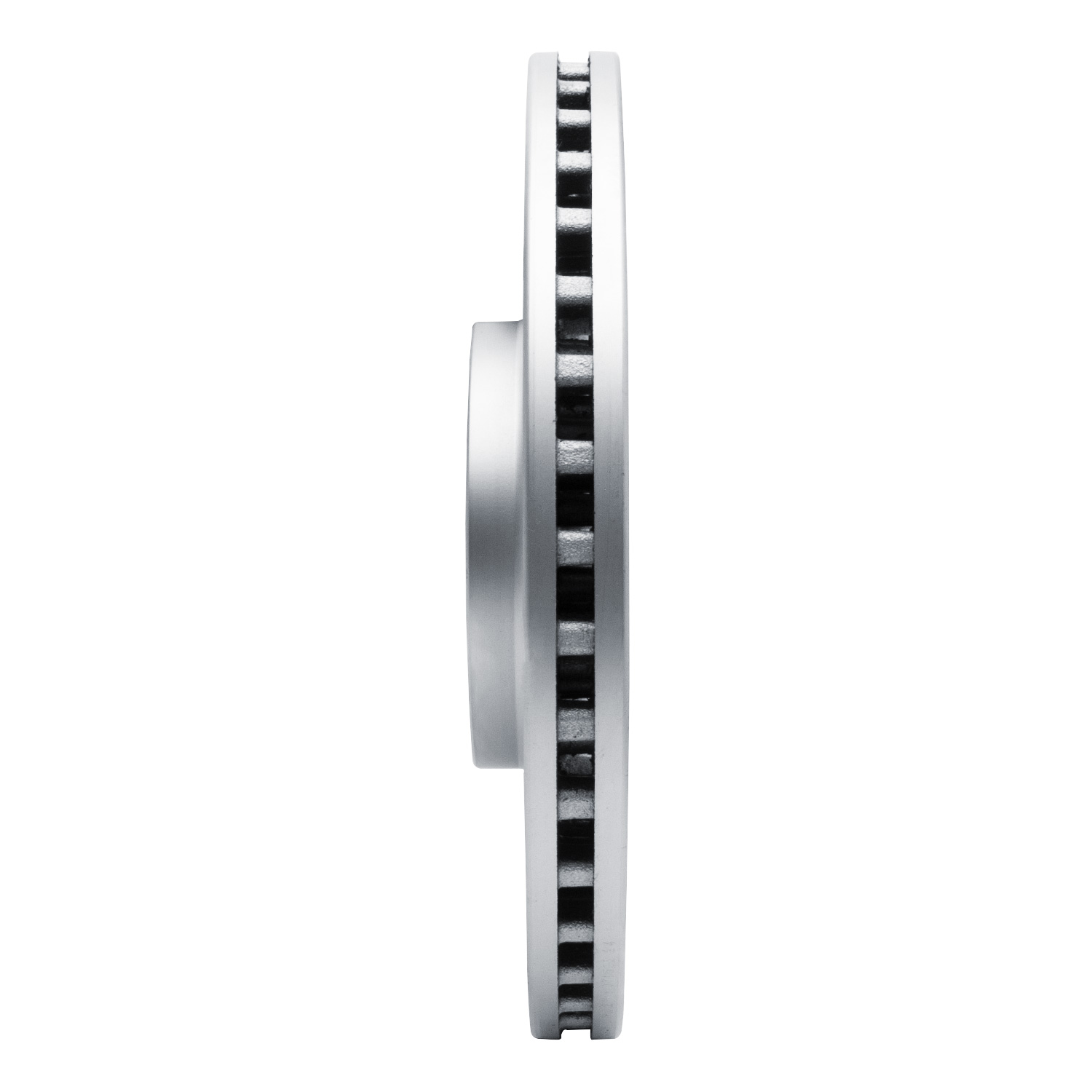

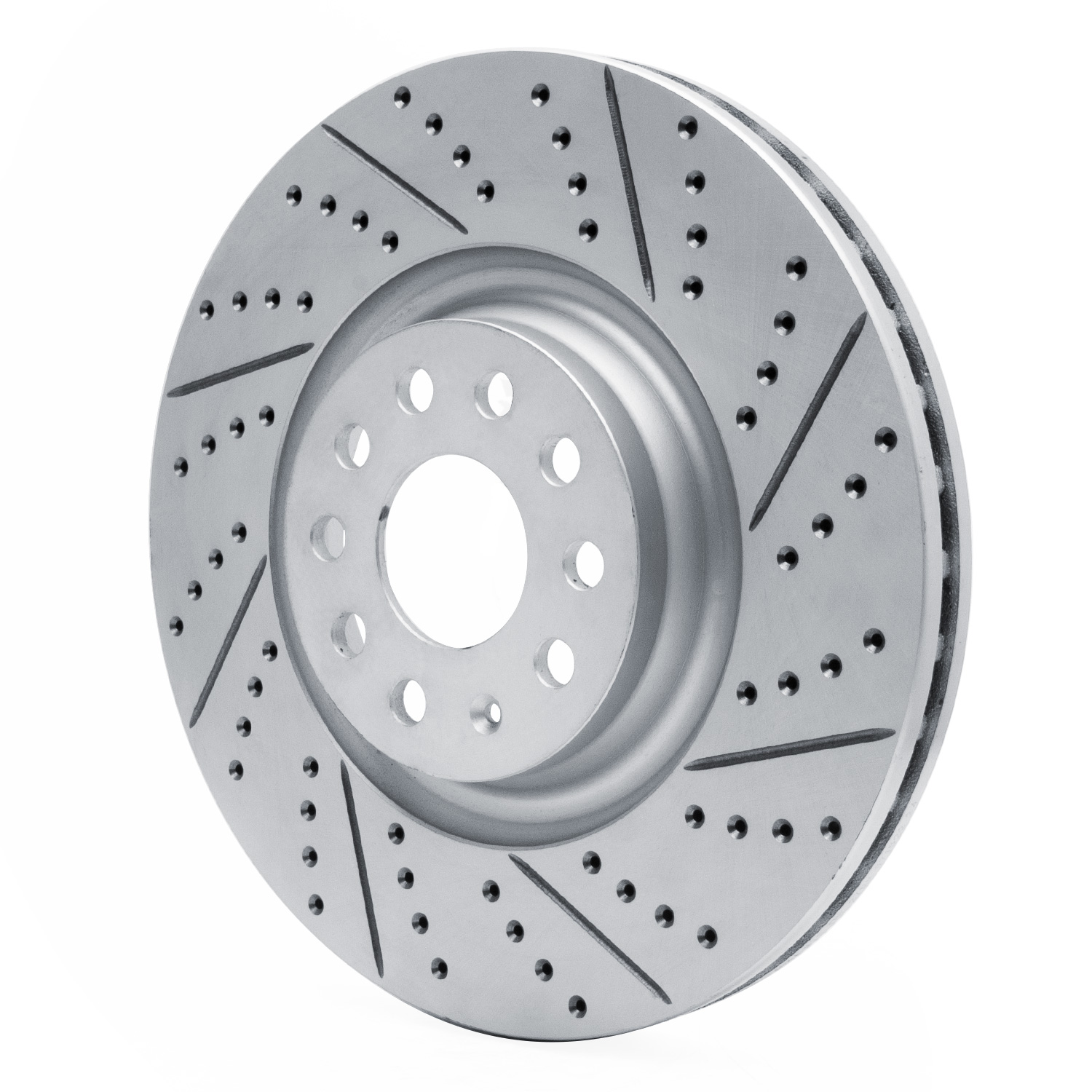

2018 Volkswagen GTI DFC Geoperformance Rotor - Drilled and Slotted

Part Type:
Disc Brake Rotor
SKU:
830-74034R
Axle:
Front Right
Sub model:
Autobahn, SE
PCQ:
1
Note:

GTI Performance Brakes; 340mm Front Disc

Description

  • DFC Geoperformance Rotor - Drilled and Slotted

Product Specifications

Description Value
Disc Finish Plain
Outside Diameter 340mm
Height 50mm
Bolt Hole Quantity 5EA
Surface Type Slotted X Drilled
Hat Finish Geospec Silver Grey
Discard Thickness 27mm
Center Hole Diameter 65mm
Stud/Lug Hole Diameter 15.2mm
Description Value
Rust Resistant Coating Yes
Nominal Thickness 30mm
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Circle Diameter 112mm
Overall Height 49.8mm
Solid Or Vented Type Rotor Vented
Bolt Circle Diameter 112mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Stud/Lug Hole Quantity 5
Weight 25LB
