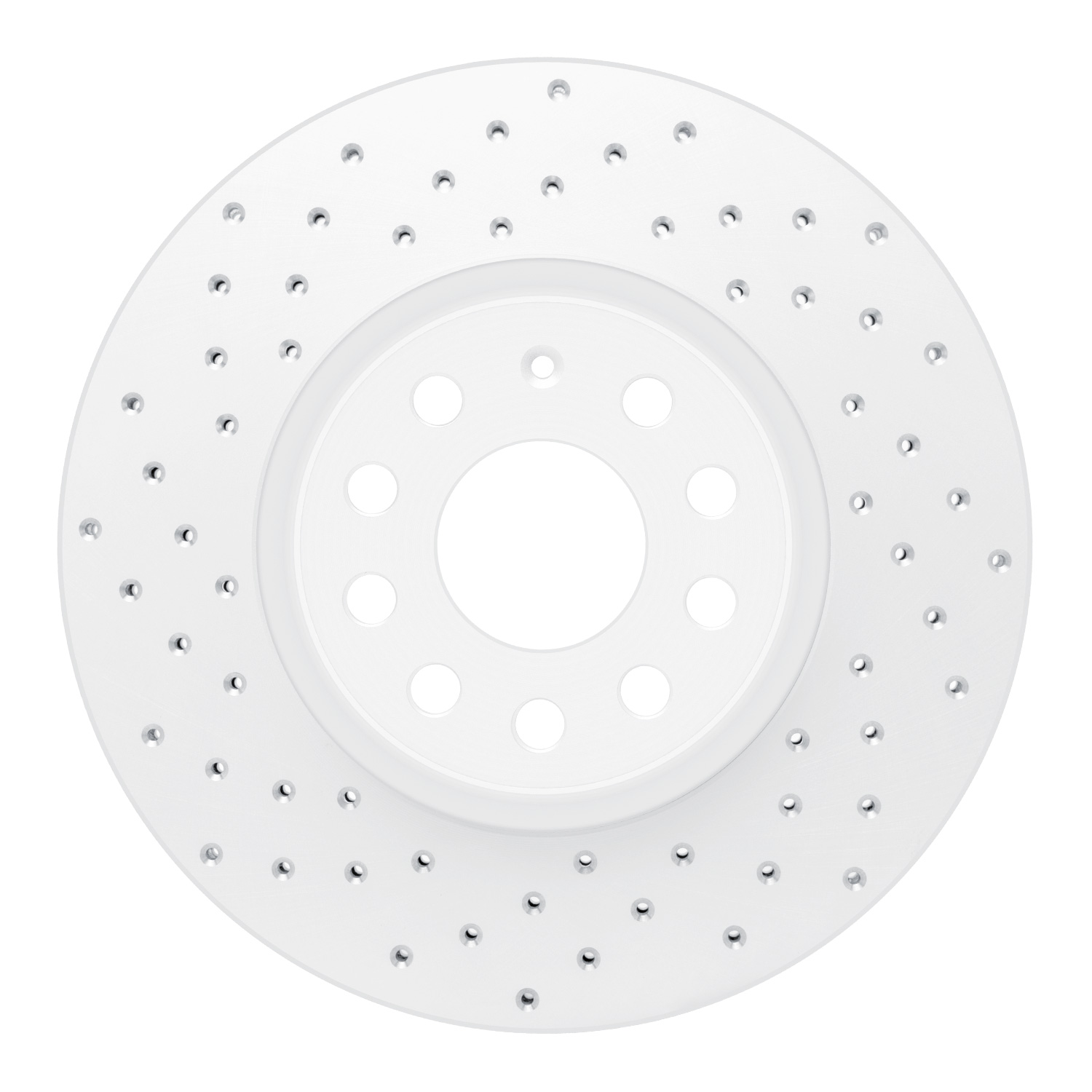

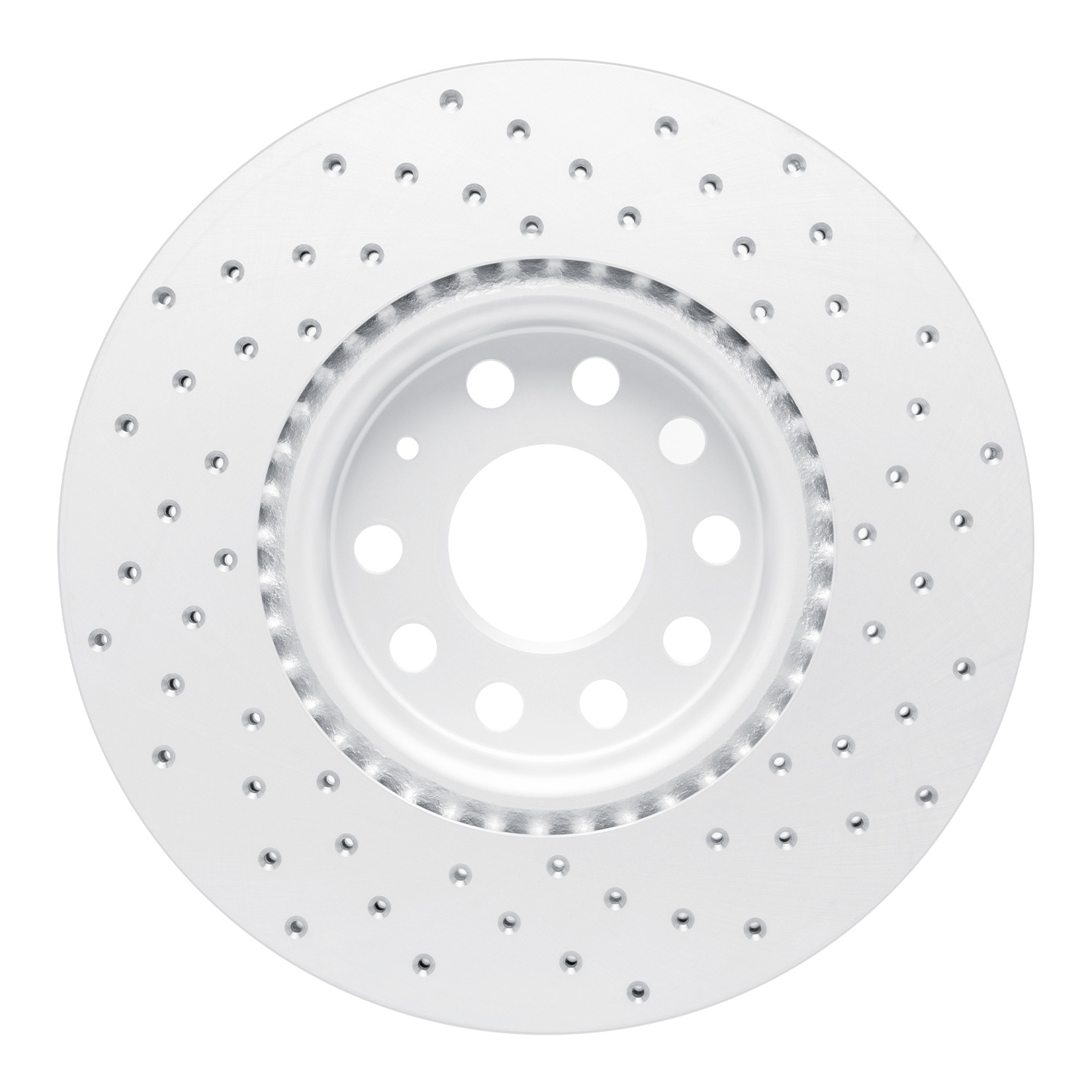

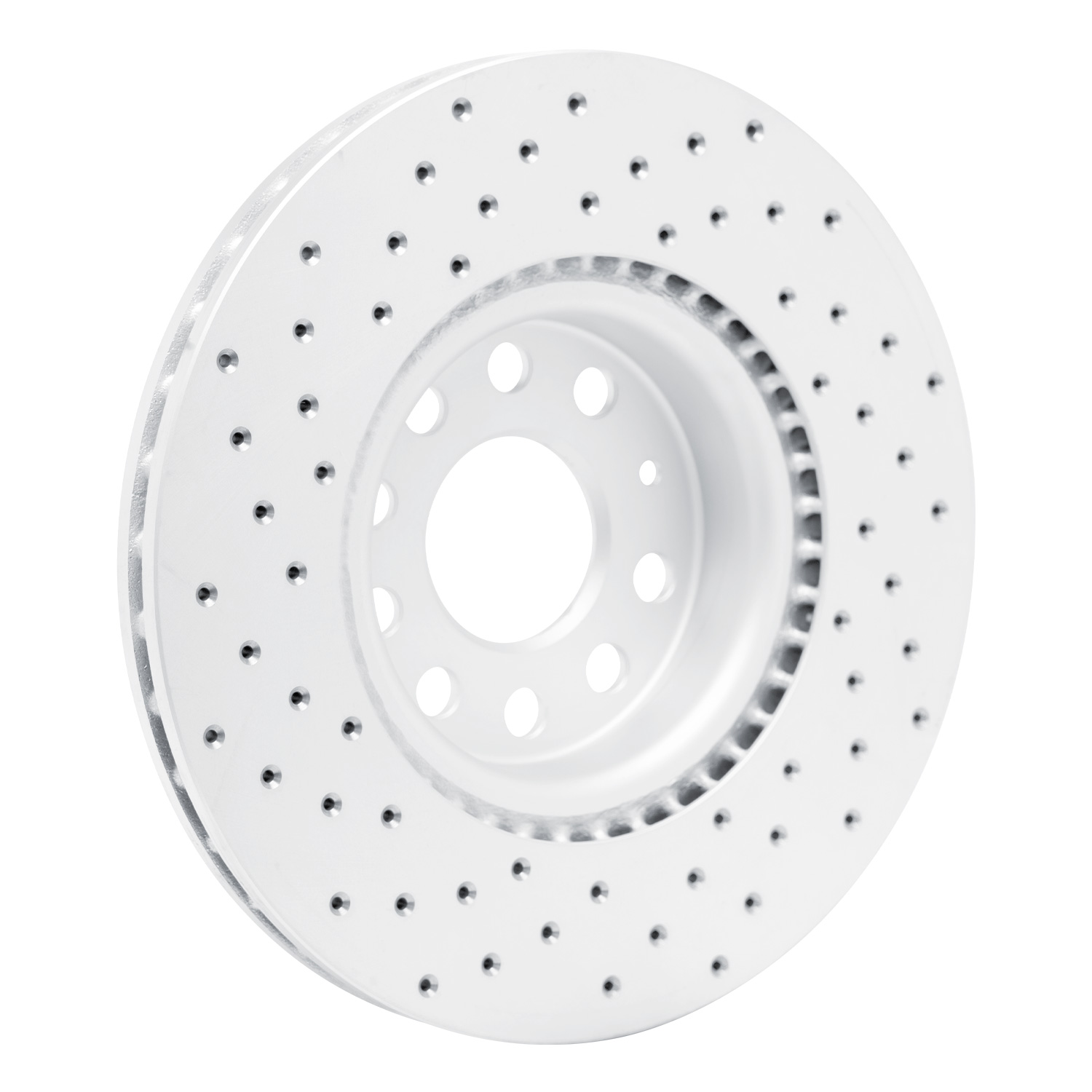

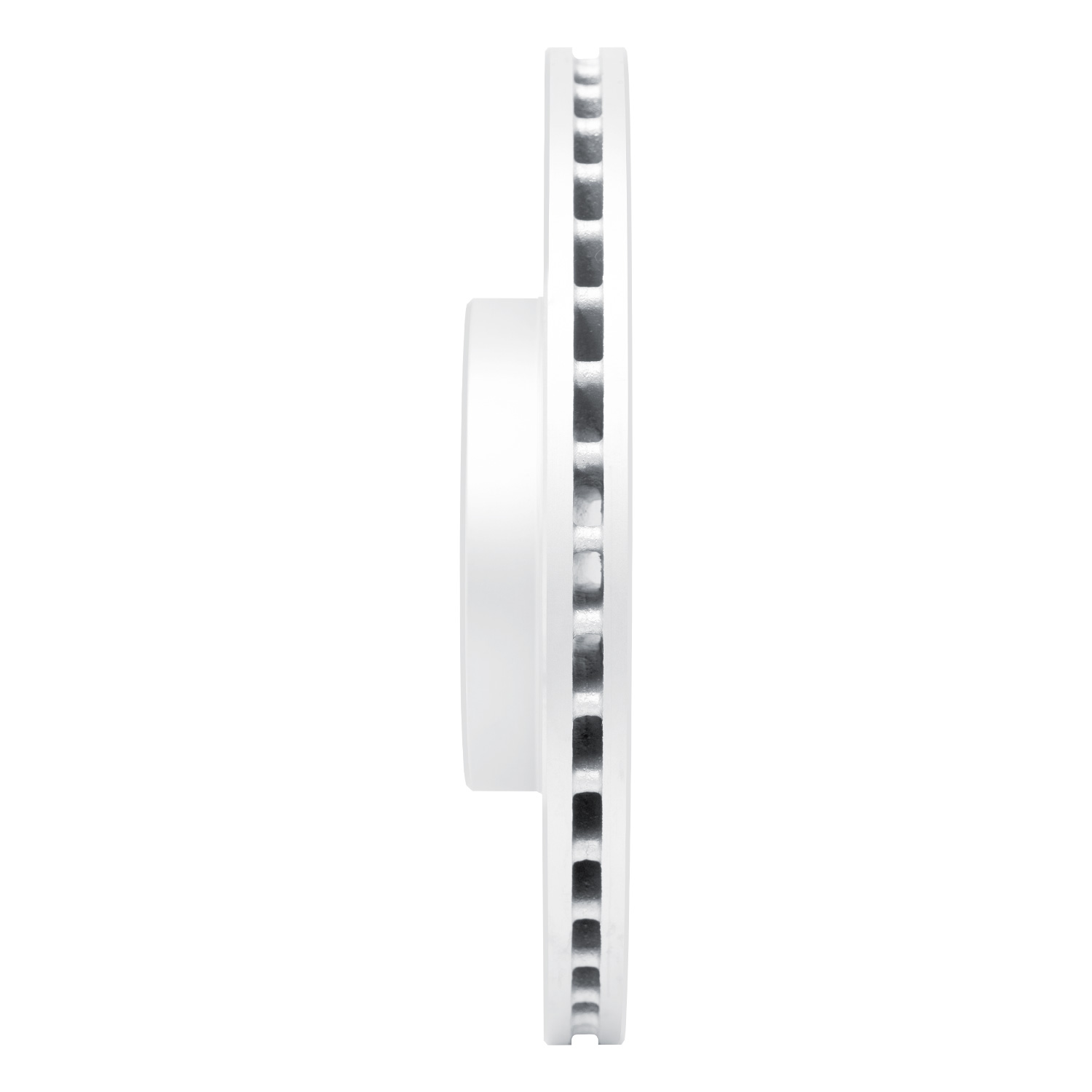

2018 Volkswagen GTI DFC Geoperformance Rotor - Drilled

Part Type:
Disc Brake Rotor
SKU:
820-74053L
Axle:
Front Left
Sub model:
Autobahn, S, SE
PCQ:
1
Note:

Base Brakes; 312mm Front Disc

Product Specifications

Description Value
Outside Diameter 312mm
Nominal Thickness 25mm
Bolt Hole Quantity 5EA
Disc Finish Plain
Height 49.9mm
Surface Type X Drilled
Stud/Lug Hole Diameter 15.3mm
Stud/Lug Hole Circle Diameter 112mm
Discard Thickness 22mm
Description Value
Solid Or Vented Type Rotor Vented
Directional or Non-Directional Brake Surface Directional
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Hat Finish Geospec Silver Grey
Bolt Circle Diameter 112mm
Rust Resistant Coating Yes
Overall Height 49.6mm
Center Hole Diameter 65mm
Stud/Lug Hole Quantity 5
Weight 18.9LB
