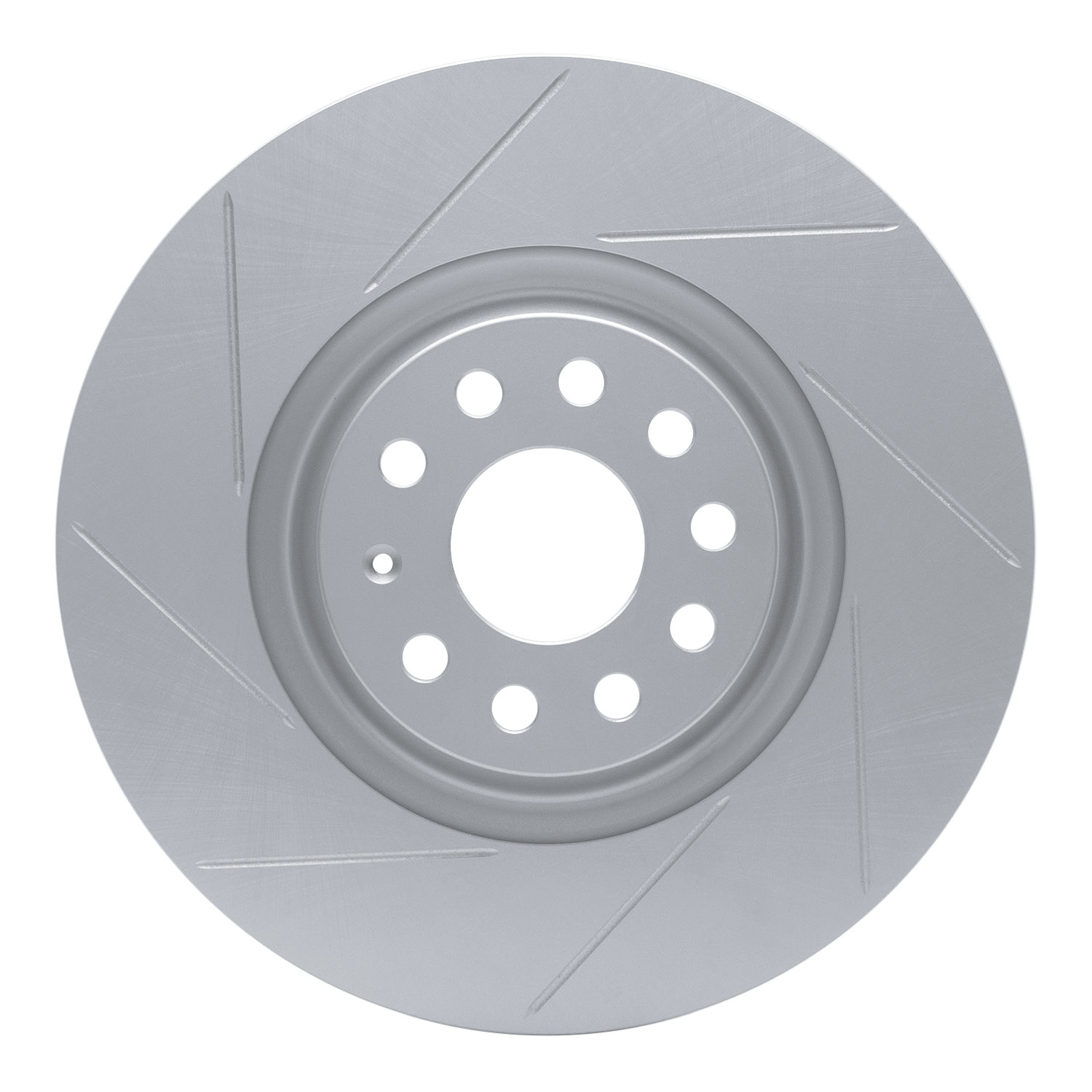

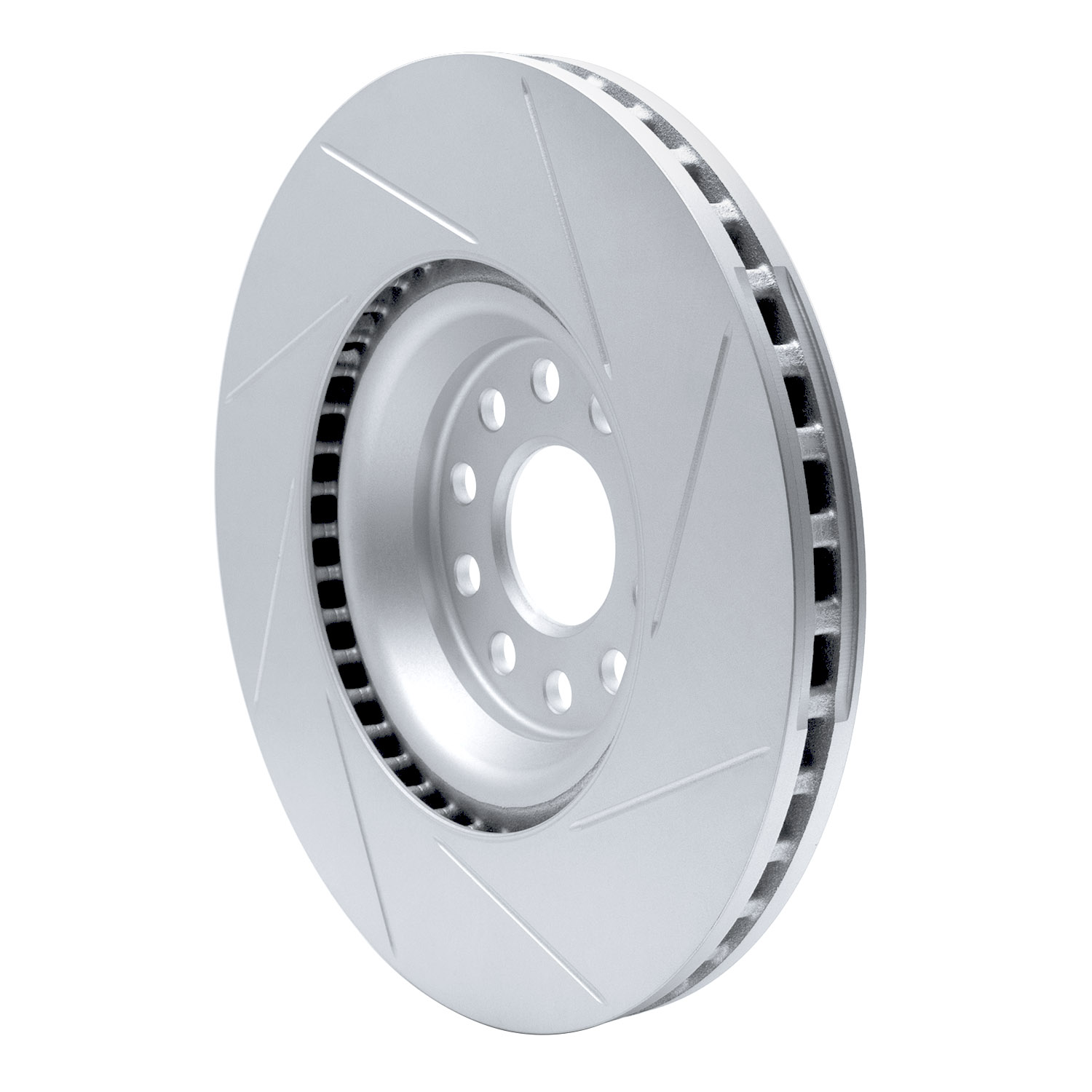

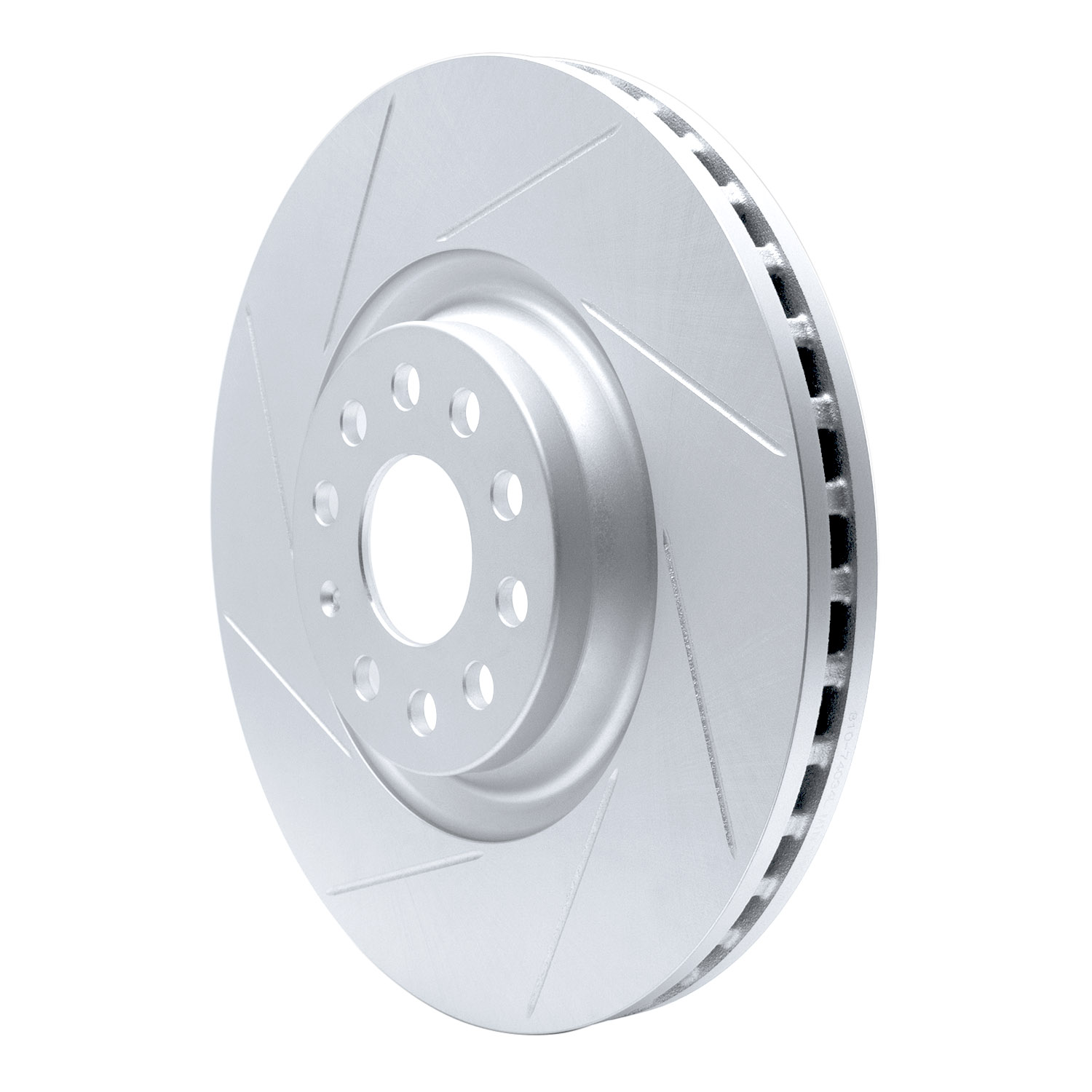

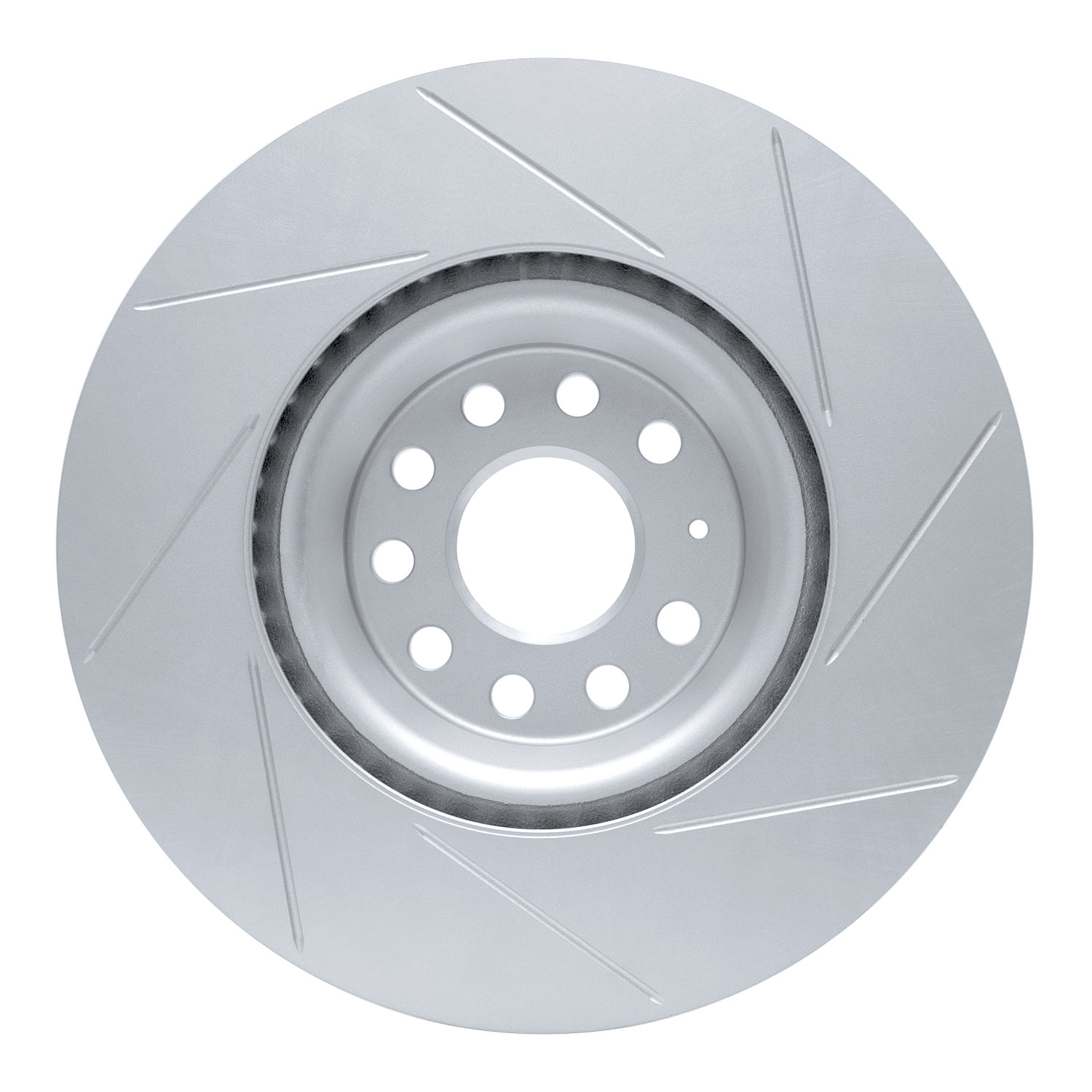

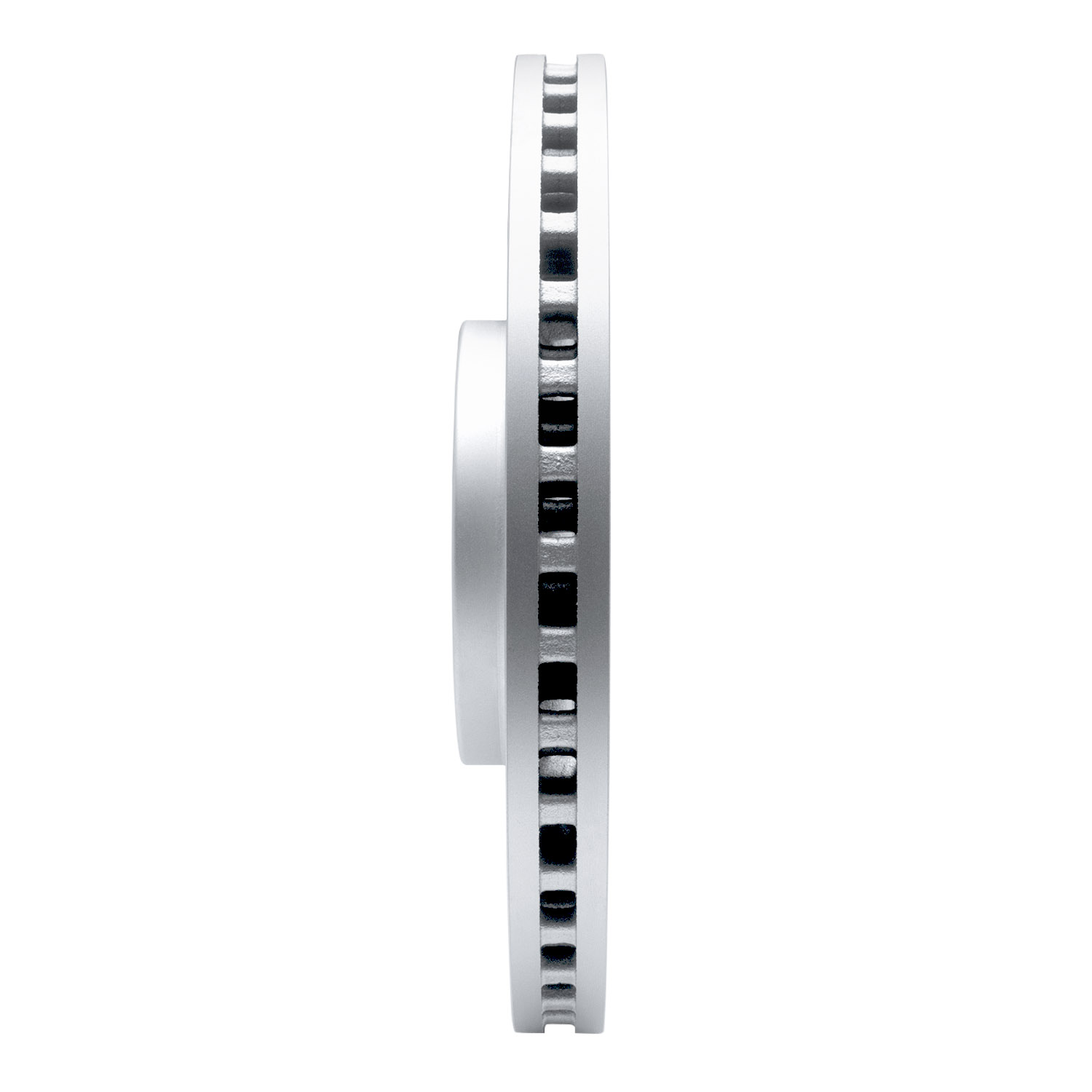

2018 Volkswagen GTI DFC Geoperformance Rotor - Slotted
Part Type:
Disc Brake Rotor
SKU:
810-74034L
Axle:
Front Left
Sub model:
Autobahn, SE
PCQ:
1
Note:
GTI Performance Brakes; 340mm Front Disc
Description
- DFC Geoperformance Rotor - Slotted
Product Specifications
| Description | Value |
|---|---|
| Rust Resistant Coating | Yes |
| Outside Diameter | 340mm |
| Height | 50mm |
| Bolt Hole Quantity | 5EA |
| Overall Height | 49.8mm |
| Discard Thickness | 27mm |
| Disc Finish | Plain |
| Bolt Circle Diameter | 112mm |
| Center Hole Diameter | 65mm |
| Description | Value |
|---|---|
| Nominal Thickness | 30mm |
| Stud/Lug Hole Diameter | 15.2mm |
| Hat Finish | Geospec Silver Grey |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). | |
| Surface Type | Slotted |
| Directional or Non-Directional Brake Surface | Directional |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Circle Diameter | 112mm |
| Stud/Lug Hole Quantity | 5 |
| Weight | 25LB |
