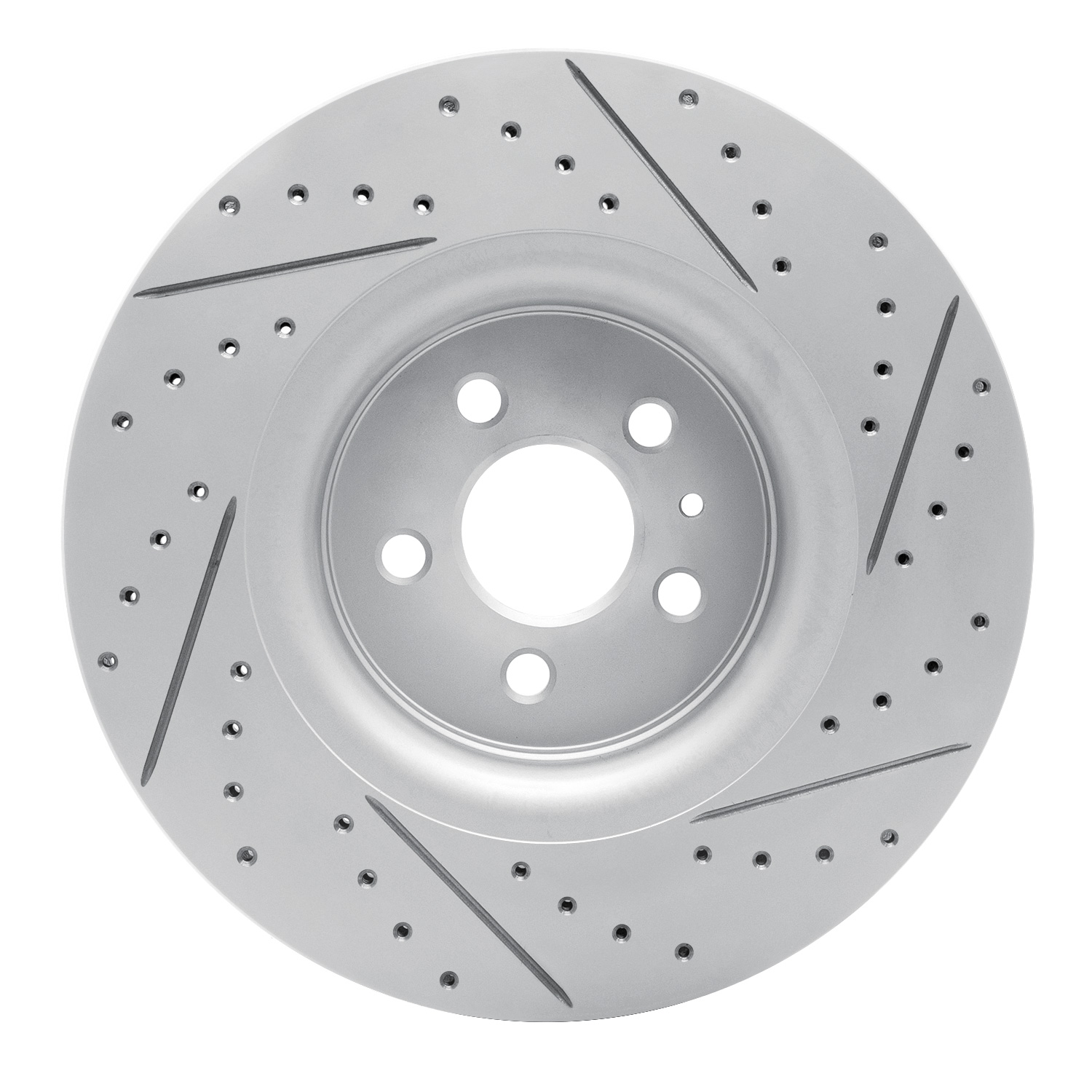

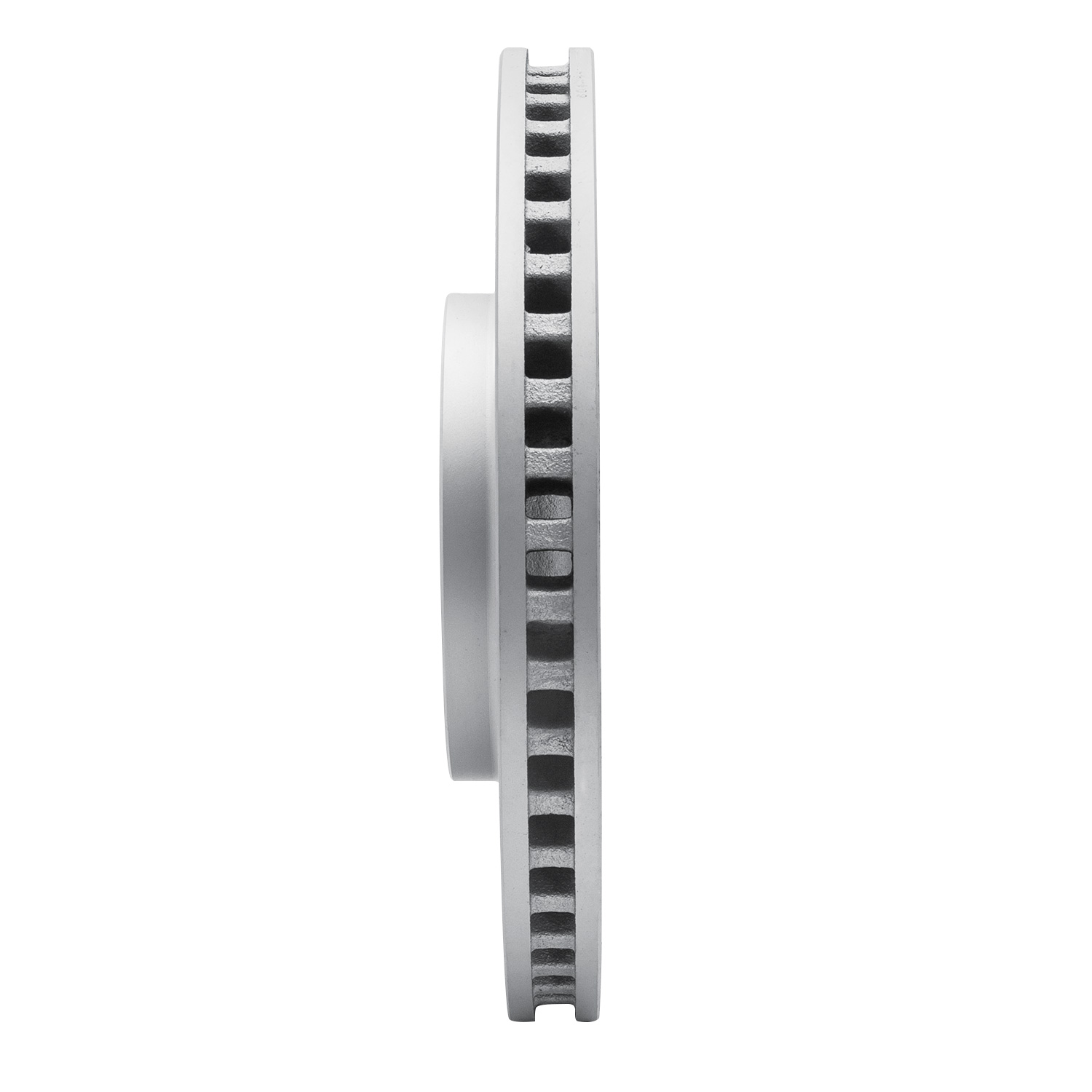

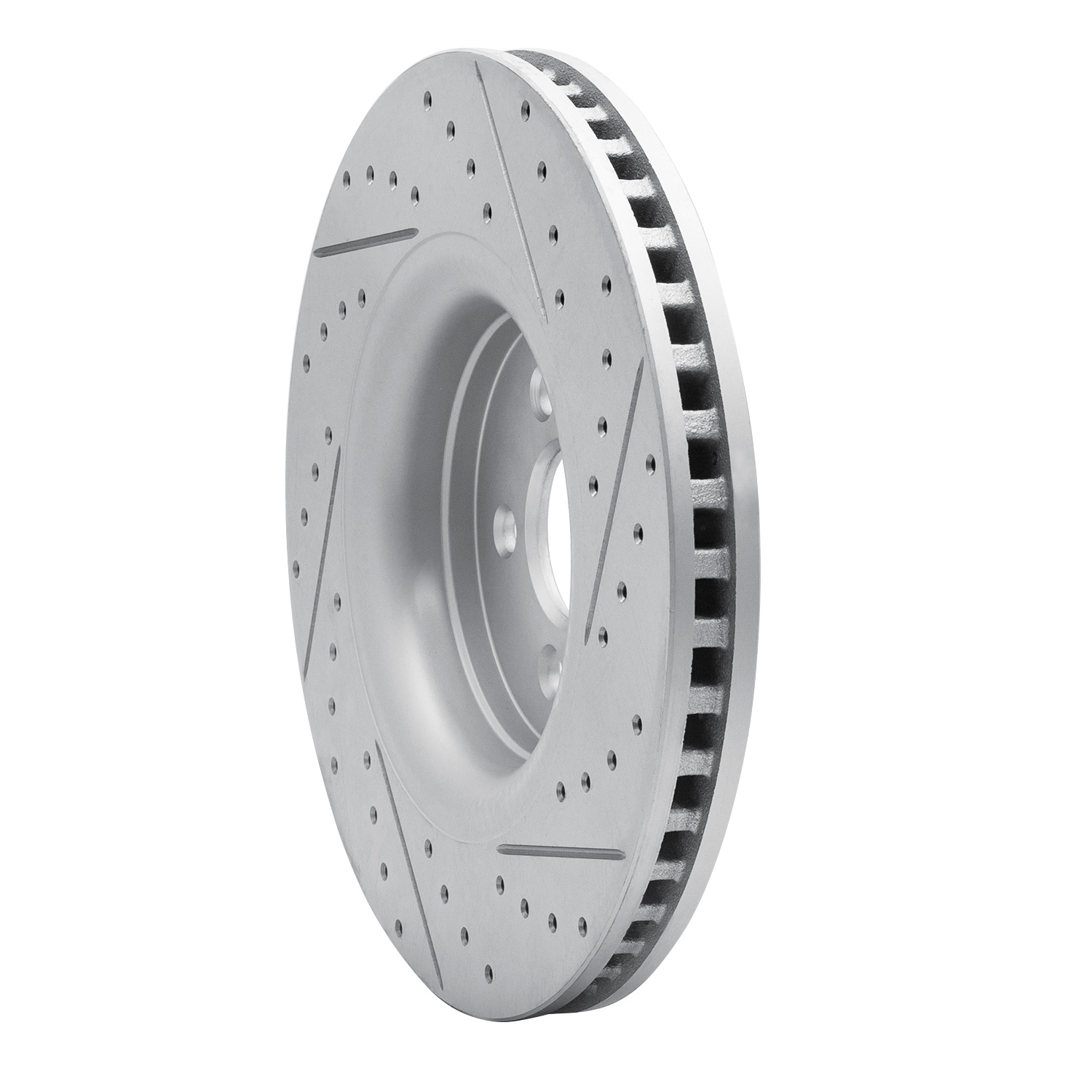

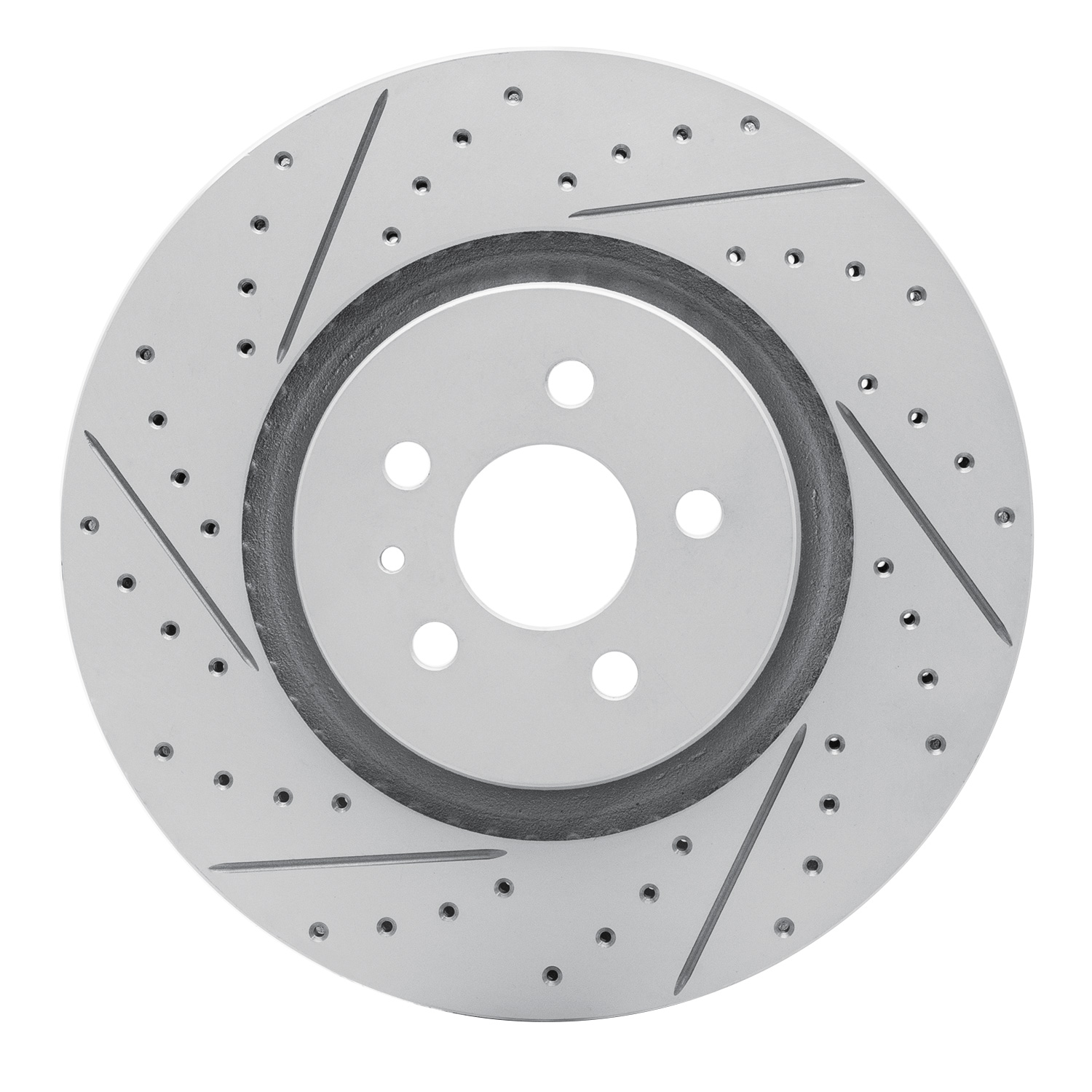

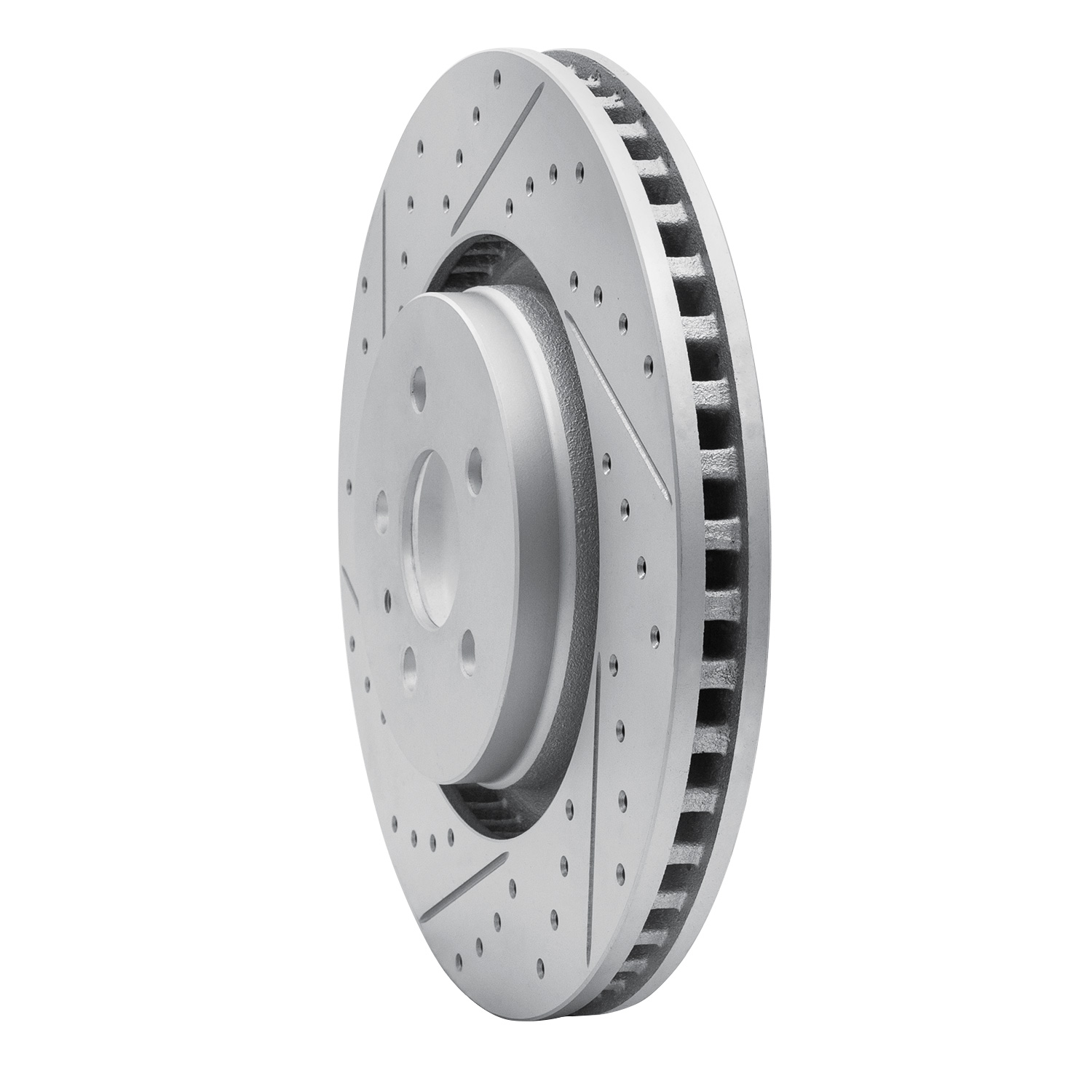

2018 Lincoln MKX DFC Geoperformance Rotor - Drilled and Slotted

Part Type:
Disc Brake Rotor
SKU:
830-55006L
Axle:
Front Left
PCQ:
1

Description

  • DFC Geoperformance Rotor - Drilled and Slotted

Product Specifications

Description Value
Height 52.5mm
Bolt Hole Quantity 5EA
Bolt Hole Diameter 15.7mm
Outside Diameter 345mm
Hat Finish Geospec Silver Grey
Nominal Thickness 32mm
Disc Finish Plain
Discard Thickness 30.5mm
Solid Or Vented Type Rotor Vented
Overall Height 52.5mm
Description Value
Directional or Non-Directional Brake Surface Directional
Rust Resistant Coating Yes
Center Hole Diameter 63.55mm
Surface Type Slotted X Drilled
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Stud/Lug Hole Diameter 15.7mm
Stud/Lug Hole Quantity 5
Bolt Circle Diameter 108mm
Stud/Lug Hole Circle Diameter 108mm
Weight 27.2LB
