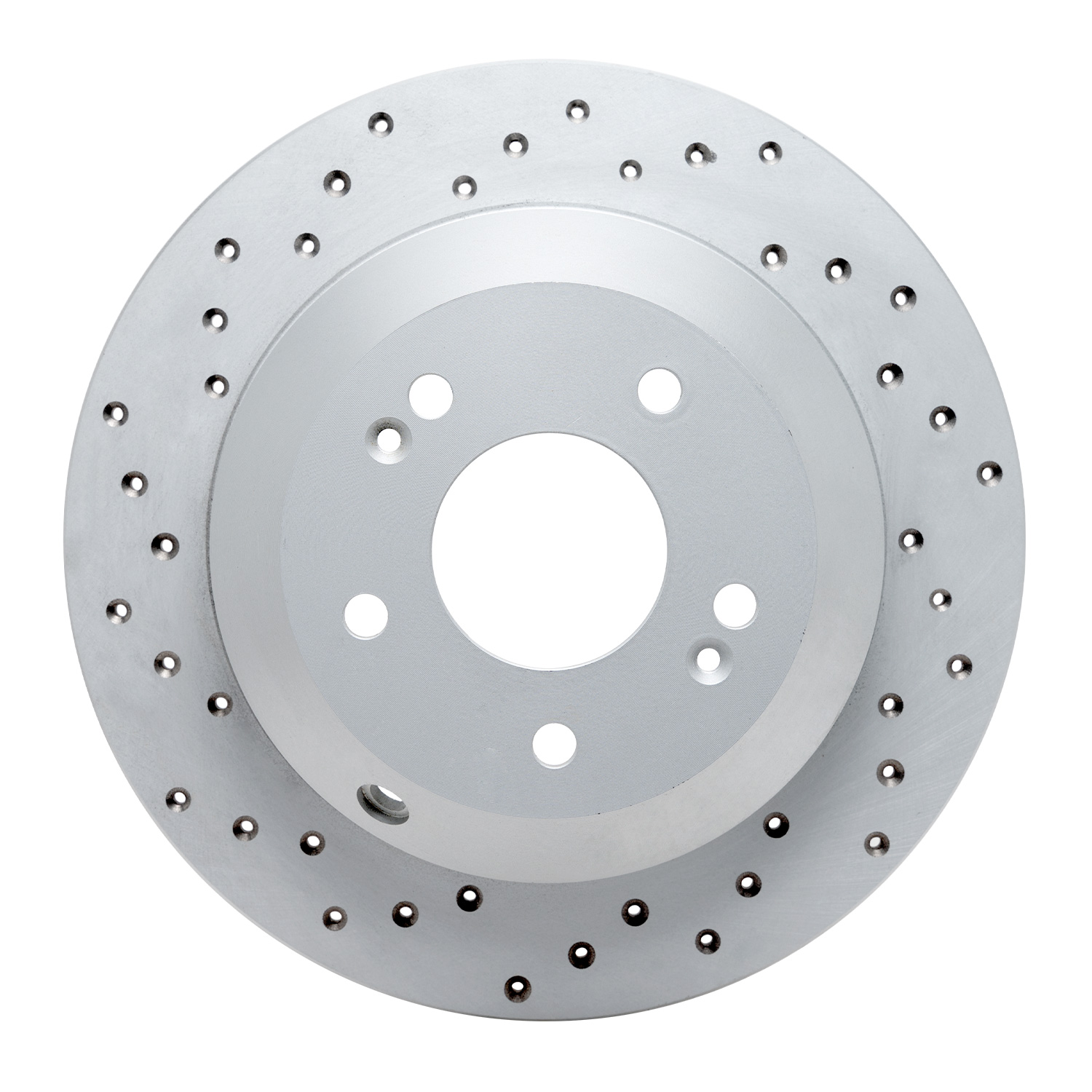

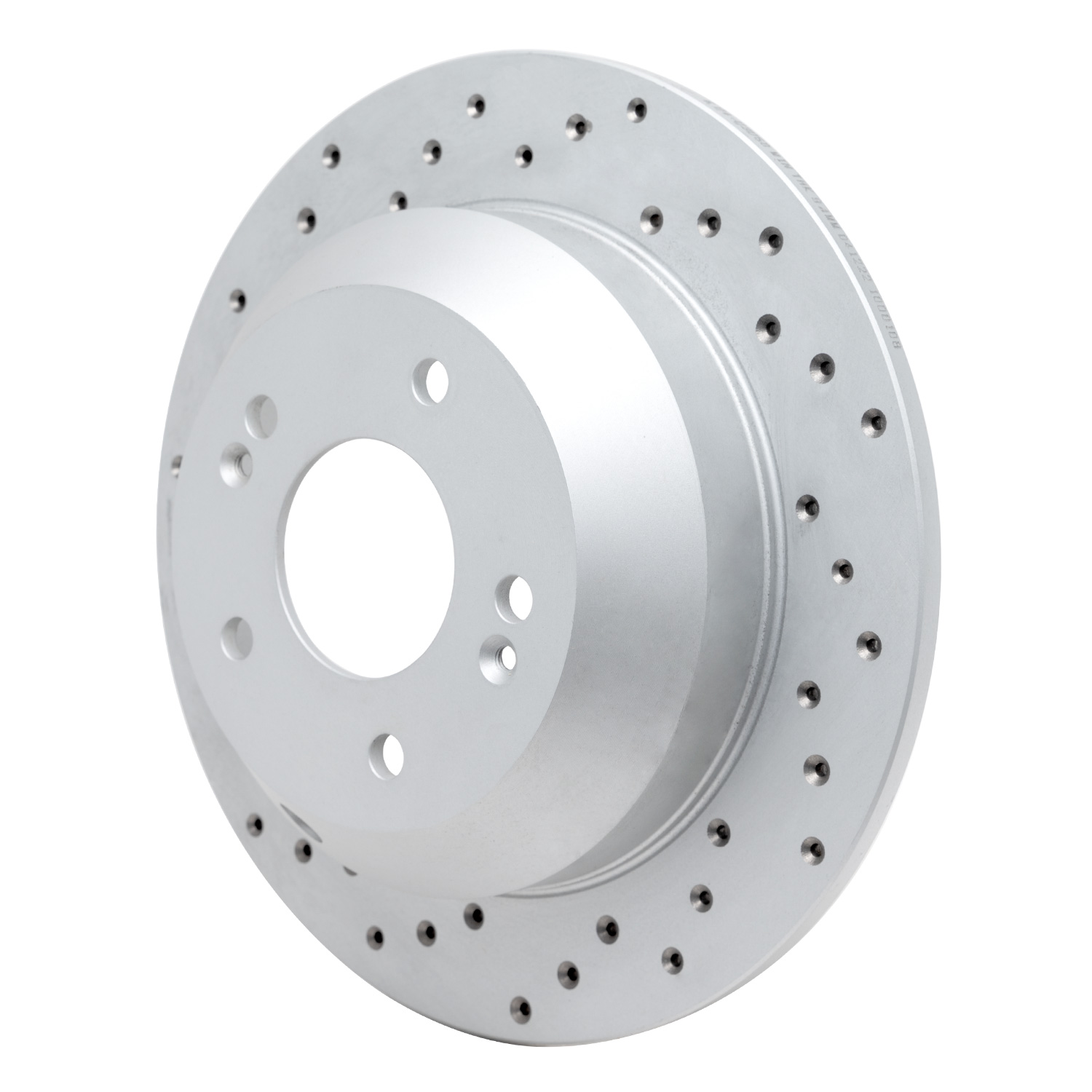

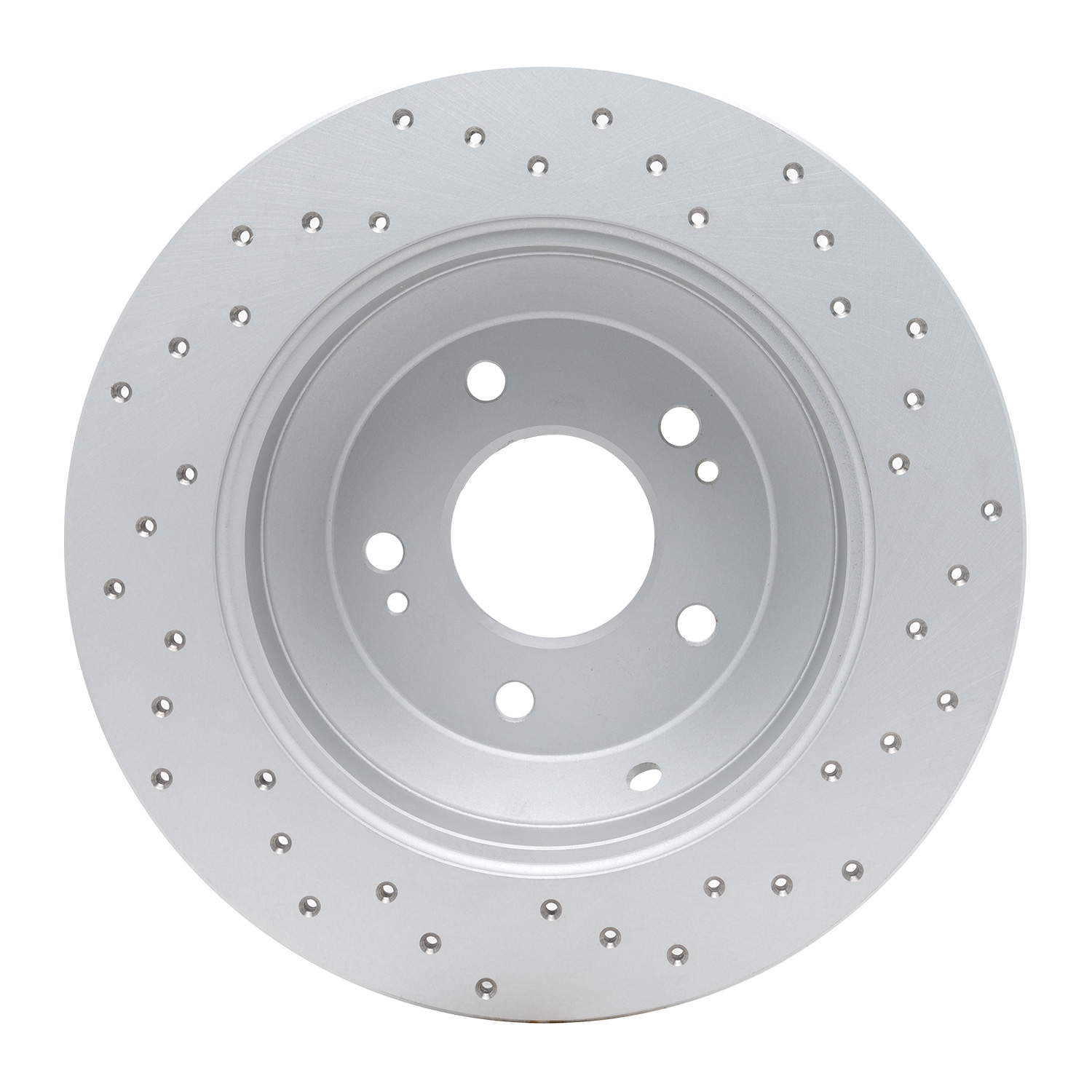

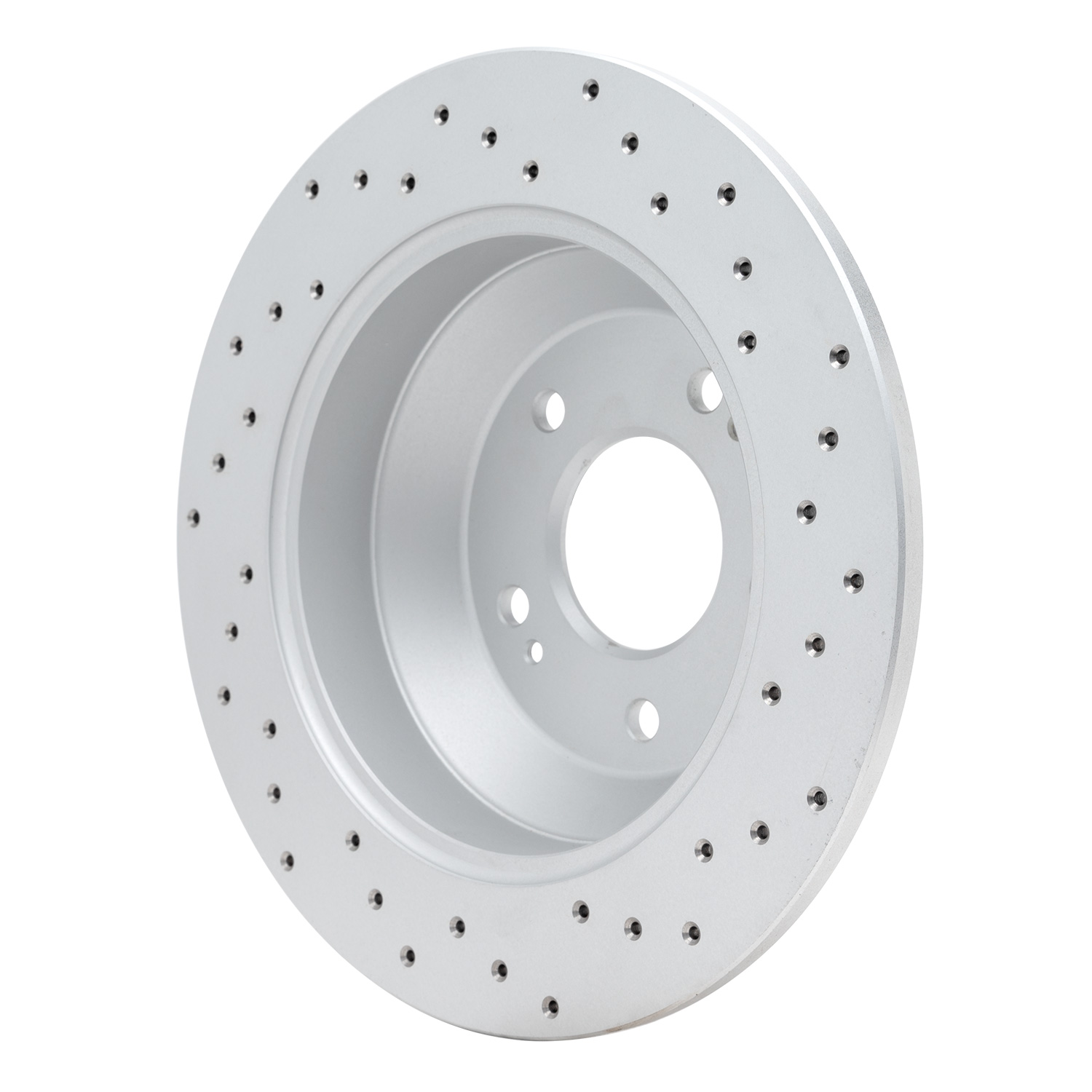

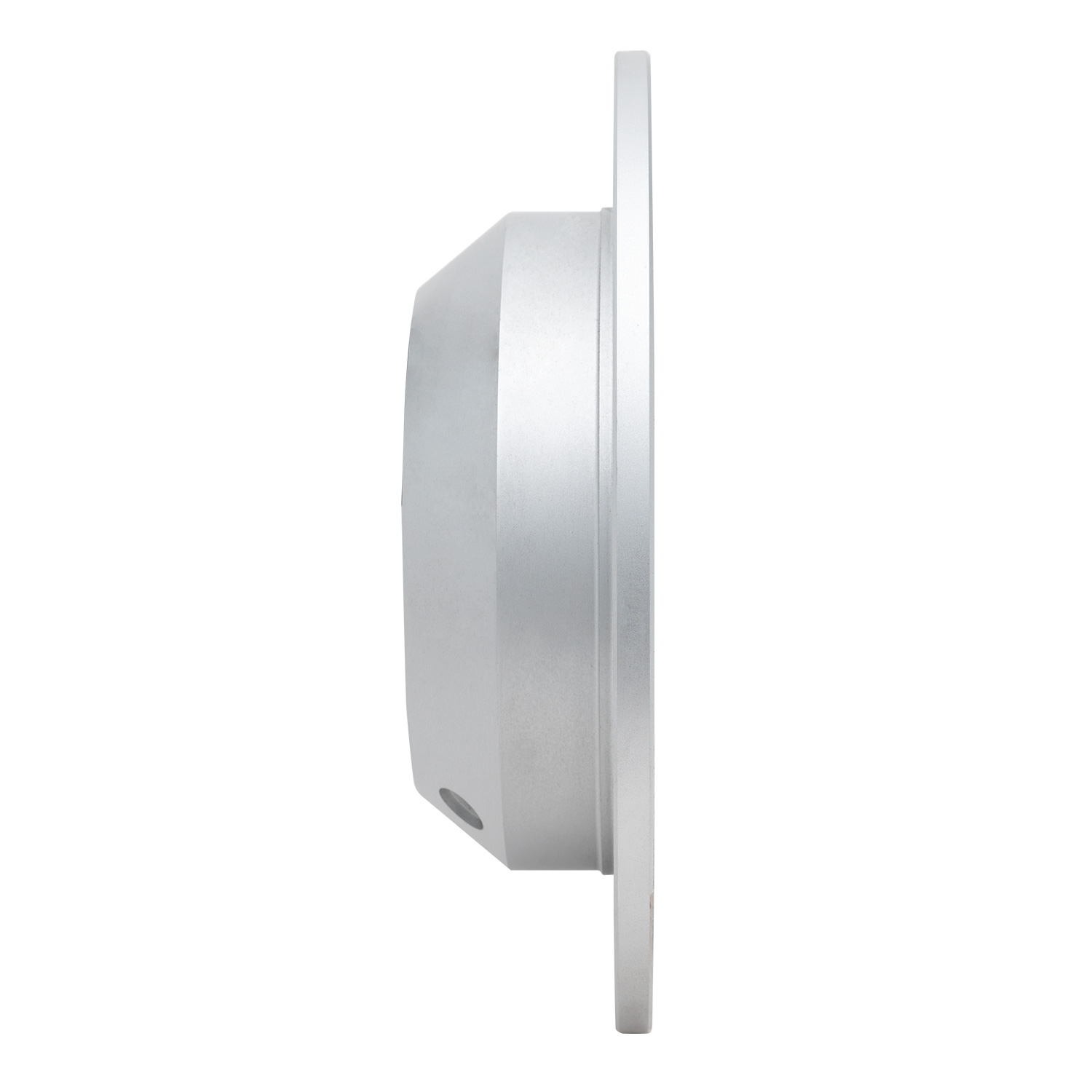

2018 Hyundai Santa Fe XL DFC Geoperformance Rotor - Drilled

Part Type:
Disc Brake Rotor
SKU:
820-03050L
Axle:
Rear Left
PCQ:
1

Description

  • DFC Geoperformance Rotor - Drilled

Product Specifications

Description Value
Bolt Circle Diameter 114.3mm
Bolt Hole Diameter 12.5mm
Outside Diameter 302mm
Bolt Hole Quantity 5EA
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Overall Height 71.5mm
Height 71.5mm
Discard Thickness 9.4mm
Disc Finish Plain
Surface Type X Drilled
Description Value
Hat Finish Geospec Silver Grey
Nominal Thickness 11mm
Rust Resistant Coating Yes
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 5
Center Hole Diameter 69mm
Stud/Lug Hole Diameter 12.5mm
Stud/Lug Hole Circle Diameter 114.3mm
Directional or Non-Directional Brake Surface Directional
Weight 13.75LB
