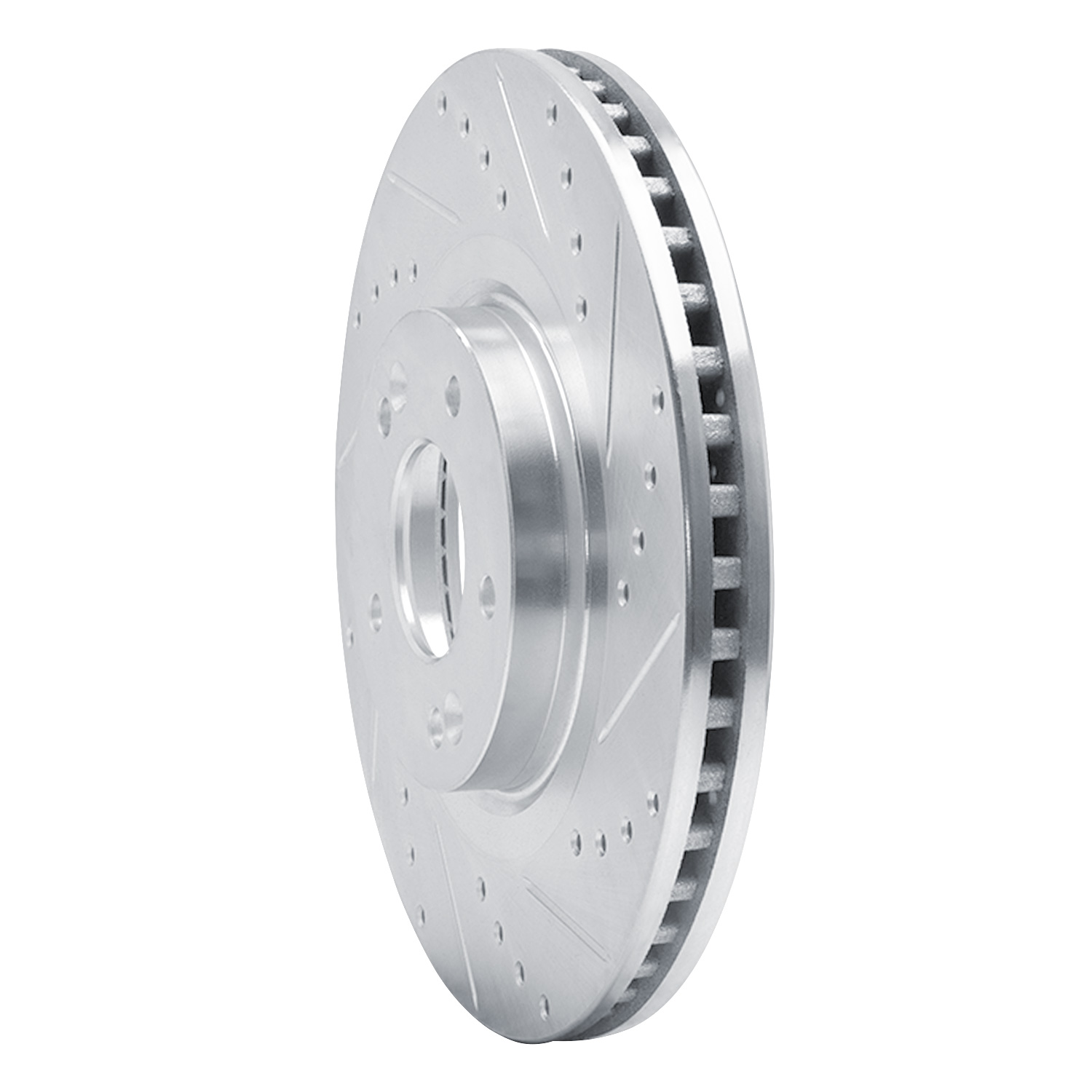

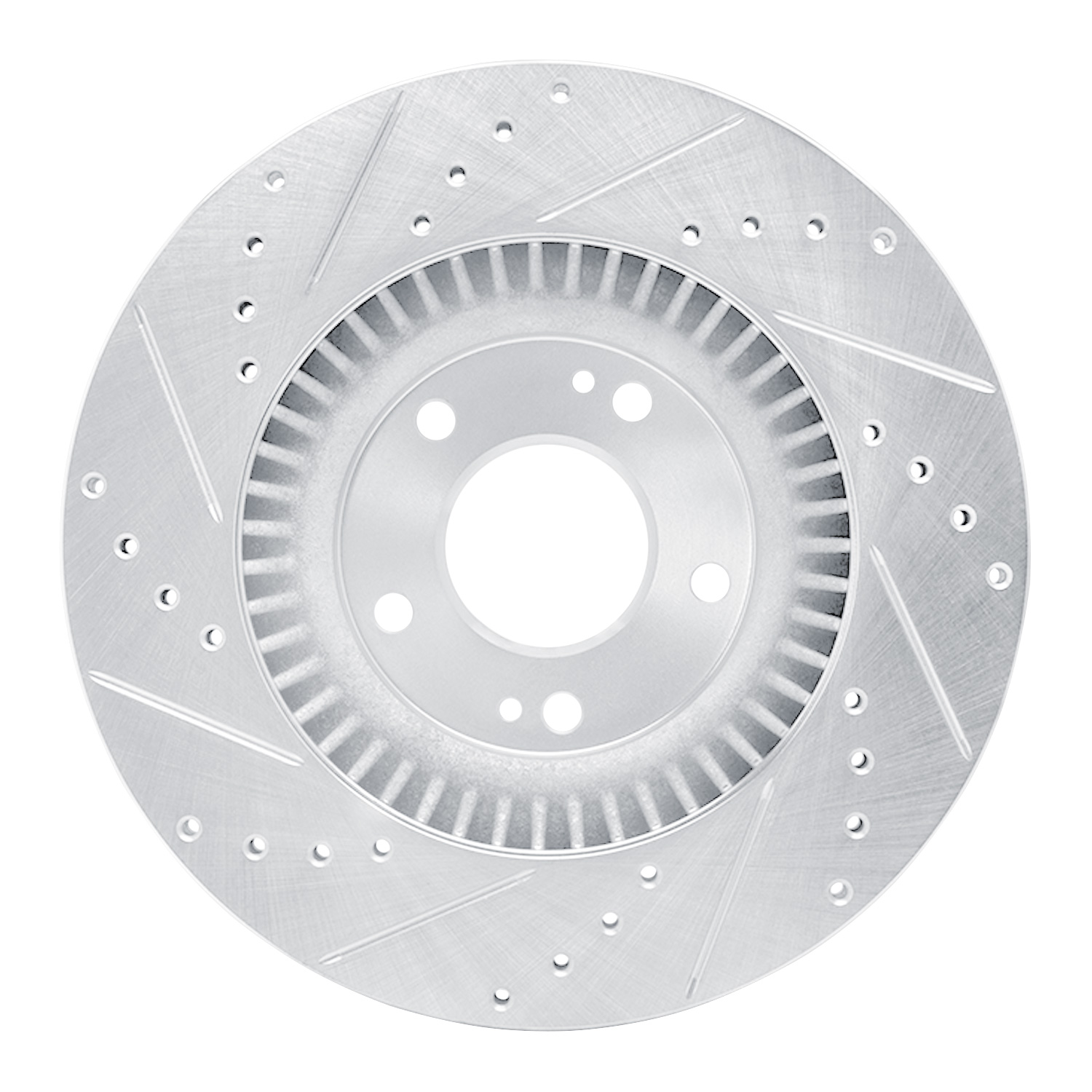

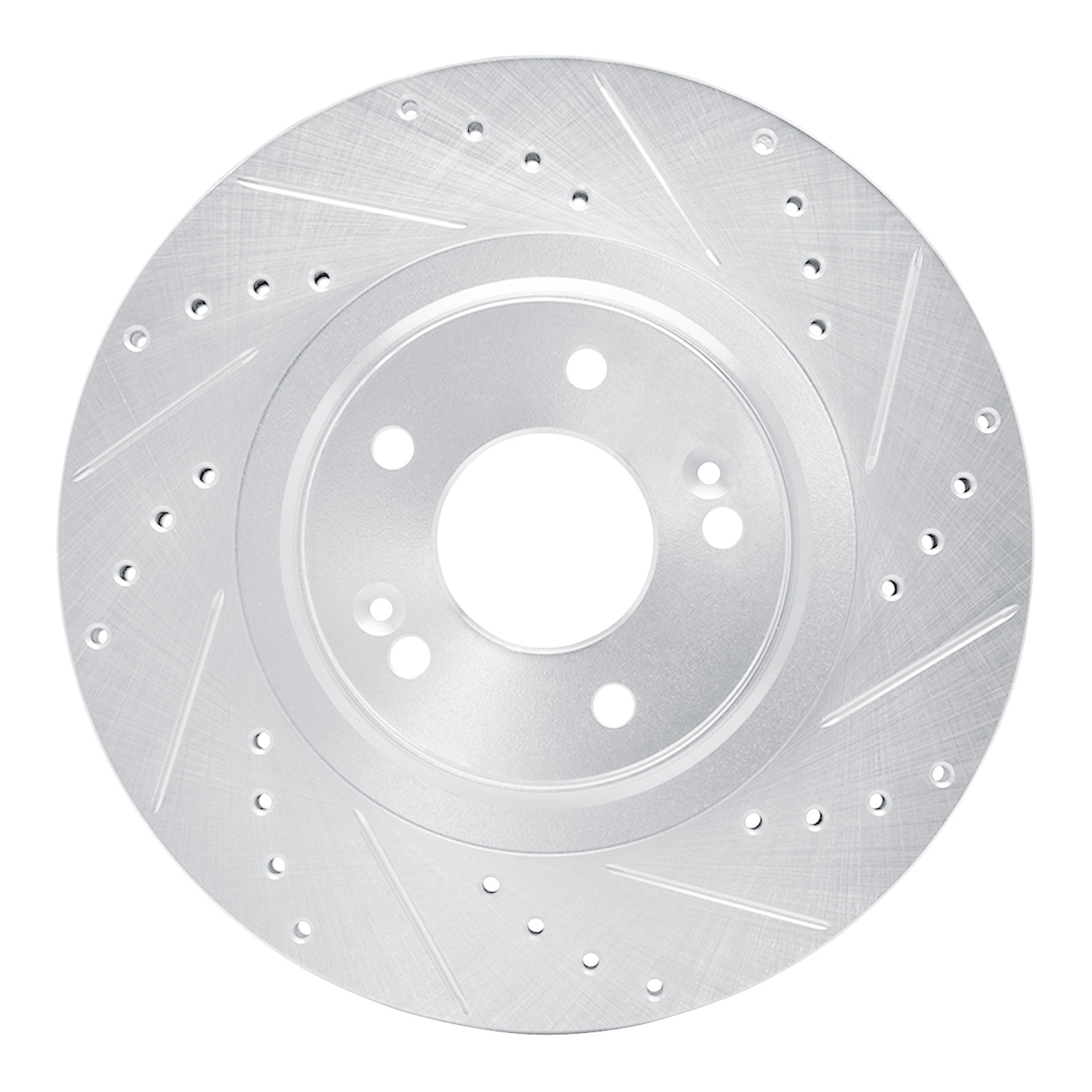

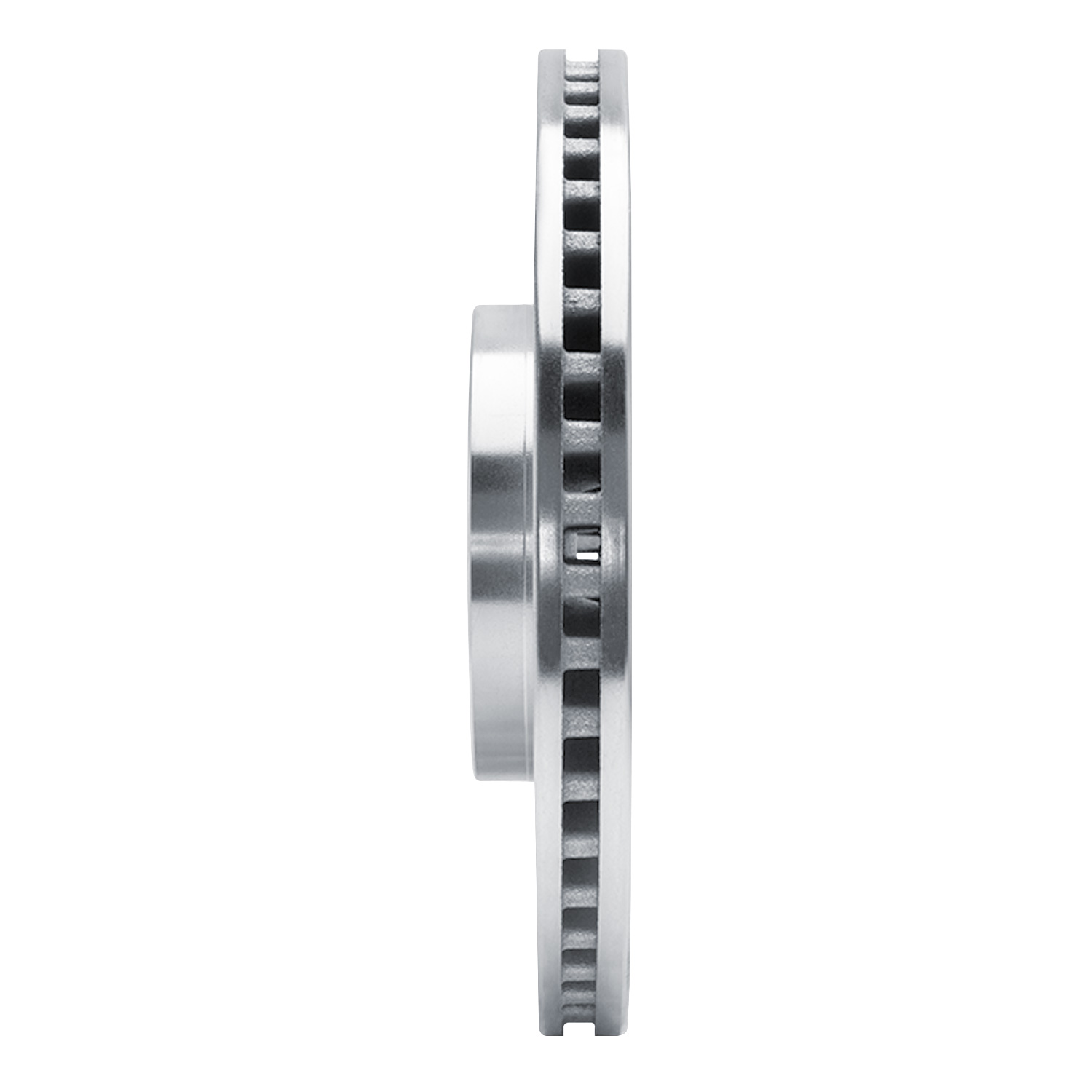

2018 Hyundai Santa Fe XL DFC Brake Rotor - Drilled and Slotted - Silver

Part Type:
Disc Brake Rotor
SKU:
631-03053R
Axle:
Front Right
PCQ:
1

Description

  • DFC Brake Rotor - Drilled and Slotted - Silver

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • New In Box, Ready To Install, No Modifications Required
  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Outside Diameter 320mm
Discard Thickness 26mm
Bolt Hole Quantity 5EA
Disc Finish Plain
Bolt Hole Diameter 12.5mm
Rust Resistant Coating Yes
Height 49.26mm
Stud/Lug Hole Diameter 12.5mm
Solid Or Vented Type Rotor Vented
Overall Height 49.26mm
Description Value
Nominal Thickness 28mm
Directional or Non-Directional Brake Surface Directional
Hat Finish Zinc Silver
Surface Type Slotted X Drilled
Center Hole Diameter 69mm
Stud/Lug Hole Circle Diameter 114.3mm
Stud/Lug Hole Quantity 5
Bolt Circle Diameter 114.3mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 22.75LB
