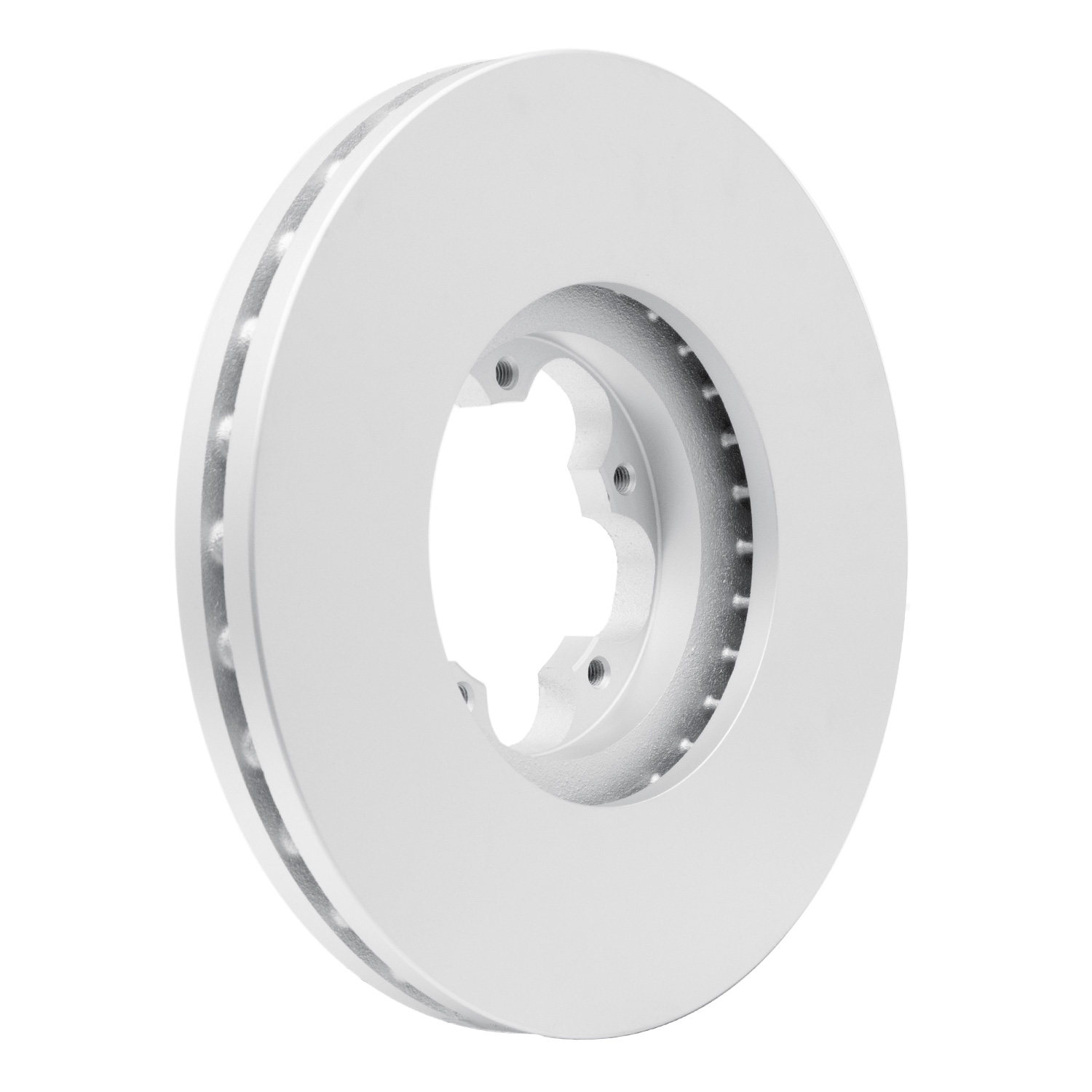

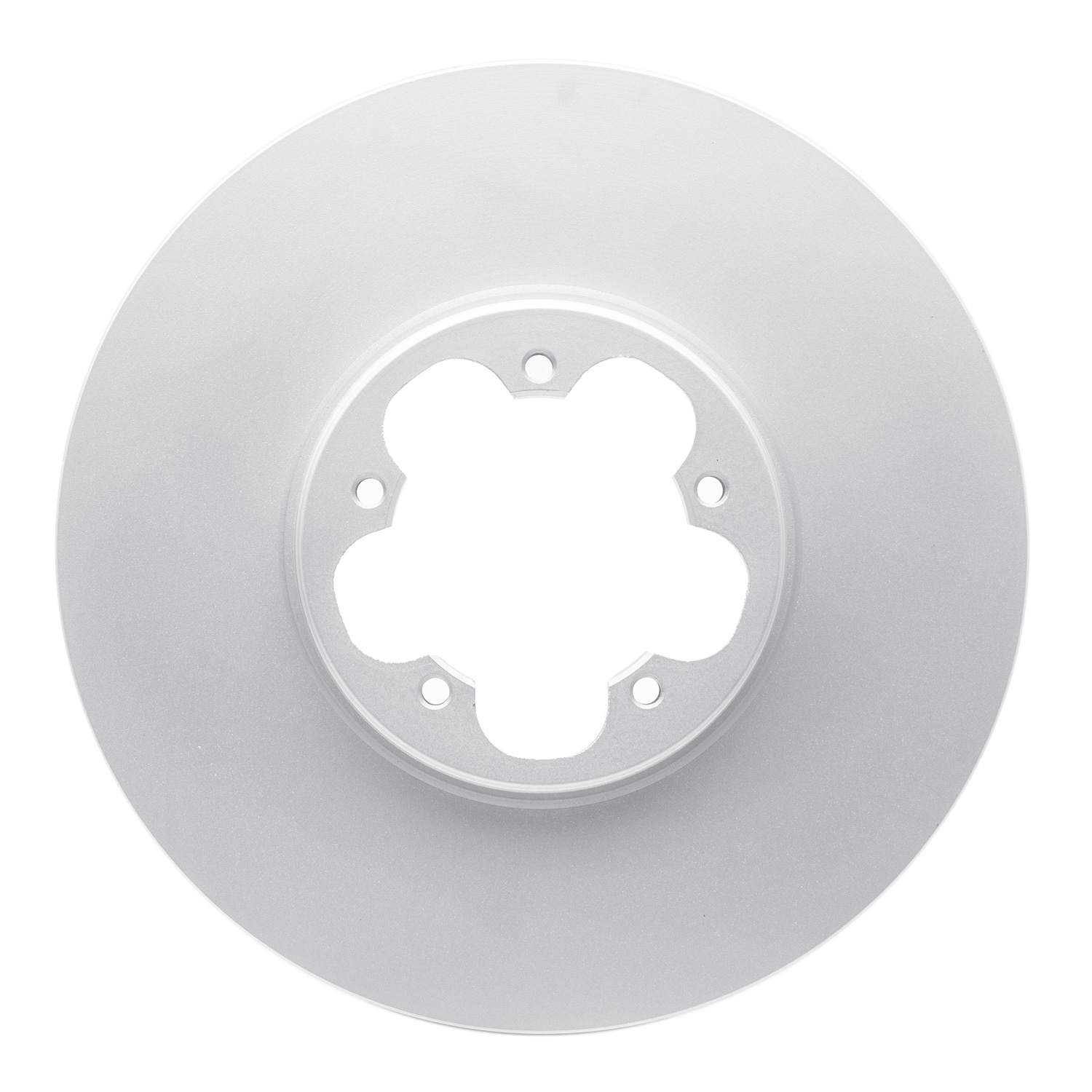

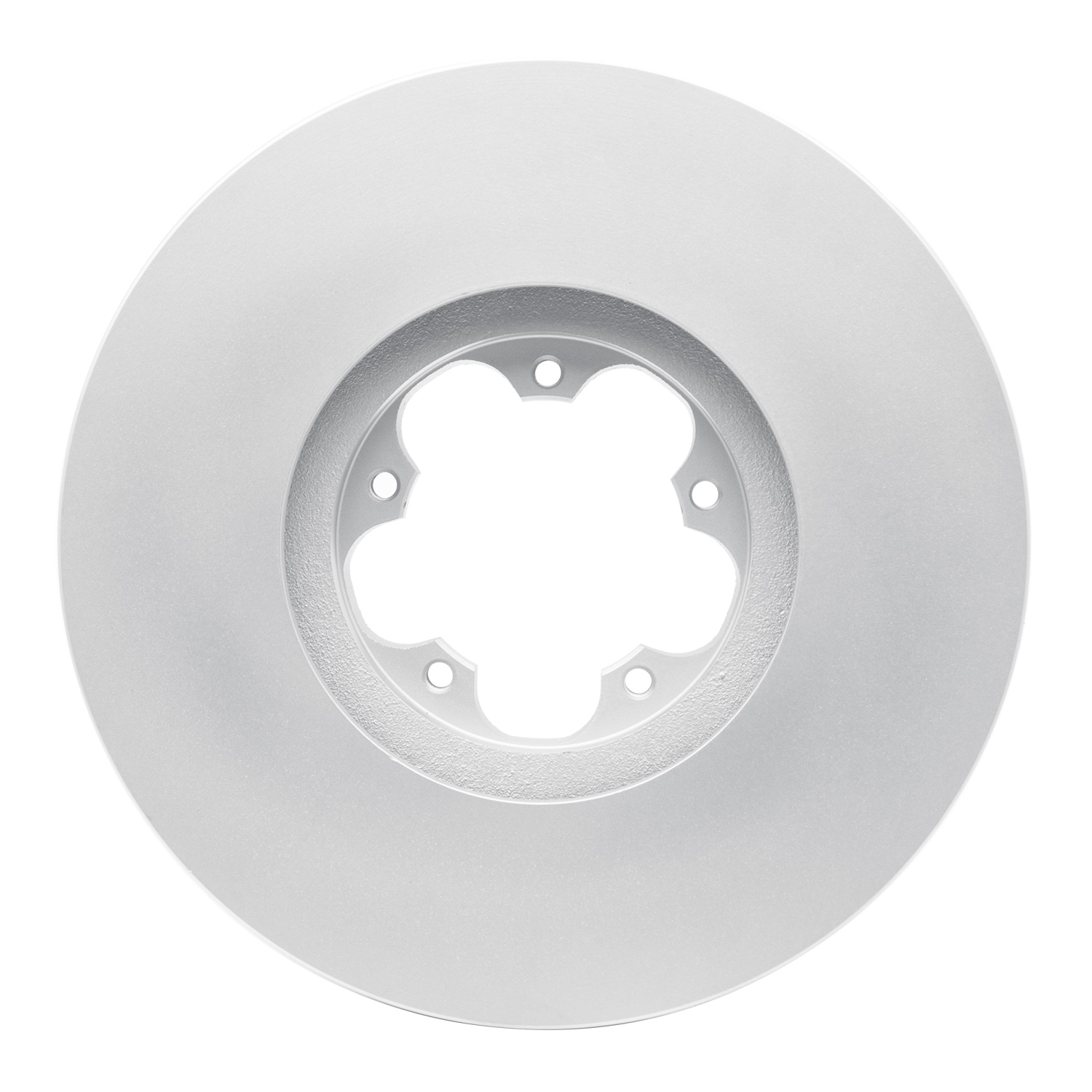

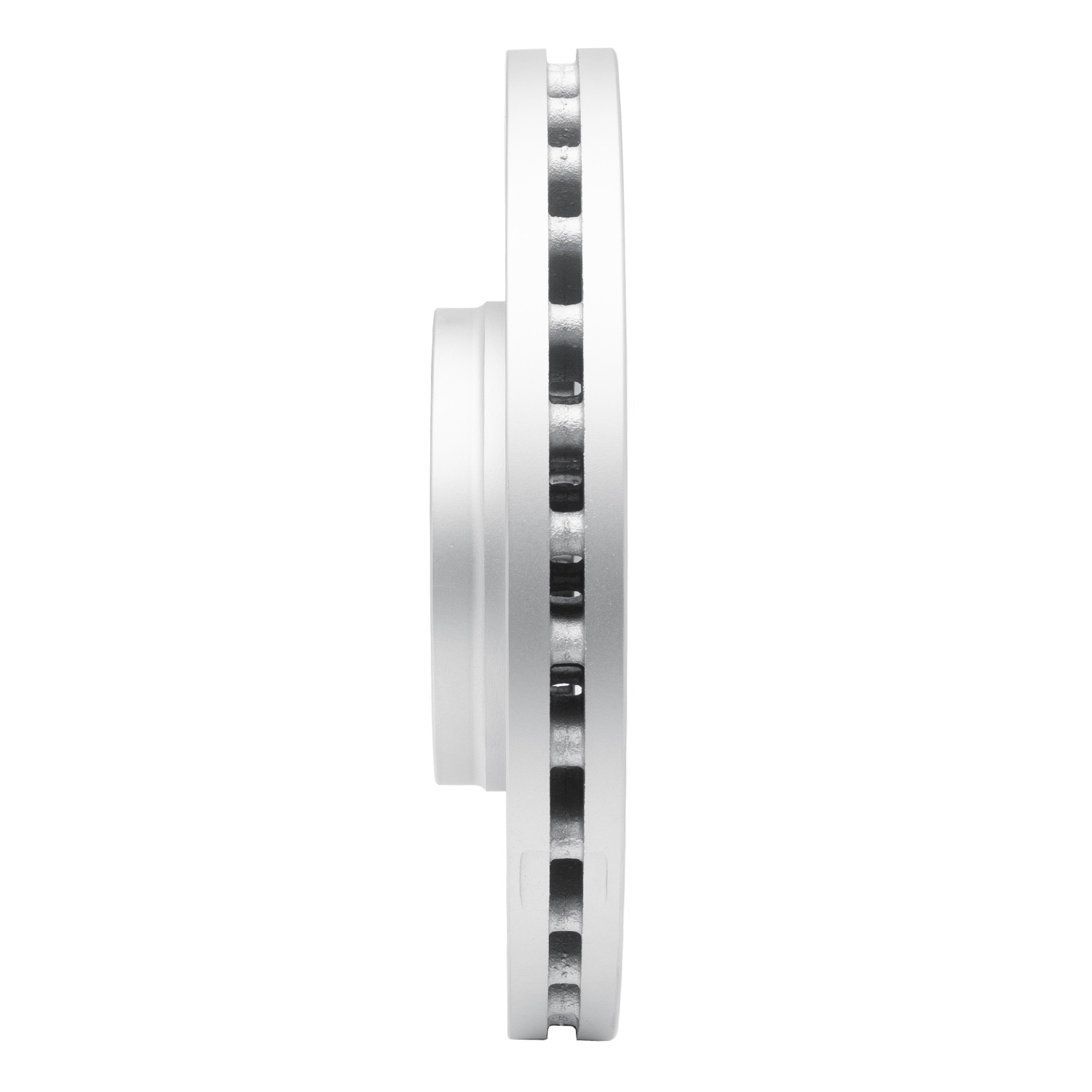

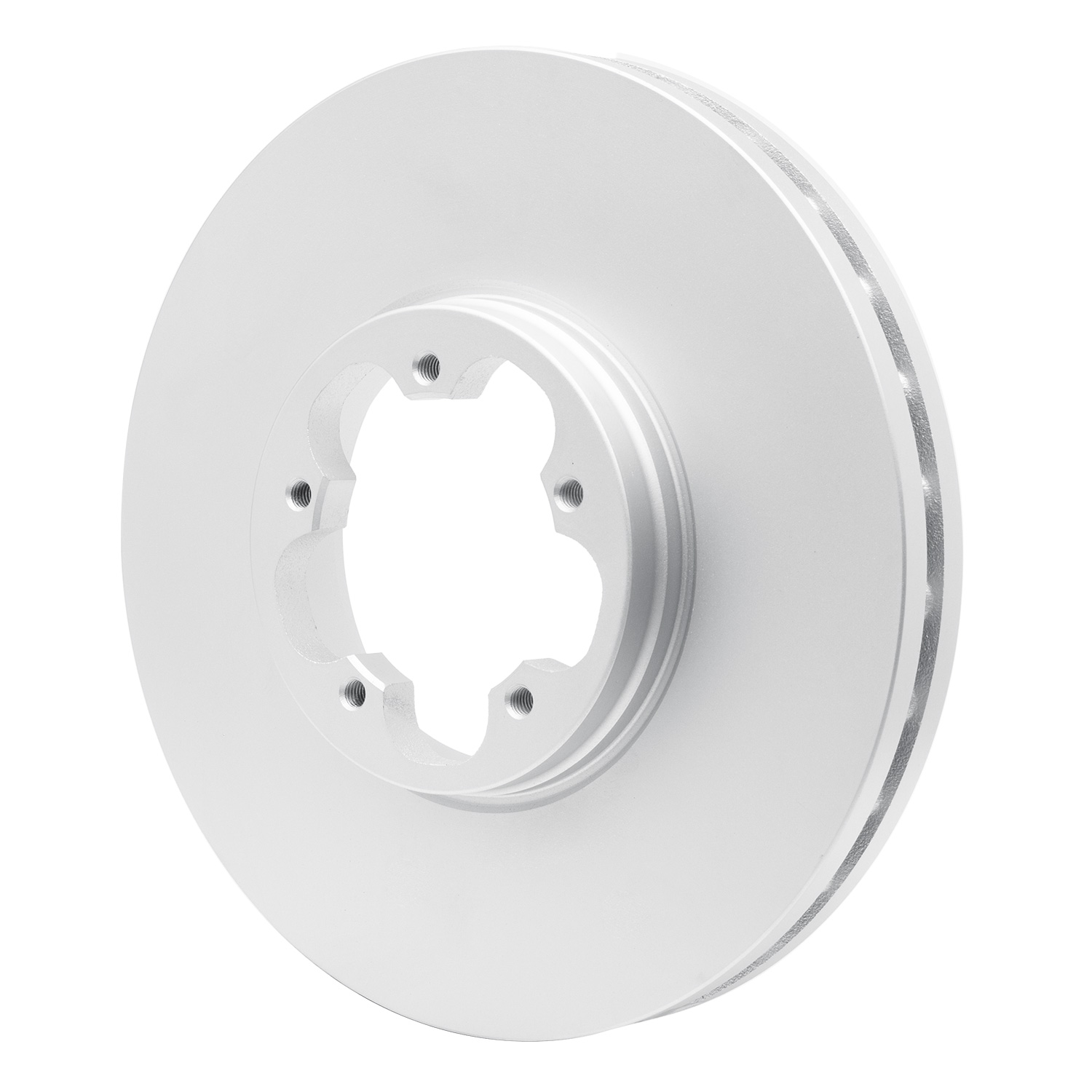

2018 Ford Transit-150 DFC GEOSPEC Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
604-54232
Axle:
Front
PCQ:
2

Description

  • DFC GEOSPEC Coated Rotor - Blank

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Provides Superior Corrosion Protection Over Zinc / Conventional Painting
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Quality Tested To Ensure Long-Lasting Performance
  • Ready To Install - No Additional Pre-Degreasing Preparation Needed (Saves Time And Money During Installation Process)

Product Specifications

Description Value
Outside Diameter 308mm
Bolt Hole Quantity 5EA
Discard Thickness 30mm
Inside Diameter 93.15mm
Height 55.5mm
Surface Type Smooth
Nominal Thickness 33mm
Hat Finish GEOSPEC Silver Grey
Disc Finish Plain
Description Value
Rust Resistant Coating Yes
Bolt Hole Diameter 10x1.5mm
Overall Height 55.5mm
Stud/Lug Hole Circle Diameter 111.5mm
Center Hole Diameter 93.15mm
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
Directional or Non-Directional Brake Surface Non-Directional
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 25.5LB
