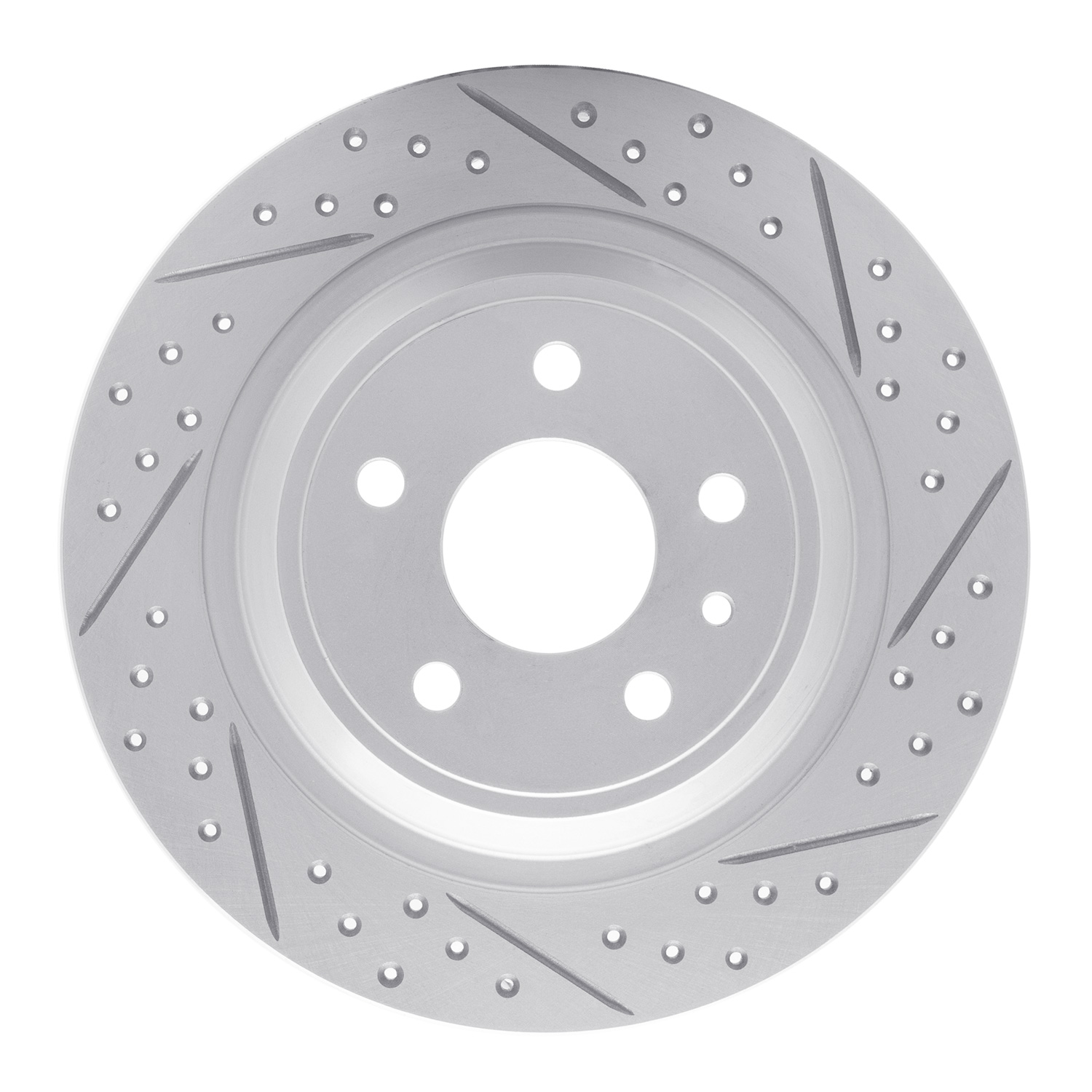

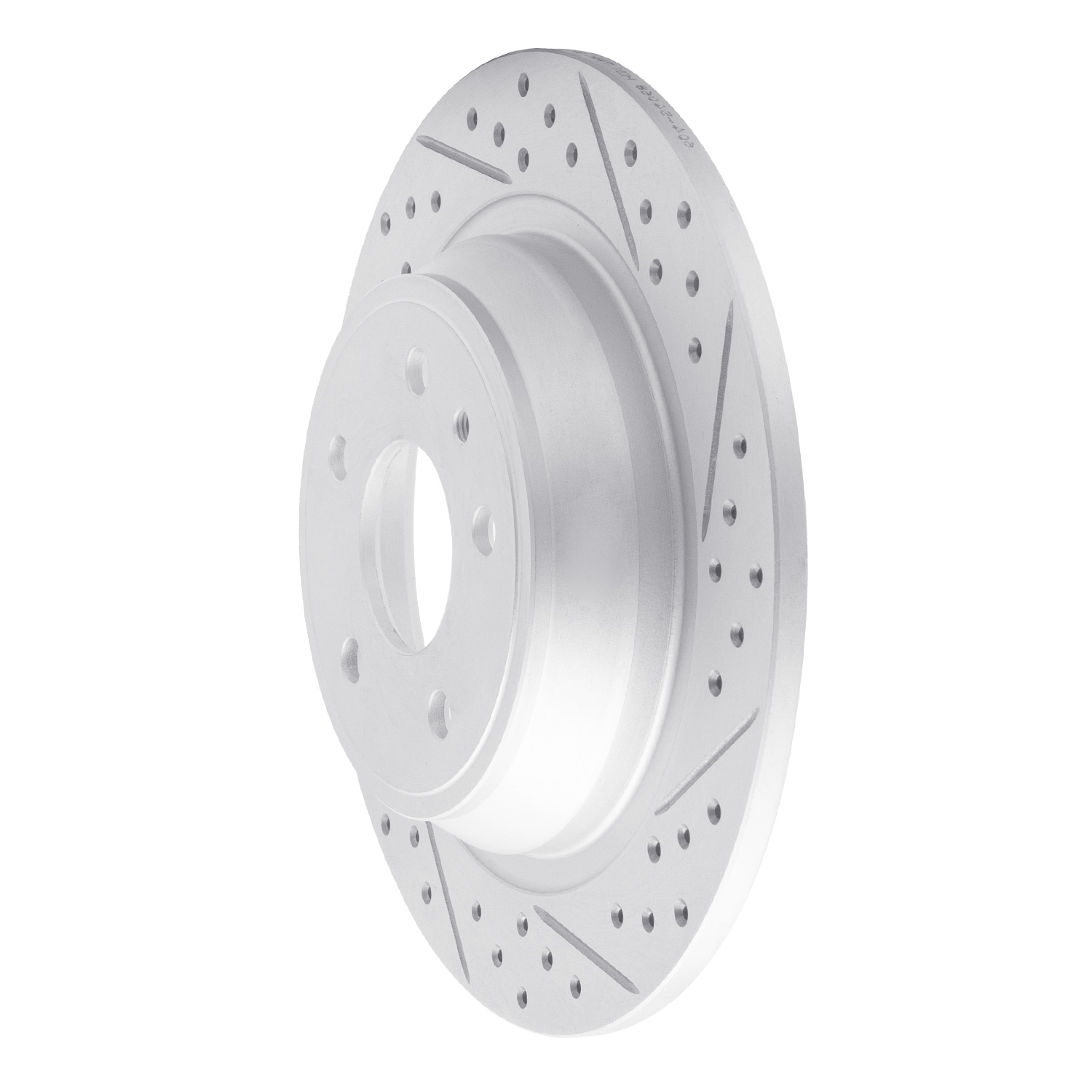

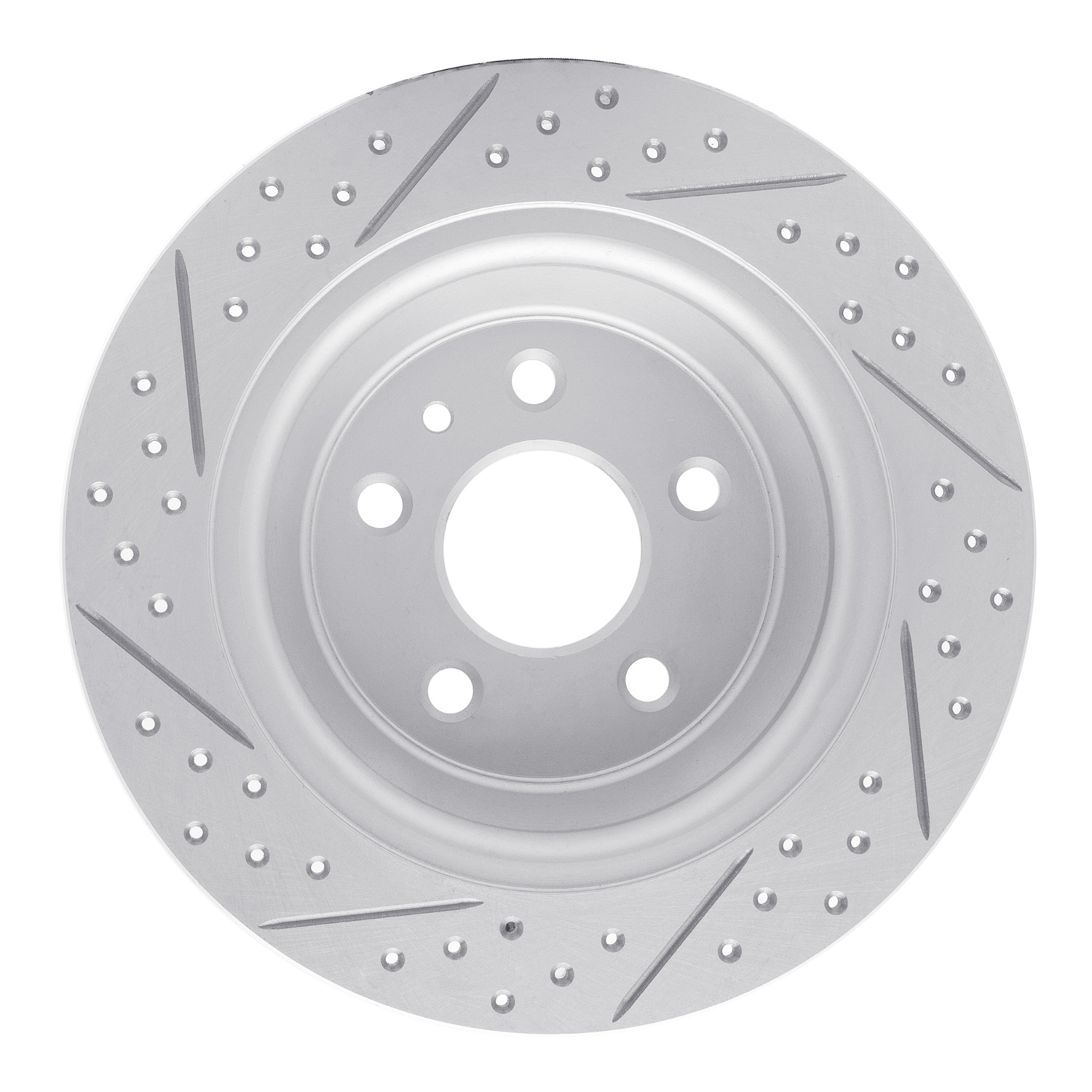

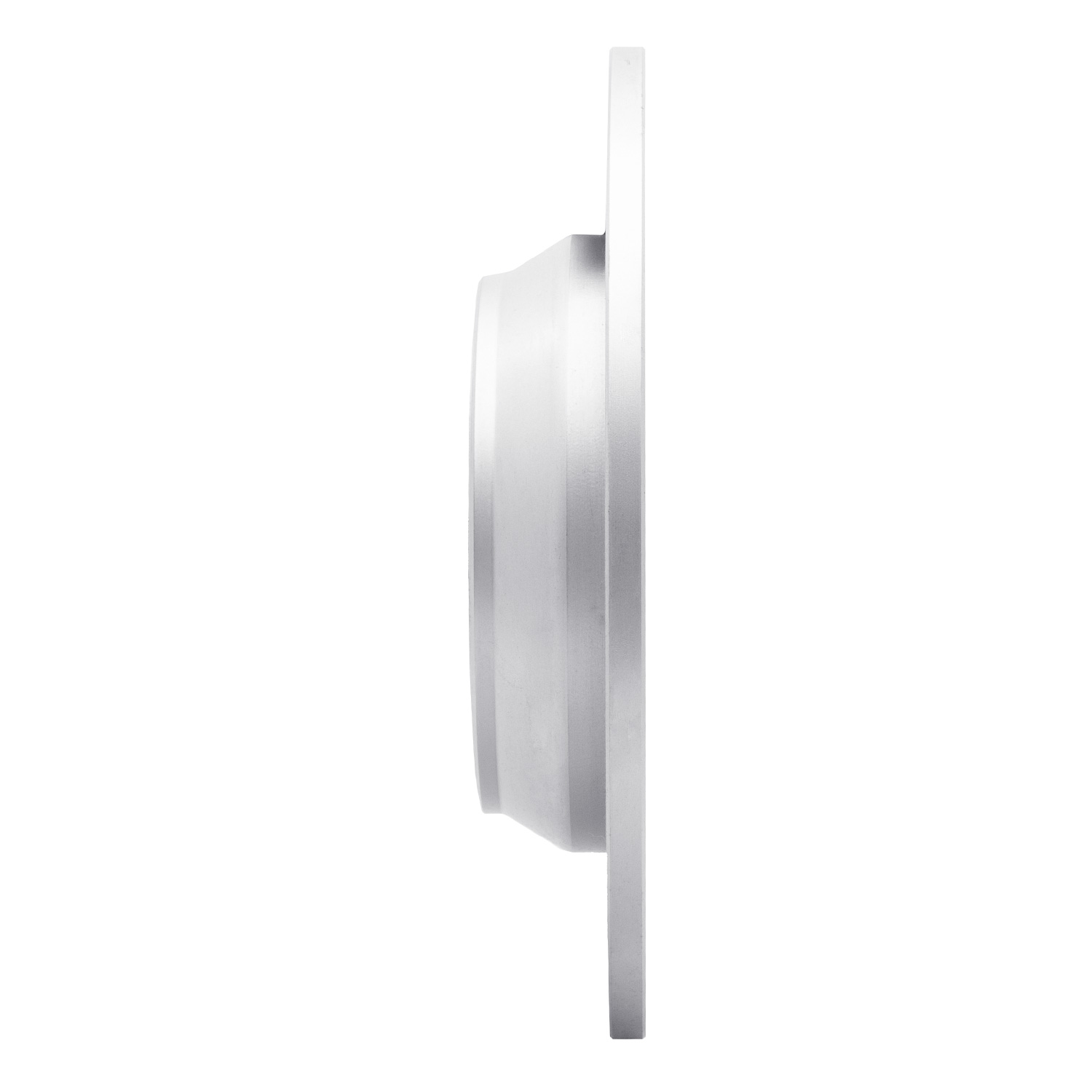

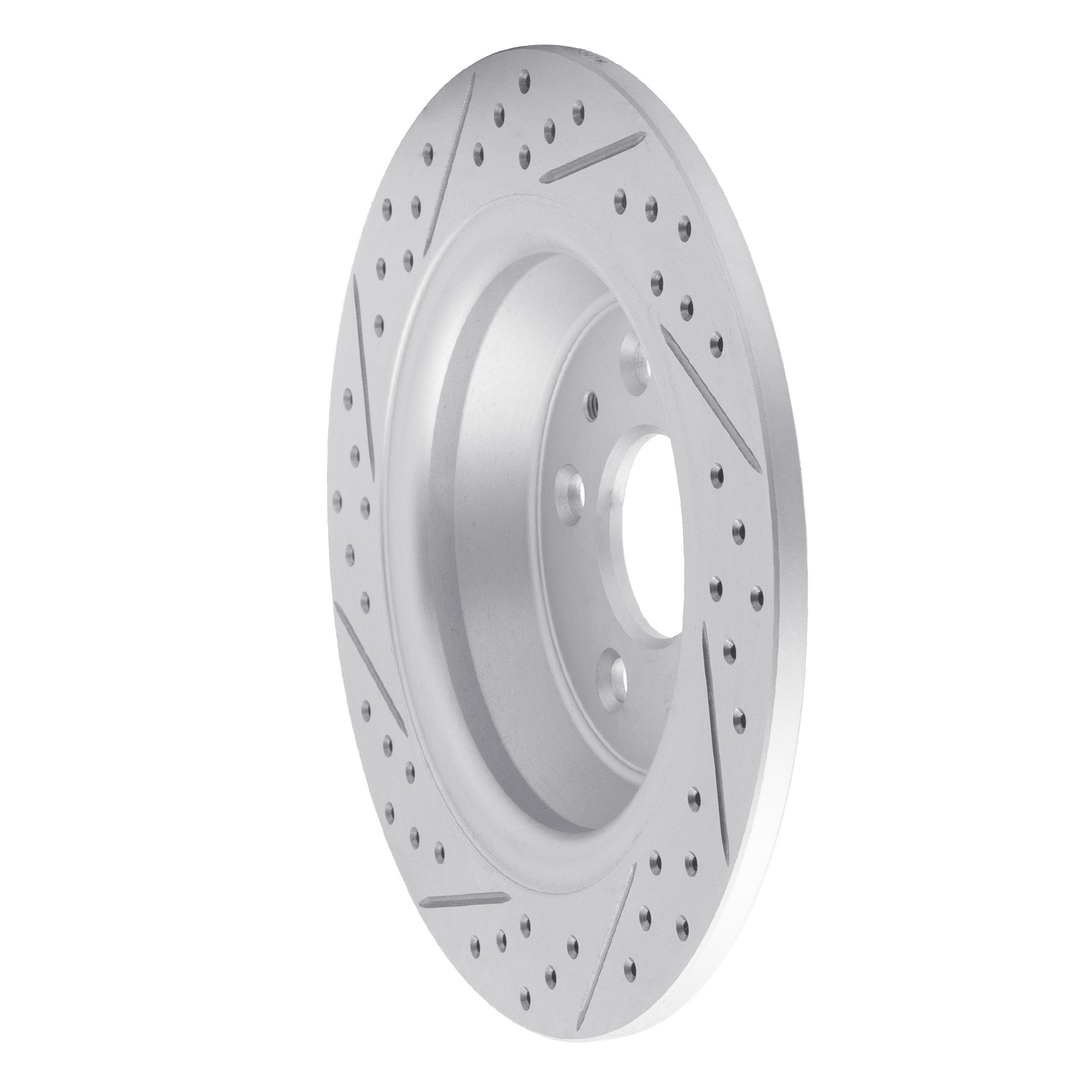

2018 Ford Fusion DFC Geoperformance Rotor - Drilled and Slotted

Part Type:
Disc Brake Rotor
SKU:
830-54068R
Axle:
Rear Right
Sub model:
Platinum, Platinum Hybrid, S, S Hybrid, SE, SE Hybrid, SE LUX Hybrid, Titanium, Titanium Hybrid
Fuel Type:
GAS
PCQ:
1

Description

  • DFC Geoperformance Rotor - Drilled and Slotted

Product Specifications

Description Value
Outside Diameter 302mm
Nominal Thickness 11mm
Hat Finish Geospec Silver Grey
Bolt Hole Quantity 5EA
Height 50.9mm
Bolt Hole Diameter 13.8mm
Rust Resistant Coating Yes
Solid Or Vented Type Rotor Solid
Discard Thickness 9.5mm
Stud/Lug Hole Circle Diameter 108mm
Description Value
Overall Height 50.9mm
Center Hole Diameter 63.6mm
Disc Finish Plain
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 13.8mm
Surface Type Slotted X Drilled
Directional or Non-Directional Brake Surface Directional
Bolt Circle Diameter 108mm
Weight 12.45LB
