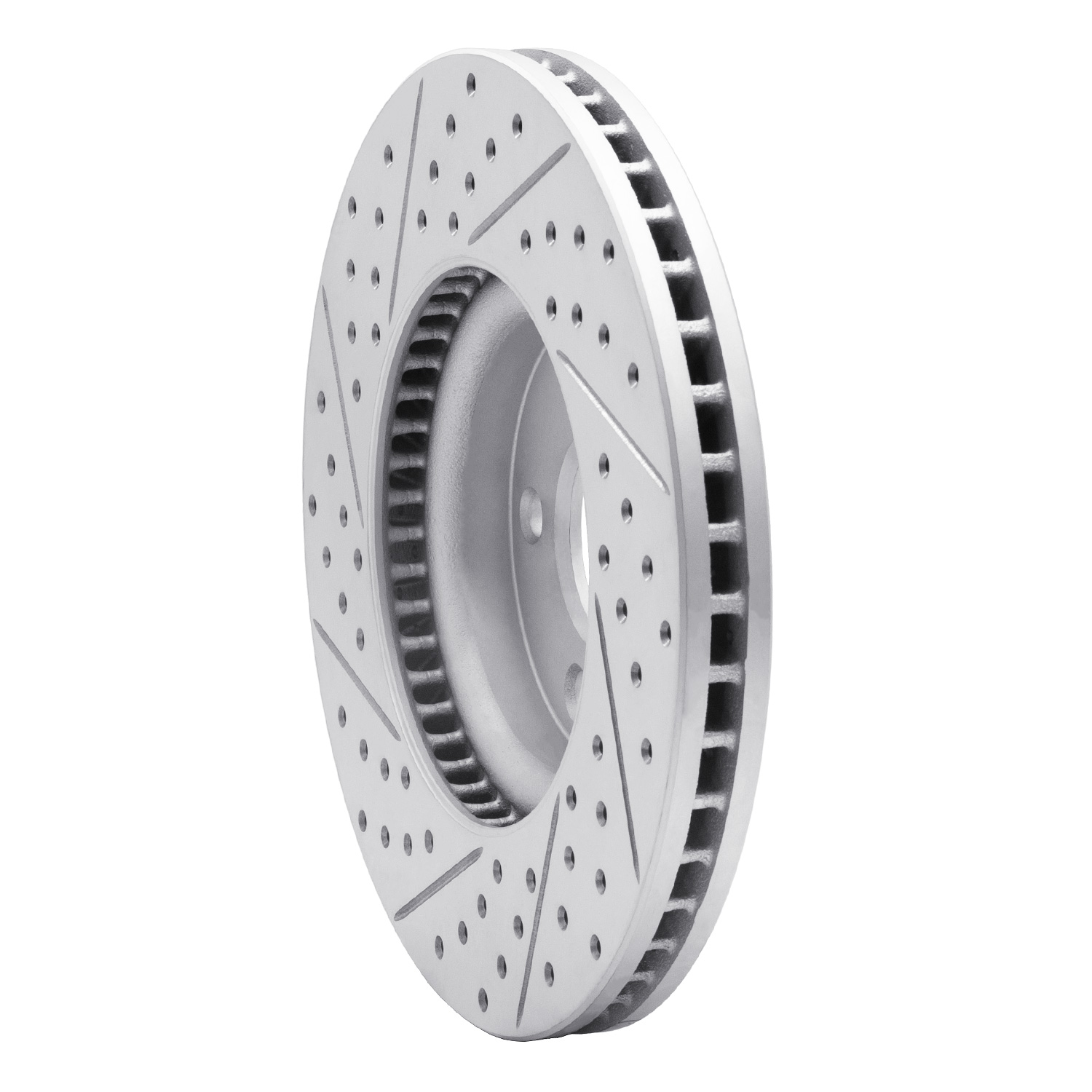

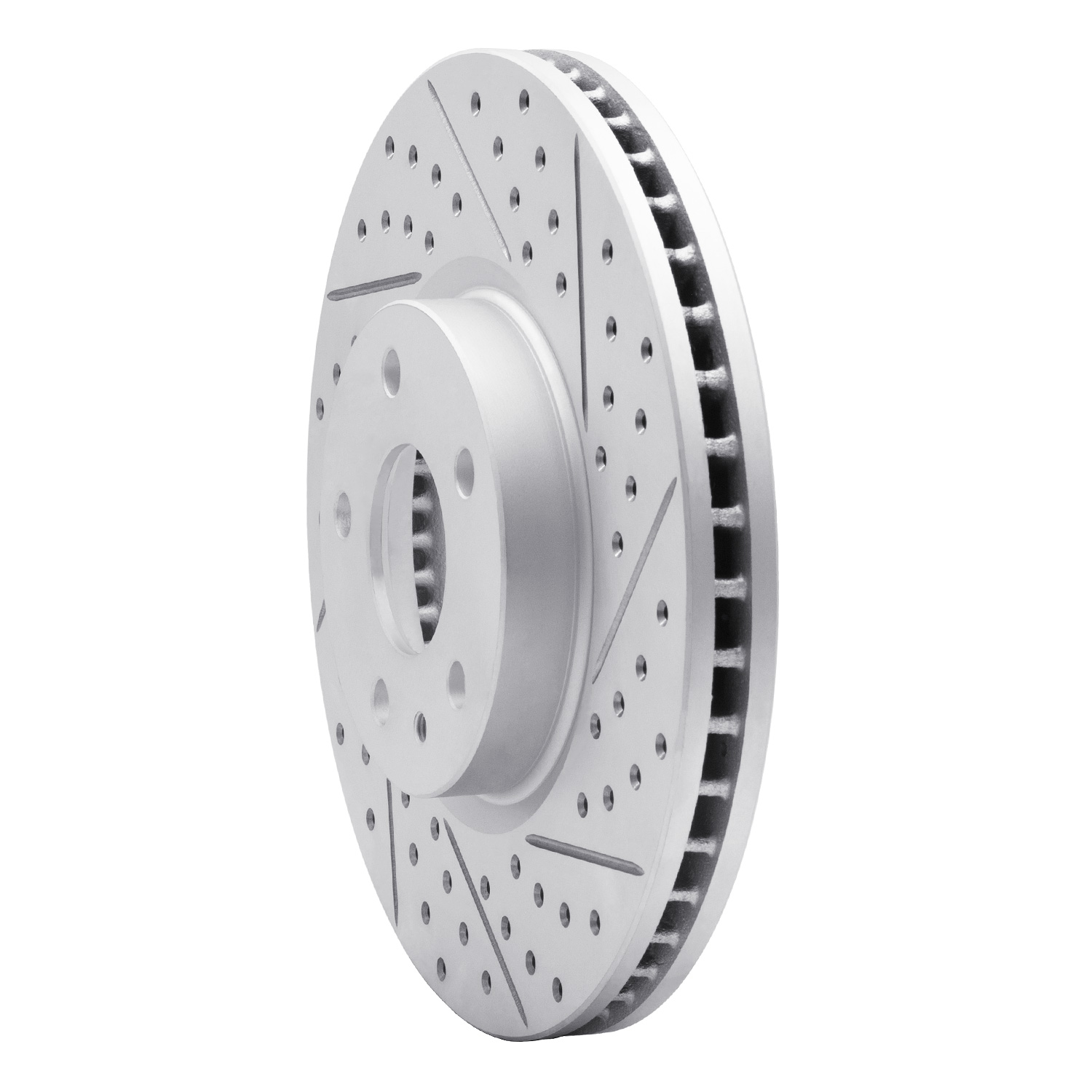

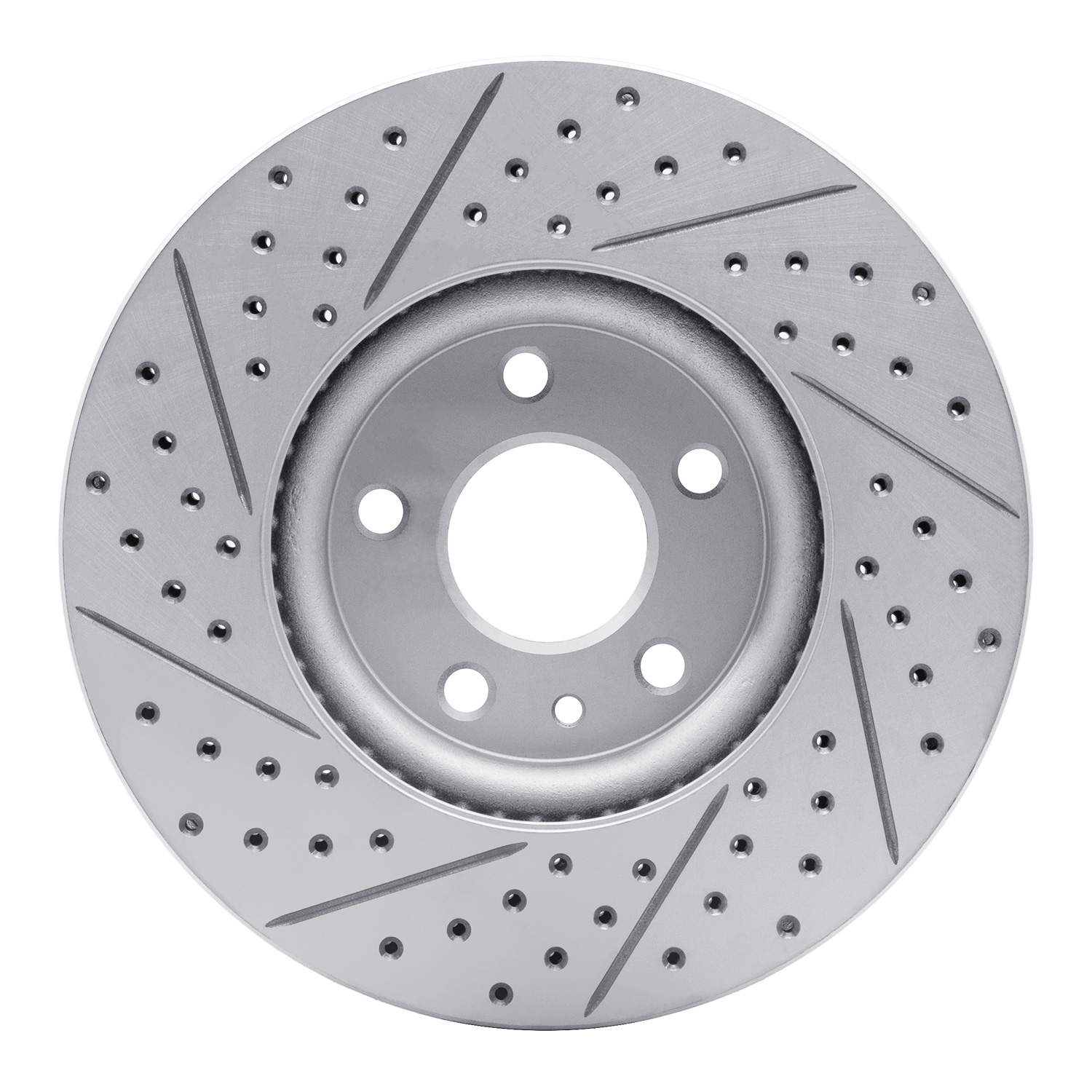

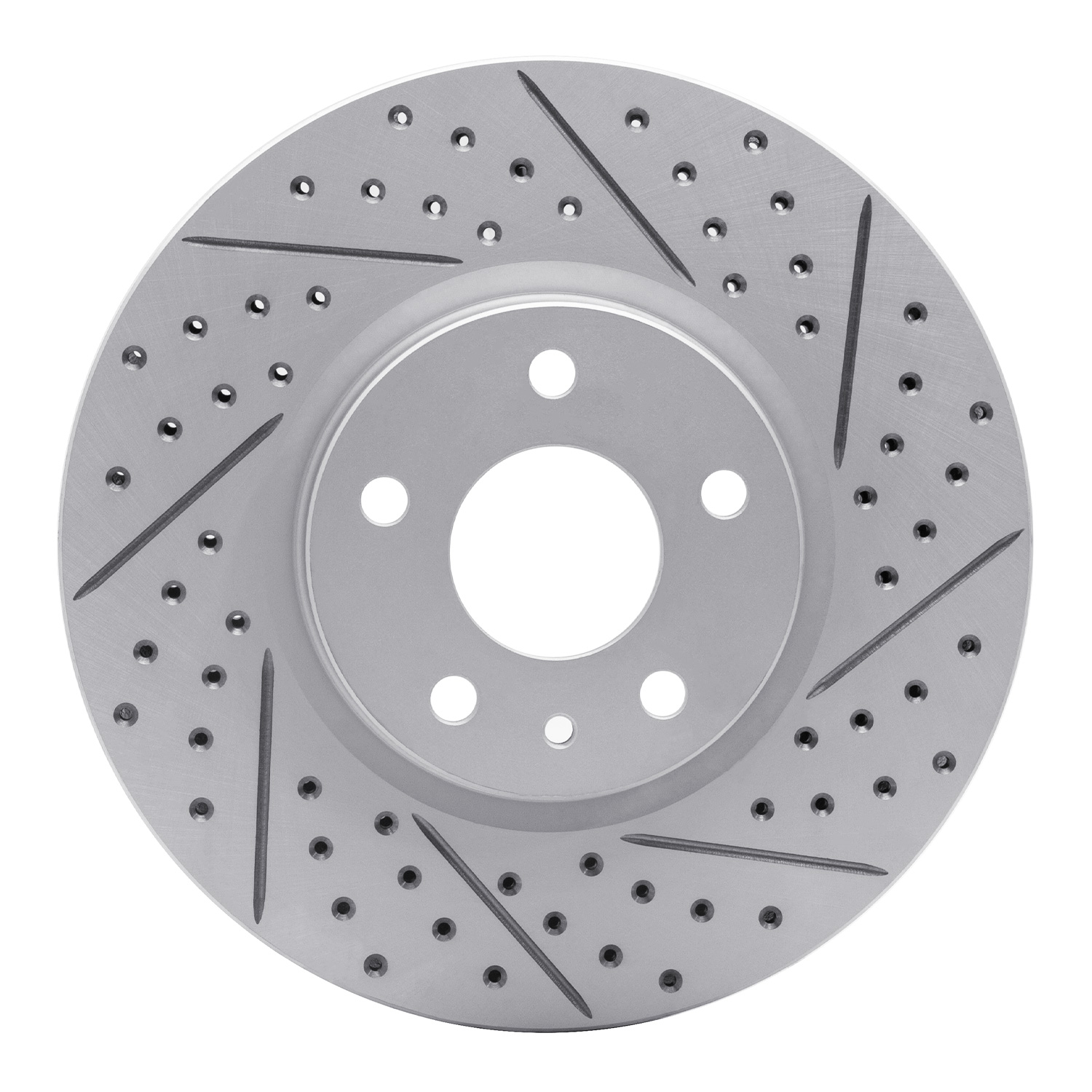

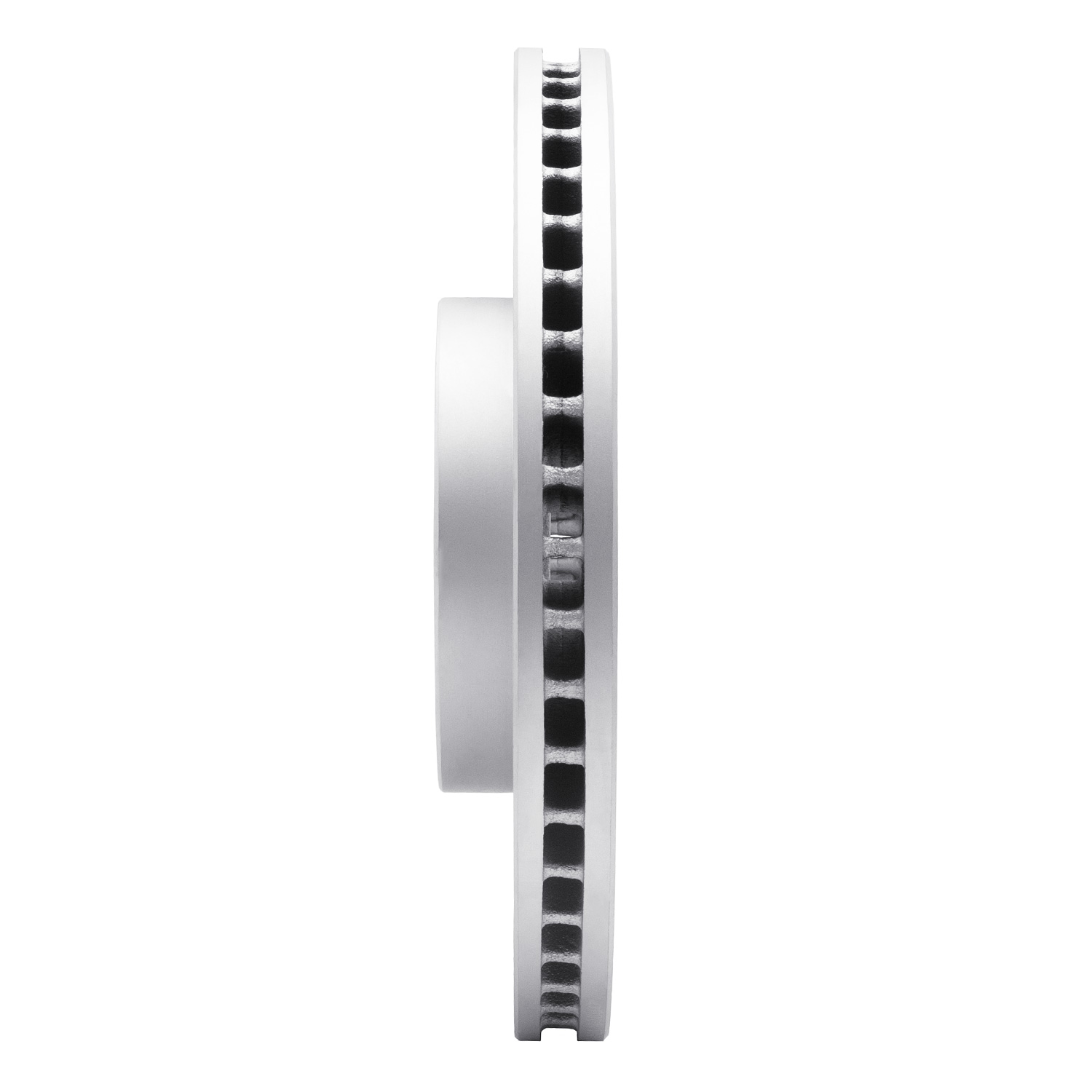

2018 Ford Fusion DFC Geoperformance Rotor - Drilled and Slotted

Part Type:
Disc Brake Rotor
SKU:
830-54259R
Axle:
Front Right
Sub model:
Platinum, Platinum Hybrid, S, S Hybrid, SE, SE Hybrid, SE LUX Hybrid, Titanium, Titanium Hybrid
Fuel Type:
GAS
PCQ:
1

Description

  • DFC Geoperformance Rotor - Drilled and Slotted

Product Specifications

Description Value
Bolt Hole Quantity 5EA
Height 51mm
Discard Thickness 26.5mm
Bolt Hole Diameter 13.8mm
Outside Diameter 300mm
Nominal Thickness 28mm
Hat Finish Geospec Silver Grey
Disc Finish Plain
Stud/Lug Hole Diameter 13.7mm
Solid Or Vented Type Rotor Vented
Description Value
Rust Resistant Coating Yes
Overall Height 51.1mm
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Circle Diameter 108mm
Center Hole Diameter 63.55mm
Surface Type Slotted X Drilled
Stud/Lug Hole Quantity 5
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Bolt Circle Diameter 108mm
Weight 20.65LB
