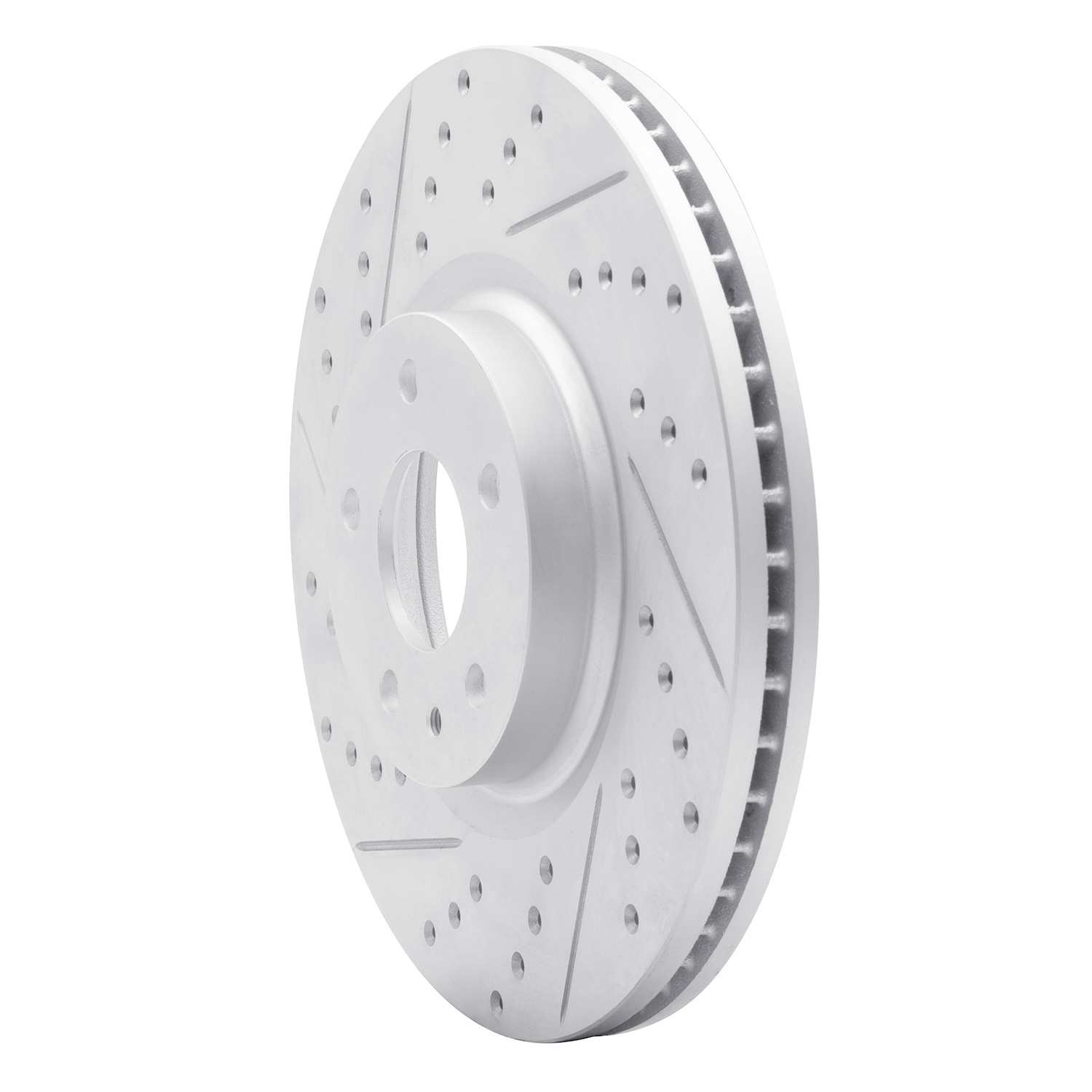

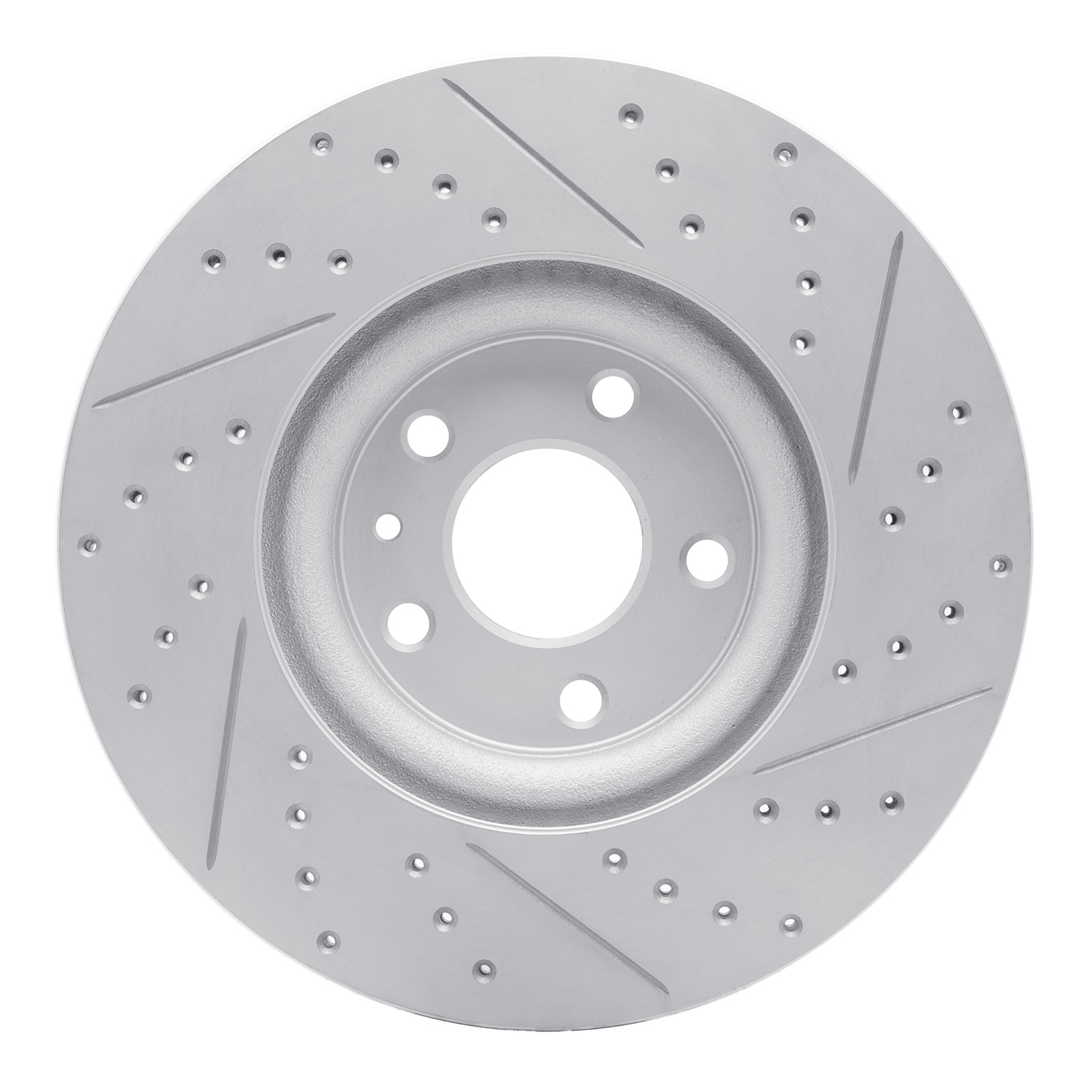

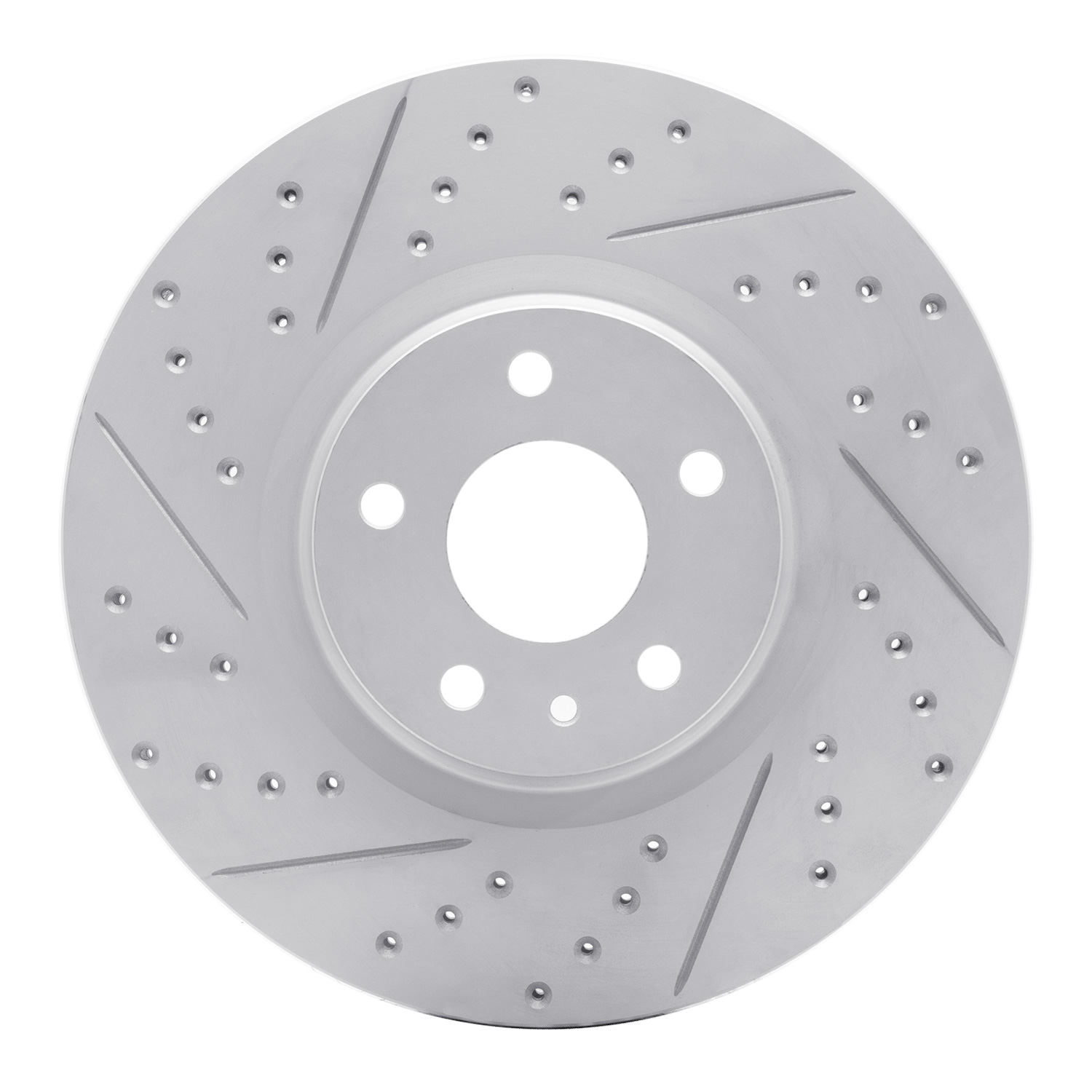

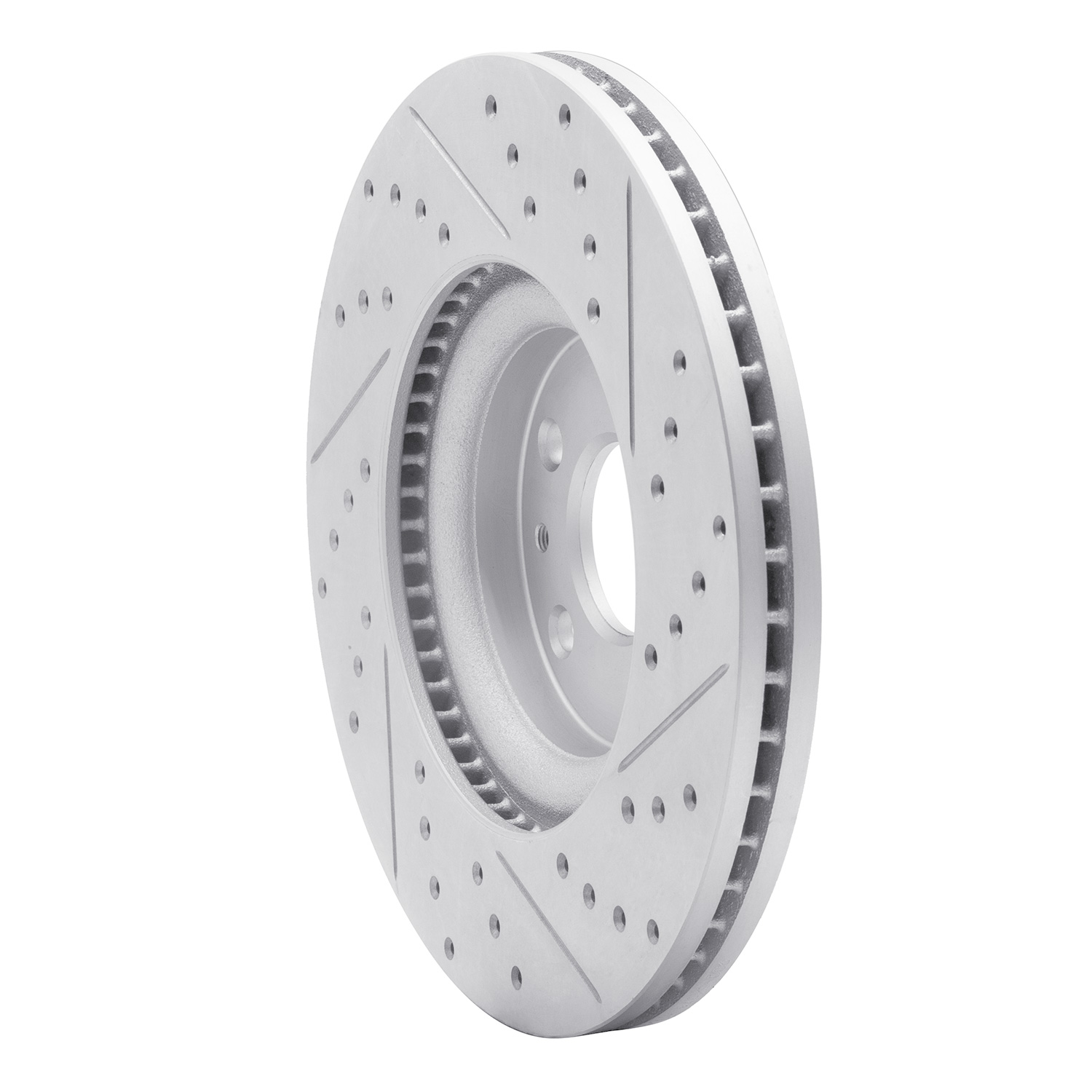

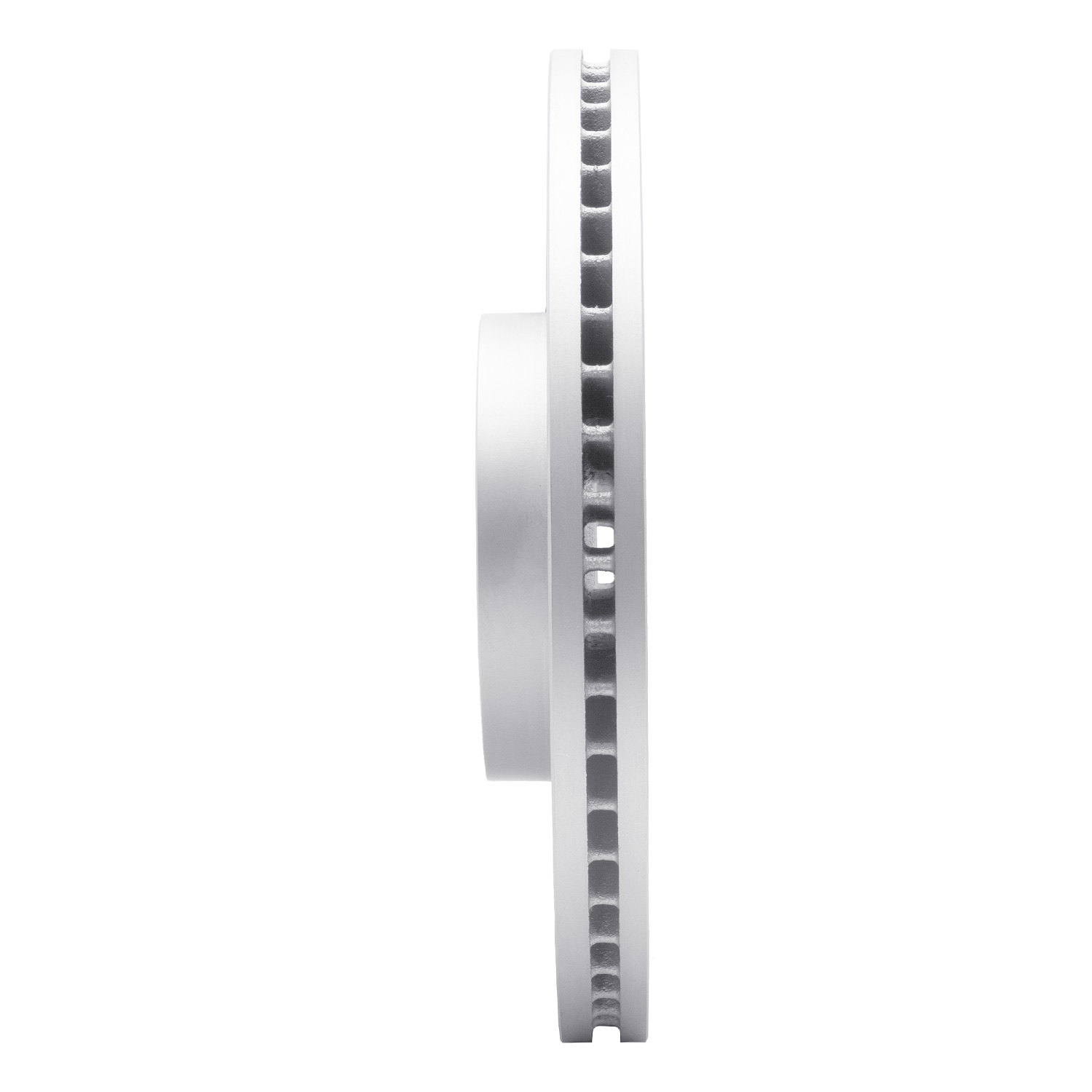

2018 Ford Fusion DFC Geoperformance Rotor - Drilled and Slotted

Part Type:
Disc Brake Rotor
SKU:
830-54073L
Axle:
Front Left
Sub model:
Energi Platinum, Energi SE, Energi Titanium, Platinum Hybrid, S Hybrid, SE Hybrid, SE LUX Hybrid, Titanium Hybrid
PCQ:
1
Note:

Plug-In Type

Description

  • DFC Geoperformance Rotor - Drilled and Slotted

Product Specifications

Description Value
Bolt Hole Diameter 13.8mm
Outside Diameter 316mm
Height 51mm
Bolt Hole Quantity 5EA
Directional or Non-Directional Brake Surface Directional
Rust Resistant Coating Yes
Discard Thickness 26.5mm
Surface Type Slotted X Drilled
Description Value
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Bolt Circle Diameter 108mm
Nominal Thickness 28mm
Disc Finish Plain
Hat Finish Geospec Silver Grey
Solid Or Vented Type Rotor Vented
Center Hole Diameter 63.55mm
Stud/Lug Hole Quantity 5
Weight 23.7LB
