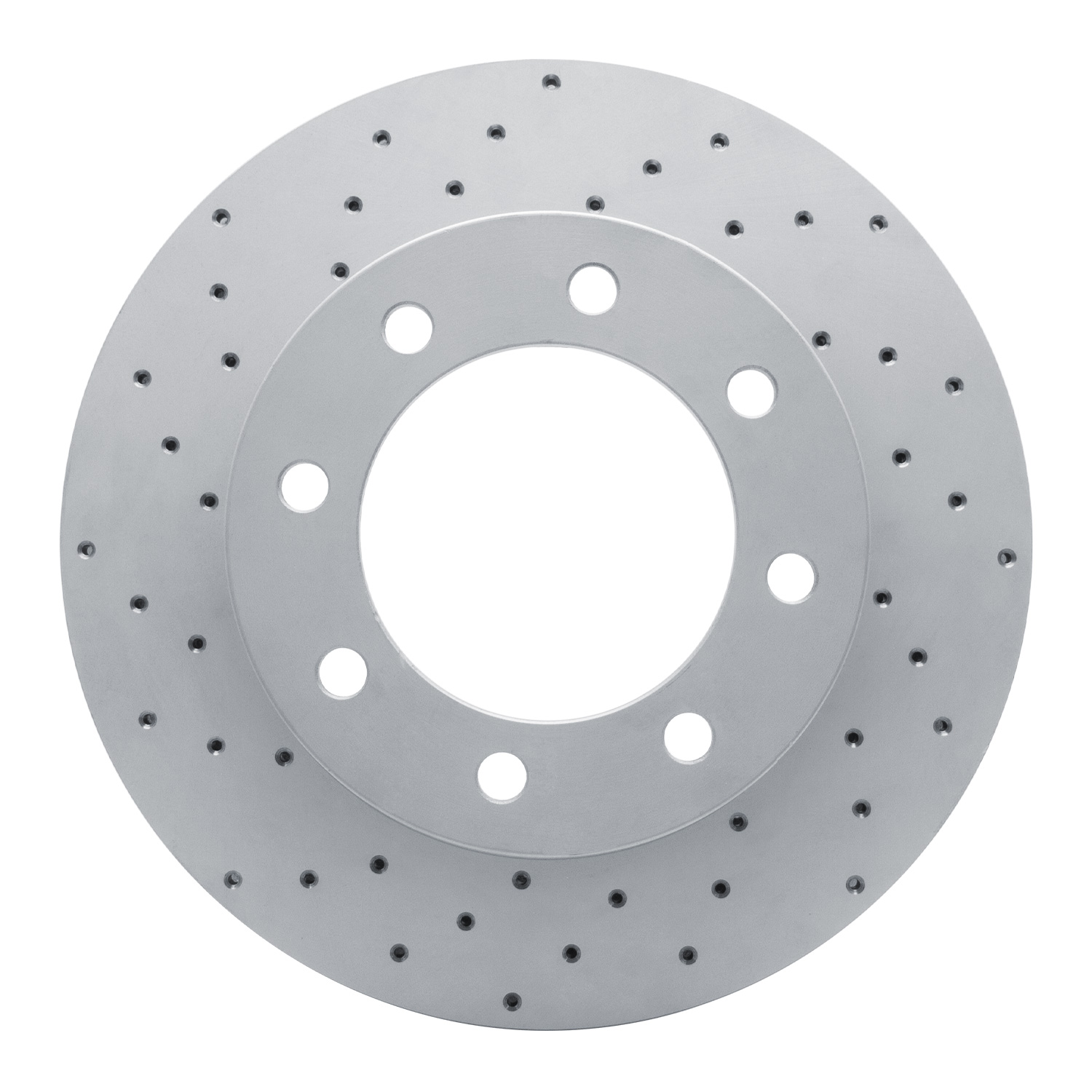

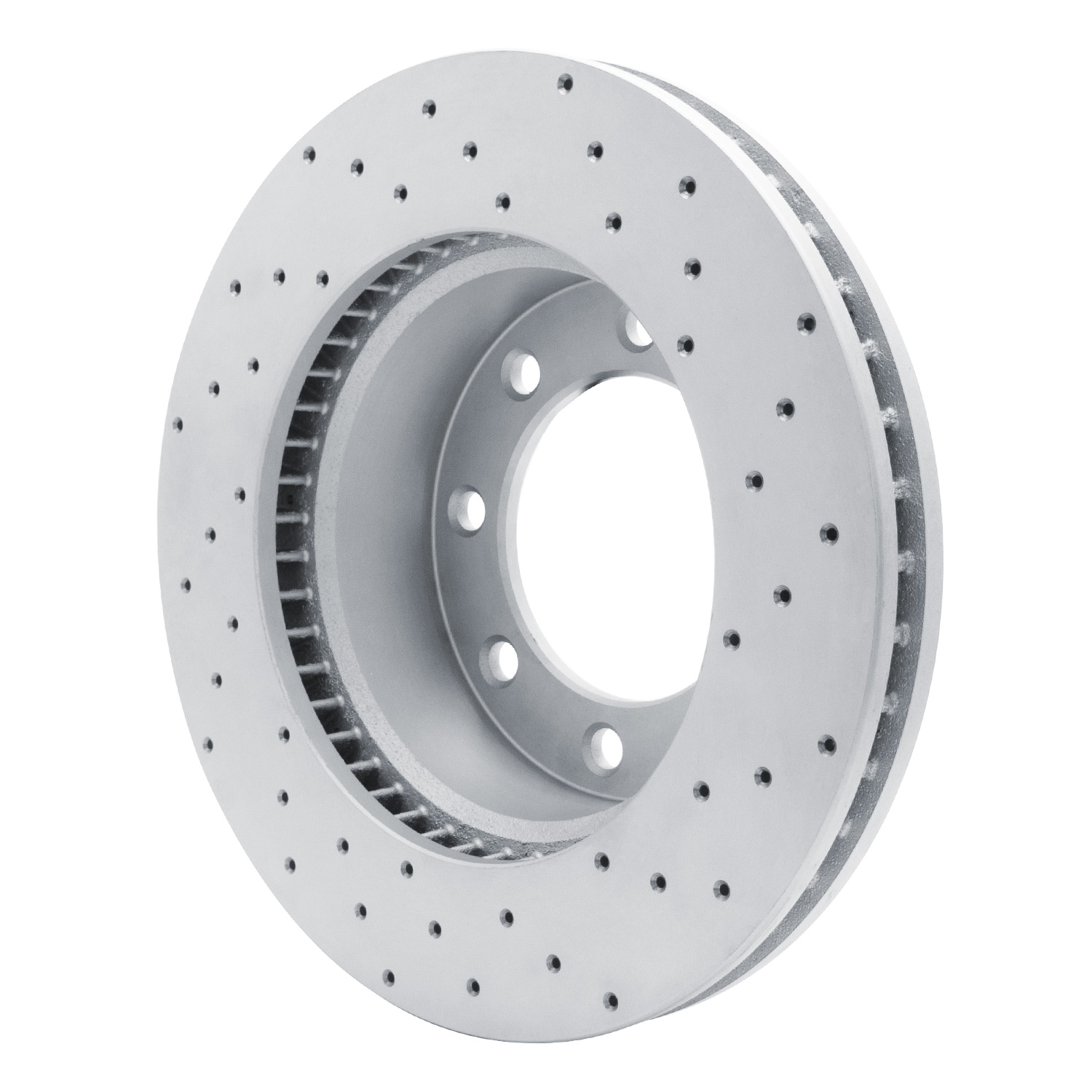

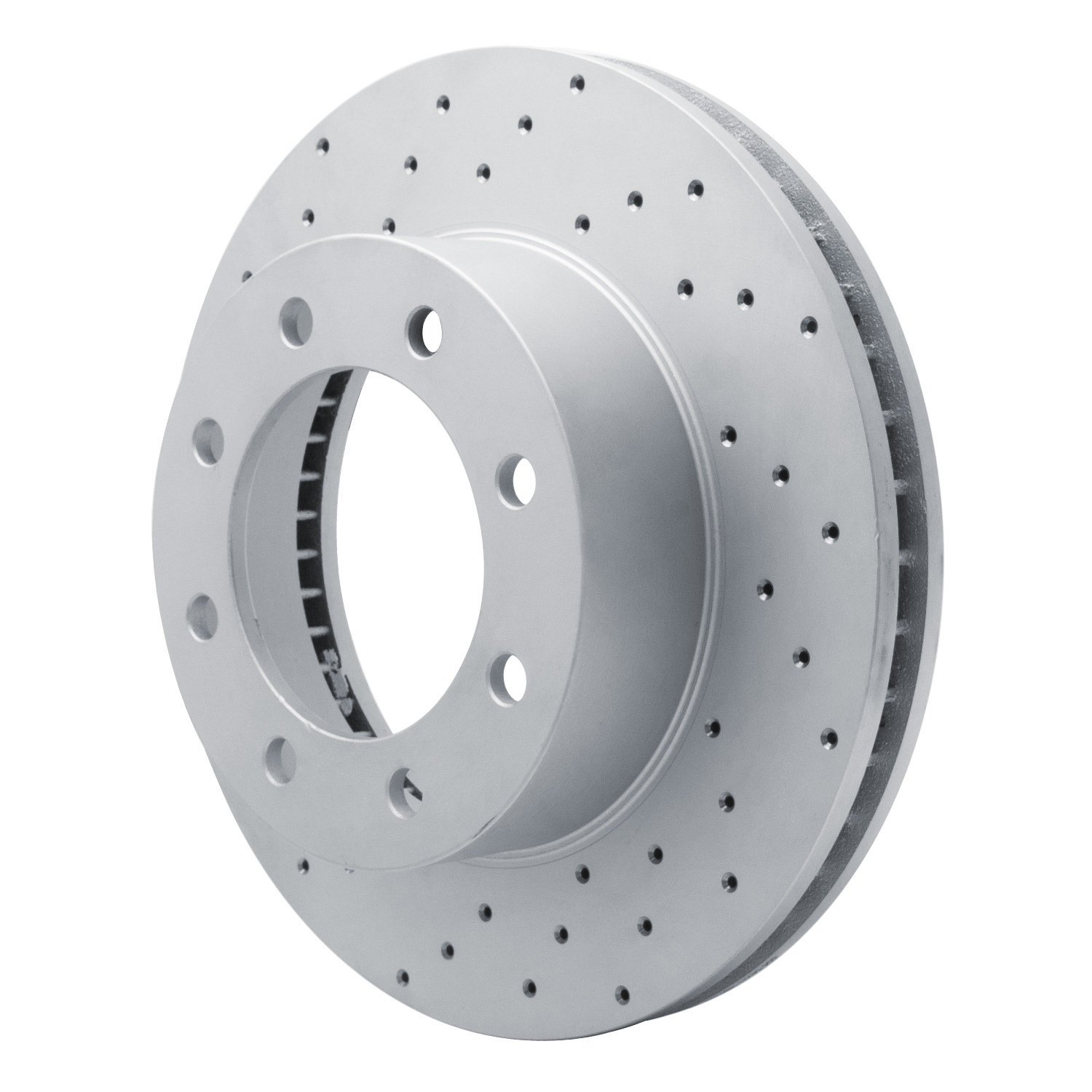

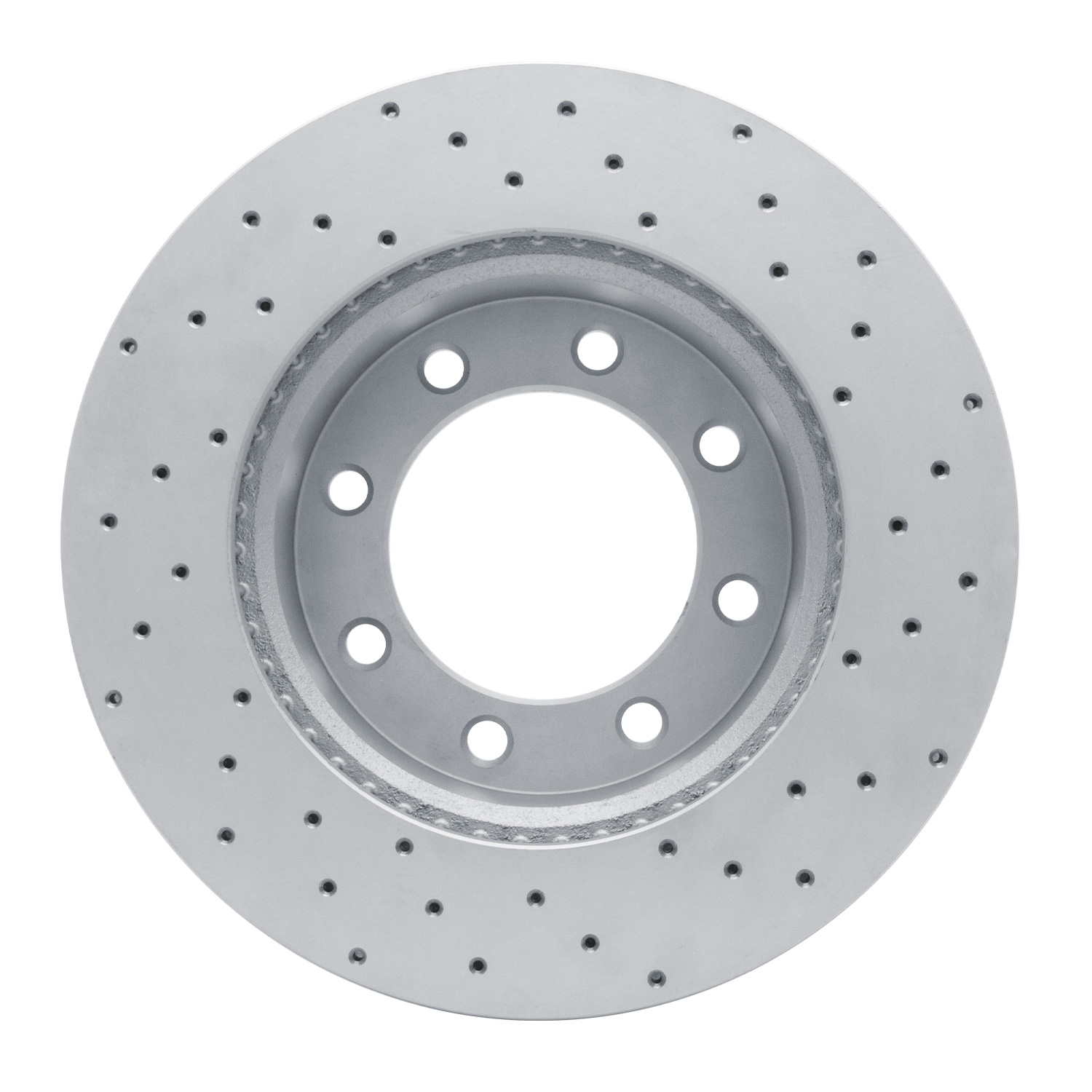

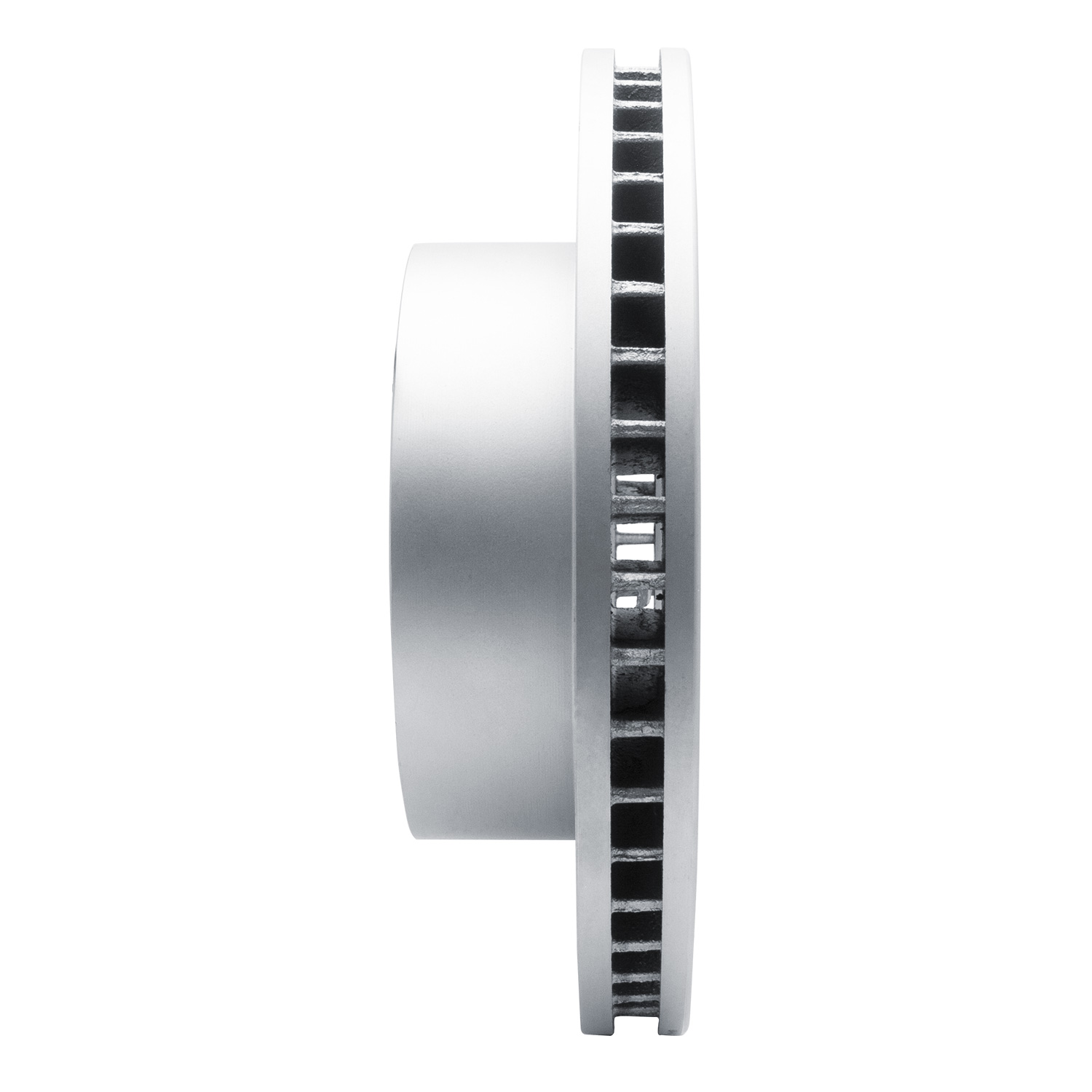

2018 Ford F-350 Super Duty DFC Geoperformance Rotor - Drilled
Part Type:
Disc Brake Rotor
SKU:
820-54223L
Axle:
Front Left
Drive Type:
4WD
PCQ:
1
Description
- DFC Geoperformance Rotor - Drilled
Product Specifications
| Description | Value |
|---|---|
| Overall Height | 100.1mm |
| Surface Type | X Drilled |
| Bolt Hole Quantity | 8EA |
| Outside Diameter | 363mm |
| Directional or Non-Directional Brake Surface | Directional |
| Solid Or Vented Type Rotor | Vented |
| Height | 100.1mm |
| Discard Thickness | 36.4mm |
| Stud/Lug Hole Circle Diameter | 170mm |
| Bolt Hole Diameter | 16.2mm |
| Description | Value |
|---|---|
| Nominal Thickness | 38mm |
| Disc Finish | Plain |
| Hat Finish | Geospec Silver Grey |
| Center Hole Diameter | 129.1mm |
| Rust Resistant Coating | Yes |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 16.2mm |
| Bolt Circle Diameter | 170mm |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). | |
| Weight | 40.55LB |
