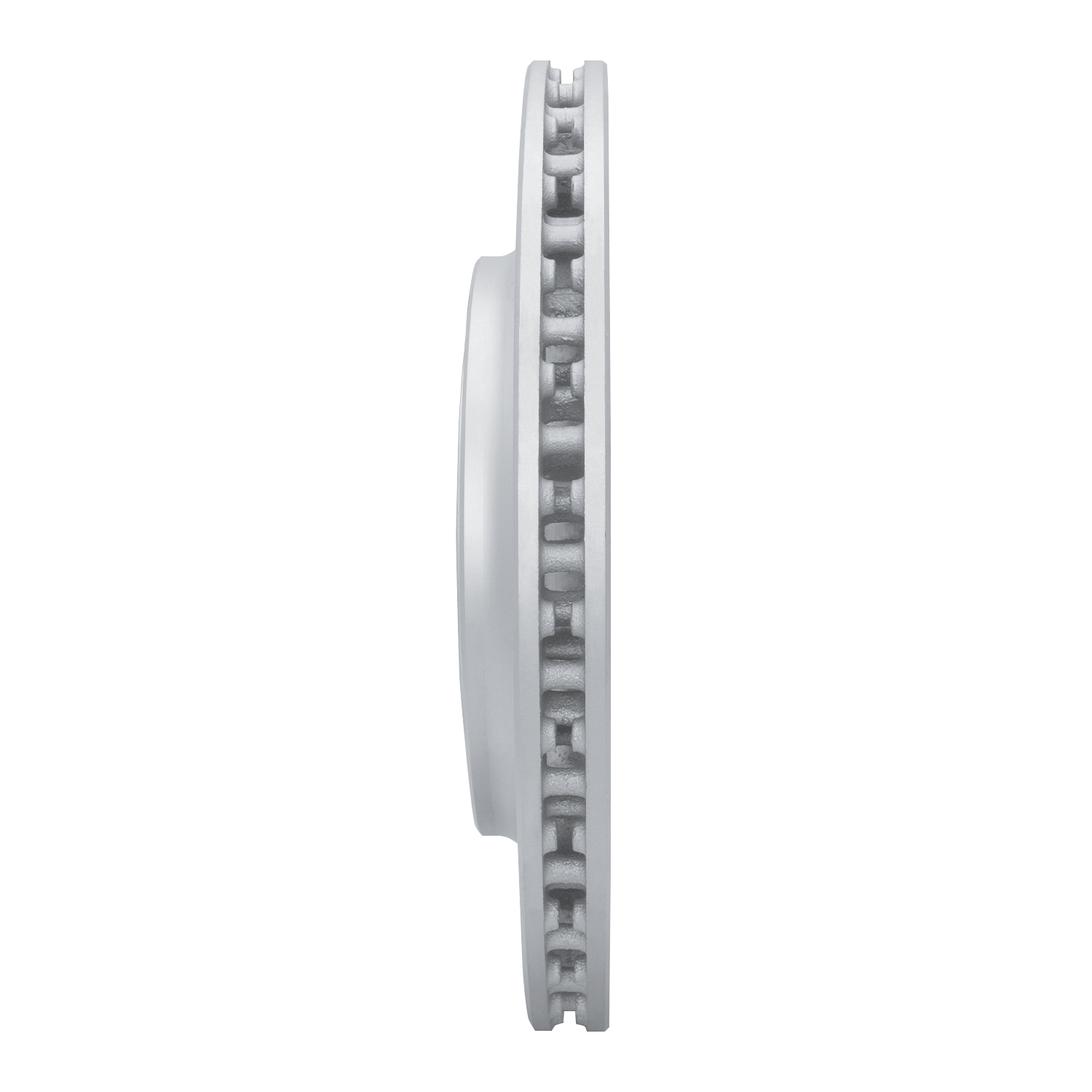

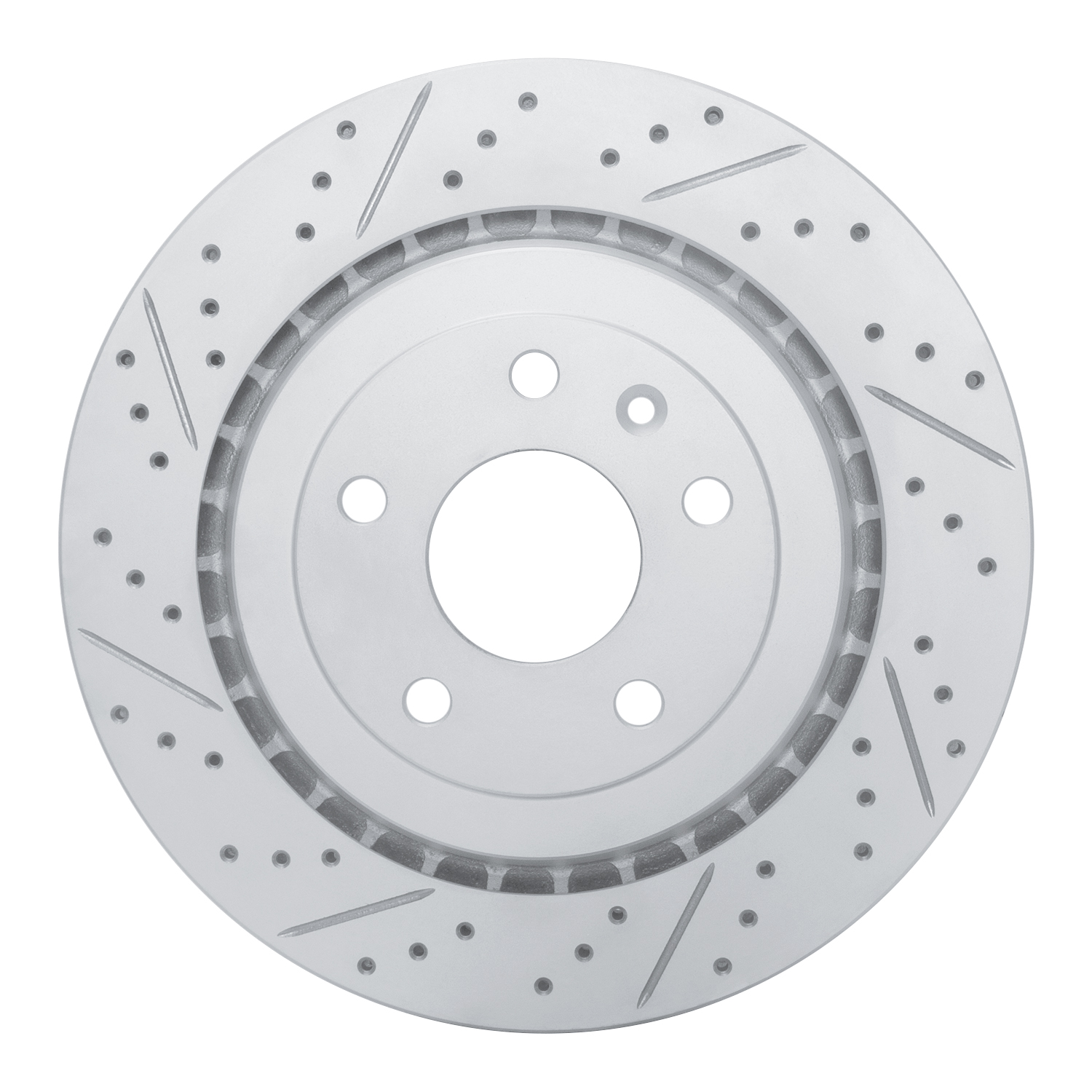

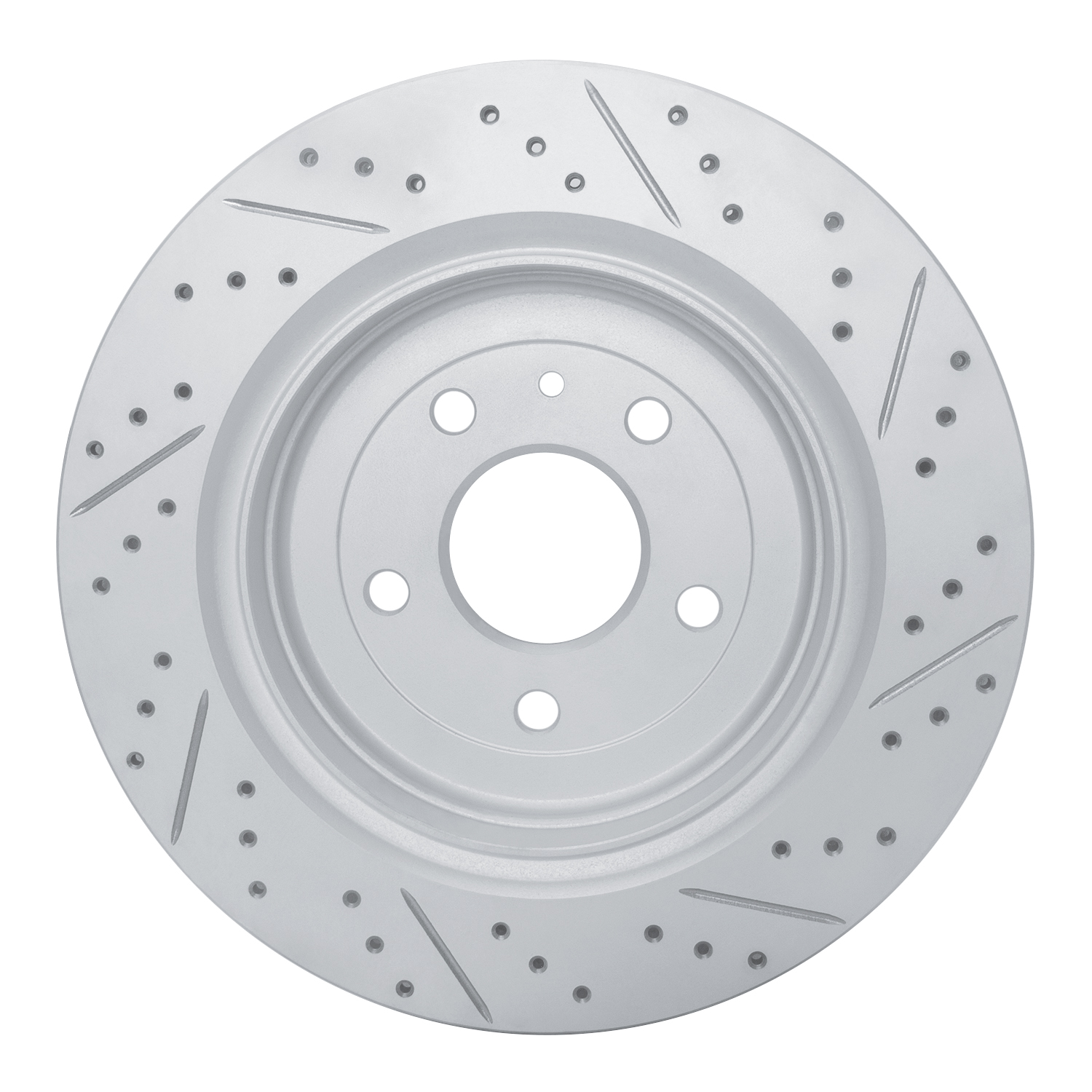

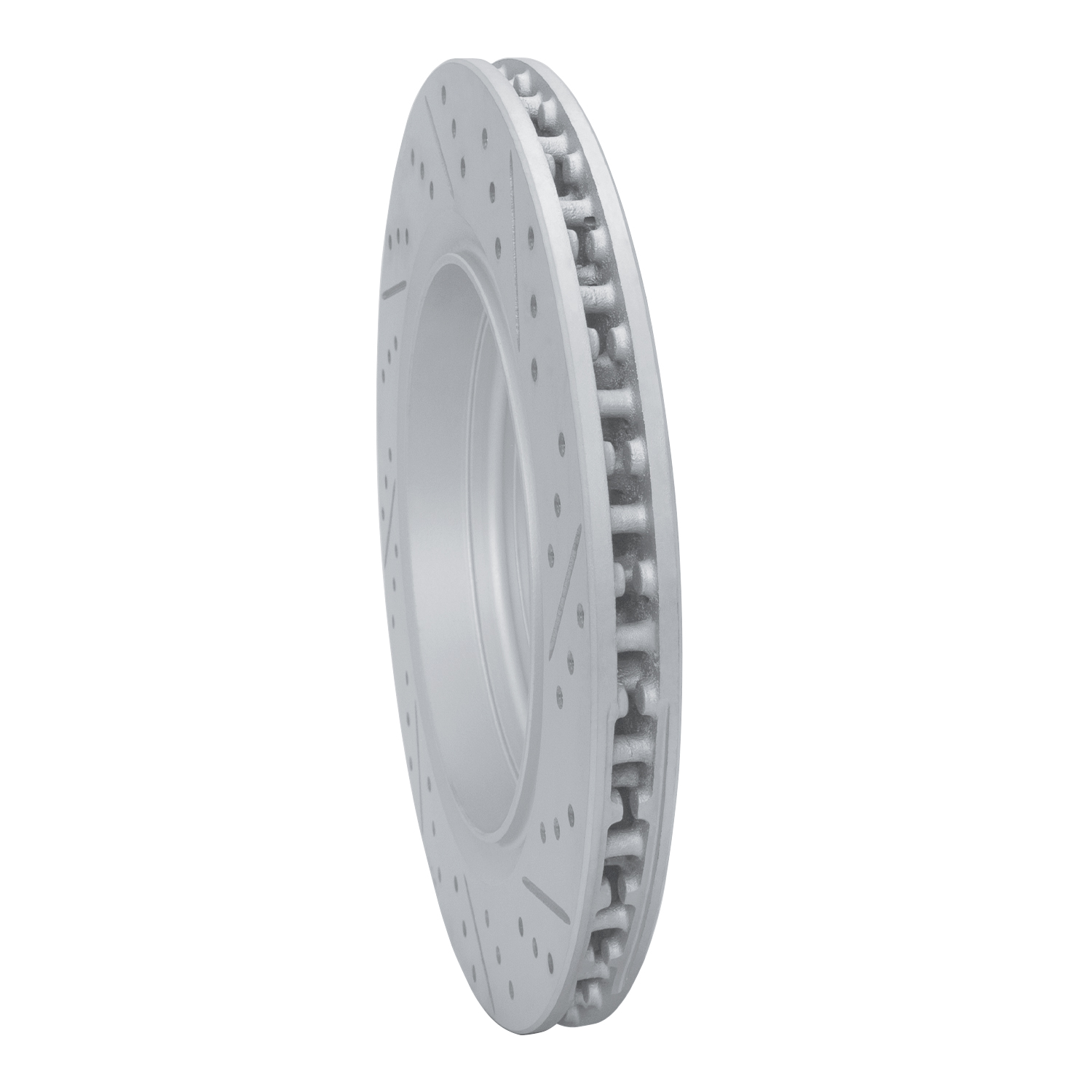

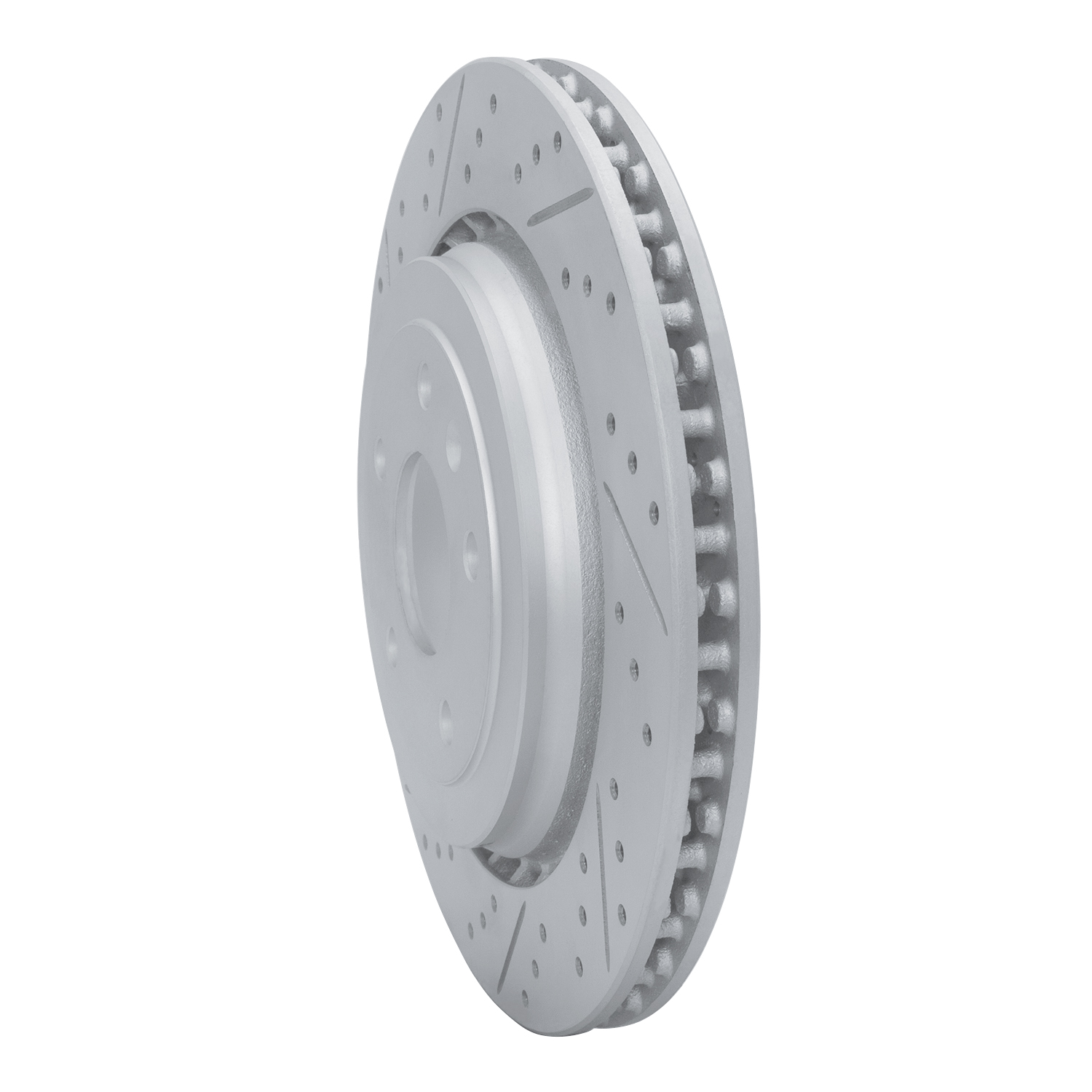

2017 Chevrolet Corvette DFC Geoperformance Rotor - Drilled and Slotted
Part Type:
Disc Brake Rotor
SKU:
830-47047L
Axle:
Rear Left
Sub model:
Stingray
PCQ:
1
Note:
Except Z51 Package
Z51 Package
Description
- DFC Geoperformance Rotor - Drilled and Slotted
Product Specifications
| Description | Value |
|---|---|
| Outside Diameter | 339mm |
| Nominal Thickness | 26mm |
| Bolt Hole Quantity | 5EA |
| Bolt Hole Diameter | 15mm |
| Height | 48.2mm |
| Rust Resistant Coating | Yes |
| Discard Thickness | 24mm |
| Disc Finish | Plain |
| Hat Finish | Geospec Silver Grey |
| Stud/Lug Hole Diameter | 15mm |
| Description | Value |
|---|---|
| Overall Height | 48.2mm |
| Center Hole Diameter | 70.7mm |
| Stud/Lug Hole Quantity | 5 |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). | |
| Surface Type | Slotted X Drilled |
| Directional or Non-Directional Brake Surface | Directional |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Circle Diameter | 120mm |
| Bolt Circle Diameter | 120mm |
| Weight | 20.05LB |
