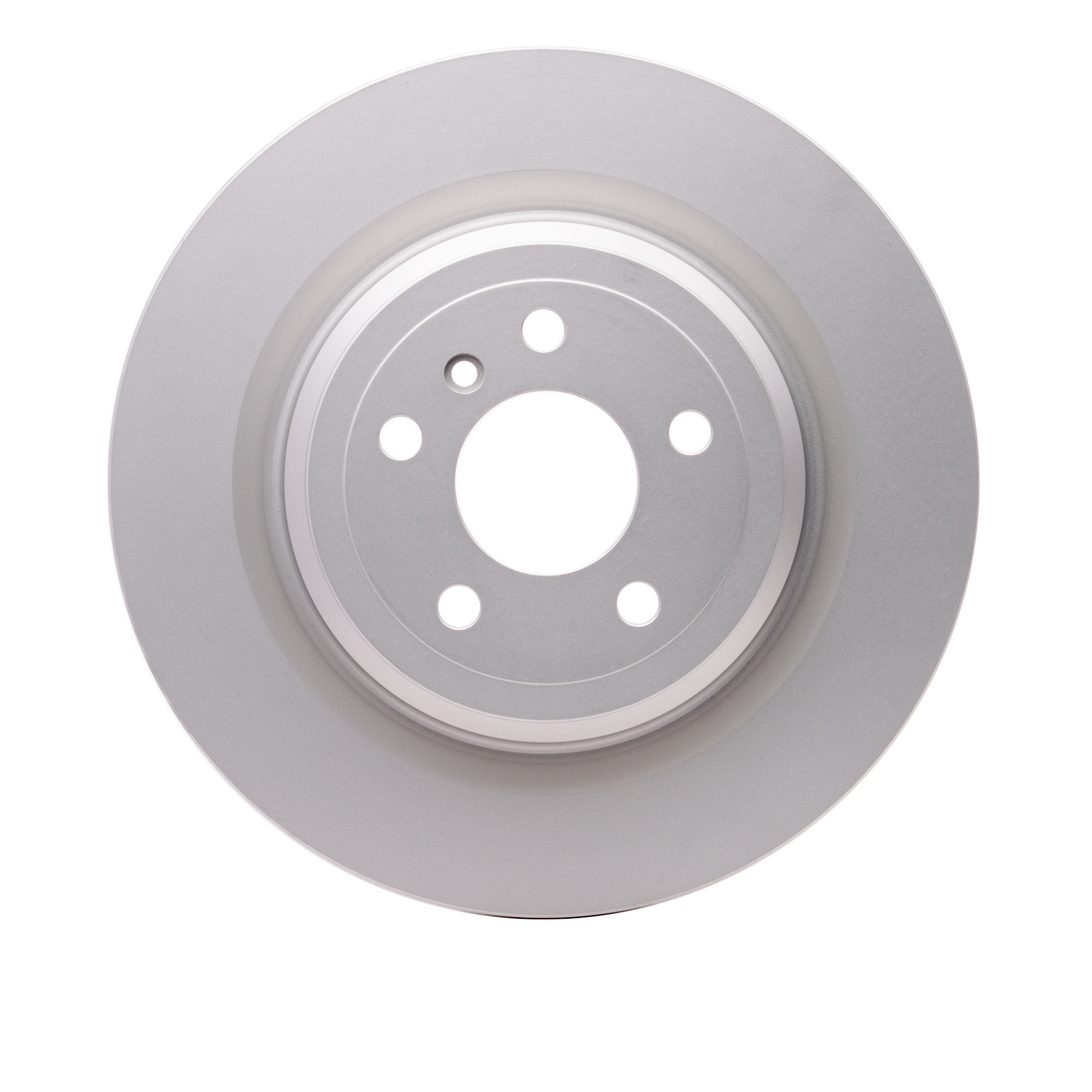

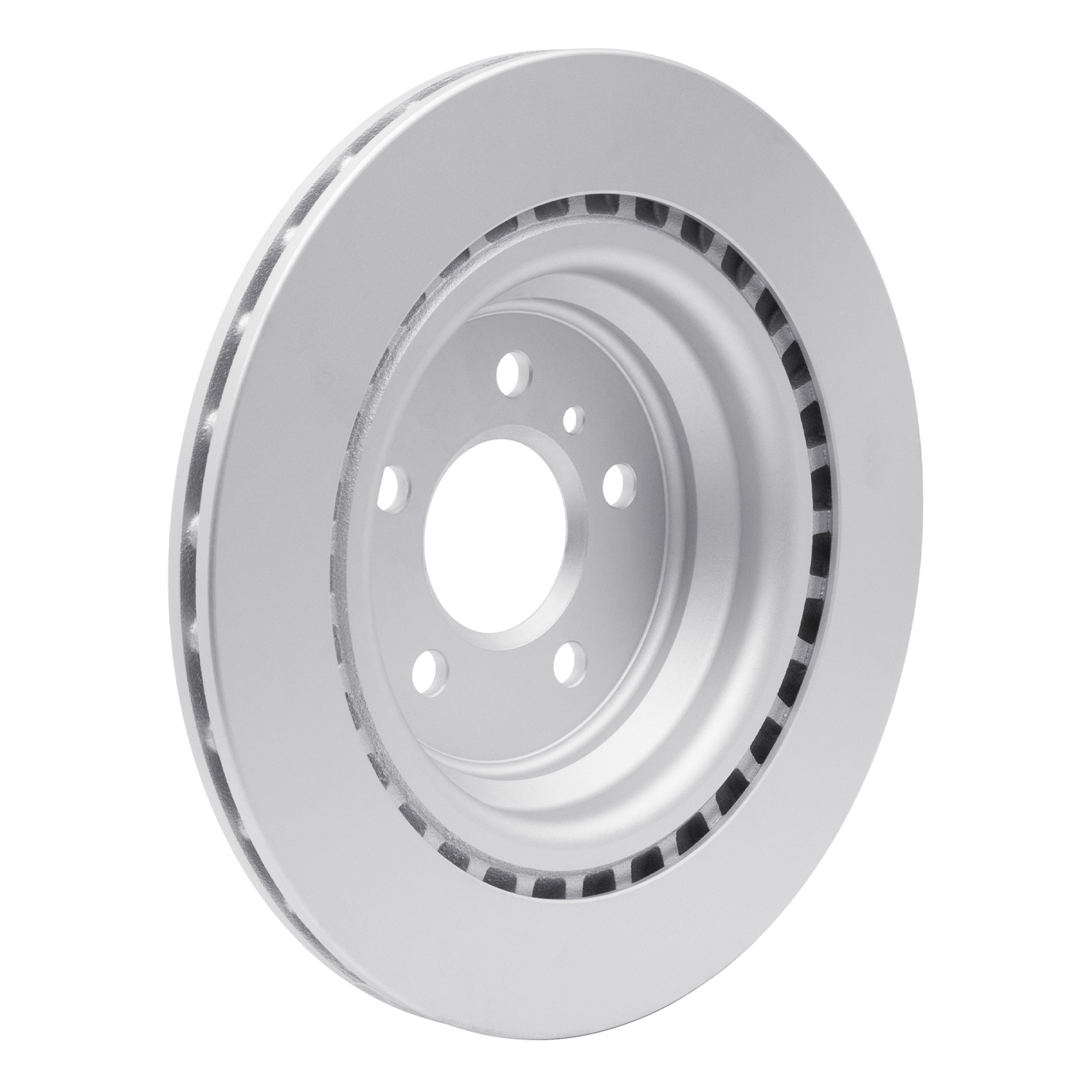

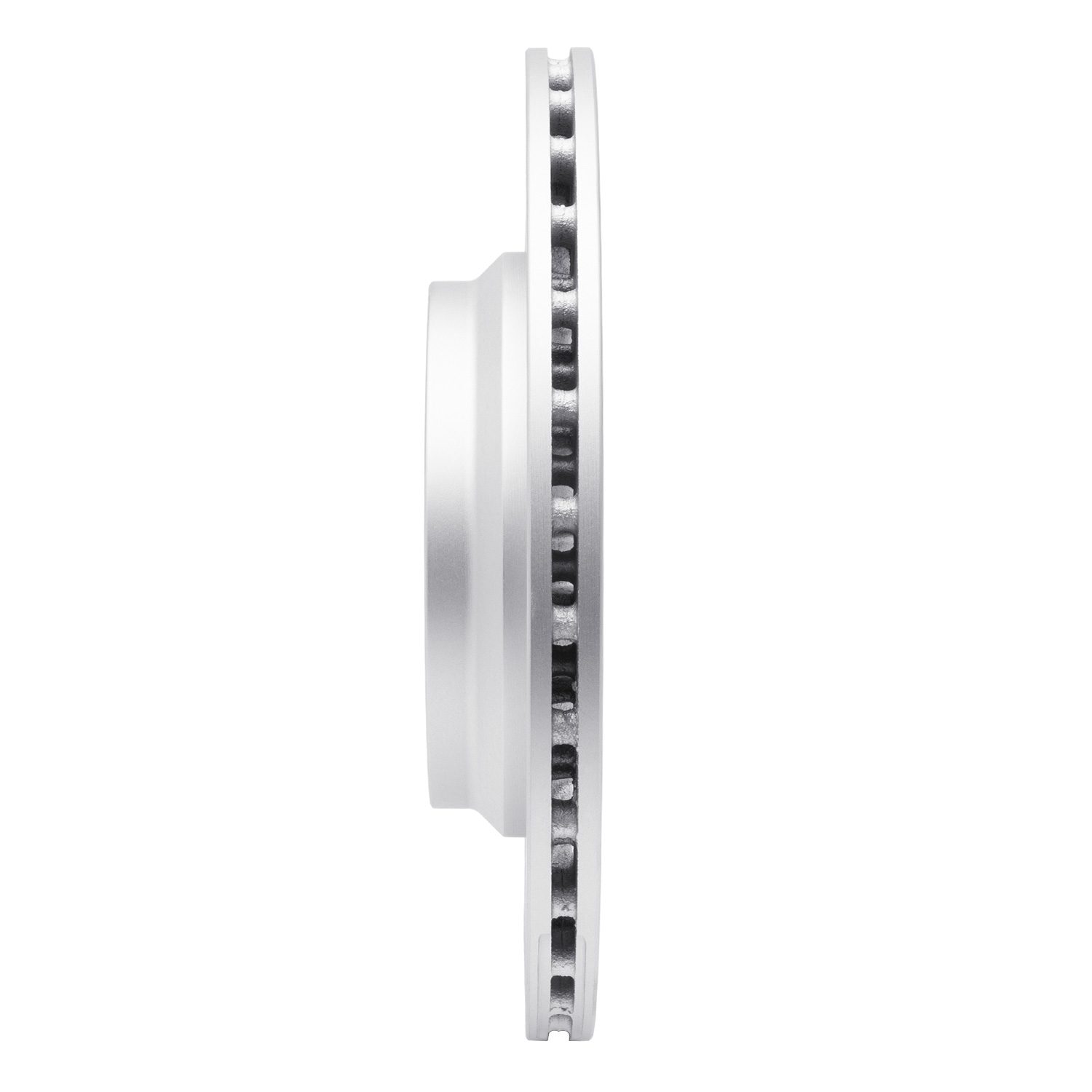

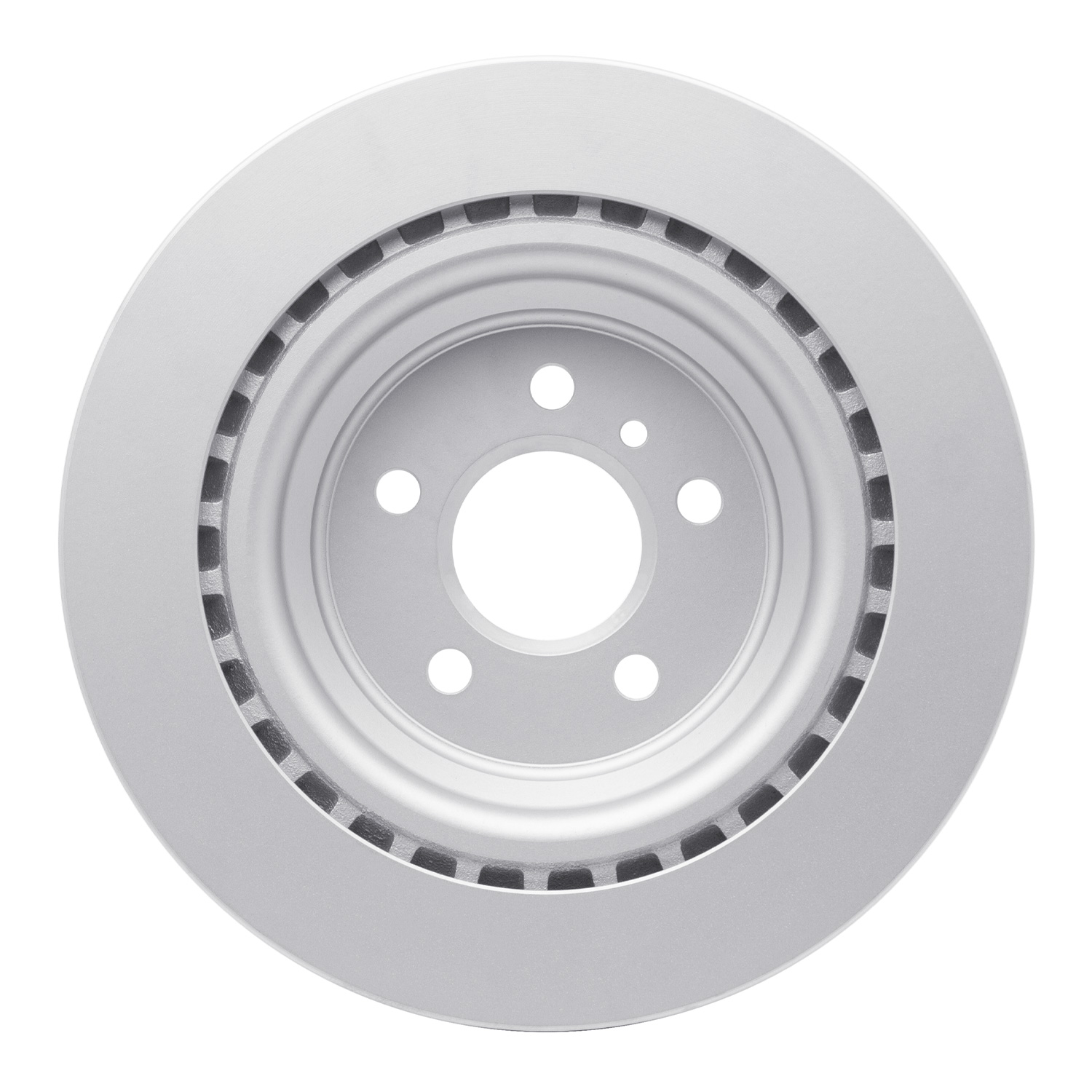

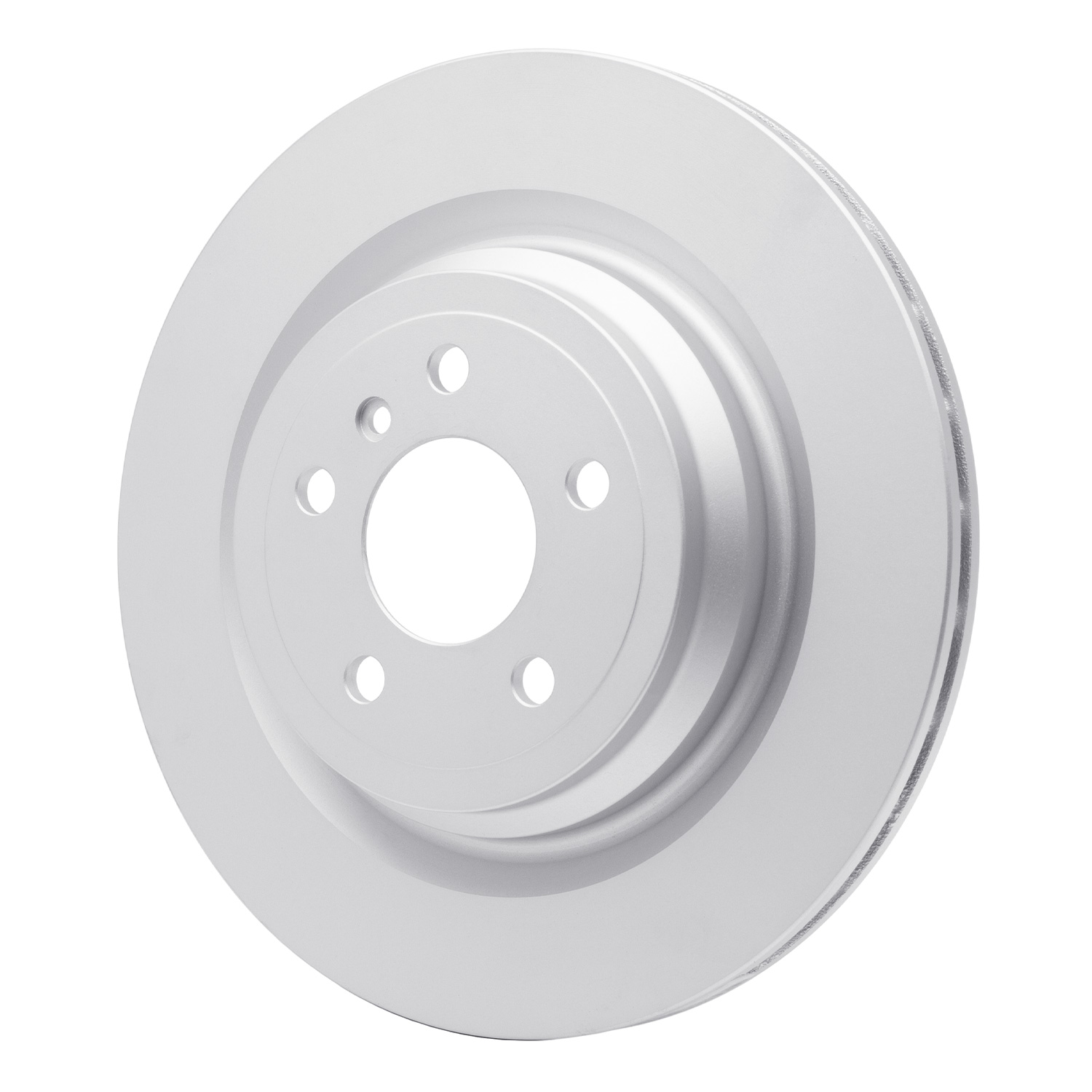

2016 Mercedes-Benz GLE400 DFC Hi-Carbon Alloy GEOMET Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
900-63140
Axle:
Rear
PCQ:
2
Note:

AMG Sport

Description

  • DFC Hi- Carbon Alloy GEOMET Coated

Features and Benefits

  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Fined Turned Finish (16 RMS) For Improved Initial Rotor And Pad Break-In
  • 100% Precision Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Geomet® Coated To Provide High-Performance Corrosion Protection
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Disc Thickness Variation (DTV) - 010 MM Maximum
  • Lateral Runout - 050 MM Maximum

Product Specifications

Description Value
Height 54mm
Discard Thickness 19.4mm
Bolt Hole Quantity 5EA
Inside Diameter 67.1mm
Solid Or Vented Type Rotor Vented
Nominal Thickness 22mm
Hat Finish GEOMET Grey
Outside Diameter 330mm
Stud/Lug Hole Quantity 5
Rust Resistant Coating Yes
Description Value
Stud/Lug Hole Diameter 15mm
Bolt Hole Diameter 15mm
Directional or Non-Directional Brake Surface Non-Directional
Overall Height 54mm
Stud/Lug Hole Circle Diameter 112mm
Disc Finish Plain
Surface Type Smooth
Center Hole Diameter 67.1mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 17.25LB
