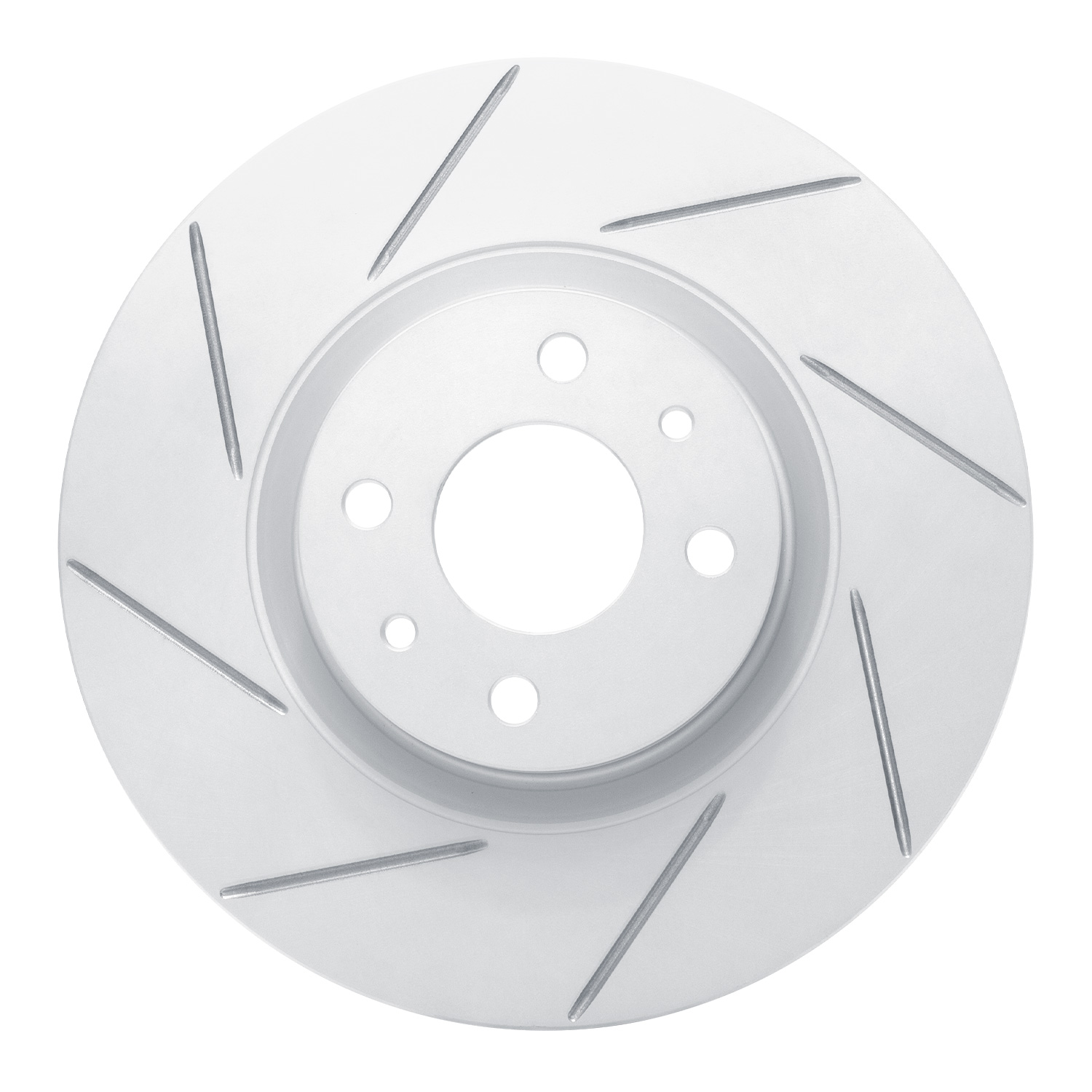

2012 Fiat 500 DFC Geoperformance Rotor - Slotted
Part Type:
Disc Brake Rotor
SKU:
810-07004L
Axle:
Front Left
Sub model:
Abarth
PCQ:
1
Note:
(USA/CANADA)
Product Specifications
| Description | Value |
|---|---|
| Outside Diameter | 284mm |
| Bolt Hole Quantity | 4EA |
| Bolt Hole Diameter | 13.2mm |
| Discard Thickness | 20mm |
| Nominal Thickness | 22mm |
| Height | 43.7mm |
| Hat Finish | Geospec Silver Grey |
| Rust Resistant Coating | Yes |
| Disc Finish | Plain |
| Stud/Lug Hole Circle Diameter | 98mm |
| Description | Value |
|---|---|
| Surface Type | Slotted |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). | |
| Overall Height | 43.7mm |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 13.2mm |
| Center Hole Diameter | 59mm |
| Directional or Non-Directional Brake Surface | Directional |
| Stud/Lug Hole Quantity | 4 |
| Bolt Circle Diameter | 98mm |
| Weight | 14.15LB |
