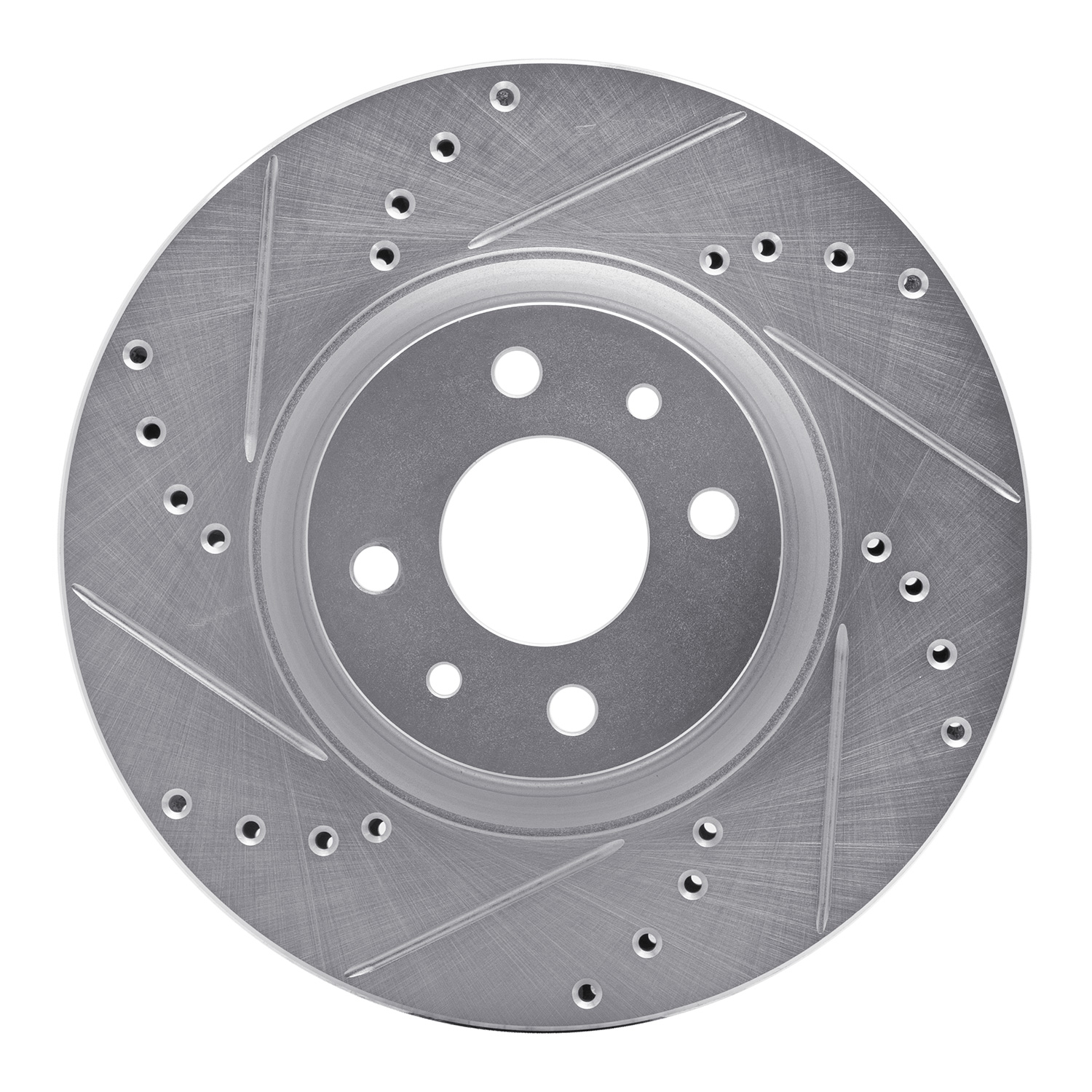

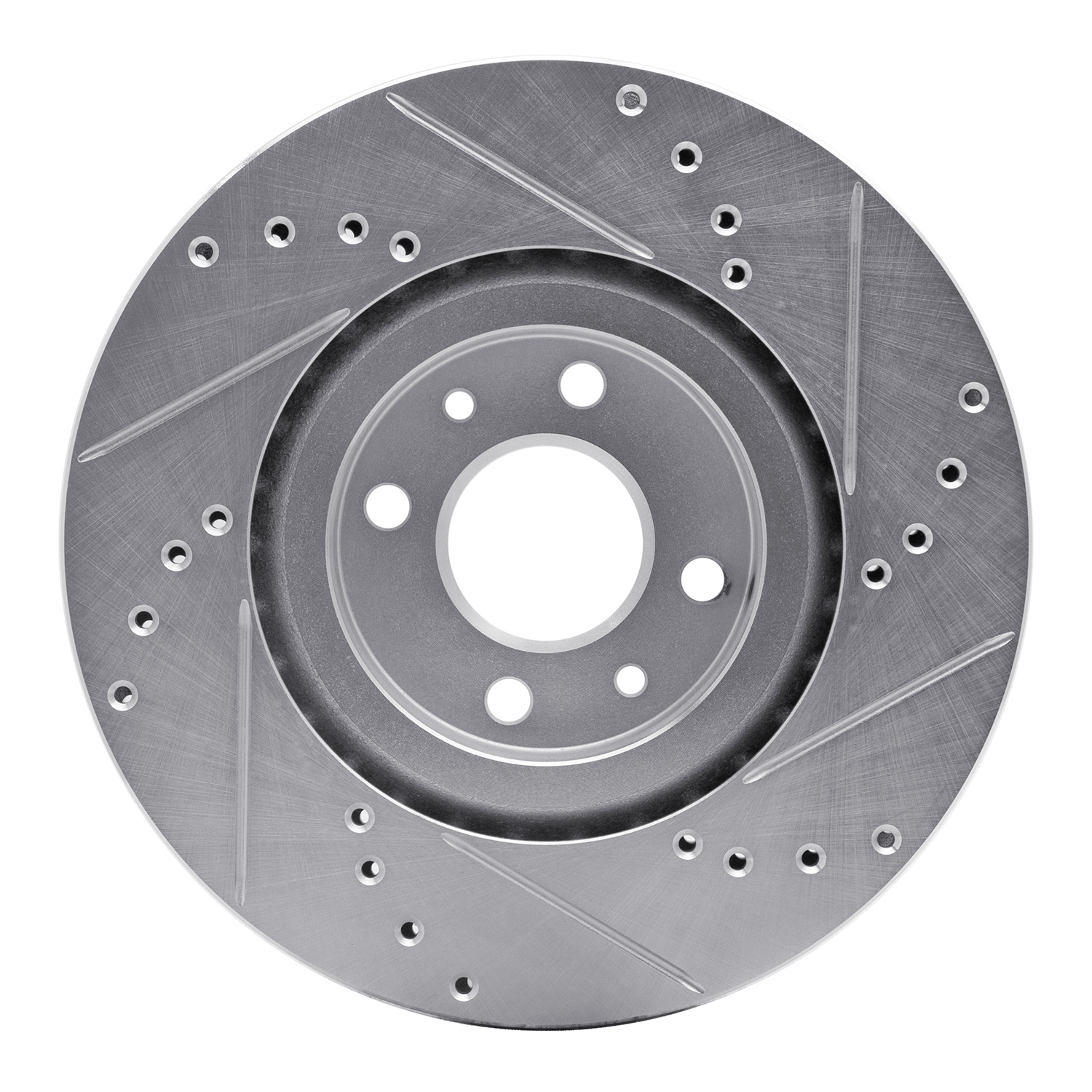

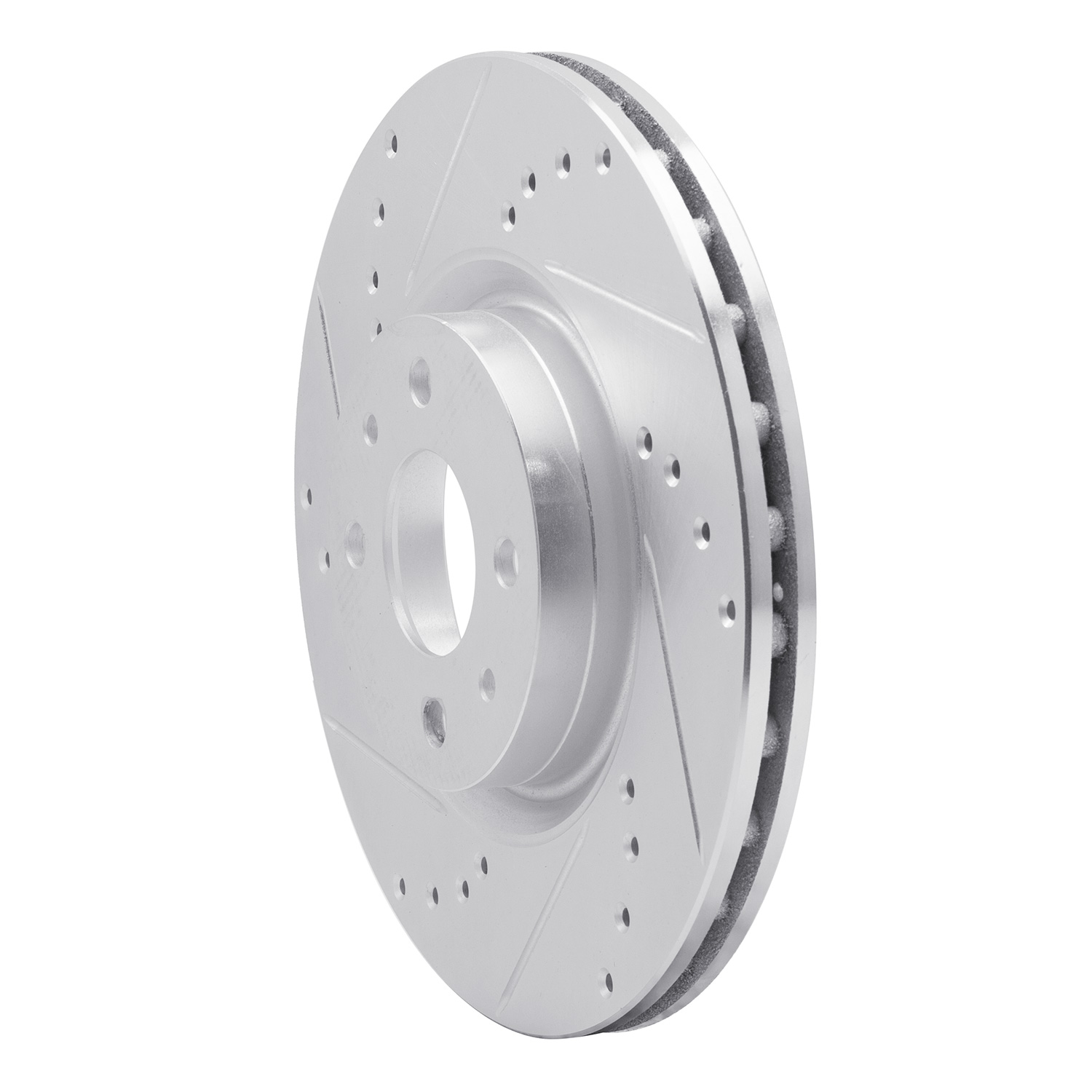

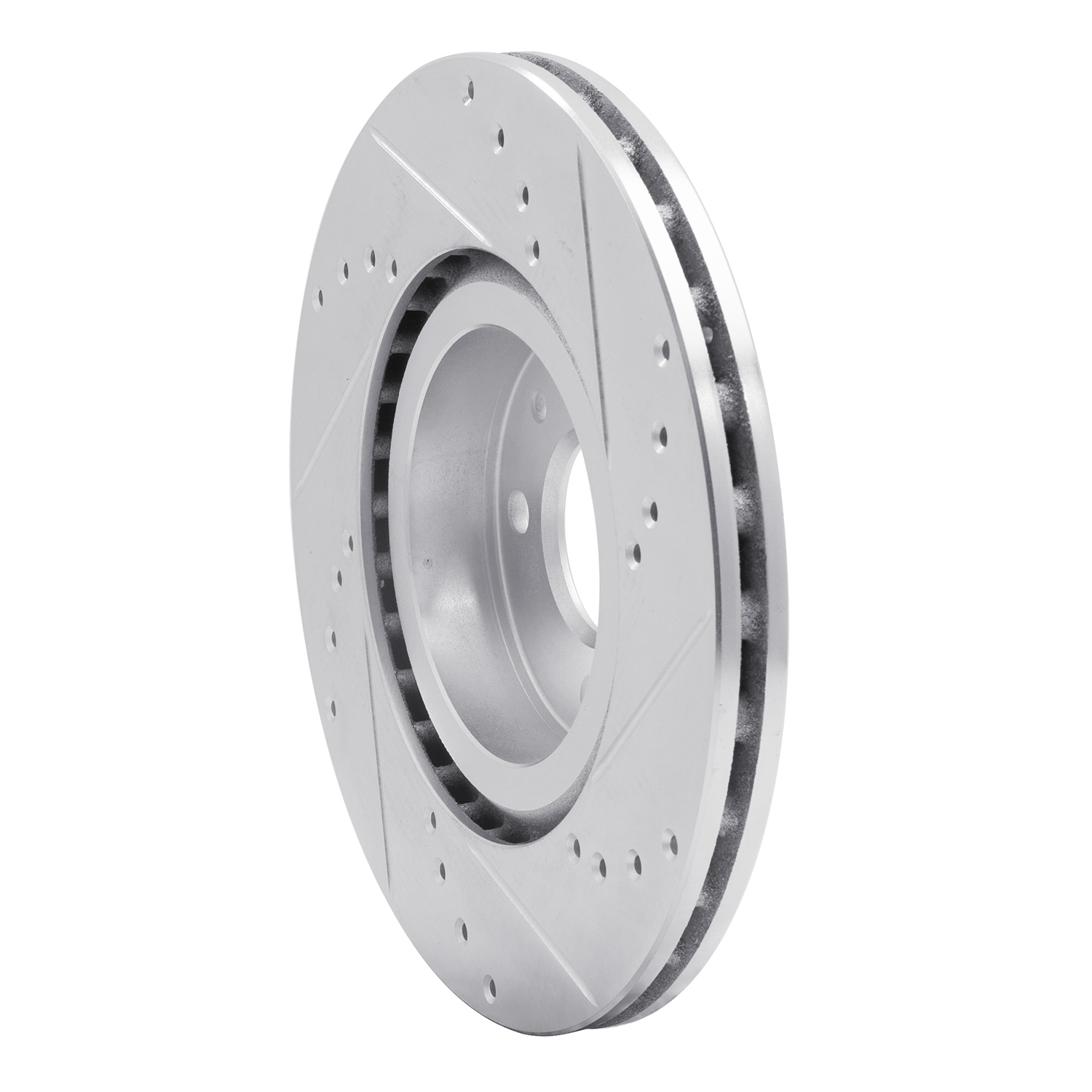

2012 Fiat 500 DFC Brake Rotor - Drilled and Slotted - Silver

Part Type:
Disc Brake Rotor
SKU:
631-07004L
Axle:
Front Left
Sub model:
Abarth
PCQ:
1
Note:

(USA/CANADA)

Description

  • DFC Brake Rotor - Drilled and Slotted - Silver

Features and Benefits

  • New In Box, Ready To Install, No Modifications Required
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Bolt Hole Quantity 4EA
Bolt Hole Diameter 13.2mm
Discard Thickness 20mm
Outside Diameter 284mm
Height 43.7mm
Solid Or Vented Type Rotor Vented
Nominal Thickness 22mm
Disc Finish Plain
Surface Type Slotted X Drilled
Stud/Lug Hole Quantity 4
Description Value
Rust Resistant Coating Yes
Hat Finish Zinc Silver
Stud/Lug Hole Circle Diameter 98mm
Bolt Circle Diameter 98mm
Overall Height 43.7mm
Center Hole Diameter 59mm
Stud/Lug Hole Diameter 13.2mm
Directional or Non-Directional Brake Surface Directional
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 14.15LB
