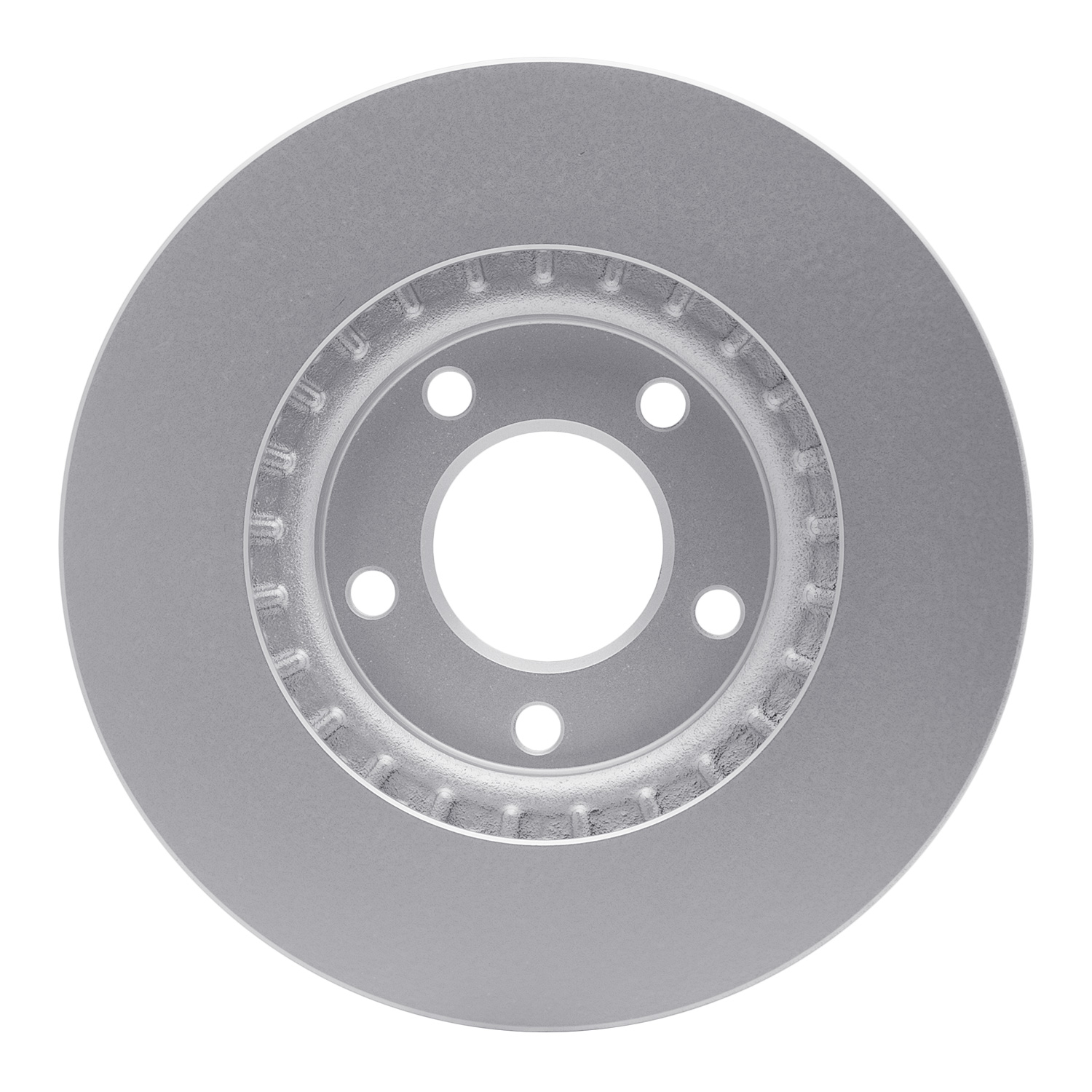

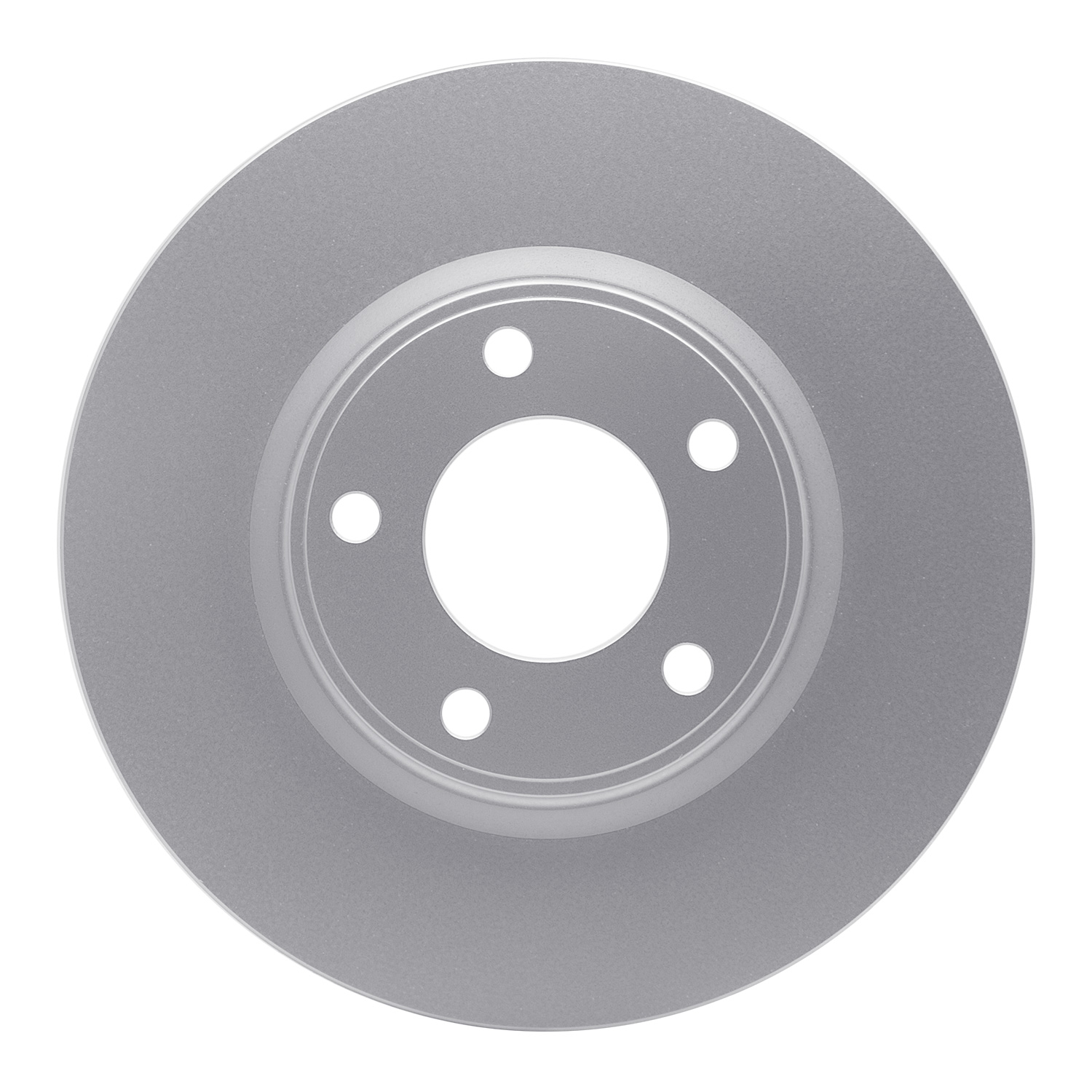

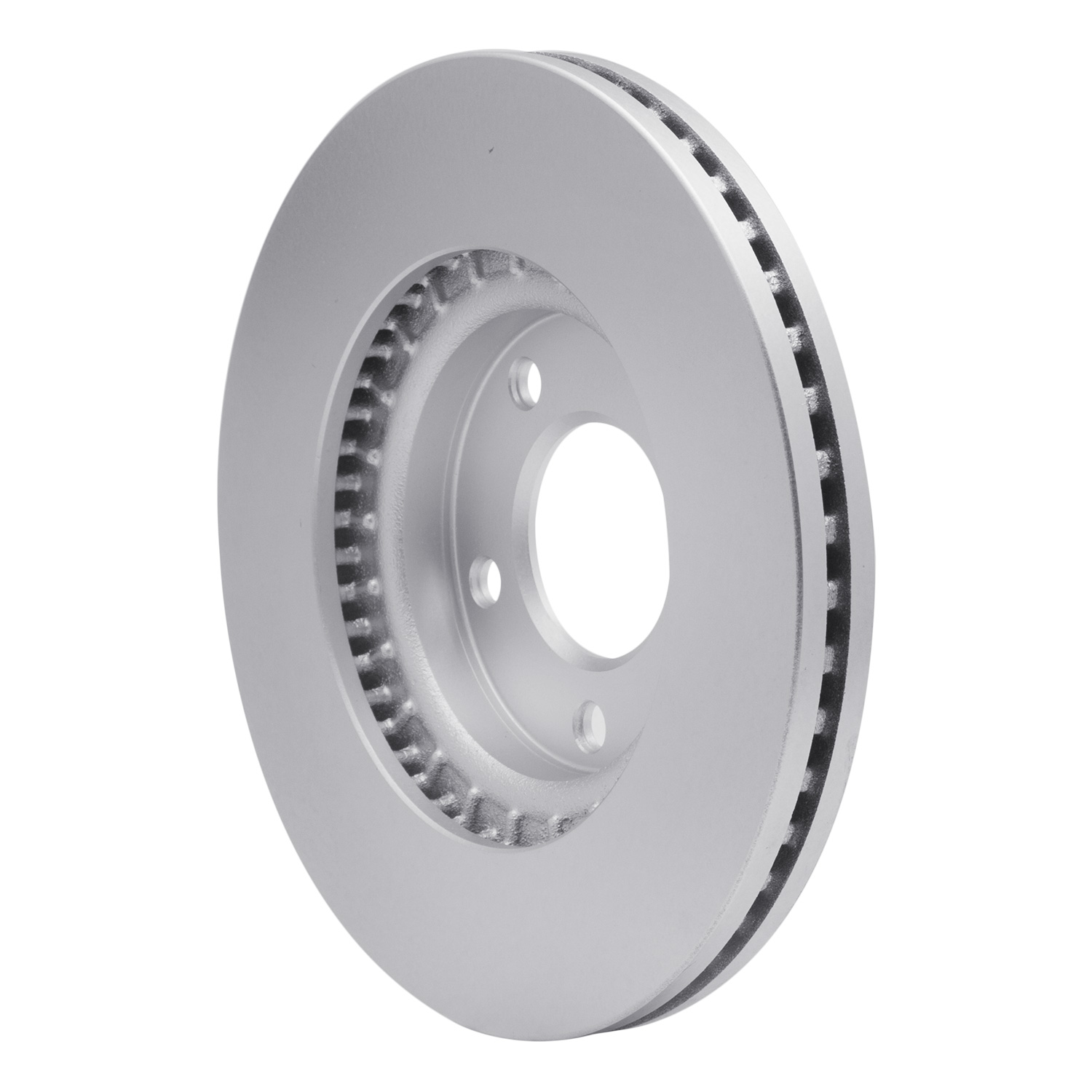

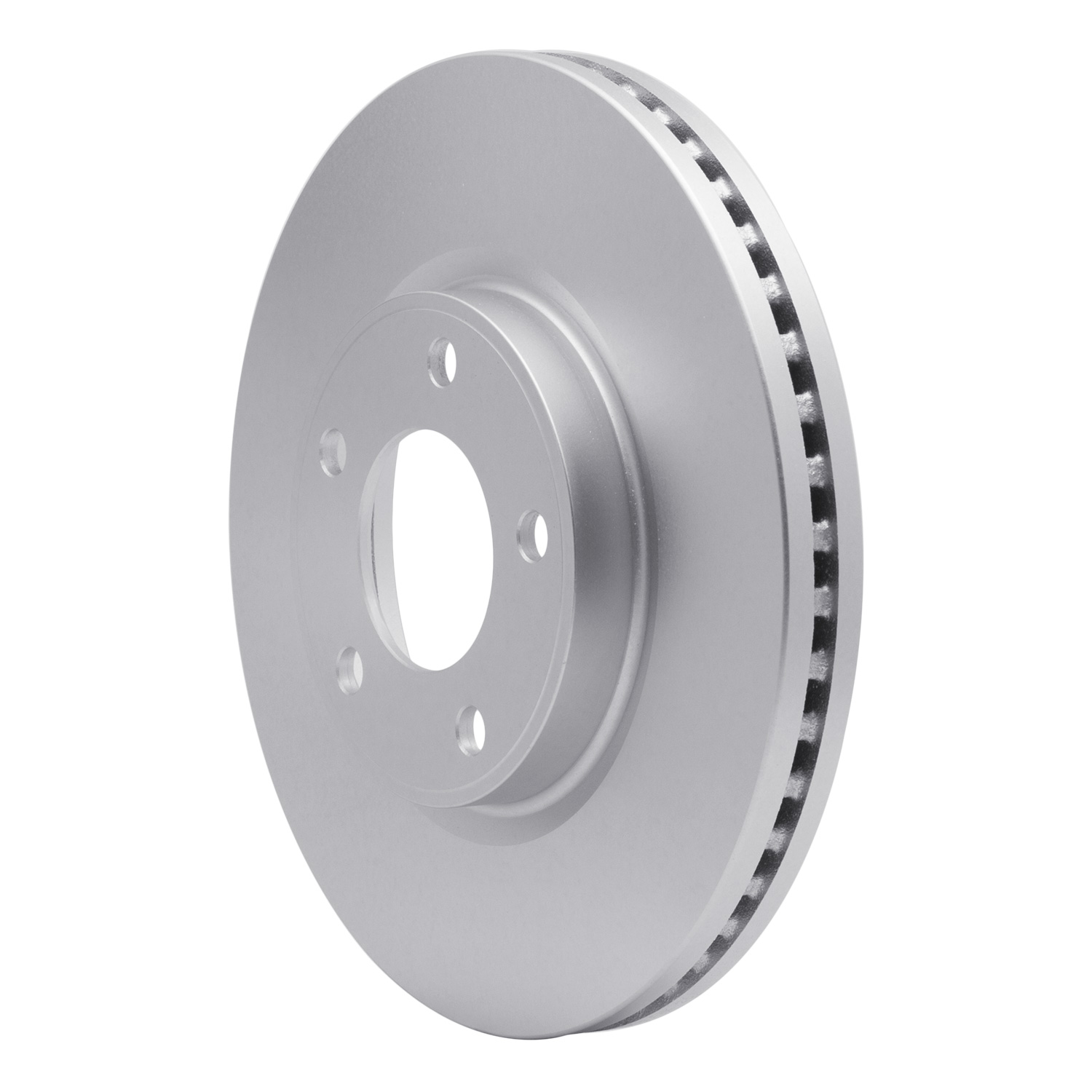

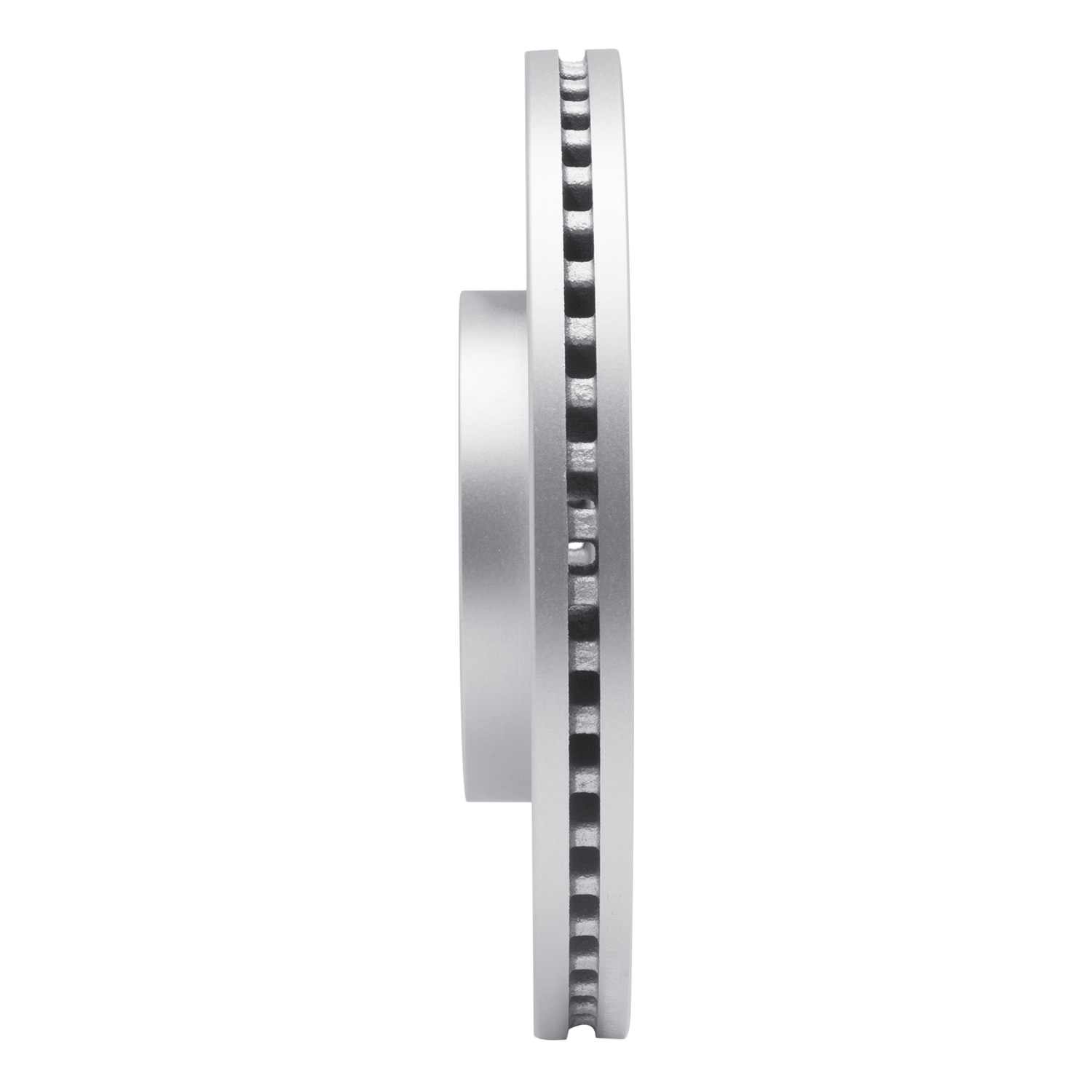

2007 Ford Edge DFC GEOSPEC Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
604-54091
Axle:
Front
Drive Type:
FWD
PCQ:
2

Description

  • DFC GEOSPEC Coated Rotor - Blank

Features and Benefits

  • CNC-Machined To The Tightest Tolerances
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Quality Tested To Ensure Long-Lasting Performance
  • Provides Superior Corrosion Protection Over Zinc / Conventional Painting
  • Ready To Install - No Additional Pre-Degreasing Preparation Needed (Saves Time And Money During Installation Process)

Product Specifications

Description Value
Bolt Hole Quantity 5EA
Inside Diameter 72mm
Height 48.3mm
Outside Diameter 296mm
Discard Thickness 26mm
Overall Height 48.3mm
Surface Type Smooth
Nominal Thickness 28mm
Bolt Hole Diameter 14mm
Center Hole Diameter 72mm
Description Value
Stud/Lug Hole Circle Diameter 114.3mm
Disc Finish Plain
Rust Resistant Coating Yes
Directional or Non-Directional Brake Surface Non-Directional
Hat Finish GEOSPEC Silver Grey
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 14mm
Weight 19.2LB
