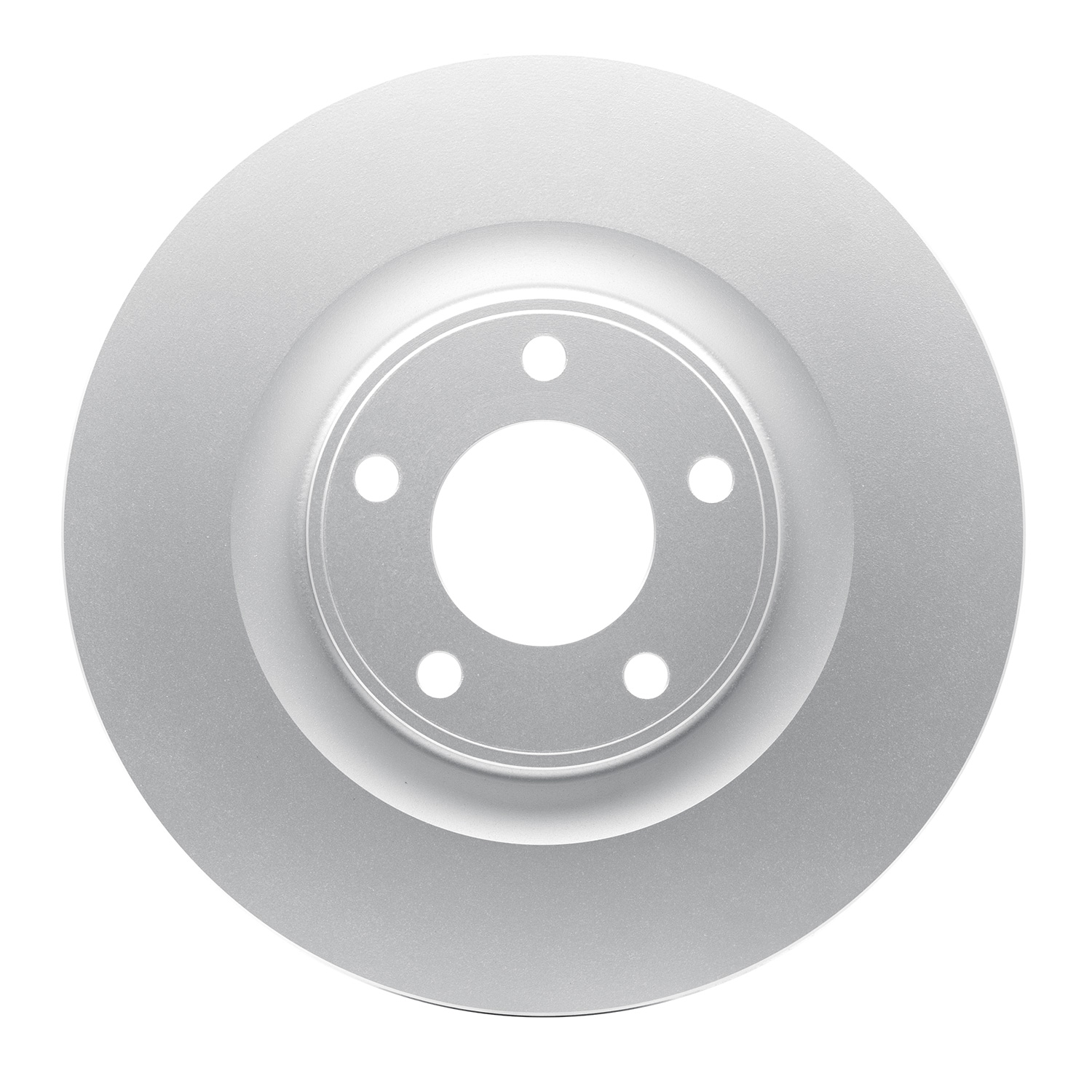

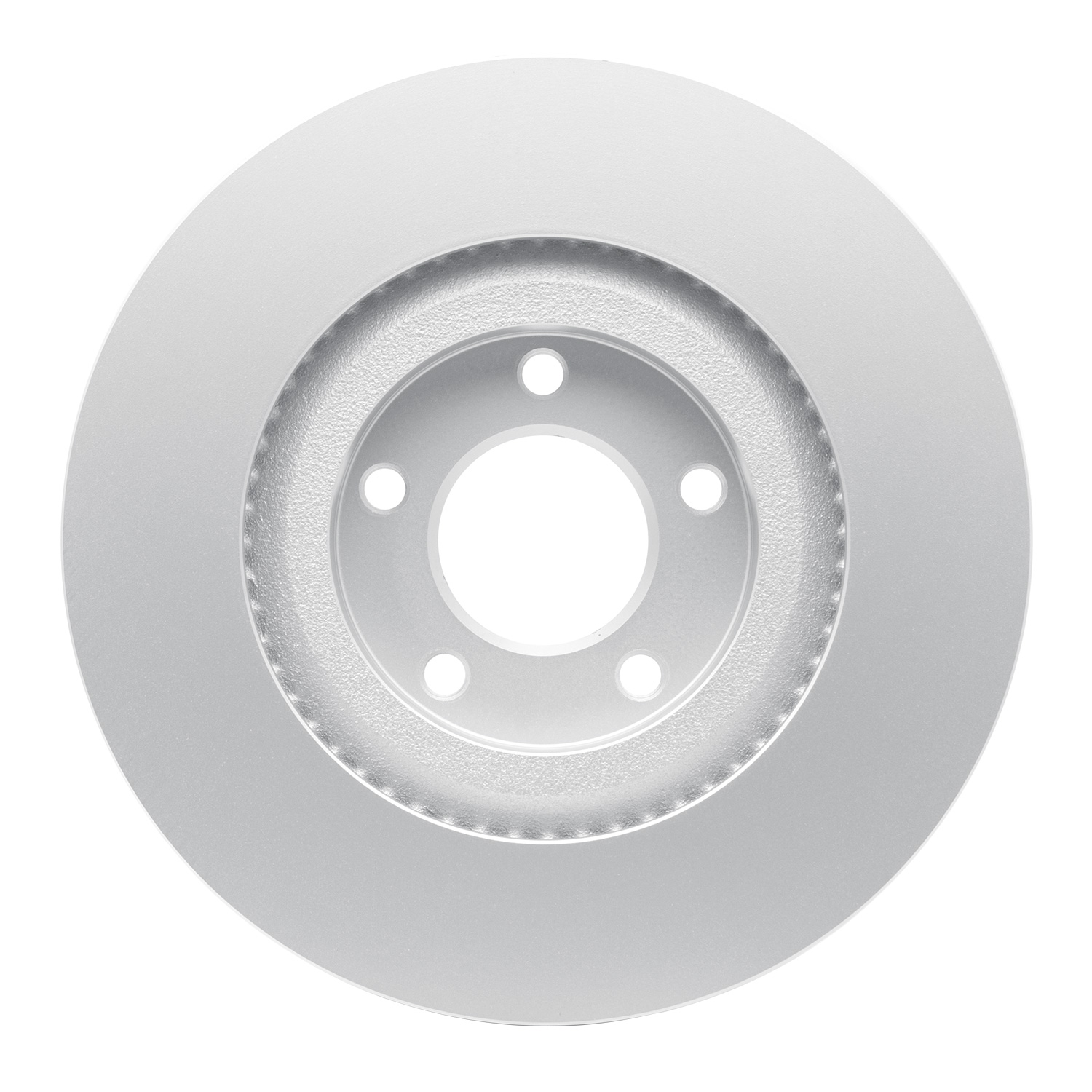

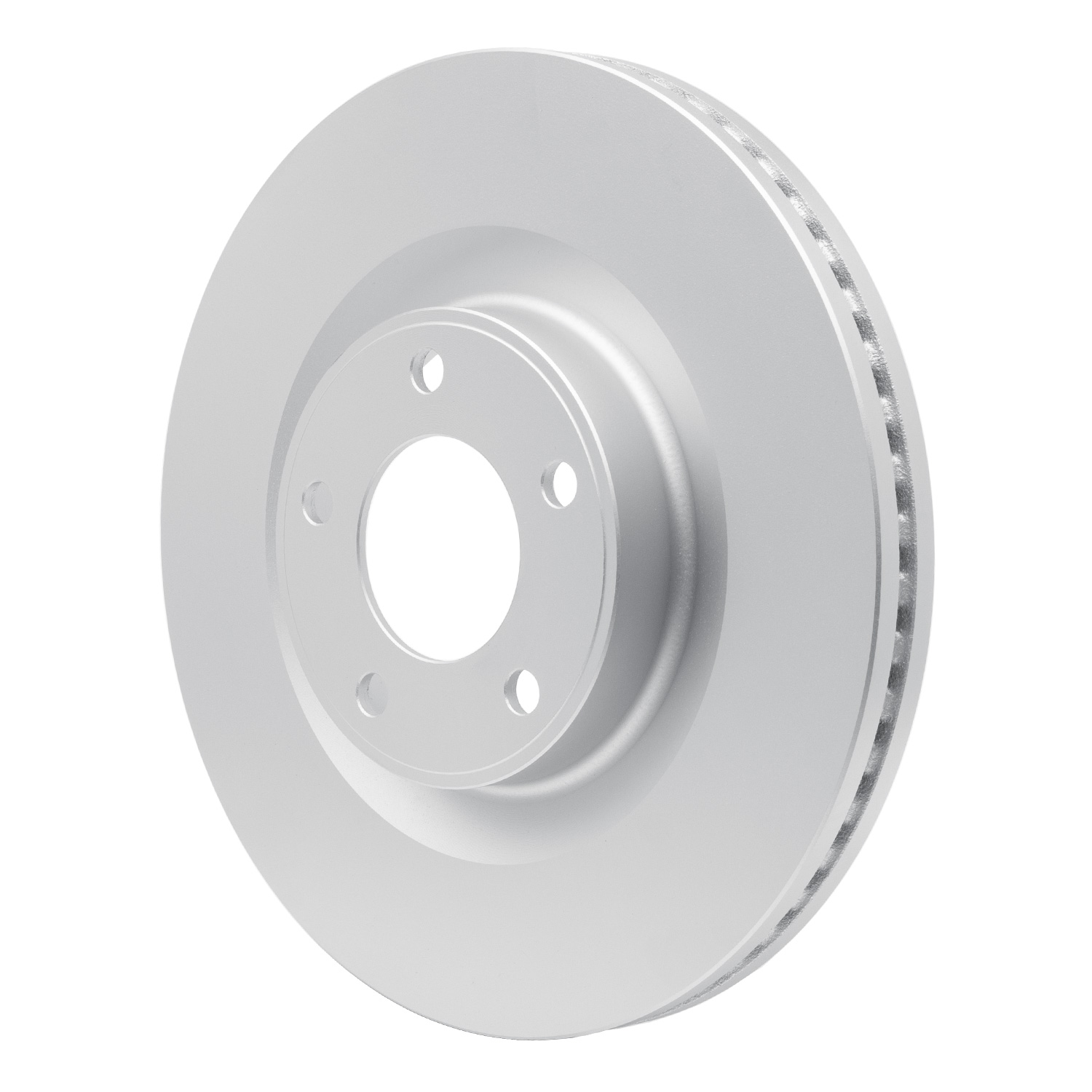

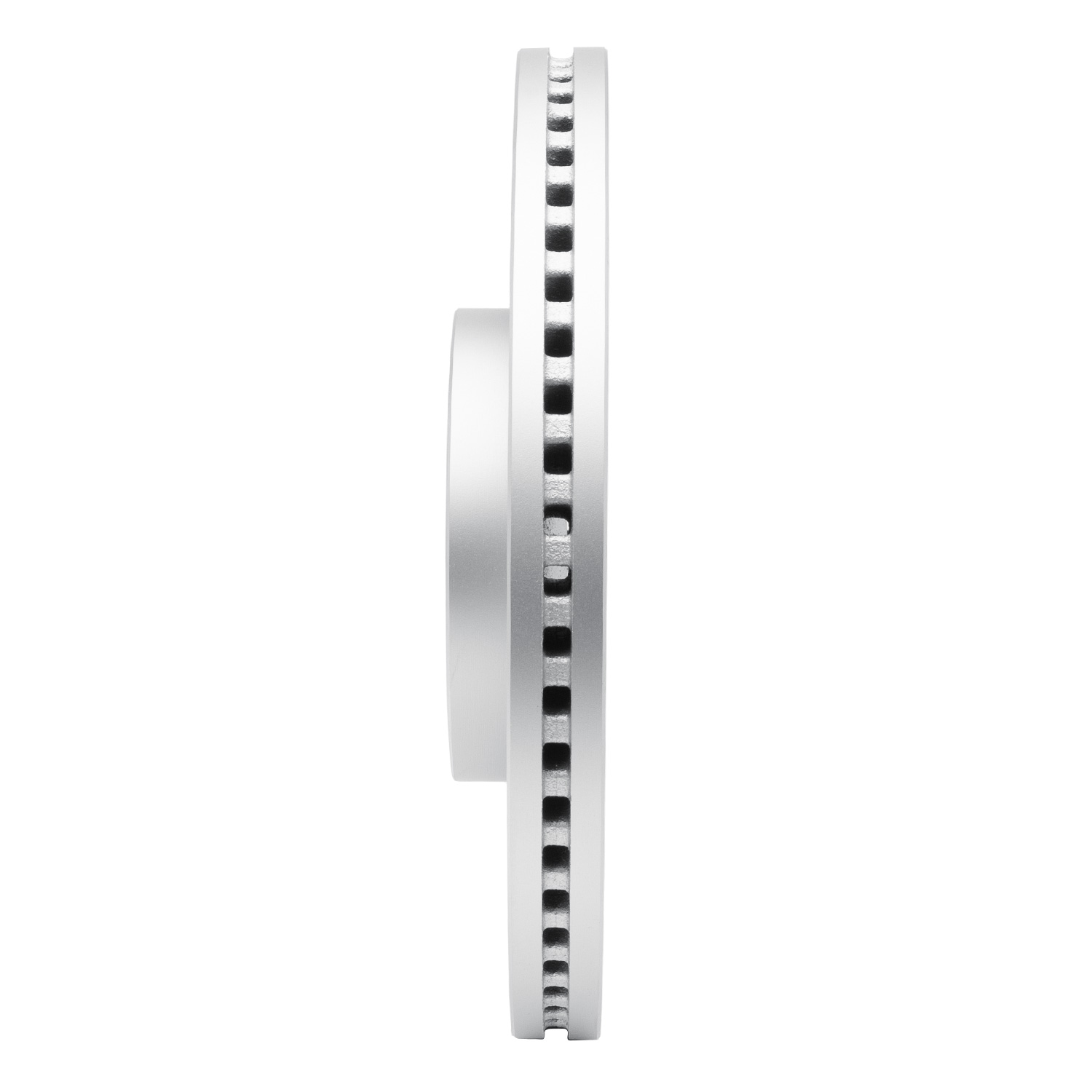

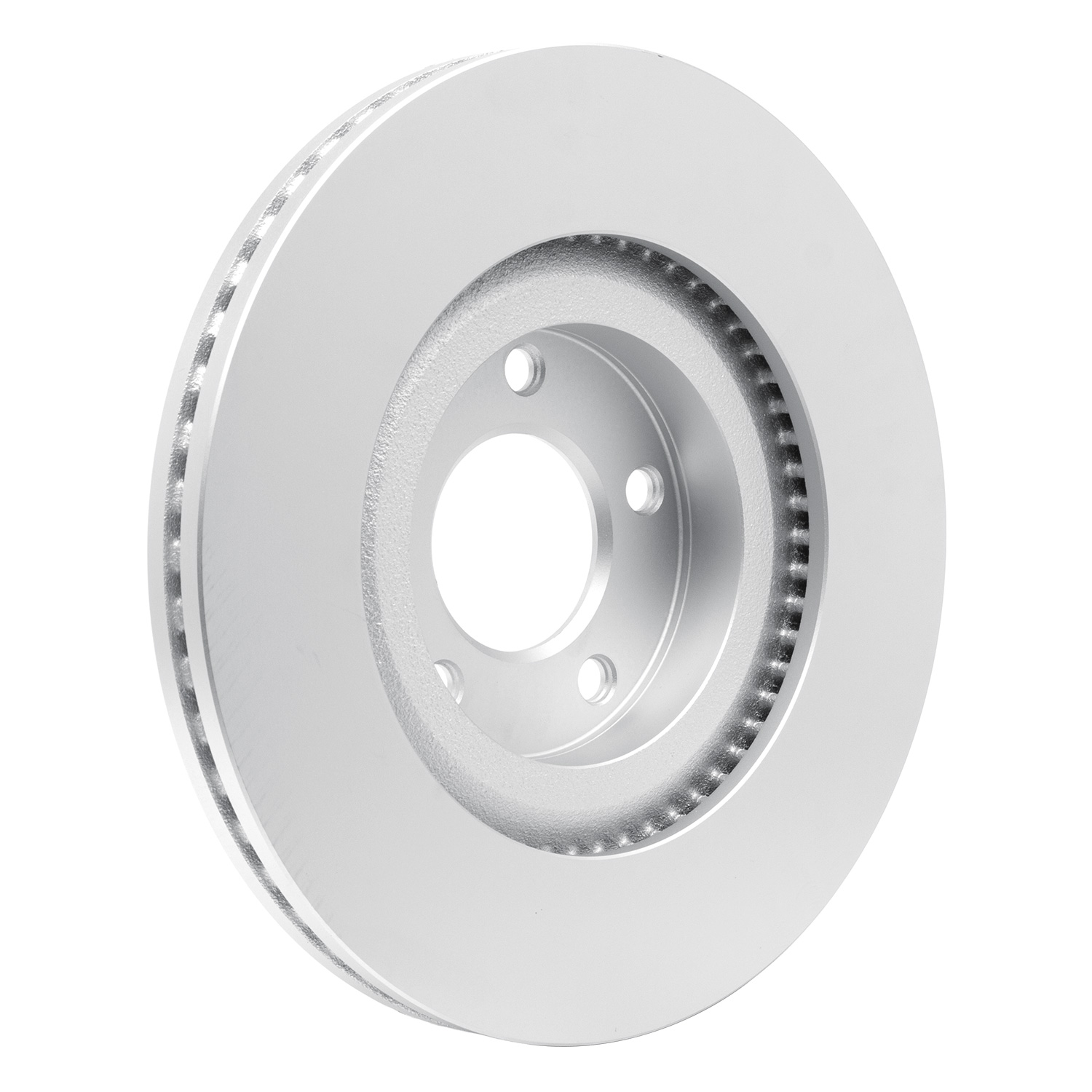

2007 Ford Edge DFC GEOSPEC Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
604-54089
Axle:
Front
Drive Type:
AWD
PCQ:
2

Description

  • DFC GEOSPEC Coated Rotor - Blank

Features and Benefits

  • Provides Superior Corrosion Protection Over Zinc / Conventional Painting
  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Quality Tested To Ensure Long-Lasting Performance
  • Ready To Install - No Additional Pre-Degreasing Preparation Needed (Saves Time And Money During Installation Process)

Product Specifications

Description Value
Bolt Hole Quantity 5EA
Nominal Thickness 28mm
Bolt Hole Diameter 14mm
Inside Diameter 72mm
Outside Diameter 320mm
Hat Finish GEOSPEC Silver Grey
Rust Resistant Coating Yes
Height 48.3mm
Discard Thickness 26mm
Overall Height 48.3mm
Description Value
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Disc Finish Plain
Solid Or Vented Type Rotor Vented
Surface Type Smooth
Center Hole Diameter 72mm
Stud/Lug Hole Circle Diameter 114.3mm
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 14mm
Directional or Non-Directional Brake Surface Non-Directional
Weight 23.7LB
