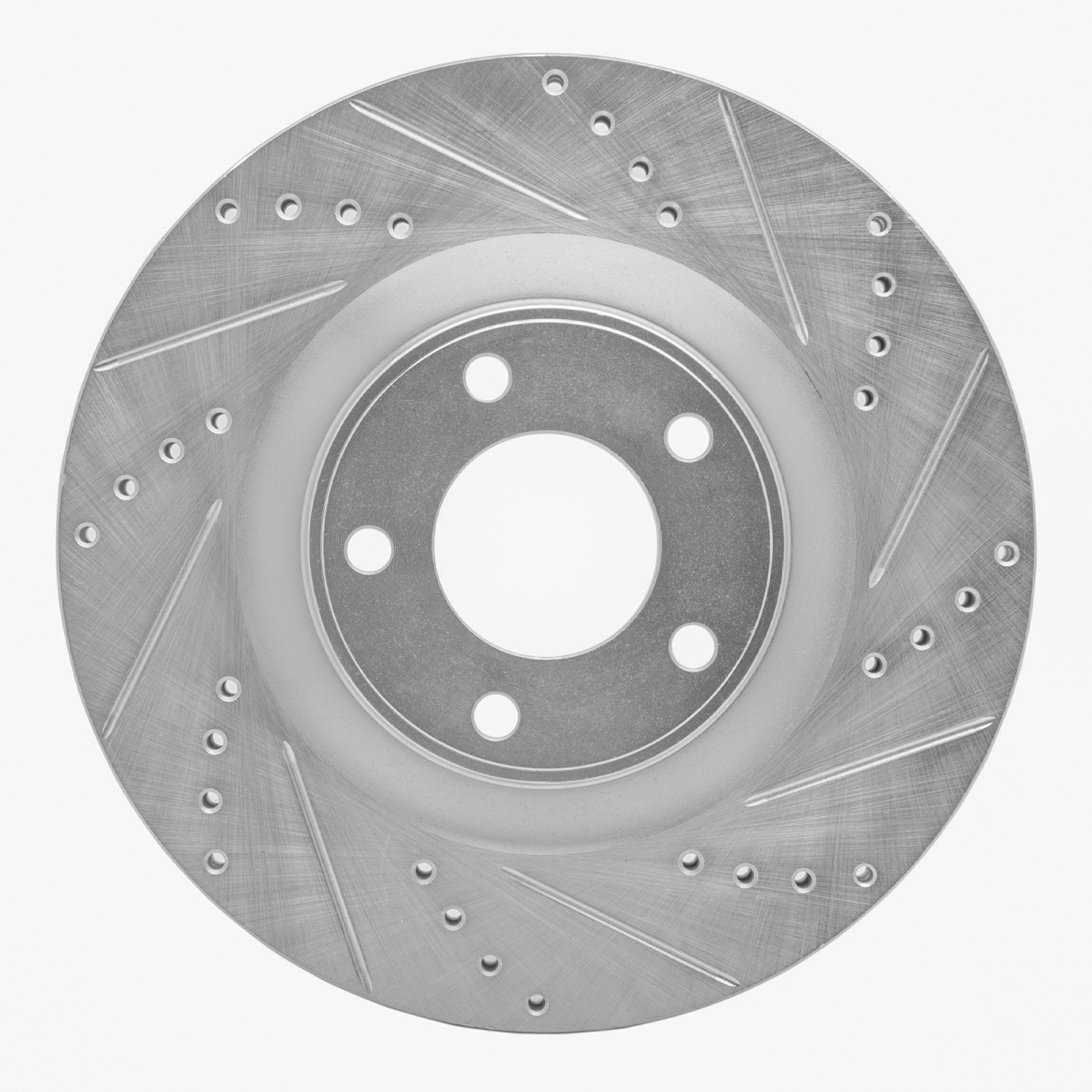

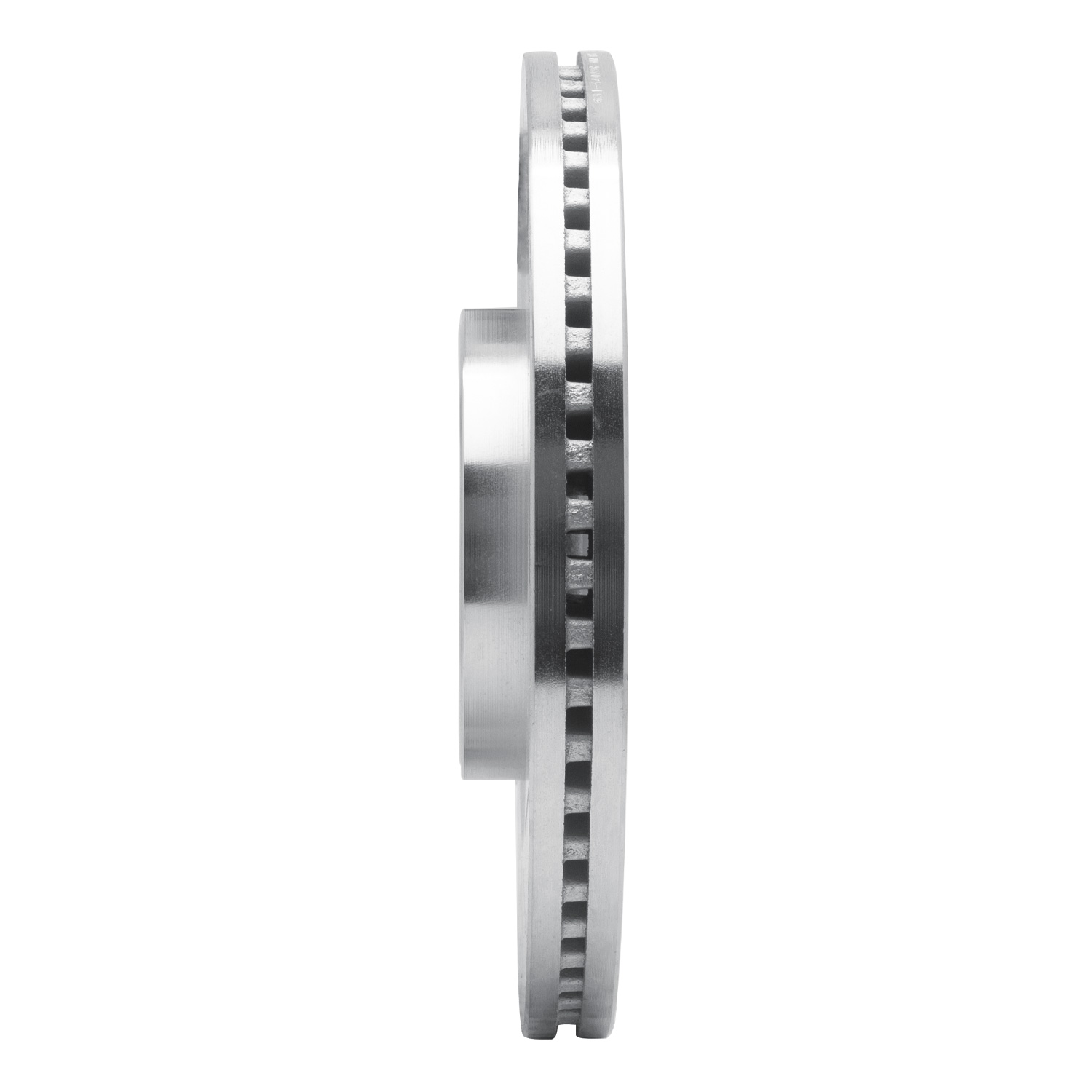

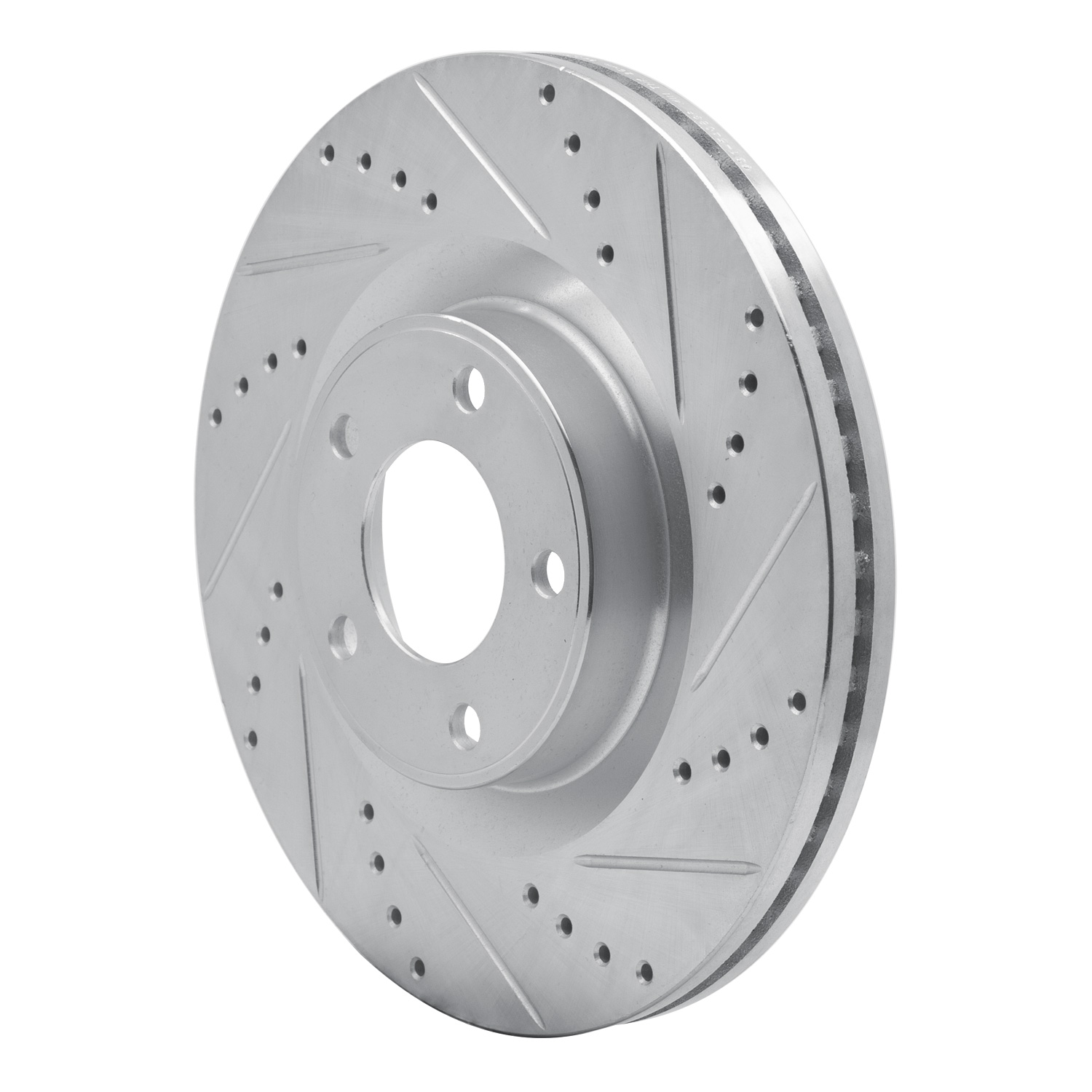

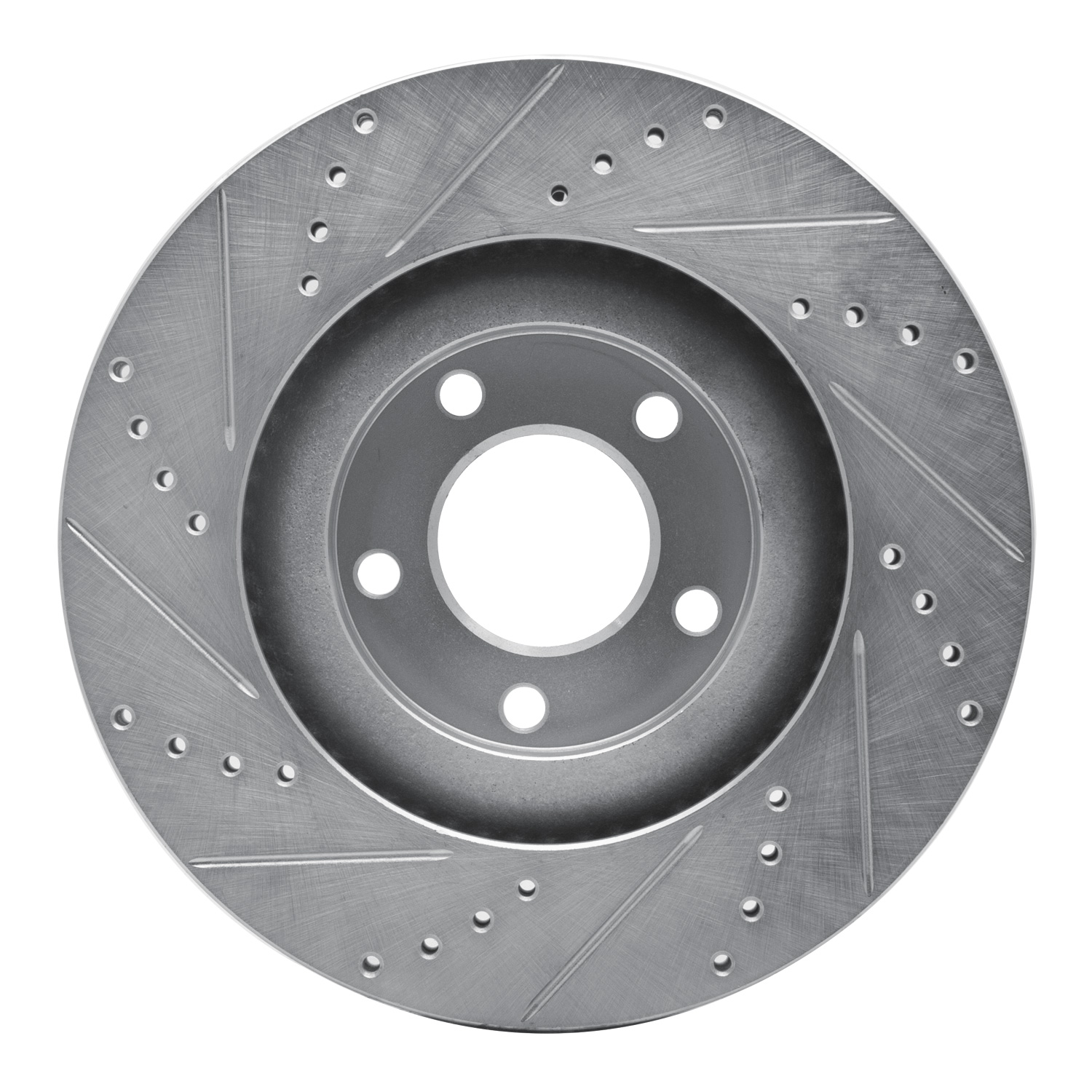

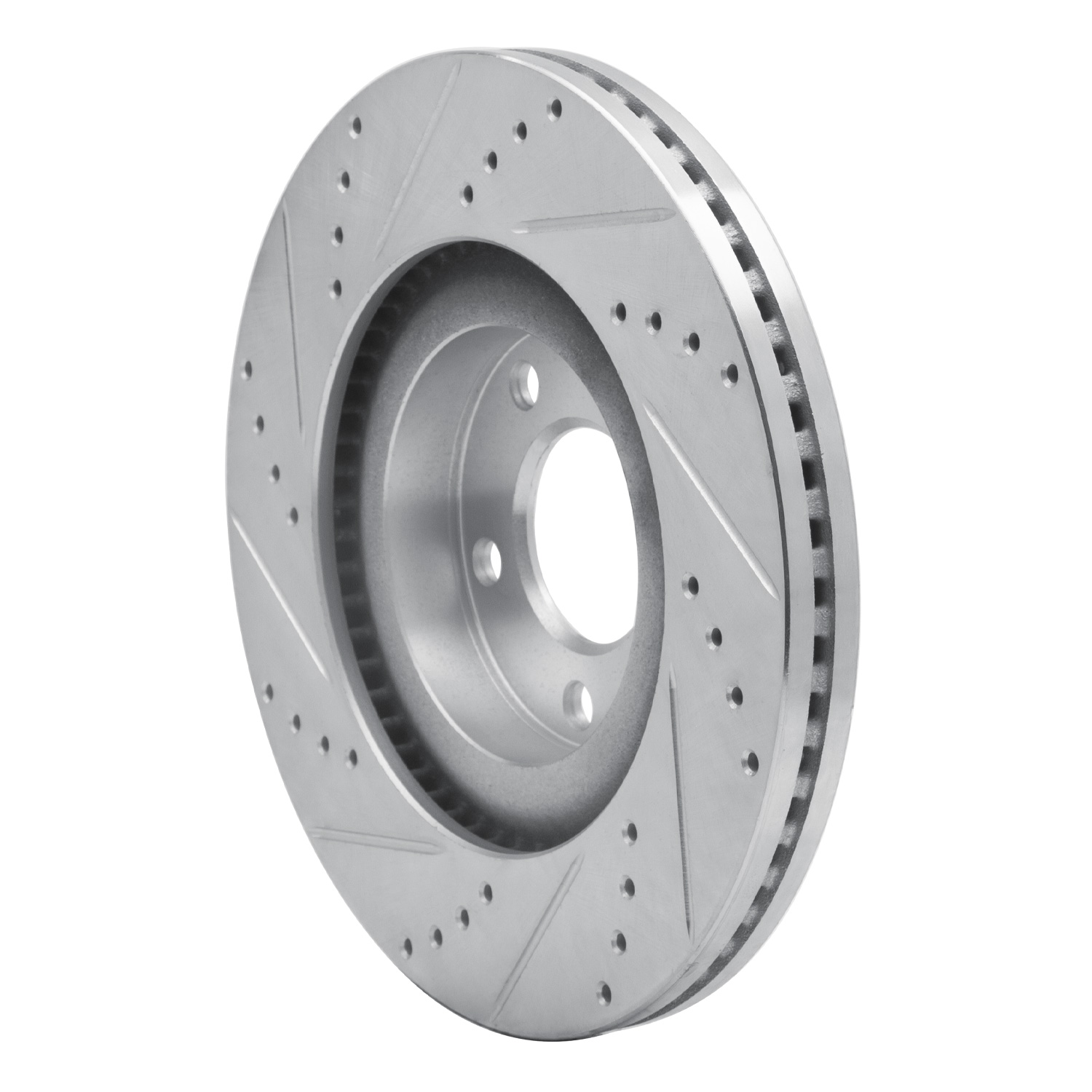

2007 Ford Edge DFC Brake Rotor - Drilled and Slotted - Silver

Part Type:
Disc Brake Rotor
SKU:
631-54089R
Axle:
Front Right
Drive Type:
AWD
PCQ:
1

Description

  • DFC Brake Rotor - Drilled and Slotted - Silver

Features and Benefits

  • New In Box, Ready To Install, No Modifications Required
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • CNC-Machined To The Tightest Tolerances
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge
  • Quality Tested To Ensure Long-Lasting Performance

Product Specifications

Description Value
Nominal Thickness 28mm
Discard Thickness 26mm
Bolt Hole Quantity 5EA
Height 48.3mm
Solid Or Vented Type Rotor Vented
Bolt Hole Diameter 14mm
Outside Diameter 320mm
Disc Finish Plain
Center Hole Diameter 72mm
Surface Type Slotted X Drilled
Description Value
Hat Finish Zinc Silver
Rust Resistant Coating Yes
Stud/Lug Hole Diameter 14mm
Bolt Circle Diameter 114.3mm
Overall Height 48.3mm
Stud/Lug Hole Quantity 5
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Circle Diameter 114.3mm
Weight 23.7LB
