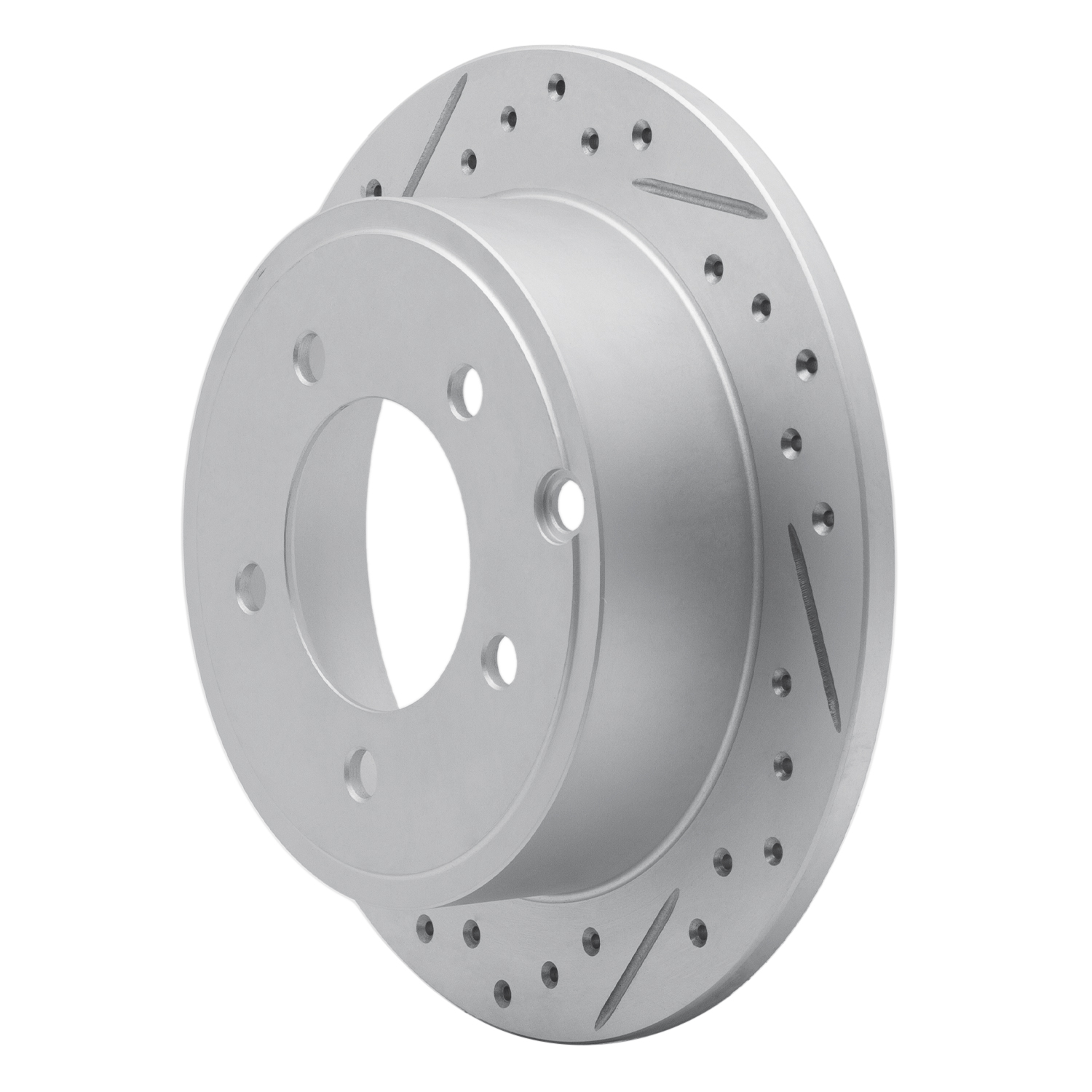

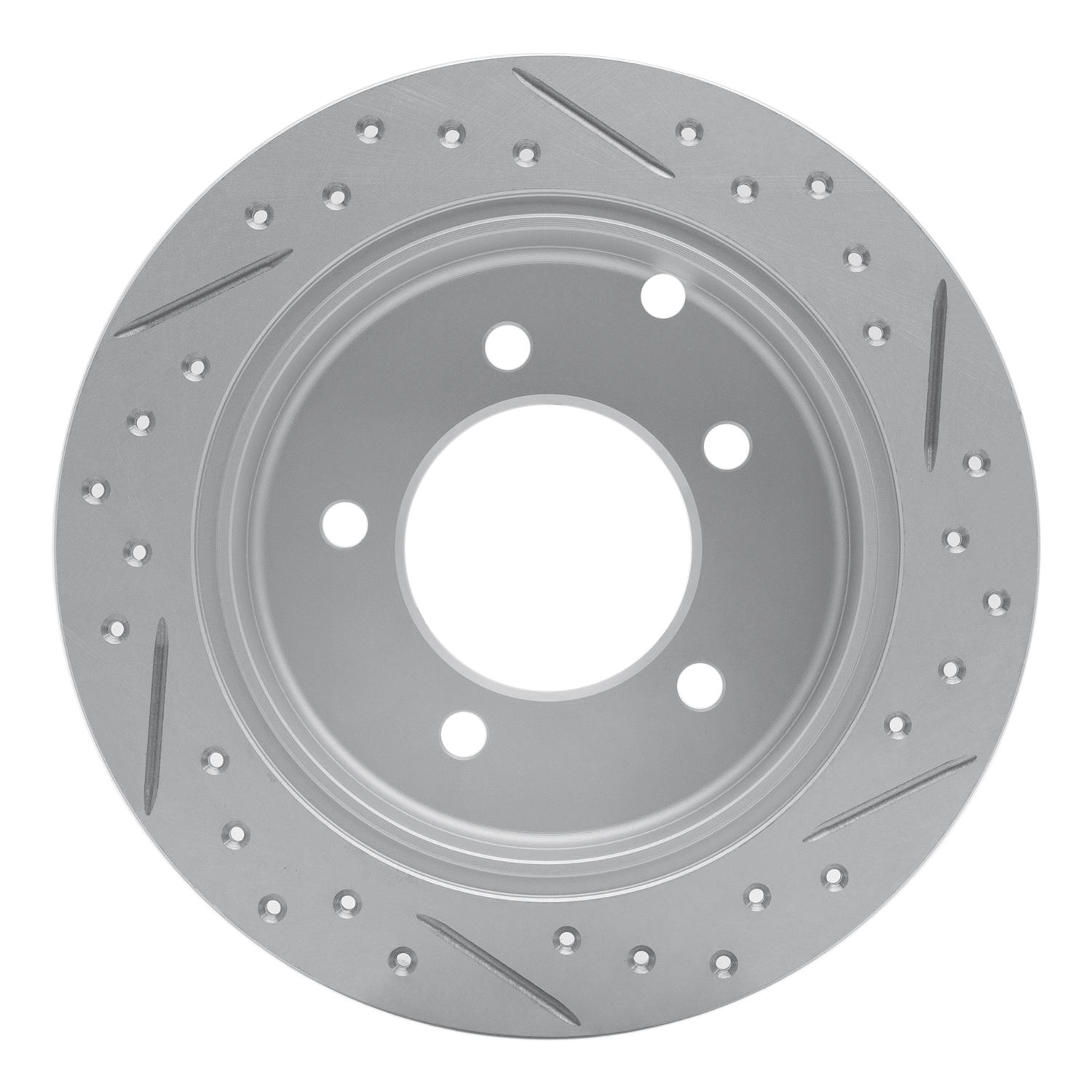

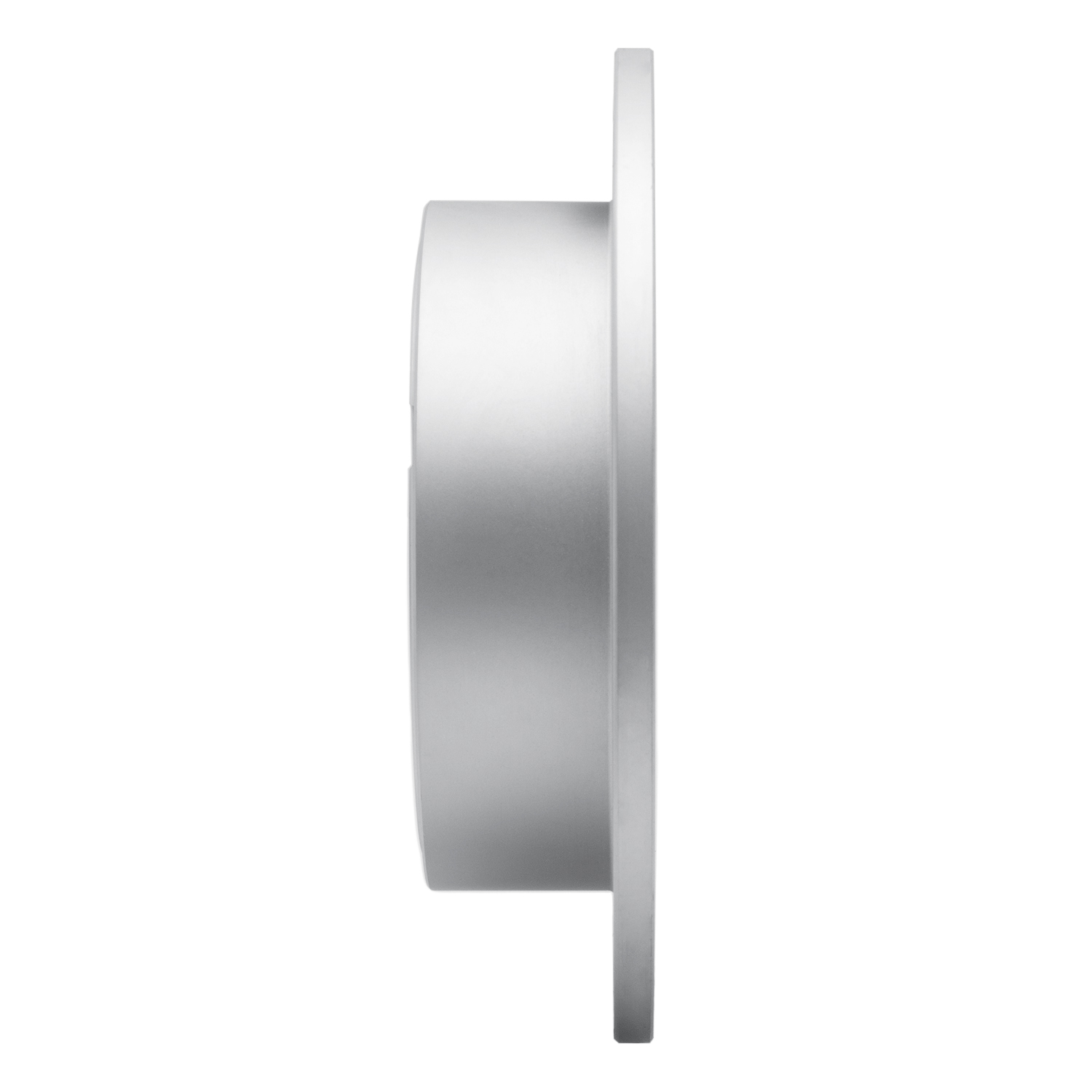

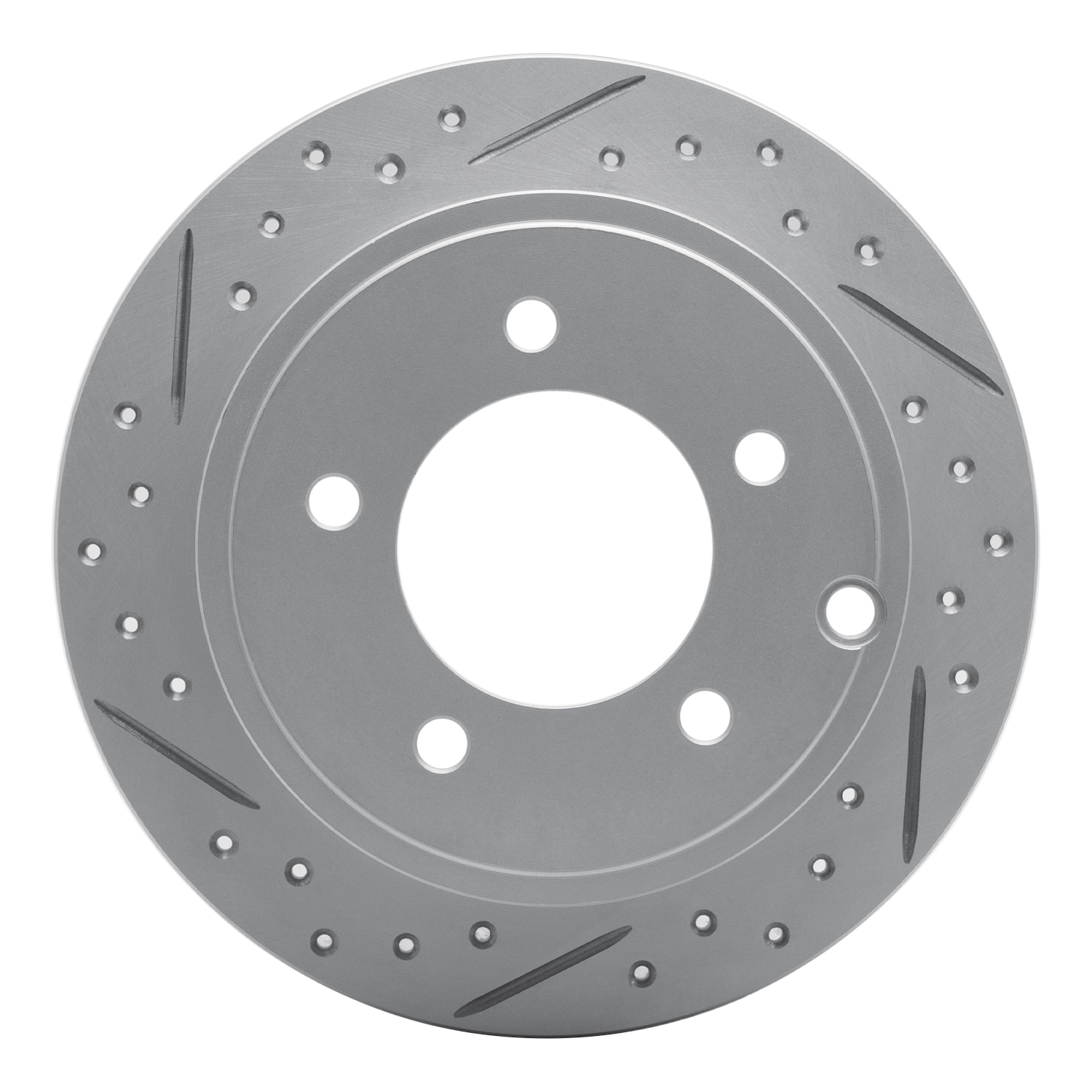

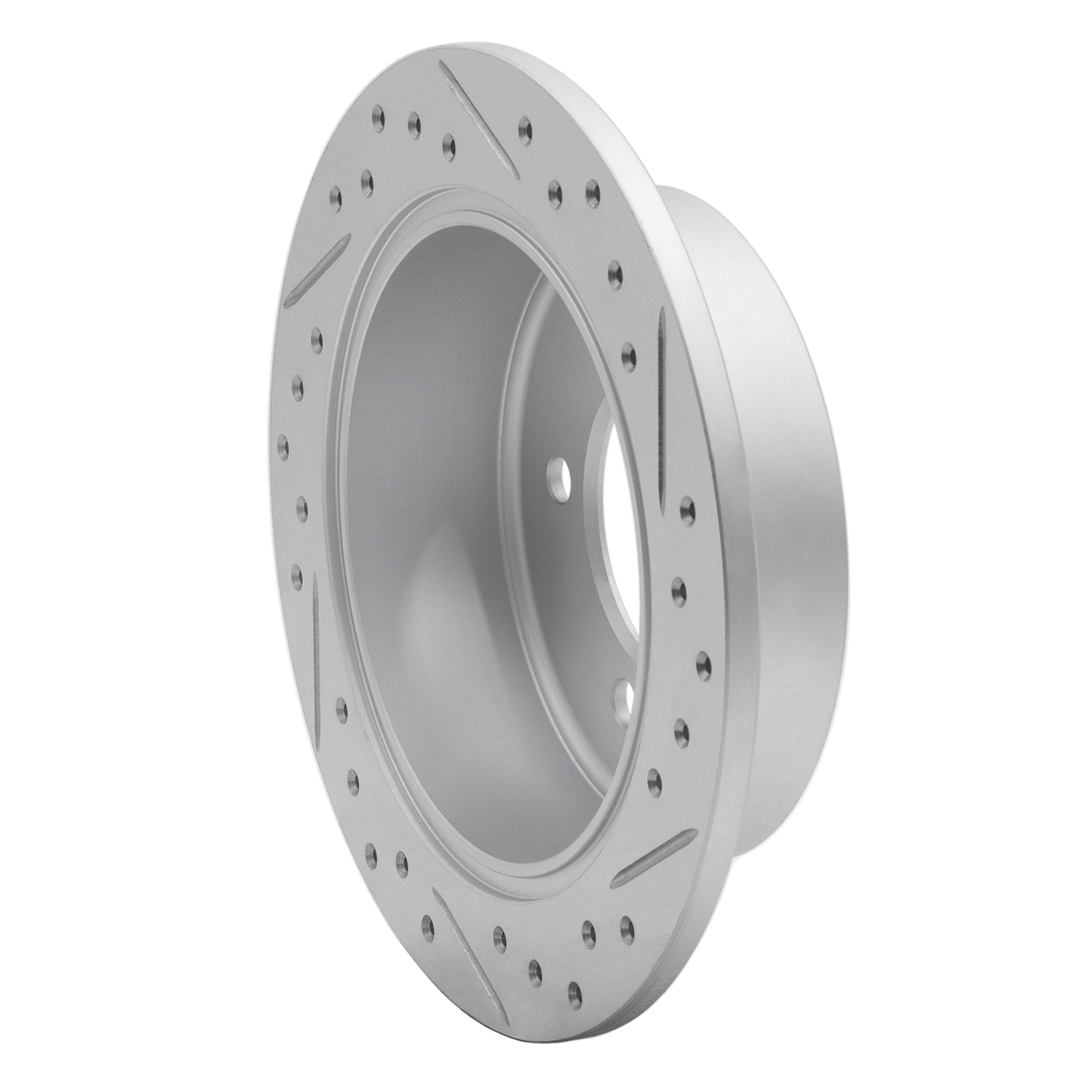

2007 Chrysler Sebring DFC Geoperformance Rotor - Drilled and Slotted

Part Type:
Disc Brake Rotor
SKU:
830-39022L
Axle:
Rear Left
Sub model:
Touring
Engine Base:
2.7L 2736cc 167ci V6
PCQ:
1
Note:

262mm Rear Disc

Description

  • DFC Geoperformance Rotor - Drilled and Slotted

Product Specifications

Description Value
Bolt Hole Quantity 5EA
Bolt Hole Diameter 12.6mm
Discard Thickness 8.4mm
Outside Diameter 262mm
Height 60.2mm
Rust Resistant Coating Yes
Hat Finish Geospec Silver Grey
Nominal Thickness 10mm
Surface Type Slotted X Drilled
Center Hole Diameter 80mm
Description Value
Overall Height 60.2mm
Disc Finish Plain
Solid Or Vented Type Rotor Solid
Bolt Circle Diameter 114.3mm
Stud/Lug Hole Quantity 5
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Diameter 12.6mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Stud/Lug Hole Circle Diameter 114.3mm
Weight 9.9LB
