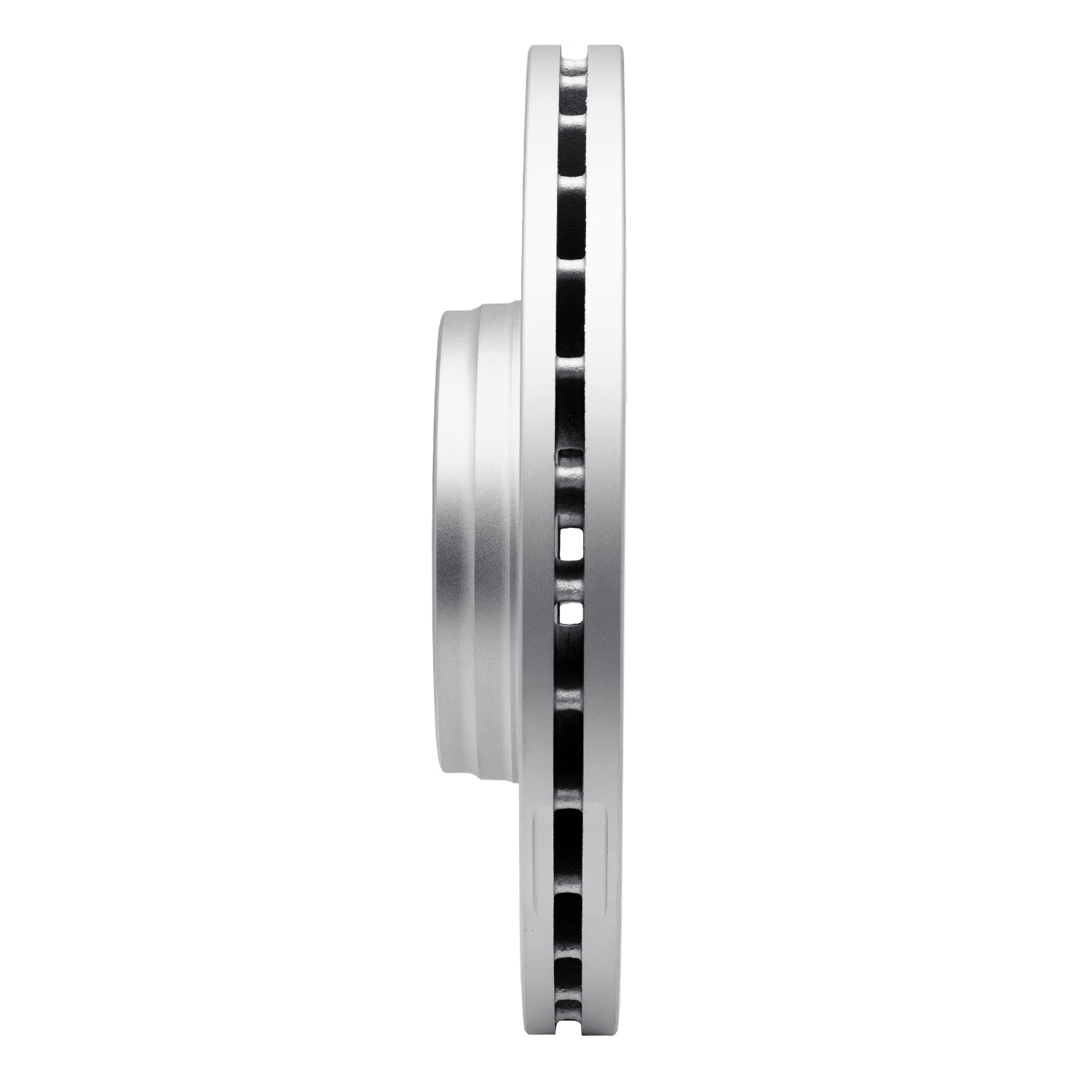

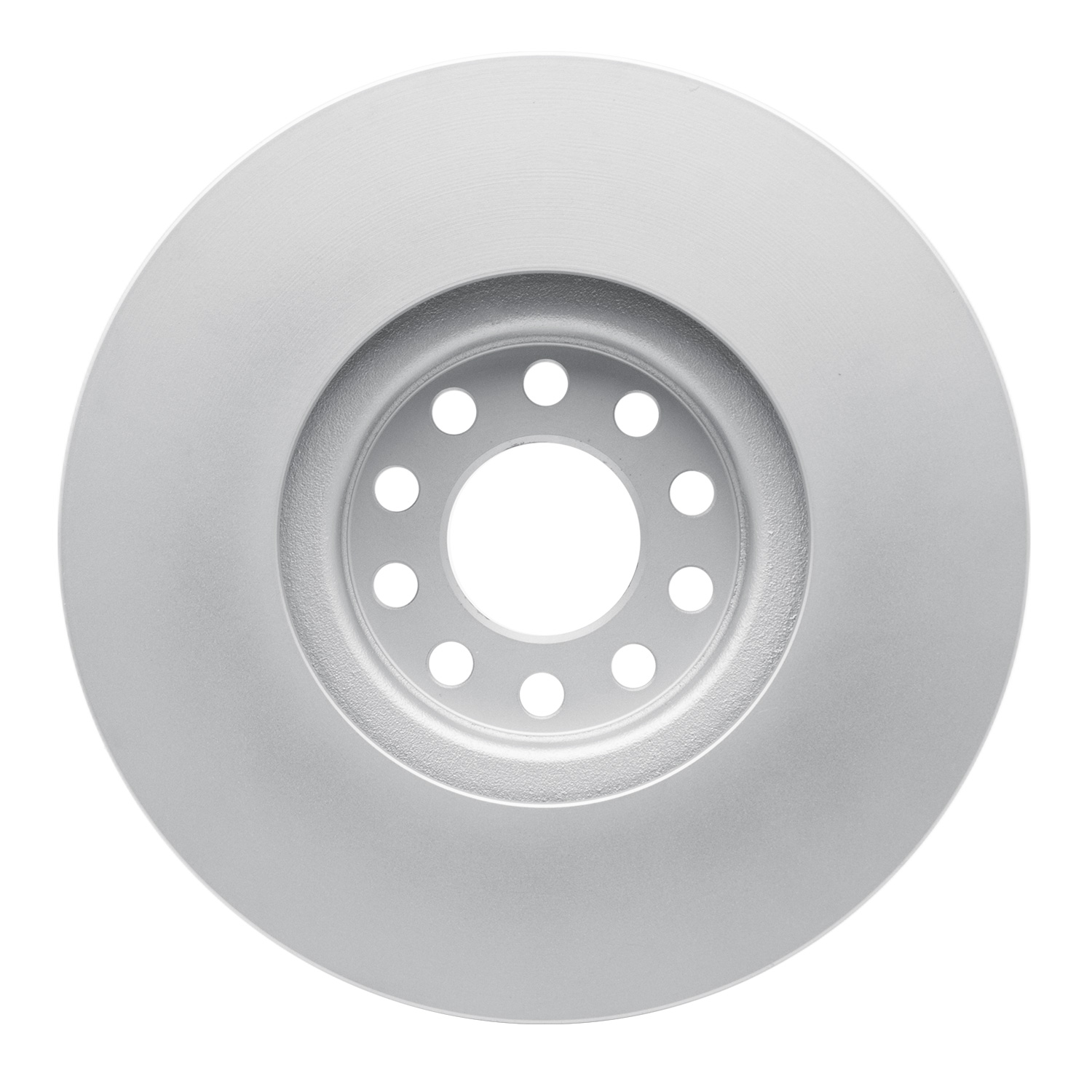

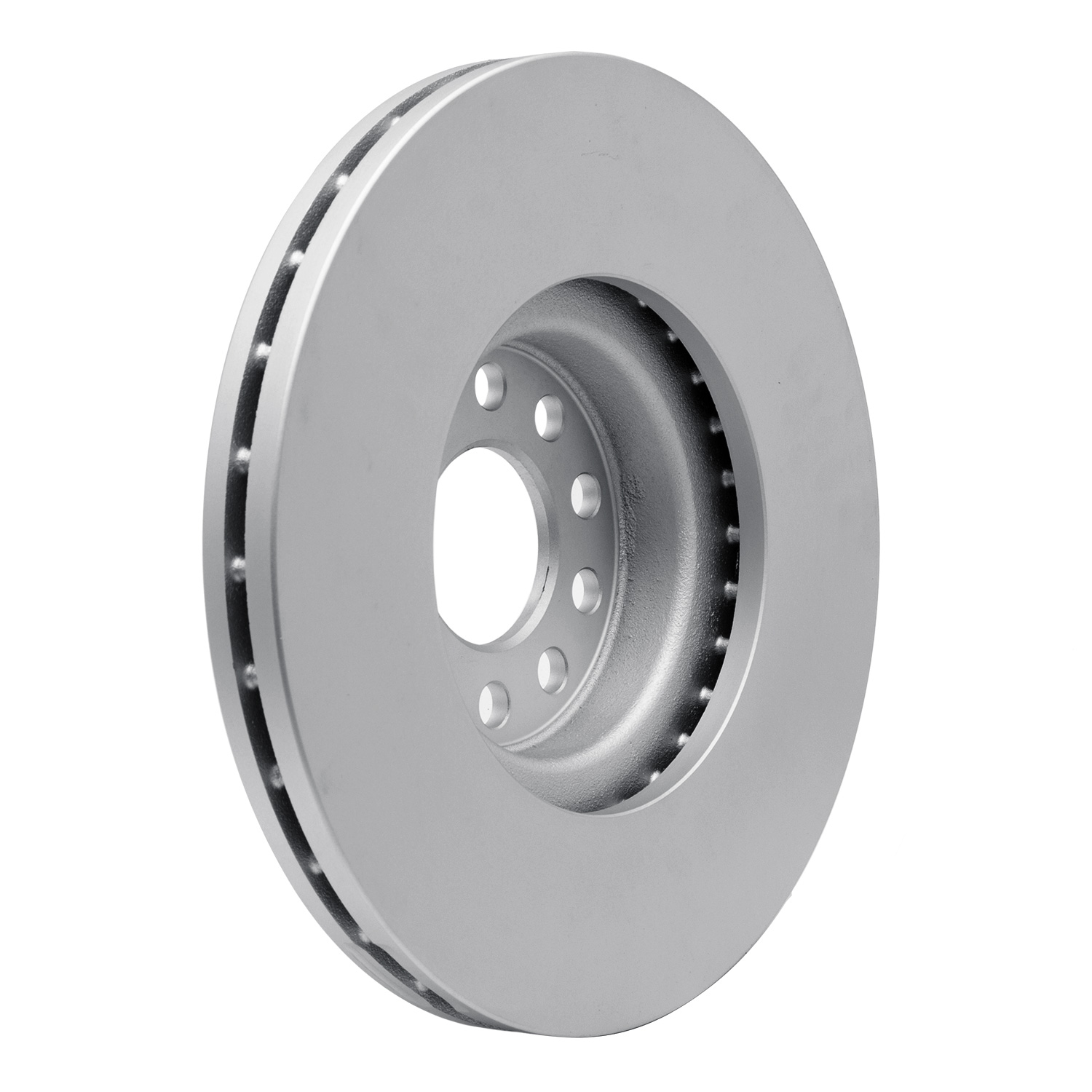

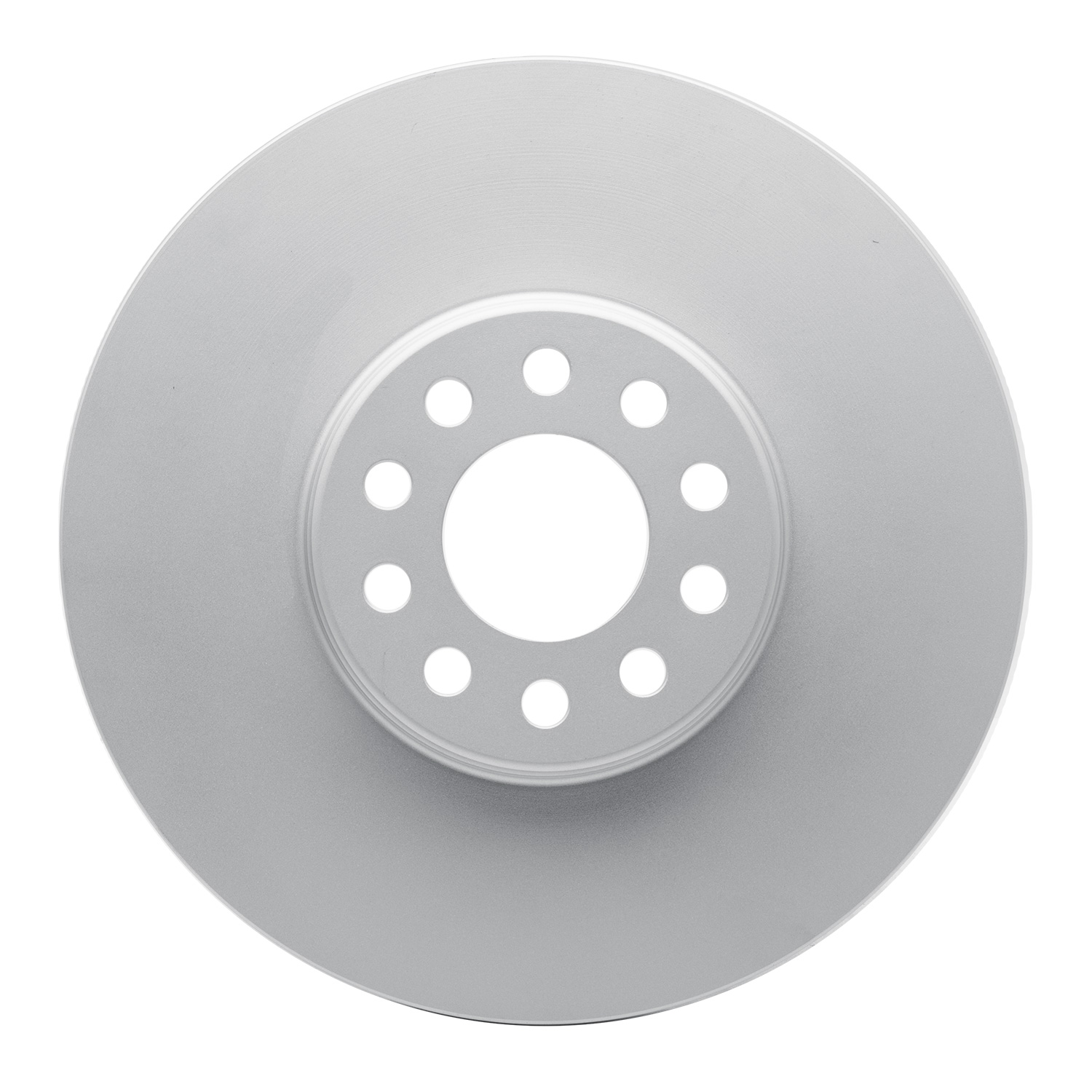

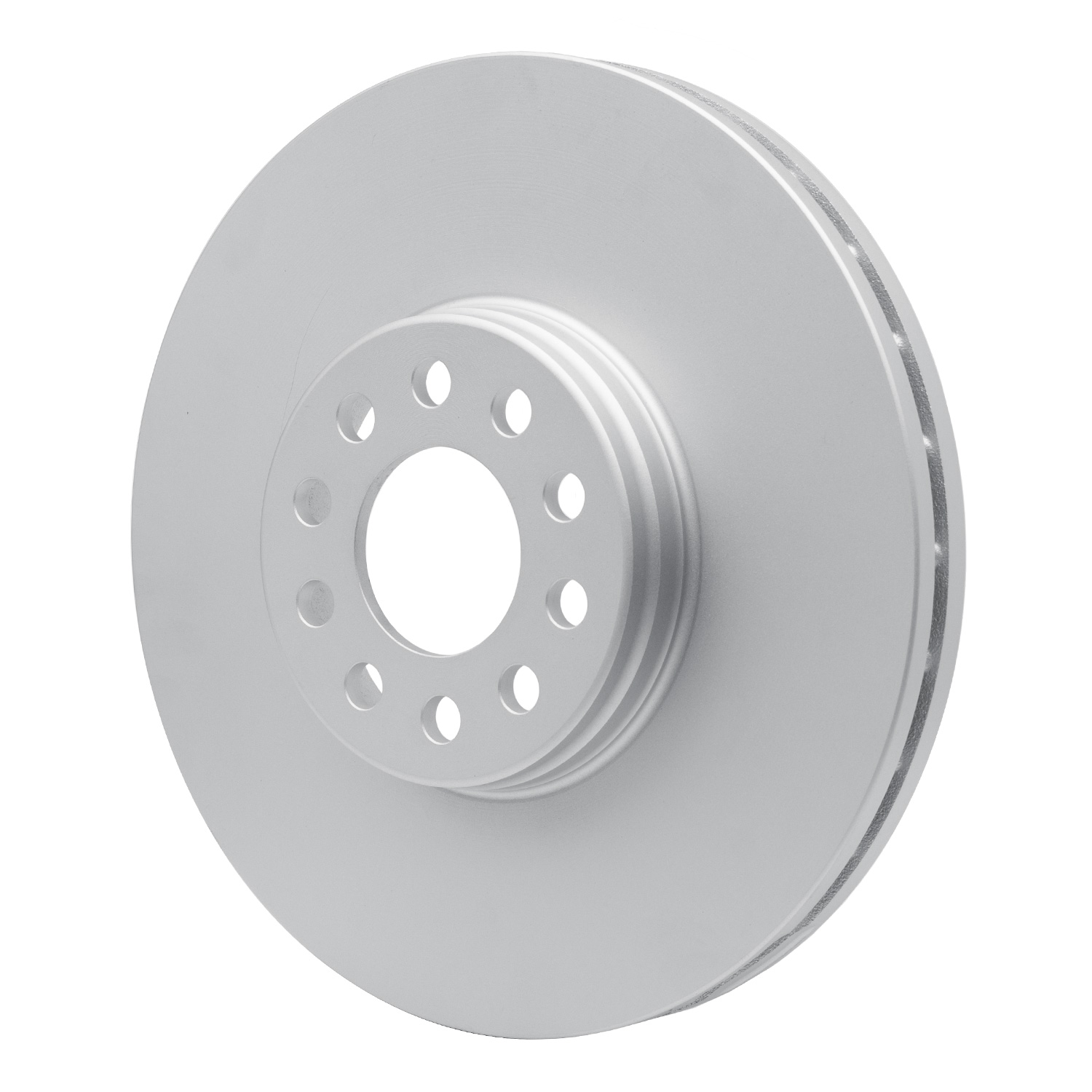

2006 Itasca Sunova DFC GEOSPEC Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
604-48087
Axle:
Front
Sub model:
26P, 29R, 30B, 33T
PCQ:
2
Note:

Workhorse W series Chassis

Description

  • Disc Brake Rotor - GEOSPEC Coated

Features and Benefits

  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Ready To Install - No Additional Pre-Degreasing Preparation Needed (Saves Time And Money During Installation Process)
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • CNC-Machined To The Tightest Tolerances
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Quality Tested To Ensure Long-Lasting Performance
  • Provides Superior Corrosion Protection Over Zinc / Conventional Painting

Product Specifications

Description Value
Nominal Thickness 30mm
Discard Thickness 27.75mm
Bolt Hole Quantity 10EA
Inside Diameter 67.1mm
Hat Finish GEOSPEC Silver Grey
Rust Resistant Coating Yes
Overall Height 58.6mm
Outside Diameter 322mm
Solid Or Vented Type Rotor Vented
Surface Type Smooth
Description Value
Stud/Lug Hole Diameter 14.9mm
Height 58.6mm
Stud/Lug Hole Circle Diameter 107.6mm
Stud/Lug Hole Quantity 10
Bolt Hole Diameter 14.9mm
Disc Finish Plain
Center Hole Diameter 67.1mm
Directional or Non-Directional Brake Surface Non-Directional
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 25.05LB
