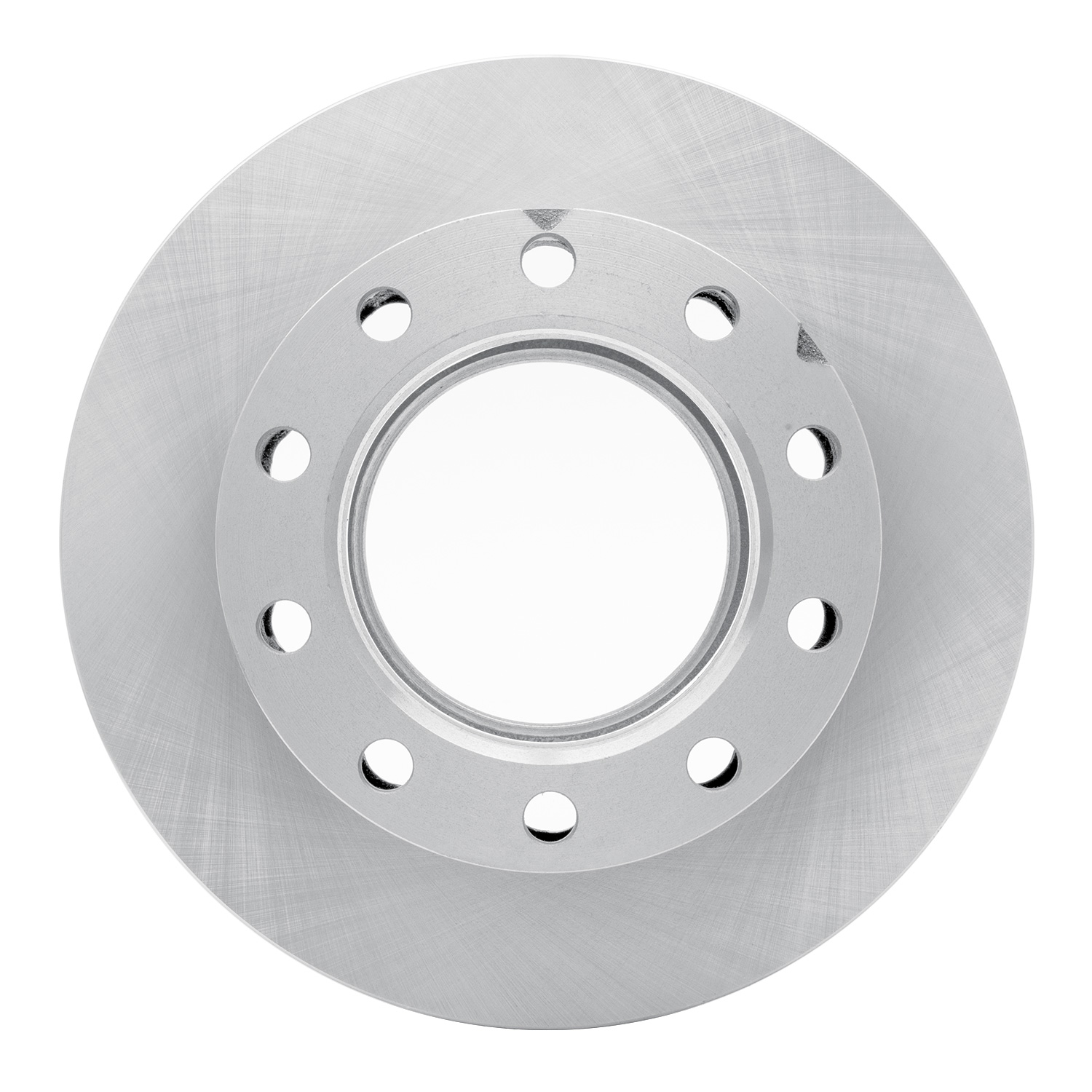

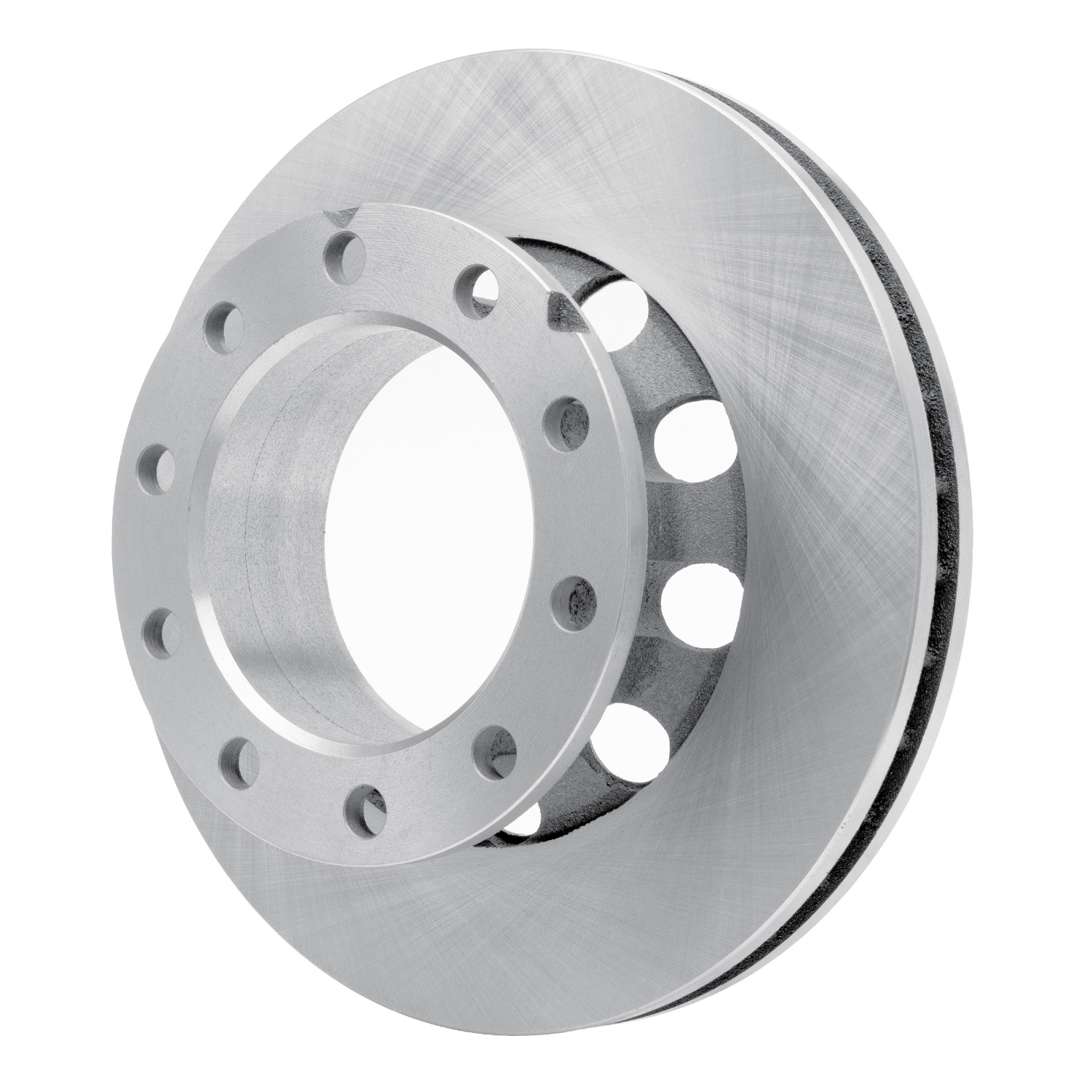

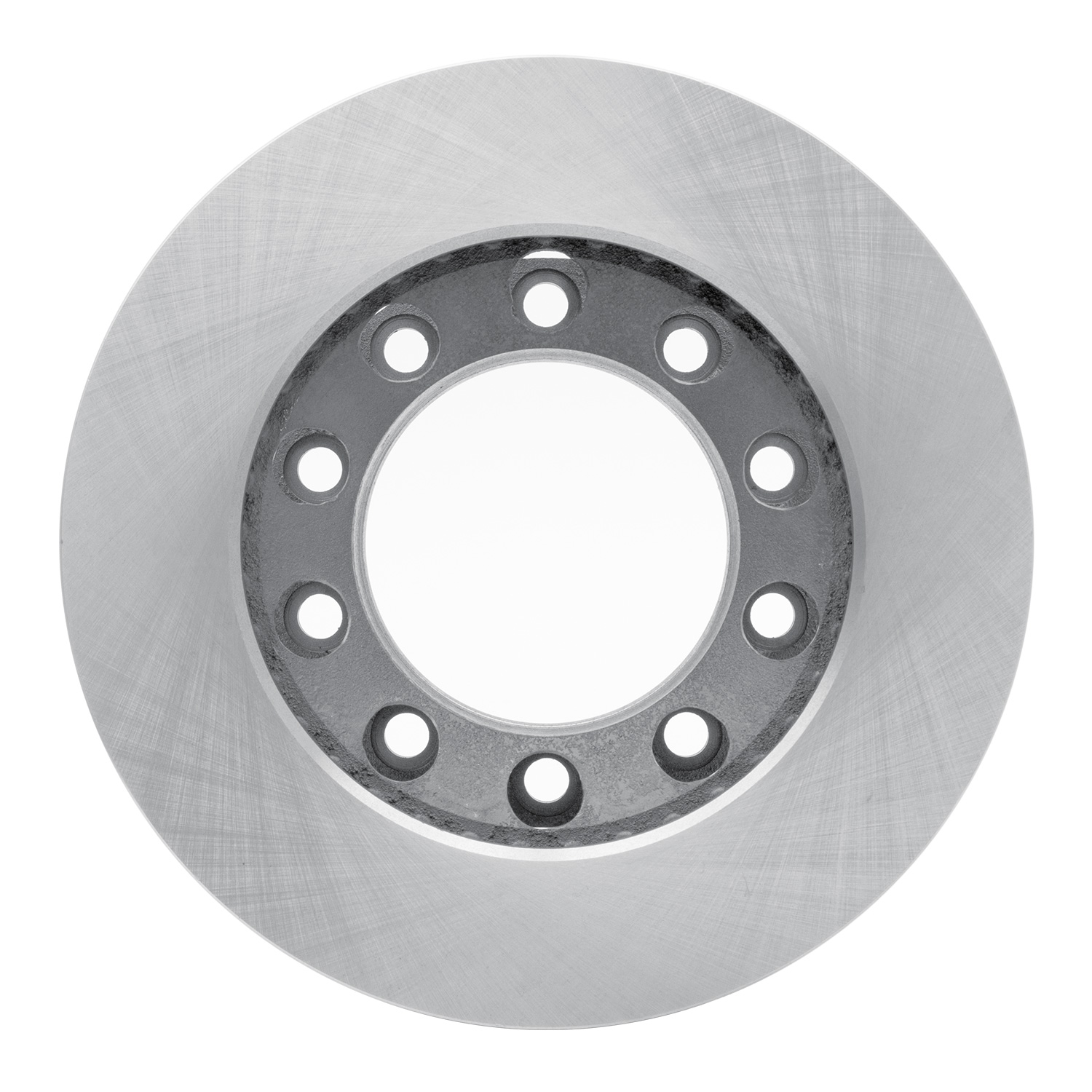

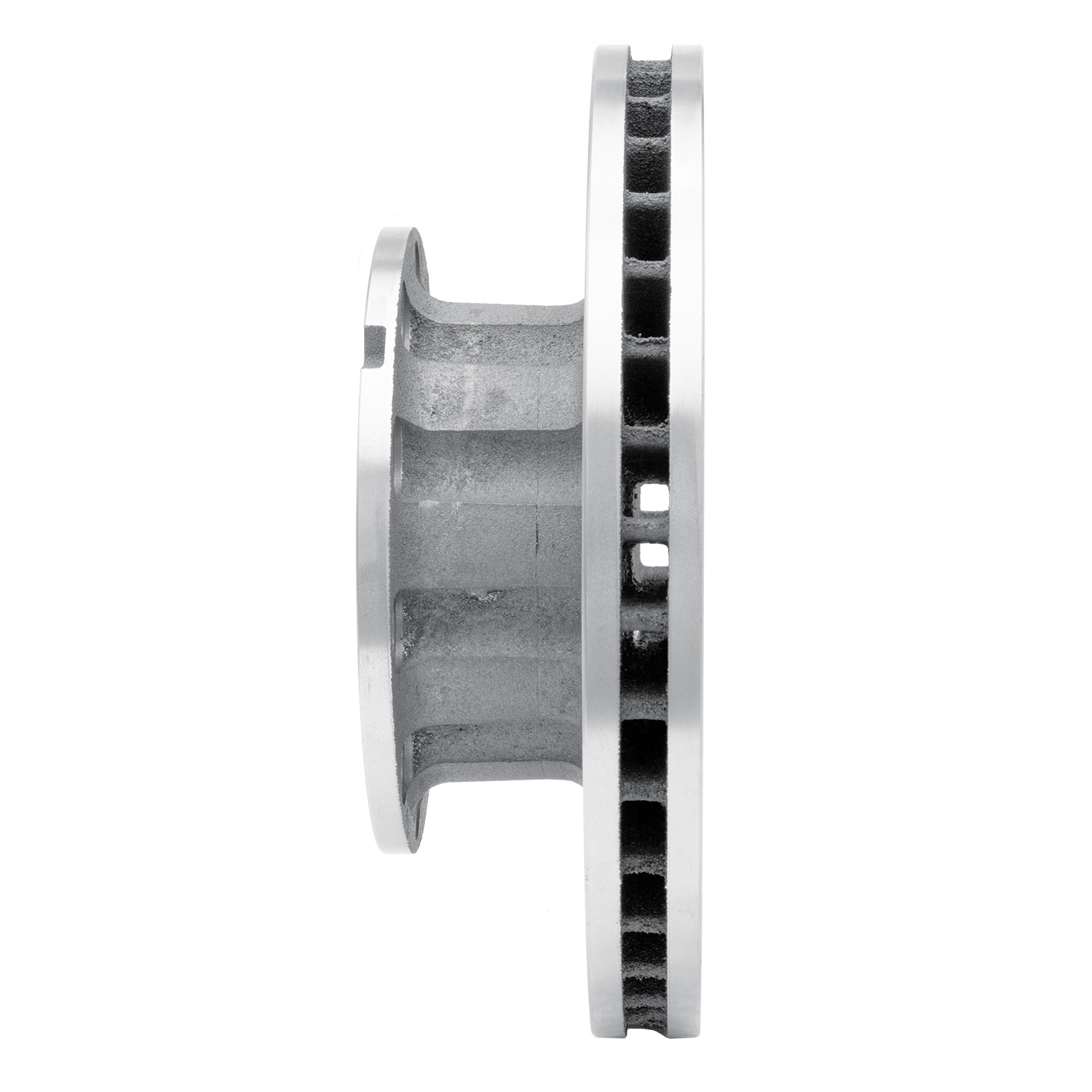

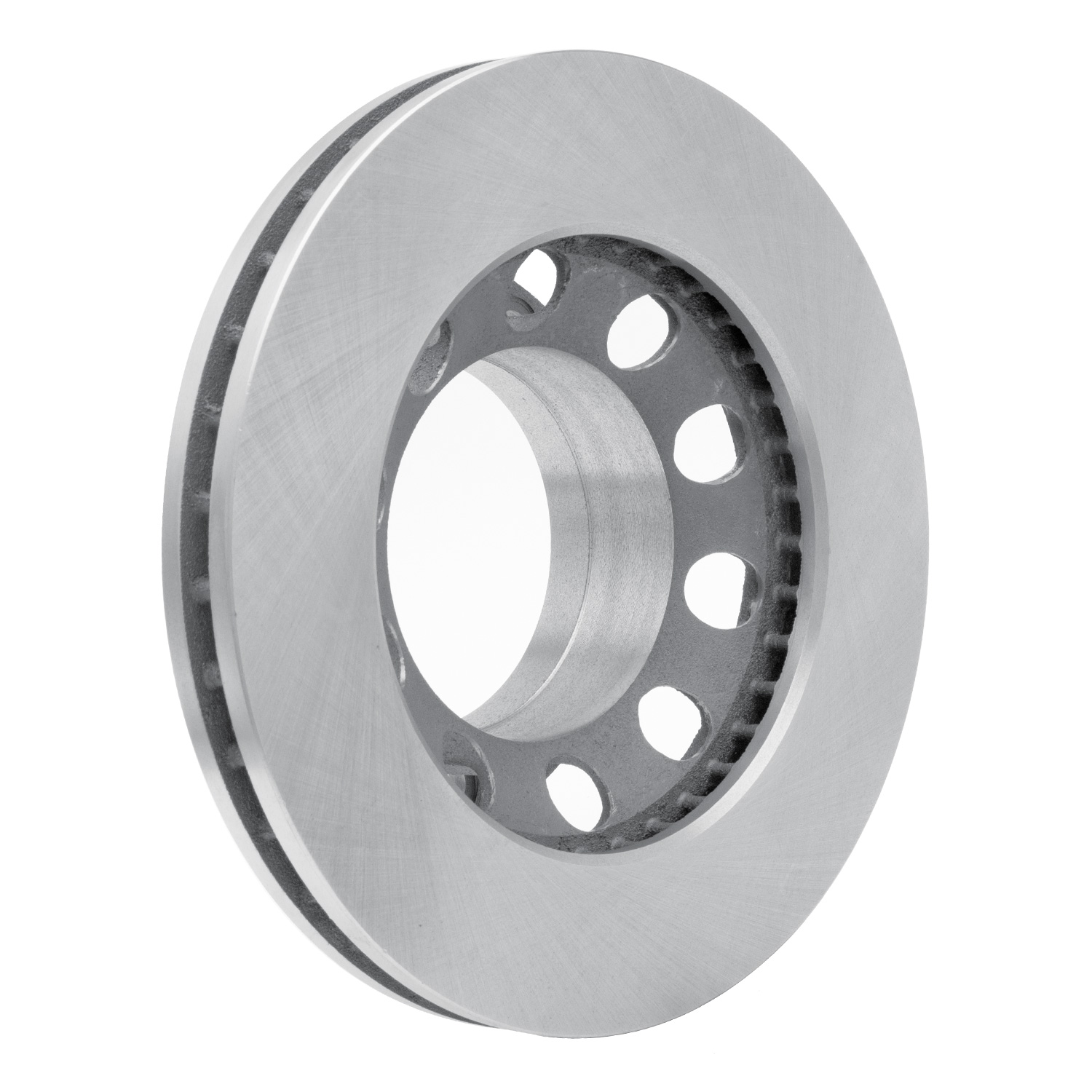

2004 Itasca Sunova DFC Brake Rotor

Part Type:
Disc Brake Rotor
SKU:
600-48028
Axle:
Rear
Sub model:
30B, 33L
PCQ:
2
Note:

Workhorse Chassis

Features and Benefits

  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • New In Box, Ready To Install, No Modifications Required
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • 100% Precision Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • CNC-Machined To The Tightest Tolerances
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Quality Tested To Ensure Long-Lasting Performance

Product Specifications

Description Value
Discard Thickness 34.7mm
Inside Diameter 139.8mm
Rust Resistant Coating Yes
Outside Diameter 345mm
Bolt Hole Diameter 17mm
Bolt Hole Quantity 10EA
Surface Type Smooth
Nominal Thickness 36.2mm
Hat Finish Rust Preventative
Height 110.9mm
Description Value
Stud/Lug Hole Quantity 10
Overall Height 110.9mm
Stud/Lug Hole Diameter 17mm
Disc Finish Plain
Stud/Lug Hole Circle Diameter 184.2mm
Solid Or Vented Type Rotor Vented
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Center Hole Diameter 139.8mm
Directional or Non-Directional Brake Surface Non-Directional
Weight 36.1LB
