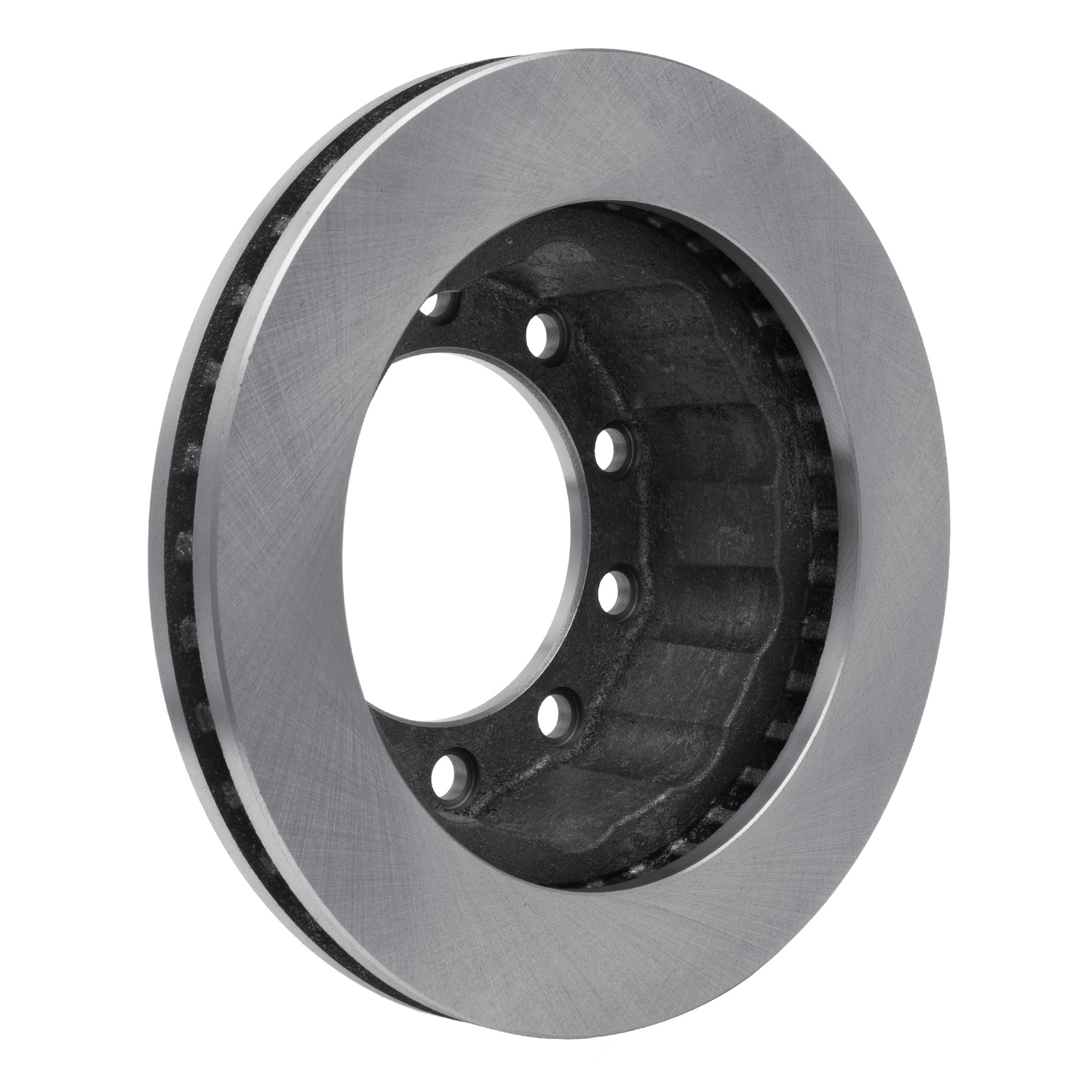

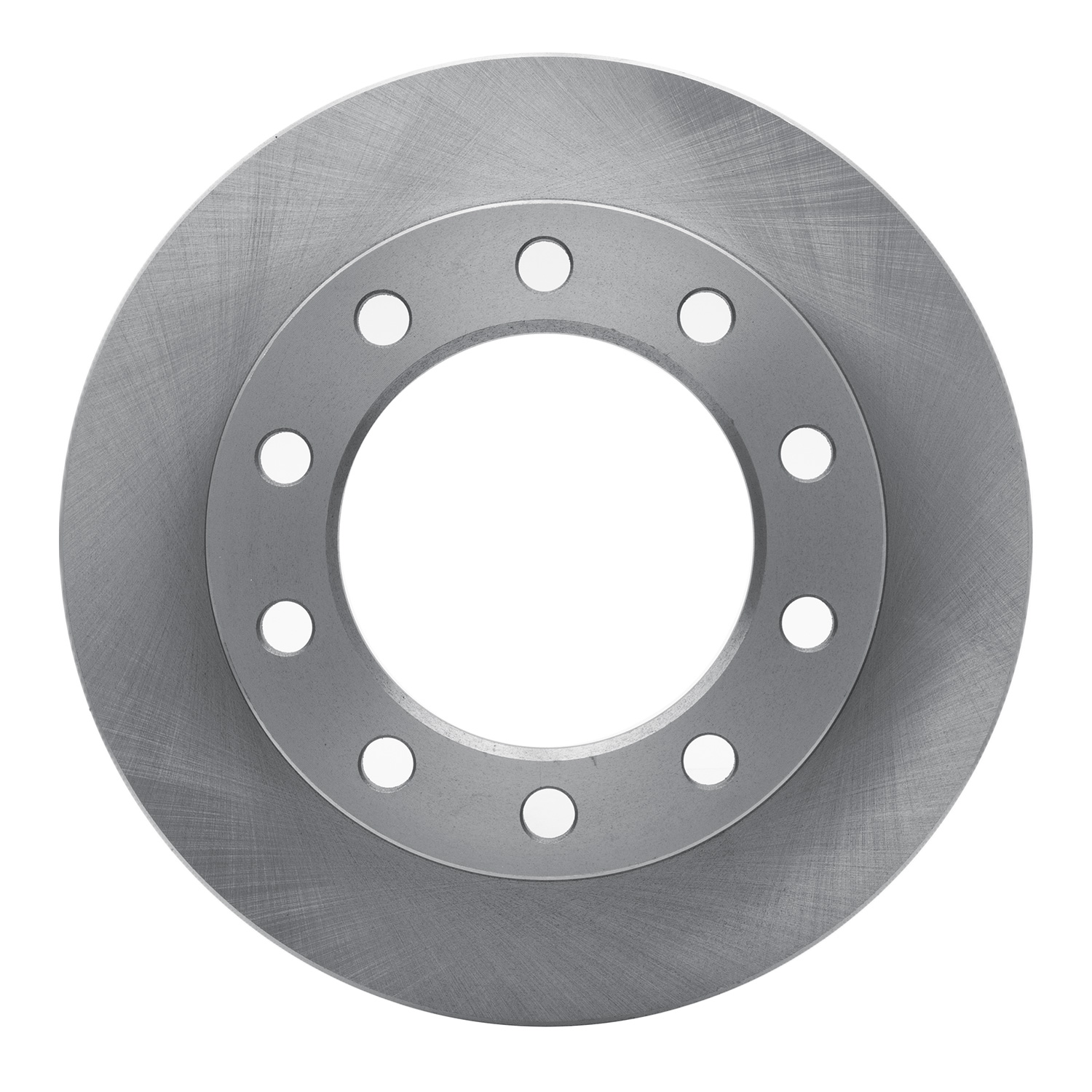

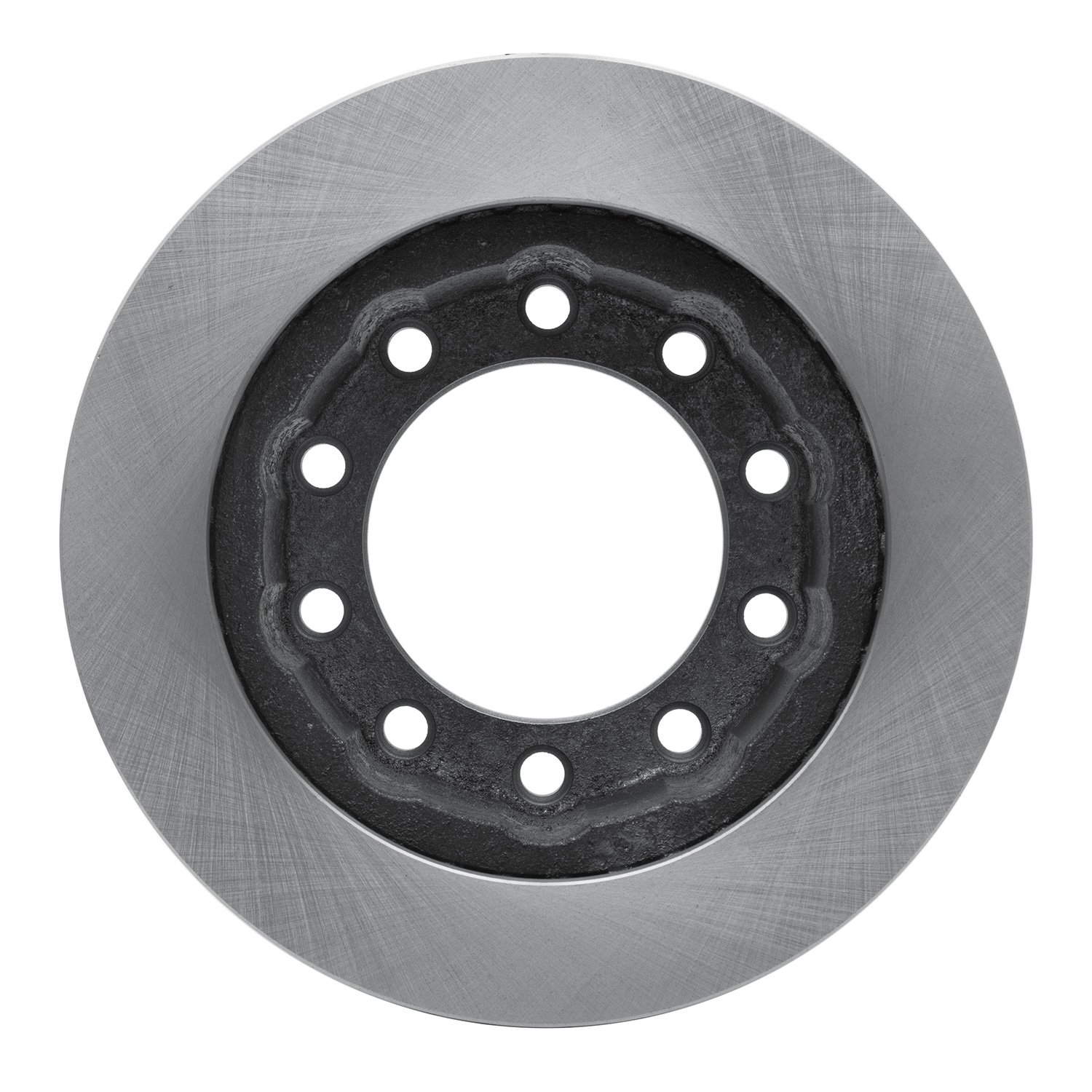

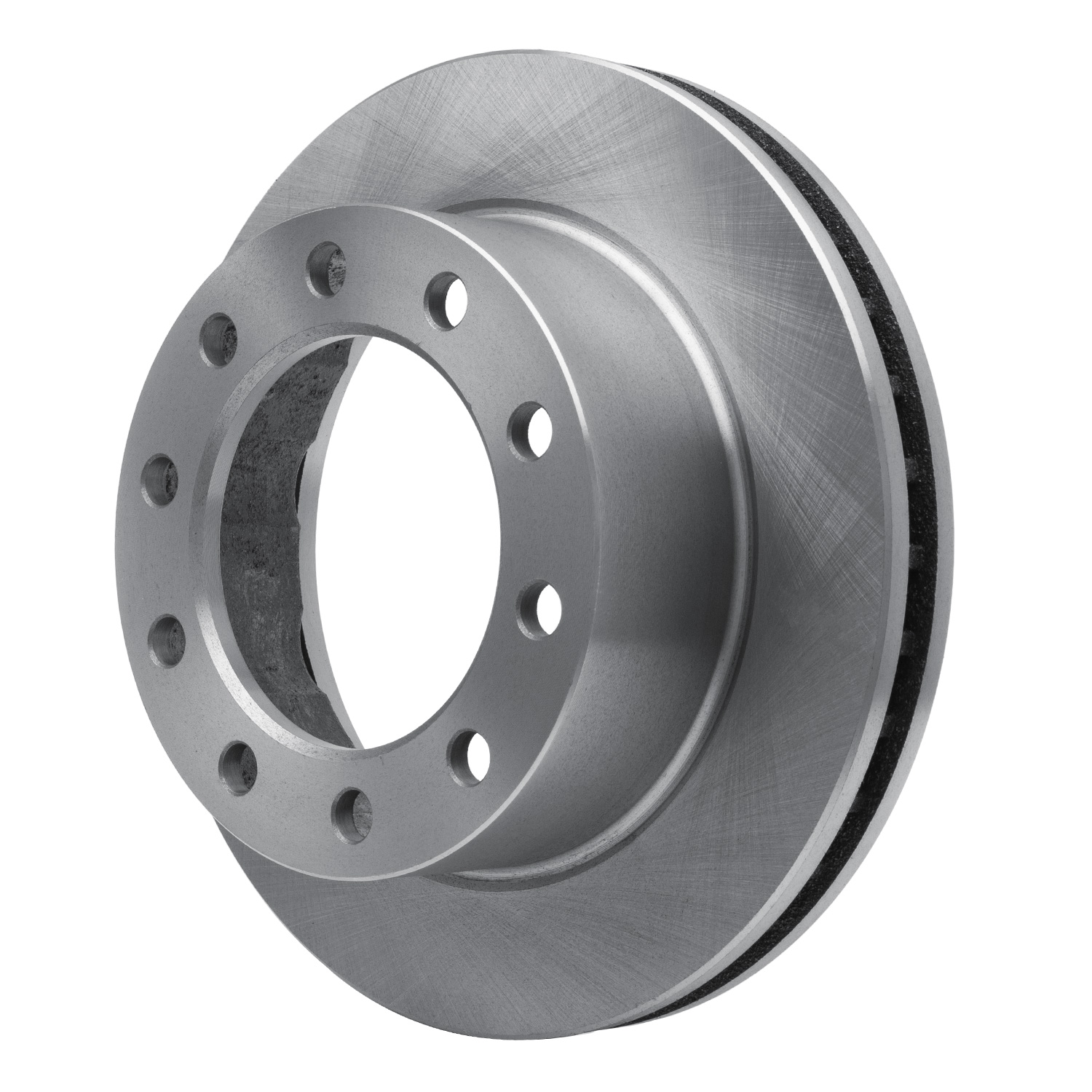

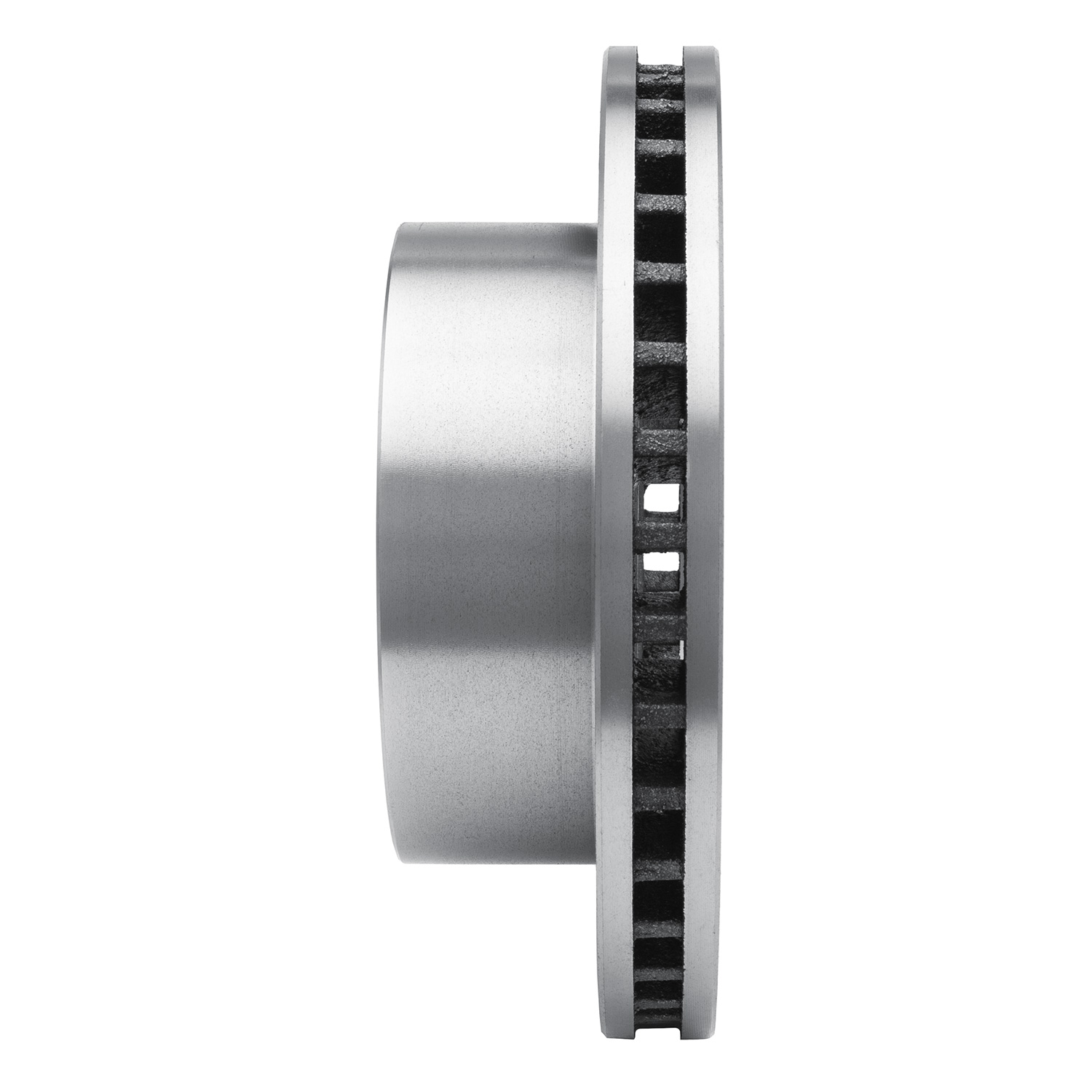

2004 Itasca Sunova DFC Brake Rotor

Part Type:
Disc Brake Rotor
SKU:
600-48017
Axle:
Front
Sub model:
30B, 33L, 35N
PCQ:
2
Note:

Workhorse Chassis; 10 Hole Disc

Features and Benefits

  • 100% Precision Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • New In Box, Ready To Install, No Modifications Required
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • CNC-Machined To The Tightest Tolerances
  • Quality Tested To Ensure Long-Lasting Performance
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors

Product Specifications

Description Value
Discard Thickness 37.21mm
Nominal Thickness 39mm
Overall Height 111.2mm
Inside Diameter 139.8mm
Bolt Hole Diameter 17mm
Rust Resistant Coating Yes
Solid Or Vented Type Rotor Vented
Bolt Hole Quantity 10EA
Hat Finish Rust Preventative
Surface Type Smooth
Description Value
Center Hole Diameter 139.8mm
Outside Diameter 350mm
Directional or Non-Directional Brake Surface Non-Directional
Stud/Lug Hole Quantity 10
Height 111.2mm
Stud/Lug Hole Diameter 17mm
Disc Finish Plain
Stud/Lug Hole Circle Diameter 184.1mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 34.6LB
